ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20
ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20

ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20

Price 32508.8 INR/ Piece

MOQ : 1 Piece

ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20 Specification

  • Overheating Protection
  • YES
  • Mounting Type
  • WALL MOUNT
  • IP Rating
  • 20
  • Connector Type
  • 1 RJ45 (on the remote graphic terminal) for Modbus serial
  • Power Rating
  • 5.5 KW
  • Product Type
  • Variable speed drive
  • Application
  • Fan, pump, compressor, conveyor
  • Protection Level
  • IP65
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Dimension (L*W*H)
  • 145 Millimeter (mm)
  • Weight
  • 4 Kilograms (kg)
  • Rated Voltage
  • 460 Volt (V)
  • Warranty
  • 1 YEAR
  • Phase
  • THREE PHASE
  • Input Voltage
  • 380 Volt (V)
  • Rated Current
  • 14 Ampere (amp)
  • Frequency
  • 60 Hertz (HZ)
  • Connection Type
  • Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 2.5...16 mm Motor, screw terminal: 2.5...16 mm


ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20 Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 35 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV610U55N4-variable speed drive, Easy Altivar 610, 5.5kW, 7.5hp, 380 to 460V, IP20


This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 5.5kW / 7.5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 4kW / 5hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 4.1kg and its dimensions are, 145mm wide, 297mm high, 203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Variable Speed Drive Category

ATV930U40N4Z-variable speed drive, Altivar Process ATV900, ATV930, 4kW, 380 to 480V, cabinet Integration, IP20

ATV930U40N4Z-variable speed drive, Altivar Process ATV900, ATV930, 4kW, 380 to 480V, cabinet Integration, IP20

Price 45969.0 INR / Piece

Minimum Order Quantity : 1 Piece

Application : Industrial Application

Weight : 11 Kilograms (kg)

Warranty : 1YEAR

Frequency (MHz) : 60 Hertz (HZ)

ATV340U30N4-variable speed drive, Altivar Machine ATV340, 3kW, heavy duty, 400V, 3 phases

ATV340U30N4-variable speed drive, Altivar Machine ATV340, 3kW, heavy duty, 400V, 3 phases

Price 32688.0 INR / Piece

Minimum Order Quantity : 1 Piece

Application : Machine

Weight : 2 Kilograms (kg)

Warranty : 1 YEAR

Frequency (MHz) : 60 Hertz (HZ)

ATV12H055M2-variable speed drive, Altivar 12, 0.55kW, 0.75hp, 200 to 240V, 1 phase, with heat sink

ATV12H055M2-variable speed drive, Altivar 12, 0.55kW, 0.75hp, 200 to 240V, 1 phase, with heat sink

Price 8691.87 INR / Piece

Minimum Order Quantity : 2 Pieces

Application : Simple machine

Weight : 0.8 Kilograms (kg)

Warranty : 1YEAR

Frequency (MHz) : 60 Hertz (HZ)

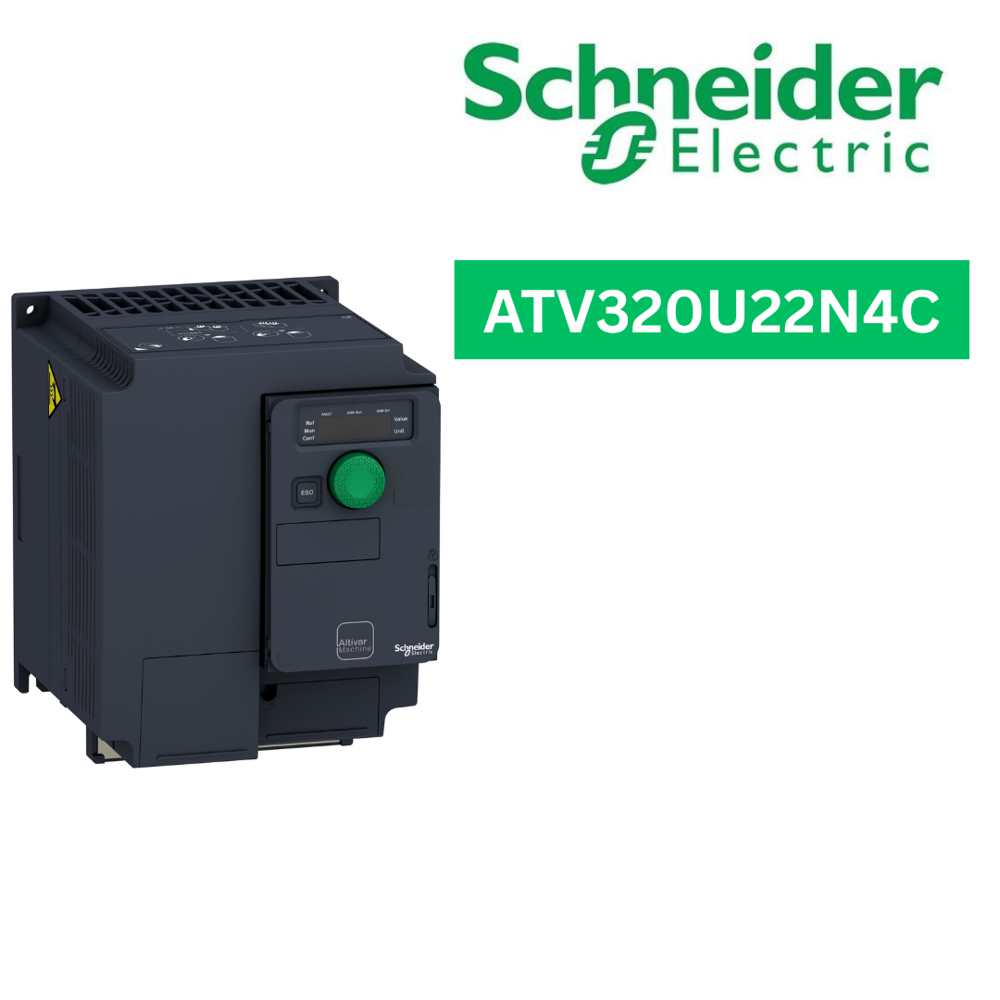

ATV320U22N4C-variable speed drive, Altivar Machine ATV320, 2.2kW, 380 to 500V, 3 phases, compact
