Product Video

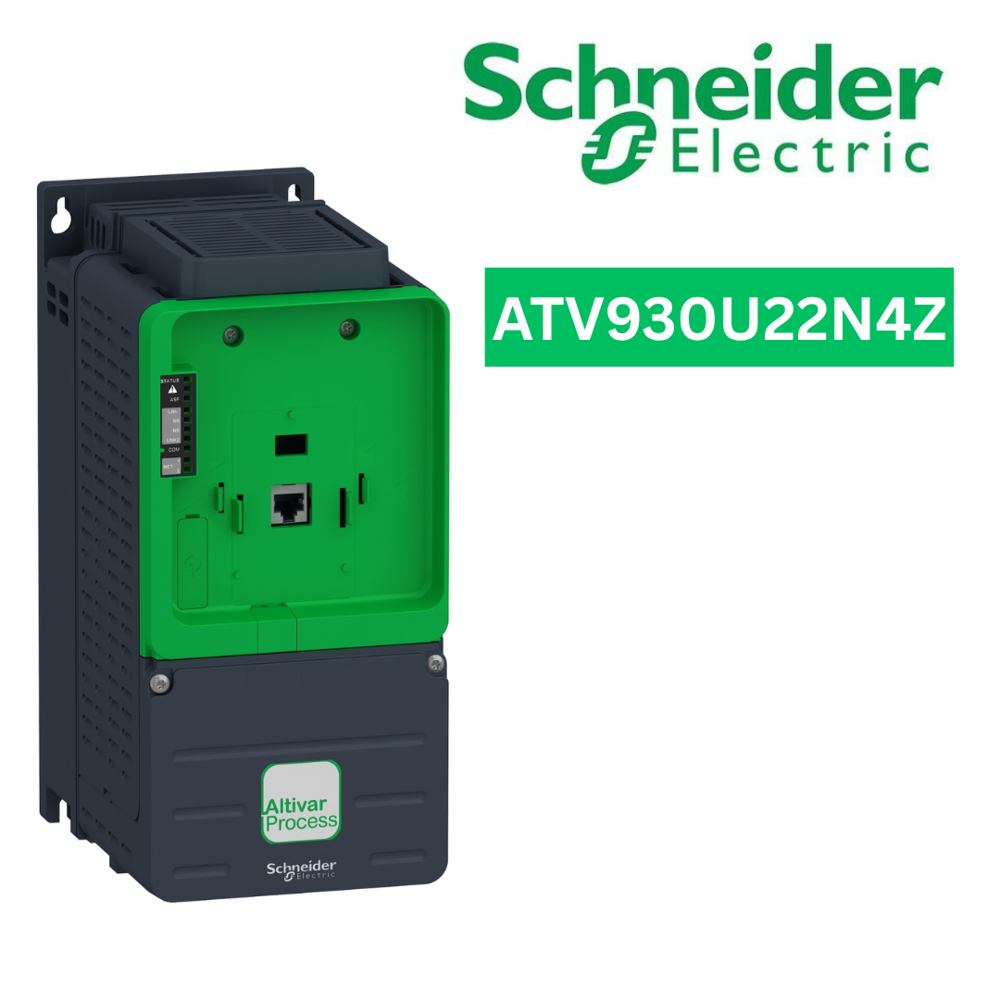

ATV930U22N4Z

44164.0 INR/Piece

Get a Price/Quote

Product Details:

Shape RECTANGLE
Warranty 1YEAR
Rated Current 5.6 Ampere (amp)
Overheating Protection YES
Frequency 60 Hertz (HZ)
Operating Temperature 60 Celsius (oC)
Connector Type 2 RJ45 1 RJ45
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ATV930U22N4Z Price And Quantity

Minimum Order Quantity 1 Piece
Price 44164.0 INR/Piece

ATV930U22N4Z Product Specifications

Connector Type 2 RJ45 1 RJ45
Connection Type Control: screw terminal 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 2.5...6 mm /AWG 14...AWG 10 Motor: screw terminal 2.5...6 mm /AWG 14...AWG 10 DC bus: screw terminal 2.5...6 mm /AWG 14...AWG 10
Rated Voltage 480 Volt (V)
Power Rating 2.2KW
Frequency (MHz) 60 Hertz (HZ)
Product Type Variable speed drive
Weight 5 Kilograms (kg)
IP Rating IP20
Protection Level Other
Color BLACK -GREEN
Operating Temperature 60 Celsius (oC)
Output Type Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits
Phase 3 PHASE
Rated Current 5.6 Ampere (amp)
Application Process for industrial
Warranty 1YEAR
Shape RECTANGLE
Frequency 60 Hertz (HZ)
Overheating Protection YES
Mounting Type Cabinet mount
Input Voltage 24 Volt (V)

ATV930U22N4Z Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 40 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 380 to 480V, cabinet Integration, IP20 variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 380 to 480V, cabinet Integration, IP20 variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 380 to 480V, cabinet Integration, IP20 variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 380 to 480V, cabinet Integration, IP20

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

Variable Speed Drive -ATV340D45N4E Price : 157986.88 INR/Piece Minimum Order Quantity : 1 Warranty : 1YEAR Rated Current : 88 Ampere (amp) Phase : THREE PHASE Frequency : 60 Hertz (HZ) IP Rating : IP20 Power Rating : 45KW Weight : 56.4 Kilograms (kg) Rated Voltage : 480 Volt (V) Application : Machine Product Type : Variable speed drive Mounting Type : WALL MOUNT Overheating Protection : YES Operating Temperature : 60 Celsius (oC) Connector Type : 3 RJ45 Connection Type : Control: screw terminal 0.75...1.5 mm /AWG 18...AWG 16 Line side: screw terminal 70...120 mm /AWG 1/0...250 kcmil DC bus: screw terminal 70...120 mm /AWG 1/0...250 kcmil Motor: screw terminal 70...120 mm /AWG 1/0...250 kcmil Color : BLACK Shape : RECTANGLE Output Type : Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits

Send Inquiry

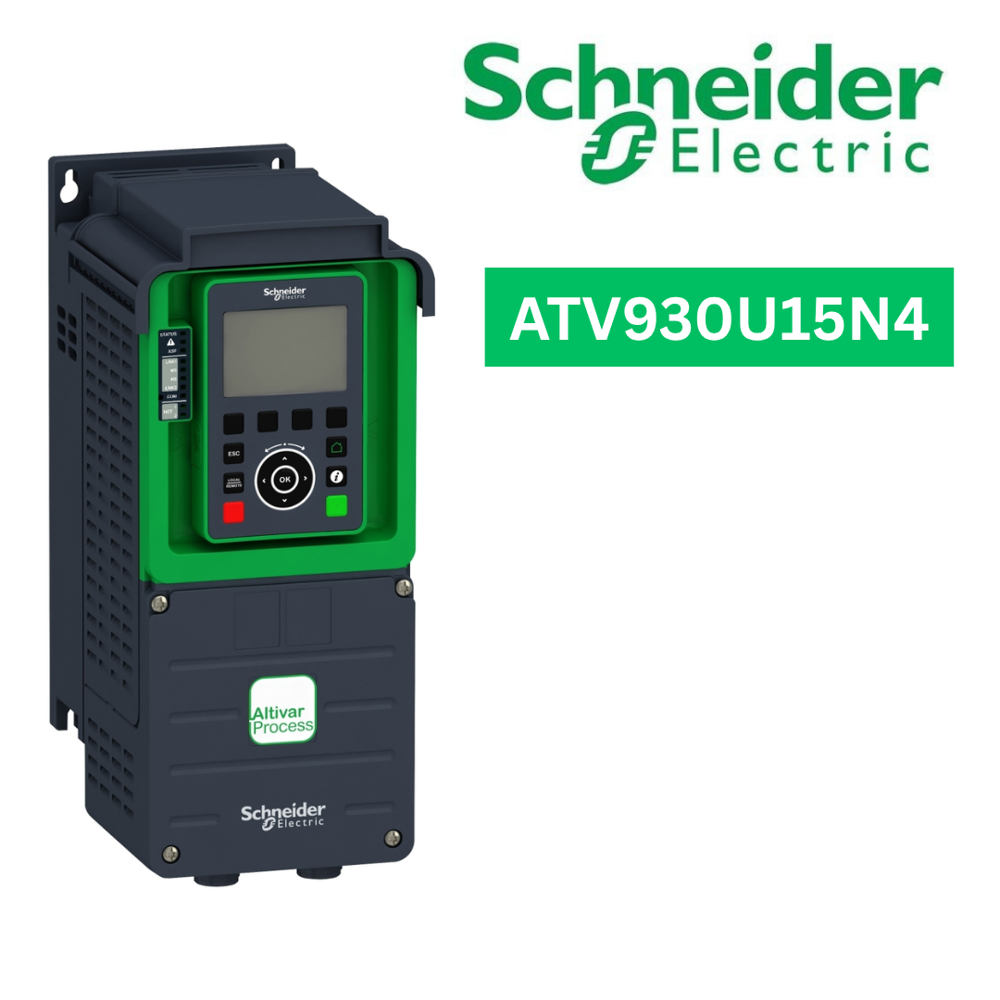

Variable Speed Drive -ATV930U15N4 Price : 47547.0 INR/Piece Minimum Order Quantity : 1 Warranty : 1YEAR Rated Current : 4 Ampere (amp) Phase : 3 PHASE Frequency : 60 Hertz (HZ) IP Rating : IP21 Power Rating : 1.5KW Weight : 9.9 Kilograms (kg) Rated Voltage : 480 Volt (V) Application : Process for industrial Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Mounting Type : Wall mount Operating Temperature : 60 Celsius (oC) Connector Type : 2 RJ45 1 RJ45 Connection Type : Control screw terminal 0.5...1.5 mm AWG 20...AWG 16 Line side screw terminal 2.5...6 mm AWG 14...AWG 10 Motor screw terminal 2.5...6 mm AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm AWG 14...AWG 10 Color : BLACK Shape : RECTANGLE Output Type : Softwareconfigurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Softwareconfigurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Send Inquiry

Variable Speed Drive -ATV310HD15N4E Price : 39815.0 INR/Piece Minimum Order Quantity : 13 Warranty : 1YEAR Rated Current : 46 Ampere (amp) Phase : THREE PHASE Frequency : 60 Hertz (HZ) IP Rating : IP20 Power Rating : 18KW Weight : 6.3 Kilograms (kg) Rated Voltage : 460 Volt (V) Application : Simple machine Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Overheating Protection : YES Operating Temperature : 70 Celsius (oC) Connector Type : RJ45 (on front face) for Modbus Connection Type : Terminal, clamping capacity: 16...25 mm , AWG 4...AWG 3 (L1, L2, L3, PA/+, PB, U, V, W) Color : BLACK

Send Inquiry

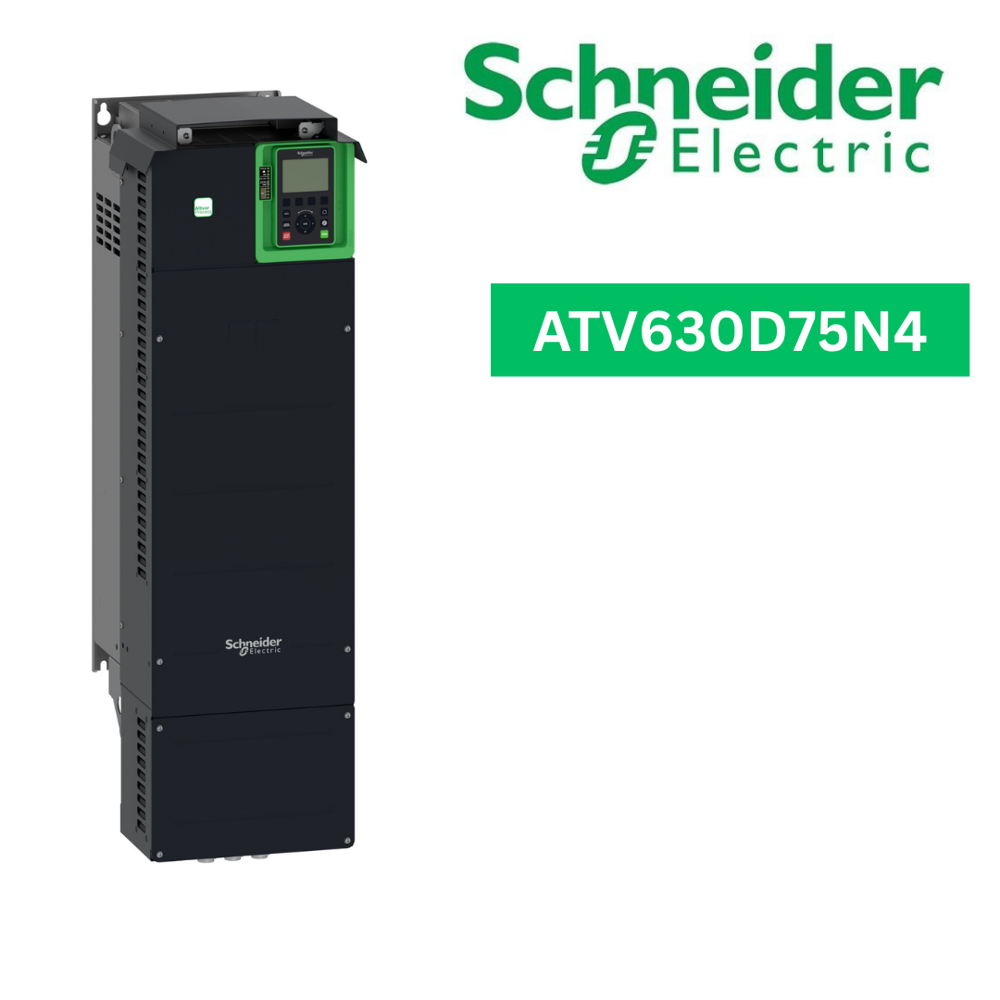

Variable Speed Drive -ATV630D75N4 Price : 175105.0 INR/Piece Minimum Order Quantity : 1 Warranty : 1 YEAR Rated Current : 145 Ampere (amp) Phase : THREE PHASE Frequency : 60 Hertz (HZ) IP Rating : 21 Power Rating : 75 KW Weight : 58 Kilograms (kg) Rated Voltage : 480 Volt (V) Application : Process and utilities Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Mounting Type : WALL MOUNT Connector Type : RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial Connection Type : Control: removable screw terminals 0.5...1.5 mm /AWG 20...AWG 16 Motor: screw terminal 95...120 mm /AWG 3/0...250 kcmil Line side: screw terminal 95...120 mm /AWG 3/0...250 kcmil

Send Inquiry
