Auxiliary Contact Block-A9N26924

623.2 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Rated Current 6A Ampere (amp)
Warranty 1 YEAR
Rated Voltage 24V Volt (V)
Operating Temperature -25 50 C Celsius (oC)
Overheating Protection YES
Mounting Type Fixed
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Auxiliary Contact Block-A9N26924 Price And Quantity

Price 623.2 INR/Piece
Minimum Order Quantity 1 Piece

Auxiliary Contact Block-A9N26924 Product Specifications

Connection Type Screw clamp terminal (bottom) 2 cable(s) 1.5 mm - flexible Screw clamp terminal (bottom) 1 cable(s) 0.5 2.5 mm - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm - flexible with ferrule
Warranty 1 YEAR
Weight 30 g Grams (g)
Color white
Rated Current 6A Ampere (amp)
IP Rating IP20
Product Type OC contact
Frequency (MHz) 50Hz or 60Hz Hertz (HZ)
Rated Voltage 24V Volt (V)
Input Voltage 24V Volt (V)
Mounting Type Fixed
Overheating Protection YES
Operating Temperature -25 50 C Celsius (oC)
Dimension (L*W*H) The dimensions are (W) 9mm x (H) 85.3mm x (D) 73.5mm. Product weight is 30g. Millimeter (mm)

Auxiliary Contact Block-A9N26924 Trade Information

Payment Terms Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40 products. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85.3mm x (D) 73.5mm. Product weight is 30g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25C to +50C. The storage temperature is -40C to +85C. This product complies with EN/IEC 60947-5-1 standard.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Auxiliary Contact Block' category

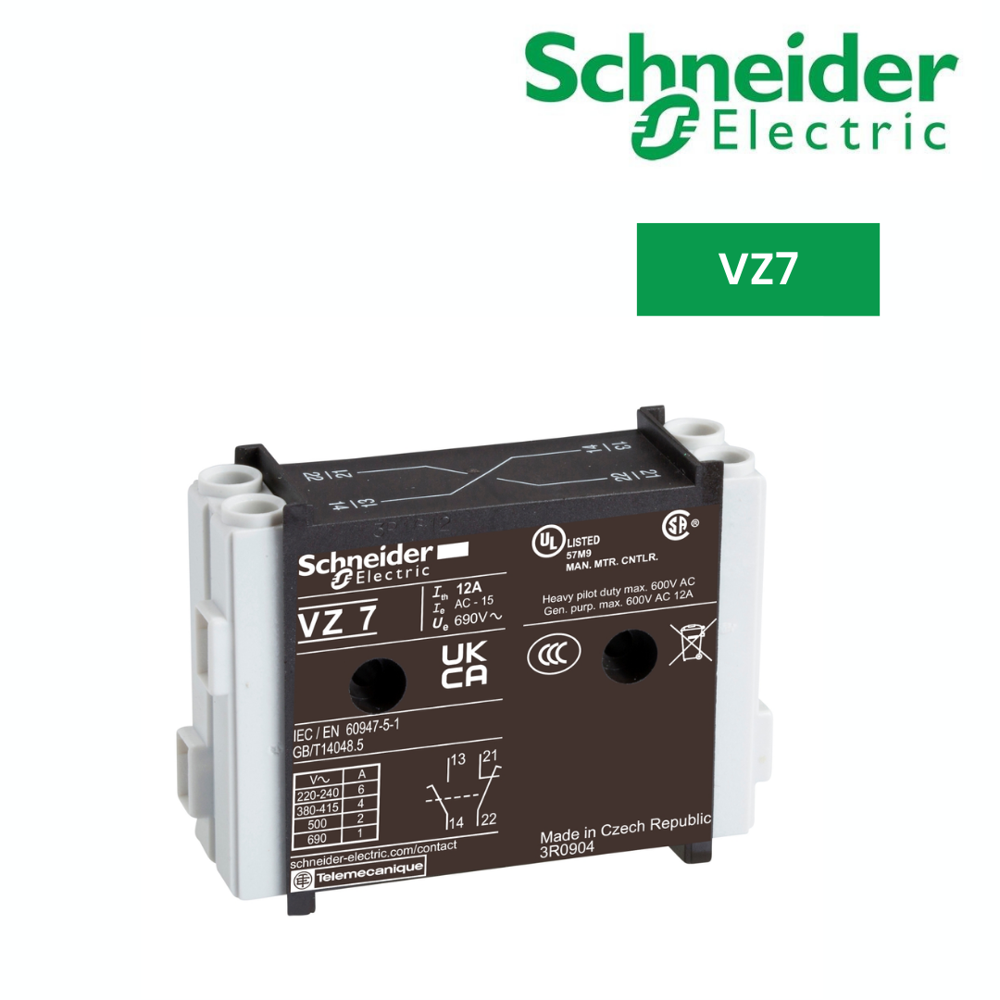

Auxiliary Contact Block-VZ7 Price : 932.25 INR/Piece Minimum Order Quantity : 4 Frequency (MHz) : 50/60 Hz Hertz (HZ) Rated Voltage : 690 V AC 50/60 Hz Volt (V) Frequency : 50/60 Hz Hertz (HZ) Mounting Type : Left Right Overheating Protection : YES Operating Temperature : 20 50 C Celsius (oC) Input Voltage : 690 V AC 50/60 Hz Volt (V) Product Type : Auxiliary contact block Rated Current : 12 A Ampere (amp) IP Rating : IP20 Warranty : 1 YEAR Weight : 0.05 kg Kilograms (kg) Connection Type : Screw clamp terminals 2 cable(s) 0.75 1.5 mm flexible with cable end Screw clamp terminals 2 cable(s) 1 2.5 mm solid
