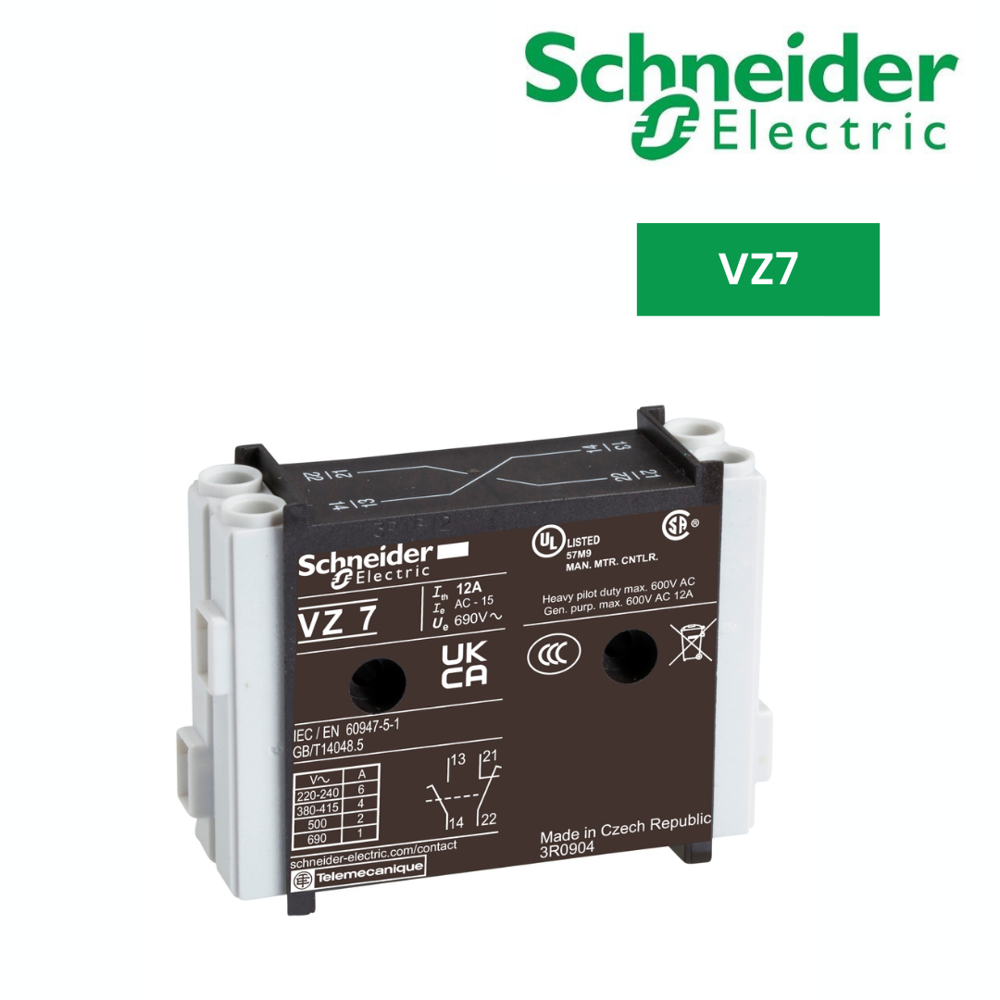

Auxiliary Contact Block-VZ7

932.25 INR/Piece

Get a Price/Quote

Product Details:

Overheating Protection YES
Operating Temperature -20 50 C Celsius (oC)
Rated Current 12 A Ampere (amp)
IP Rating IP20
Connector Type Screw clamp terminals 2 cable(s) 0.75 1.5 mm - flexible - with cable end Screw clamp terminals 2 cable(s) 1 2.5 mm - solid
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Mounting Type Left Right
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Auxiliary Contact Block-VZ7 Price And Quantity

Price 932.25 INR/Piece
Minimum Order Quantity 4 Piece

Auxiliary Contact Block-VZ7 Product Specifications

IP Rating IP20
Rated Current 12 A Ampere (amp)
Product Type Auxiliary contact block
Operating Temperature -20 50 C Celsius (oC)
Overheating Protection YES
Connector Type Screw clamp terminals 2 cable(s) 0.75 1.5 mm - flexible - with cable end Screw clamp terminals 2 cable(s) 1 2.5 mm - solid
Input Voltage 690 V AC 50/60 Hz Volt (V)
Mounting Type Left Right
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Connection Type Screw clamp terminals 2 cable(s) 0.75 1.5 mm - flexible - with cable end Screw clamp terminals 2 cable(s) 1 2.5 mm - solid
Weight 0.05 kg Kilograms (kg)
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR

Auxiliary Contact Block-VZ7 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Auxiliary Contact Block' category

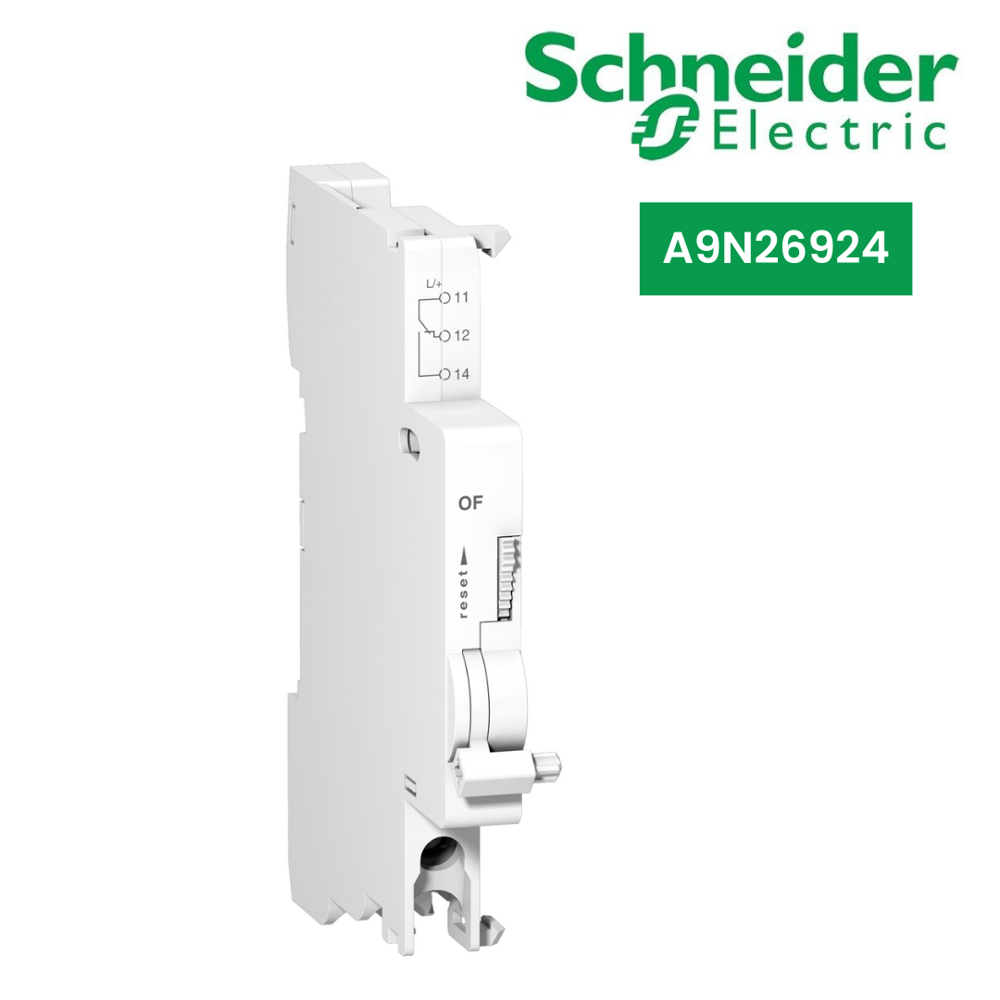

Auxiliary Contact Block-A9N26924 Price : 623.2 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 50Hz or 60Hz Hertz (HZ) Rated Voltage : 24V Volt (V) Mounting Type : Fixed Connection Type : Screw clamp terminal (bottom) 2 cable(s) 1.5 mm flexible Screw clamp terminal (bottom) 1 cable(s) 0.5 2.5 mm rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm flexible with ferrule Warranty : 1 YEAR Weight : 30 g Grams (g) Rated Current : 6A Ampere (amp) IP Rating : IP20 Overheating Protection : YES Operating Temperature : 25 50 C Celsius (oC) Product Type : OC contact Input Voltage : 24V Volt (V)

Send Inquiry

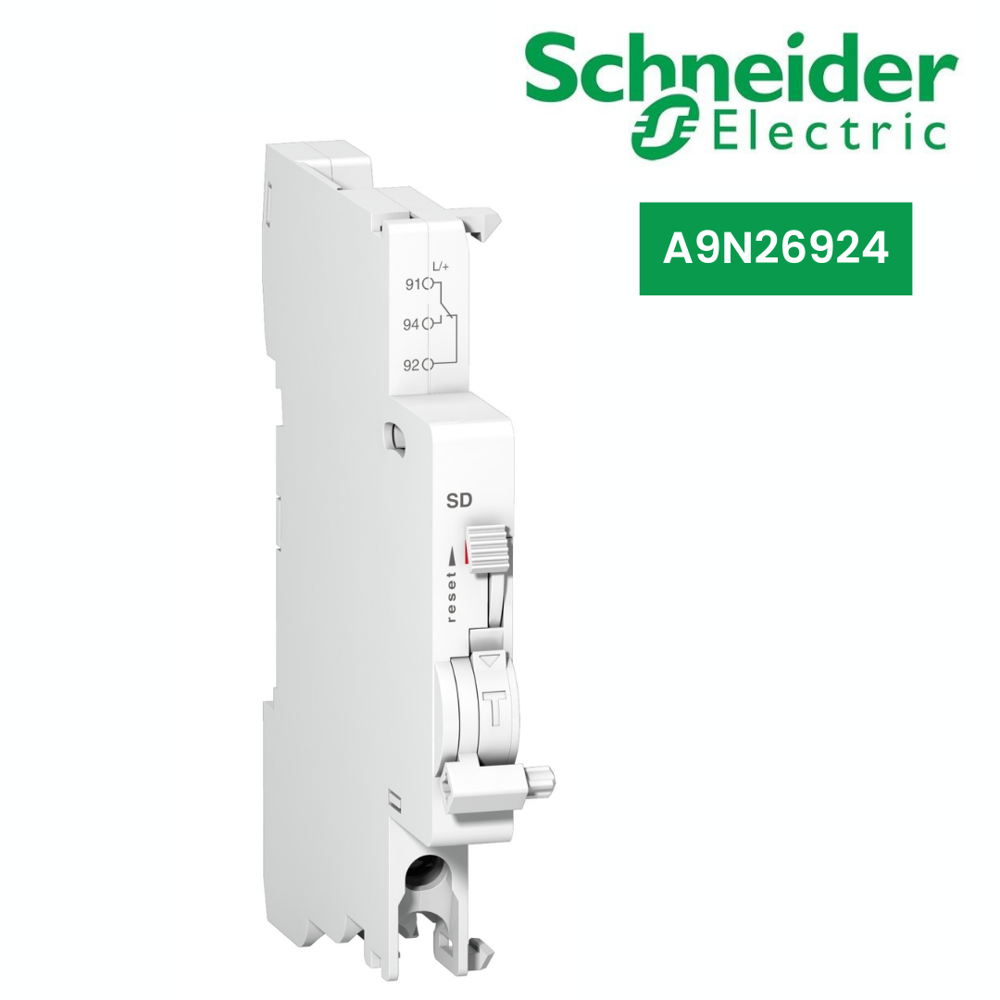

Auxiliary Contact Alarm-A9N26927 Price : 732.0 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 50Hz or 60Hz Hertz (HZ) Rated Voltage : 24V Volt (V) Mounting Type : Fixed Connection Type : Screw clamp terminal (bottom) 2 cable(s) 1.5 mm flexible Screw clamp terminal (bottom) 1 cable(s) 0.5 2.5 mm rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm flexible with ferrule Warranty : 1 YEAR Weight : 30 g Grams (g) Rated Current : 6A Ampere (amp) IP Rating : IP20 Overheating Protection : YES Operating Temperature : 25 50 C Celsius (oC) Product Type : Fault contact Input Voltage : 24V Volt (V)

Send Inquiry

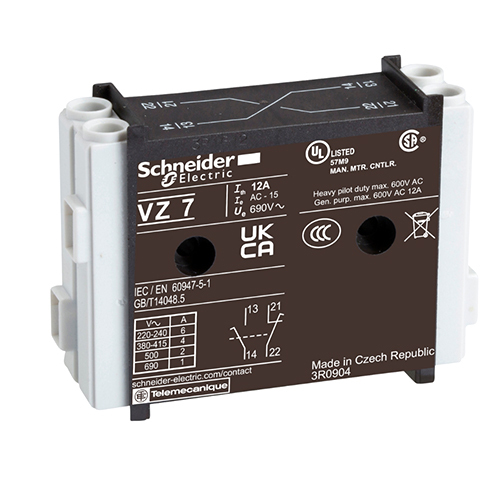

VZ7 TeSys VARIO Auxiliary Contact Block Price : 905.0 INR/Piece Minimum Order Quantity : 5 Frequency (MHz) : 5060 Hertz (HZ) Rated Voltage : 220440 Volt (V)
