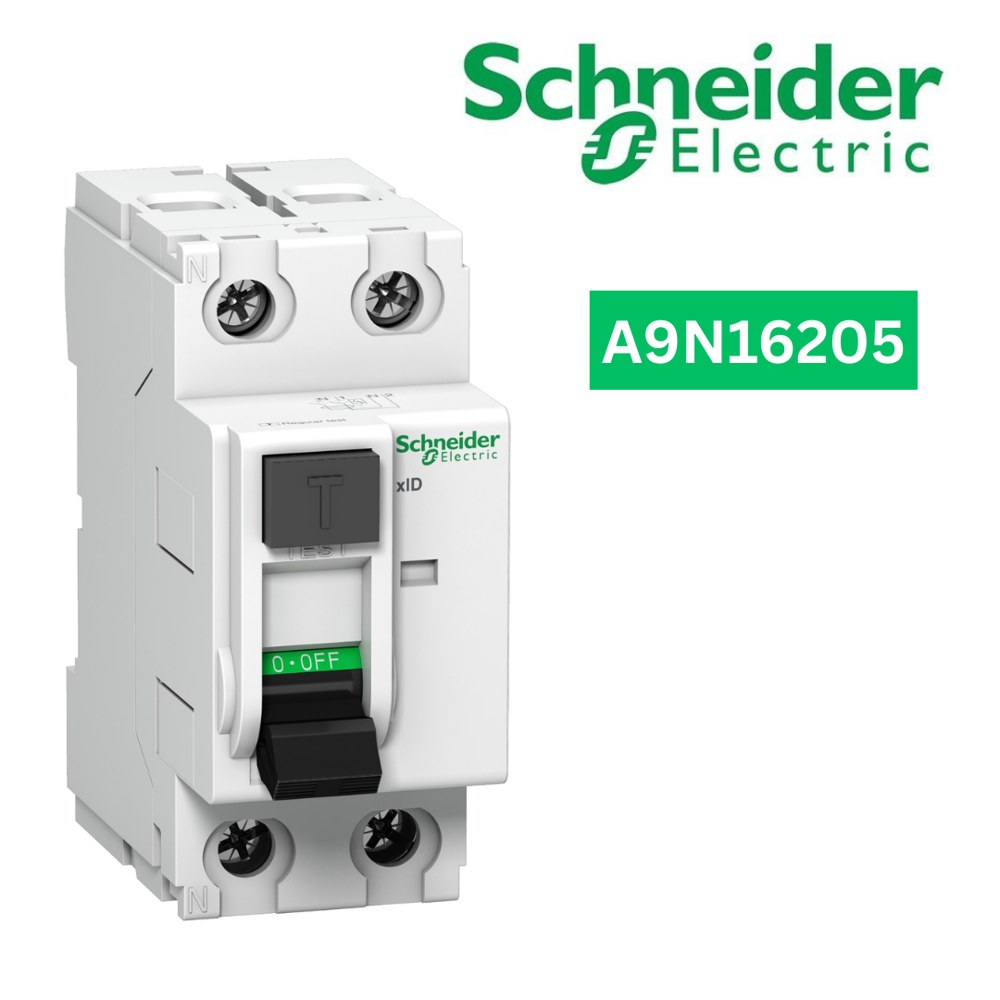

Circuit Breaker -A9N16205
1454.64 INR/Piece
Product Details:
- IP Rating IP20 & IP40
- Frequency 50Hz Hertz (HZ)
- Rated Current 40 Ampere (amp)
- Operating Temperature -40 C to 85 C Celsius (oC)
- Rated Short Circuit Making Current 500 Ampere (A)
- Rated Short Circuit Breaking Current 500A Ampere (A)
- Rated Voltage 500VAC Volt (V)
- Click to View more
X
Circuit Breaker -A9N16205 Price And Quantity
- 2 Piece
- 1454.64 INR/Piece
Circuit Breaker -A9N16205 Product Specifications
- 1YEAR
- -40 C to 85 C Celsius (oC)
- 2
- 500VAC Volt (V)
- 500A Ampere (A)
- 500 Ampere (A)
- 40 Ampere (amp)
- 50Hz Hertz (HZ)
- 50Hz Hertz (HZ)
- -40 C to 85 C Celsius (oC)
- IP20 & IP40
- Residual Current
Circuit Breaker -A9N16205 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 100 Piece Per Week
- 4 Days
- Yes
- Asia
- All India
Product Description
This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.Tell us about your requirement
