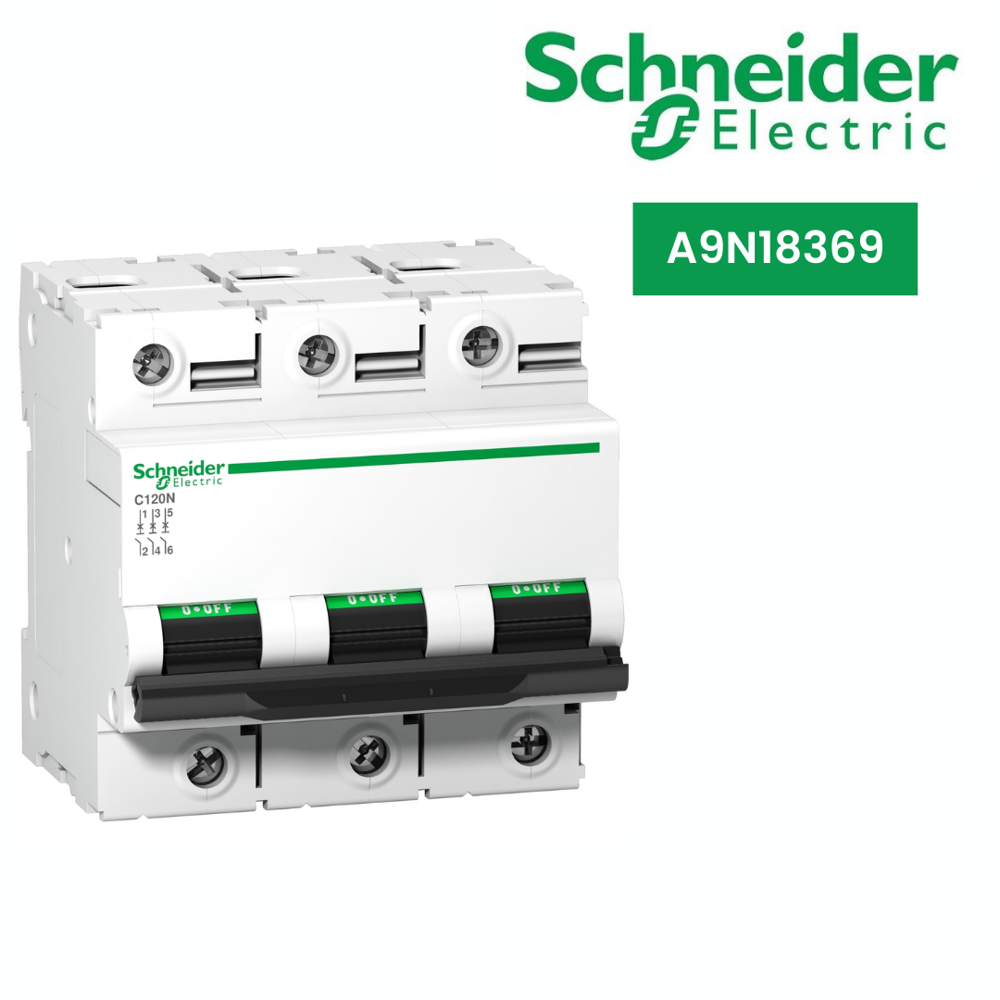

Circuit Breaker-A9N18369

4519.65 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Frequency 50/60 Hz Hertz (HZ)
Rated Current 125 A Ampere (amp)
Rated Voltage 500 V Volt (V)
Usage & Applications Distribution
Warranty 1 YEAR
Rated Short Circuit Breaking Current 10000 A Ampere (A)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N18369 Price And Quantity

Price 4519.65 INR/Piece
Minimum Order Quantity 2 Piece

Circuit Breaker-A9N18369 Product Specifications

Curves C curve
Rated Short Circuit Making Current 10000 A Ampere (A)
Poles Number 3
Rated Frequency 50/60 Hz Hertz (HZ)
Operating Temperature -25 70 C Celsius (oC)
Weight 0.615kg Kilograms (kg)
Rated Short Circuit Breaking Current 10000 A Ampere (A)
Warranty 1 YEAR
Usage & Applications Distribution
Rated Current 125 A Ampere (amp)
Rated Voltage 500 V Volt (V)
Temperature Protection -40 85 C Celsius (oC)
IP Rating IP20
Frequency 50/60 Hz Hertz (HZ)

Circuit Breaker-A9N18369 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Paypal, Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 125A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 81mm x (H) 81mm x (D) 73mm. The weight is 0.615kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25C to 70C. The storage temperature is -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

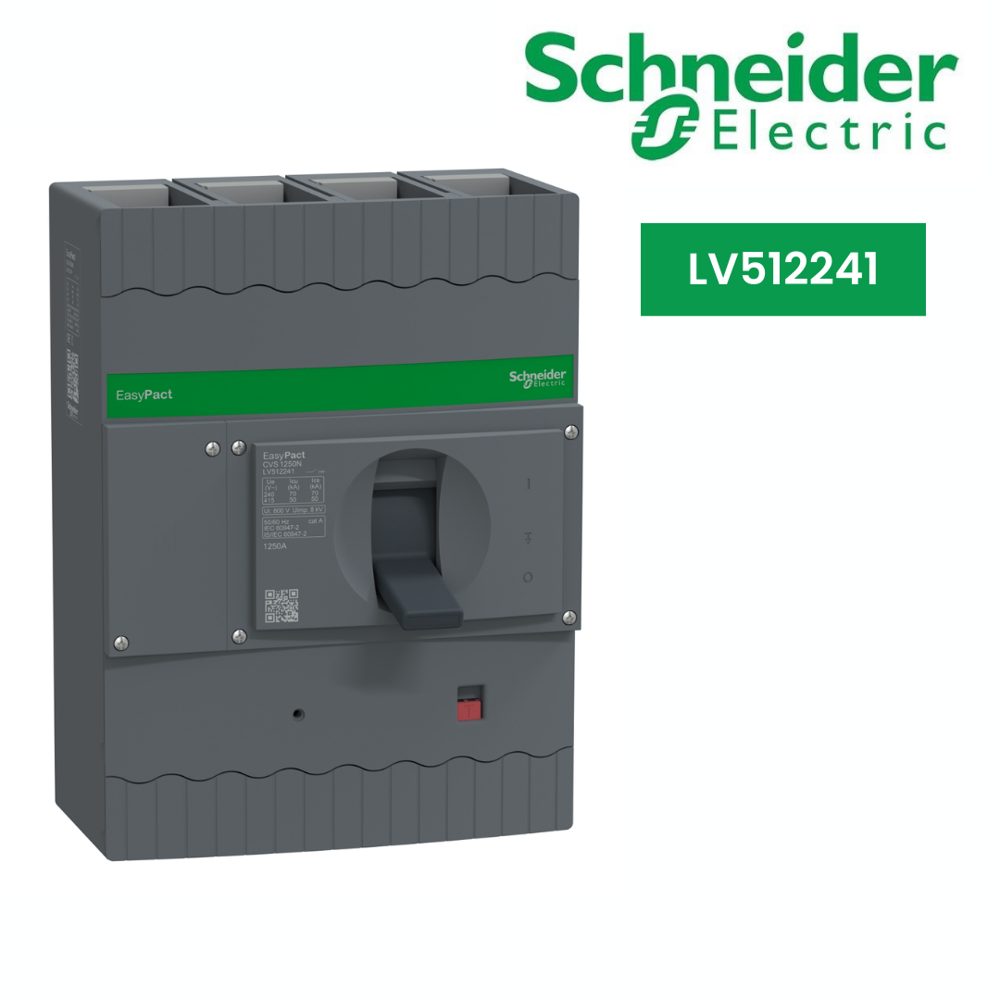

Circuit Breaker-LV512241 Price : 75376.8 INR/Piece Minimum Order Quantity : 2 Rated Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 690 V AC Volt (V) Operating Temperature : 5 55 C Celsius (oC) Warranty : 1 YEAR Weight : 20.2 kg Kilograms (kg) Frequency : 50/60 Hz Hertz (HZ) IP Rating : IP40 Temperature Protection : 35 70 C Celsius (oC) Rated Current : 1250 A Ampere (amp) Usage & Applications : Distribution Rated Short Circuit Breaking Current : 1250A Ampere (A) Rated Short Circuit Making Current : 1250A Ampere (A) Poles Number : 4 Function : LSI
