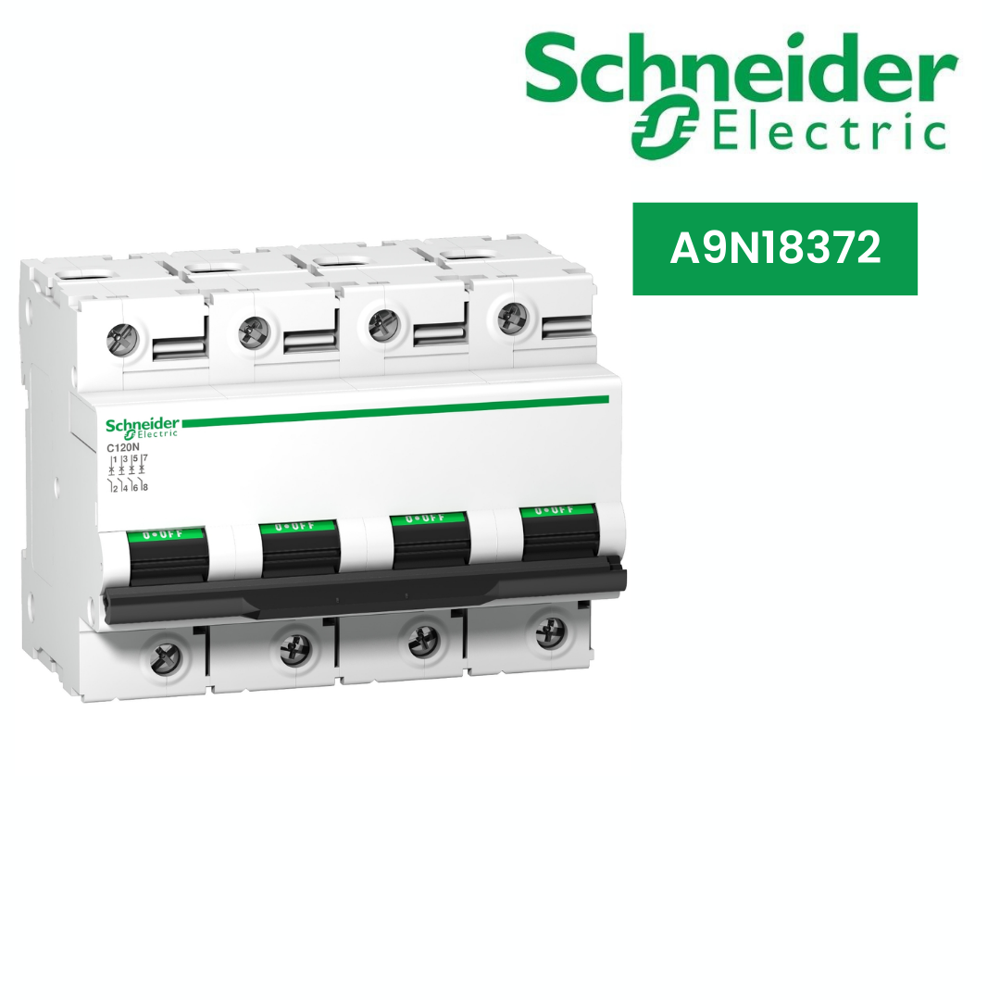

Circuit Breaker-A9N18372

4982.49 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Rated Current 80 A Ampere (amp)
Usage & Applications Distribution
Operating Temperature -40 85 C Celsius (oC)
Rated Short Circuit Making Current 10000 A Ampere (A)
Warranty 1 YEAR
Rated Short Circuit Breaking Current 10000 A Ampere (A)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N18372 Price And Quantity

Price 4982.49 INR/Piece
Minimum Order Quantity 2 Piece

Circuit Breaker-A9N18372 Product Specifications

Rated Frequency 50/60 Hz Hertz (HZ)
IP Rating IP20
Weight 0.82 kg Kilograms (kg)
Rated Current 80 A Ampere (amp)
Temperature Protection -40 85 C Celsius (oC)
Usage & Applications Distribution
Operating Temperature -40 85 C Celsius (oC)
Curves C curve
Rated Short Circuit Making Current 10000 A Ampere (A)
Warranty 1 YEAR
Rated Short Circuit Breaking Current 10000 A Ampere (A)
Rated Voltage 500 V Volt (V)
Frequency 50/60 Hz Hertz (HZ)
Poles Number 4

Circuit Breaker-A9N18372 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 80A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. It is DIN rail mountable. Its width is 12 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 108mm x (H) 81mm x (D) 73mm. The weight is 0.82kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25C to 70C. The storage temperature is -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

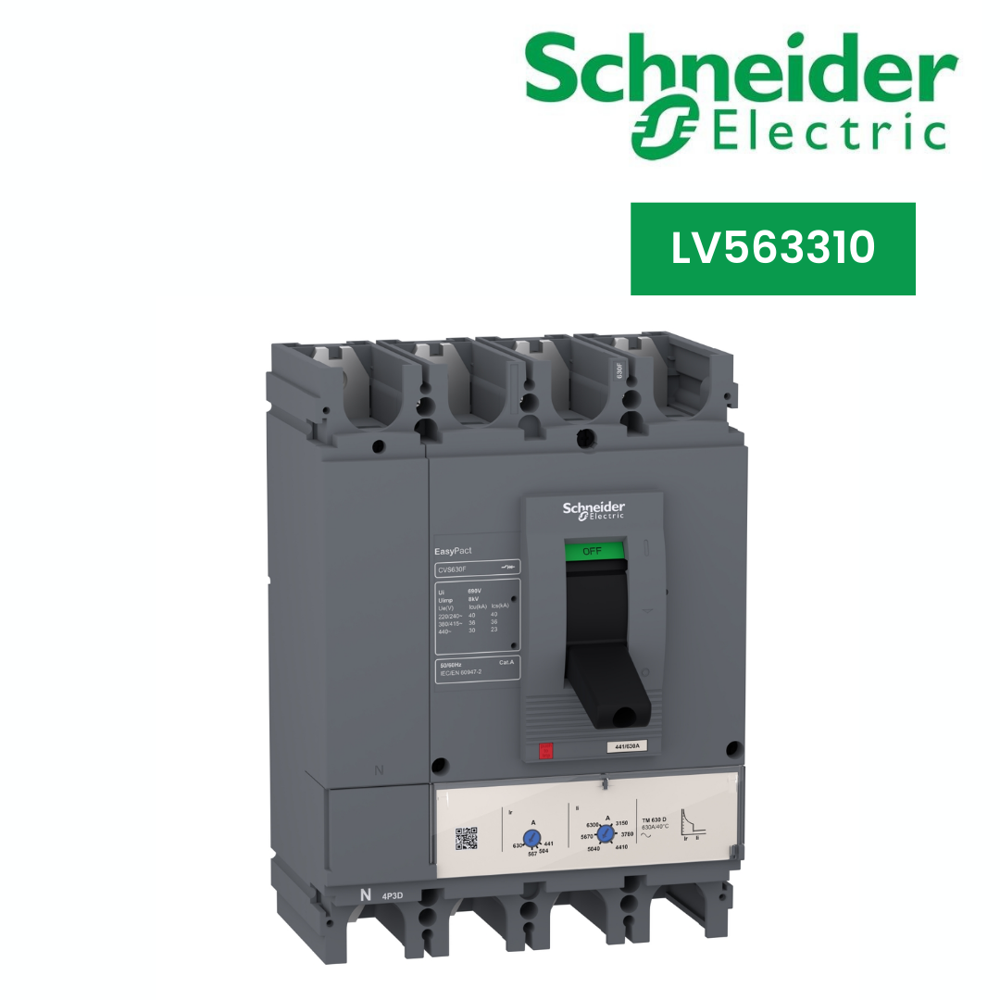

Circuit Breaker-LV563310 Price : 24403.0 INR/Piece Minimum Order Quantity : 1 Rated Frequency : 50/60 Hz Hertz (HZ) IP Rating : IP40 Weight : 7.1 kg Kilograms (kg) Rated Current : 630 A Ampere (amp) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Temperature Protection : 50 85 C Celsius (oC) Operating Temperature : 25 70 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 415V Volt (V) Warranty : 1 YEAR Poles Number : 4 Function : EasyPact CVS630F is a 4 poles 3d fixed circuit breaker with a high level of performance and costsaving functionality. Material : Substances

Send Inquiry

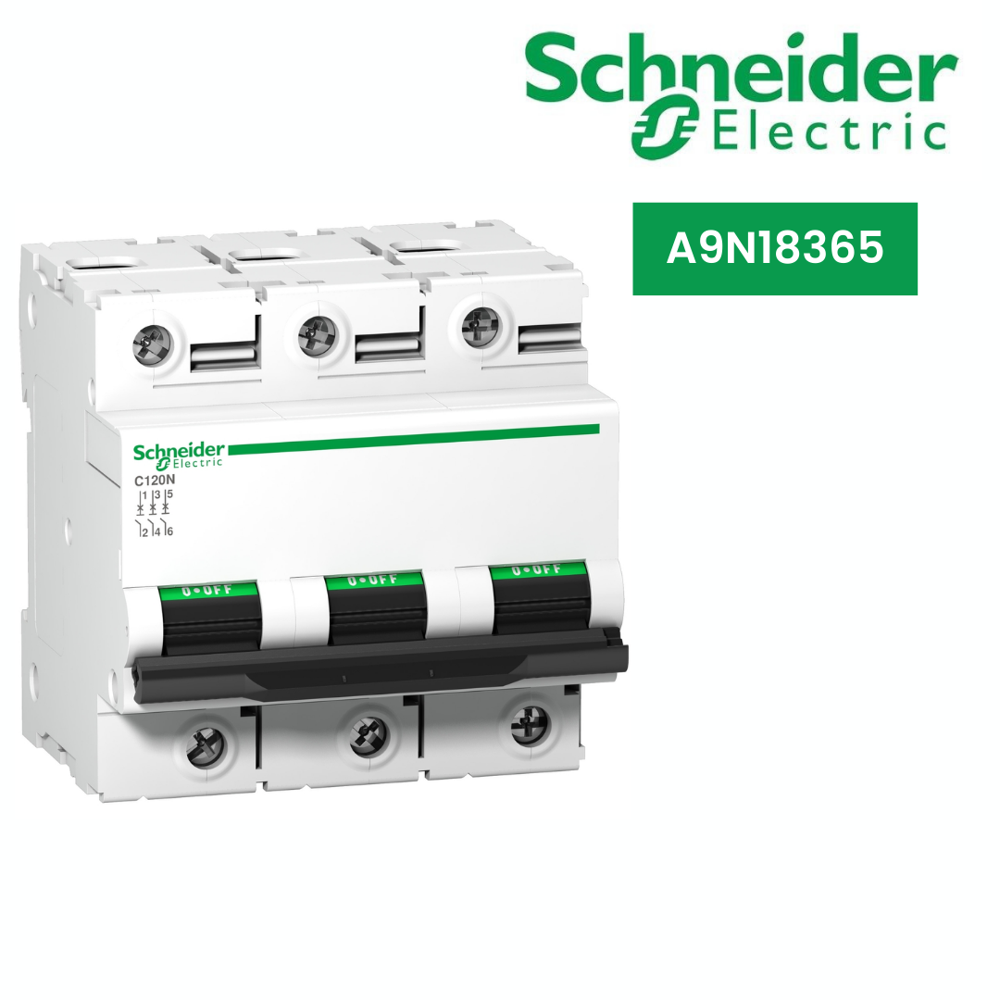

Circuit Breaker-A9N18365 Price : 3823.36 INR/Piece Minimum Order Quantity : 2 Rated Frequency : 50Hz or 60Hz Hertz (HZ) IP Rating : IP20 Weight : 0.615 kg Kilograms (kg) Rated Current : 80 A Ampere (amp) Usage & Applications : Distribution Temperature Protection : 40 85 C Celsius (oC) Operating Temperature : 25 70 C Celsius (oC) Frequency : 50Hz or 60Hz Hertz (HZ) Rated Voltage : 500 V Volt (V) Warranty : 1 YEAR Rated Short Circuit Making Current : 10000 A Ampere (A) Rated Short Circuit Breaking Current : 10000 A Ampere (A)
