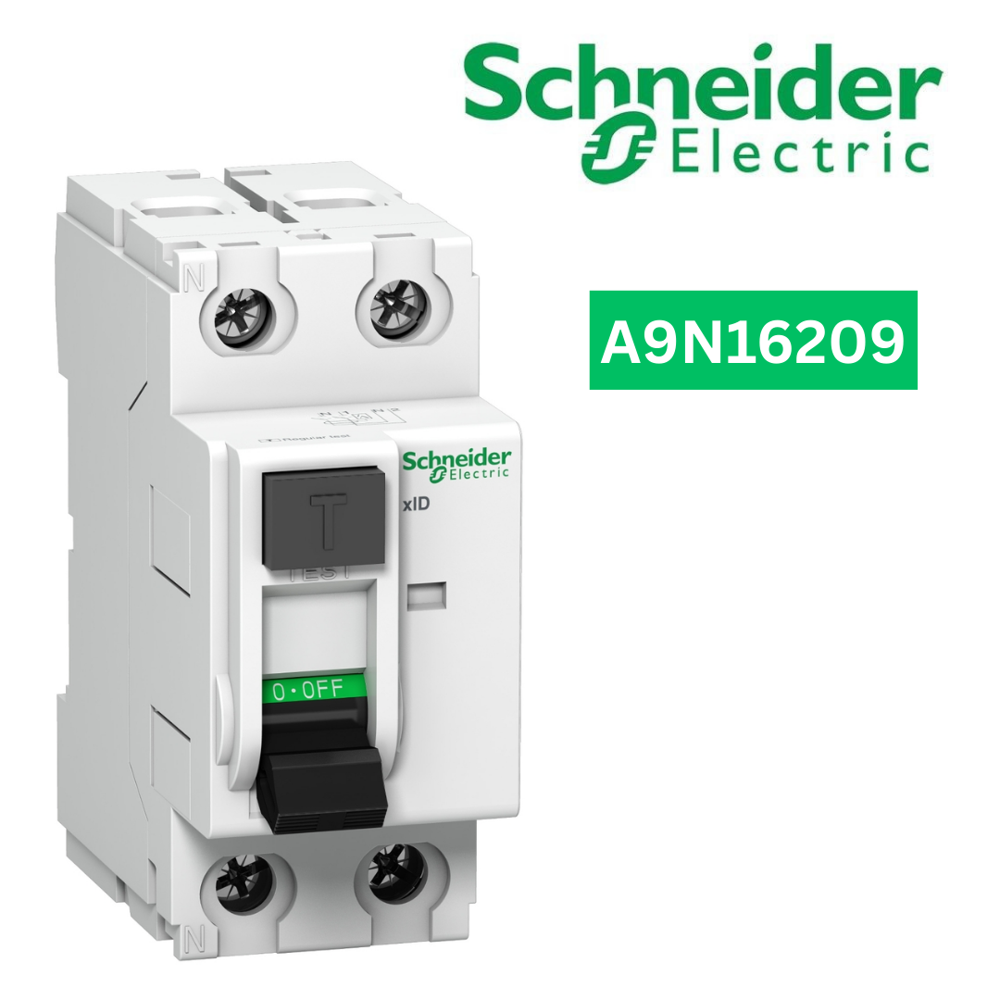

Circuit Breaker -A9N16209

1747.44 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hertz (HZ)
Rated Current 63 Ampere (amp)
Rated Short Circuit Making Current 630A Ampere (A)
Warranty 1YEAR
Rated Short Circuit Breaking Current 630A Ampere (A)
Operating Temperature -40 C to 85 C. Celsius (oC)
IP Rating IP40
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker -A9N16209 Price And Quantity

Minimum Order Quantity 2 Piece
Price 1747.44 INR/Piece

Circuit Breaker -A9N16209 Product Specifications

Rated Short Circuit Making Current 630A Ampere (A)
Rated Current 63 Ampere (amp)
Frequency 50 Hertz (HZ)
Product Type Residual Current
Rated Short Circuit Breaking Current 630A Ampere (A)
Warranty 1YEAR
IP Rating IP40
Poles Number 2
Operating Temperature -40 C to 85 C. Celsius (oC)
Weight 210 Grams (g)
Temperature Protection -40 C to 85 C. Celsius (oC)
Rated Frequency 50 Hertz (HZ)
Rated Voltage 240 Volt (V)

Circuit Breaker -A9N16209 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Paypal, Cheque
Supply Ability 100 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 63A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 630A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker -A9N16201 Price : 1146.0 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 230VAC to 240VAC Volt (V) Rated Frequency : 50 Hz Hertz (HZ) Rated Short Circuit Breaking Current : 500 Ampere (A) Warranty : 1YEAR Rated Current : 25A Ampere (amp) Rated Short Circuit Making Current : 500 Ampere (A) Frequency : 50 Hertz (HZ) Temperature Protection : 40 C to 85 C. Celsius (oC) IP Rating : IP40 Weight : 210G Grams (g) Poles Number : 2 Operating Temperature : 40 C to 85 C. Celsius (oC) Phase : other

Send Inquiry

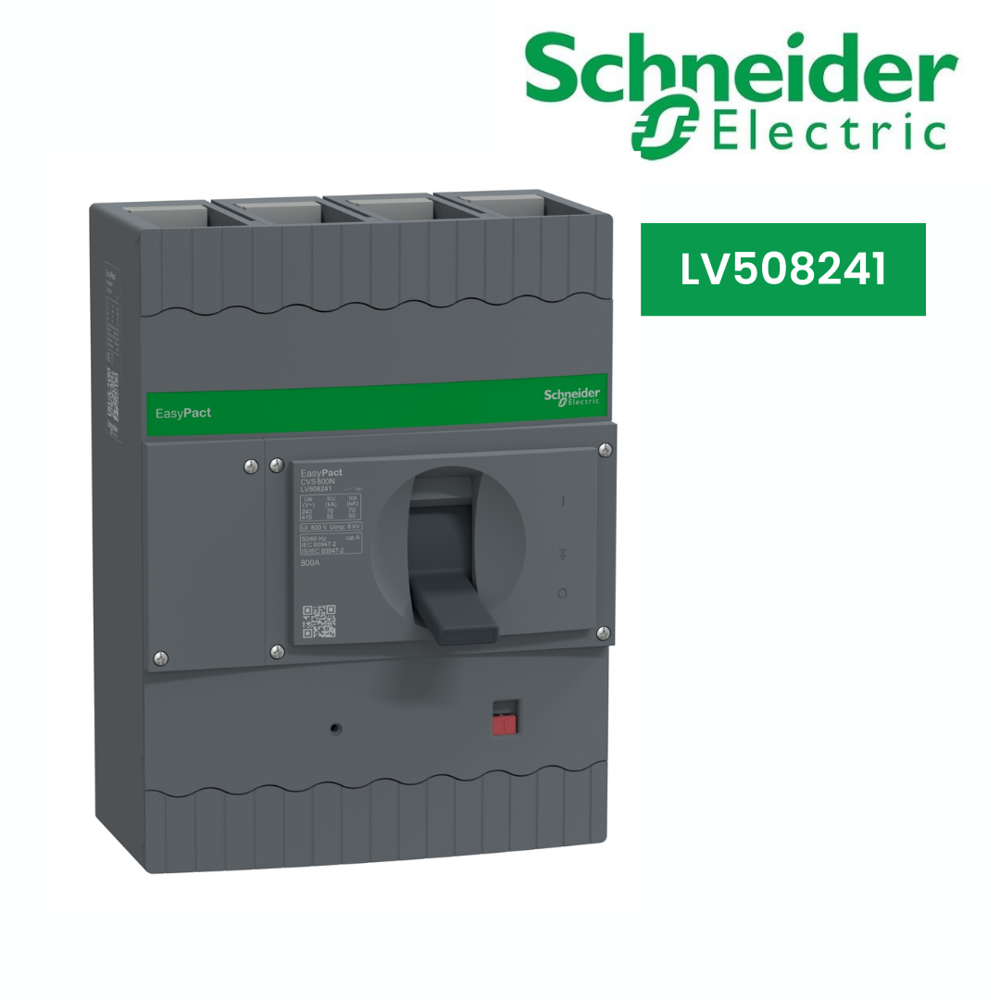

Circuit Breaker-LV508241 Price : 41982.4 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 690 V AC Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Rated Short Circuit Breaking Current : 800A Ampere (A) Warranty : 1 YEAR Rated Current : 800 A Ampere (amp) Rated Short Circuit Making Current : 800A Volt (V) Frequency : 50/60 Hz Hertz (HZ) Function : LSI Temperature Protection : 35 70 C Celsius (oC) IP Rating : IP40 Weight : 18.3 kg Kilograms (kg) Poles Number : 4 Operating Temperature : 5 55 C Celsius (oC) Usage & Applications : Distribution

Send Inquiry

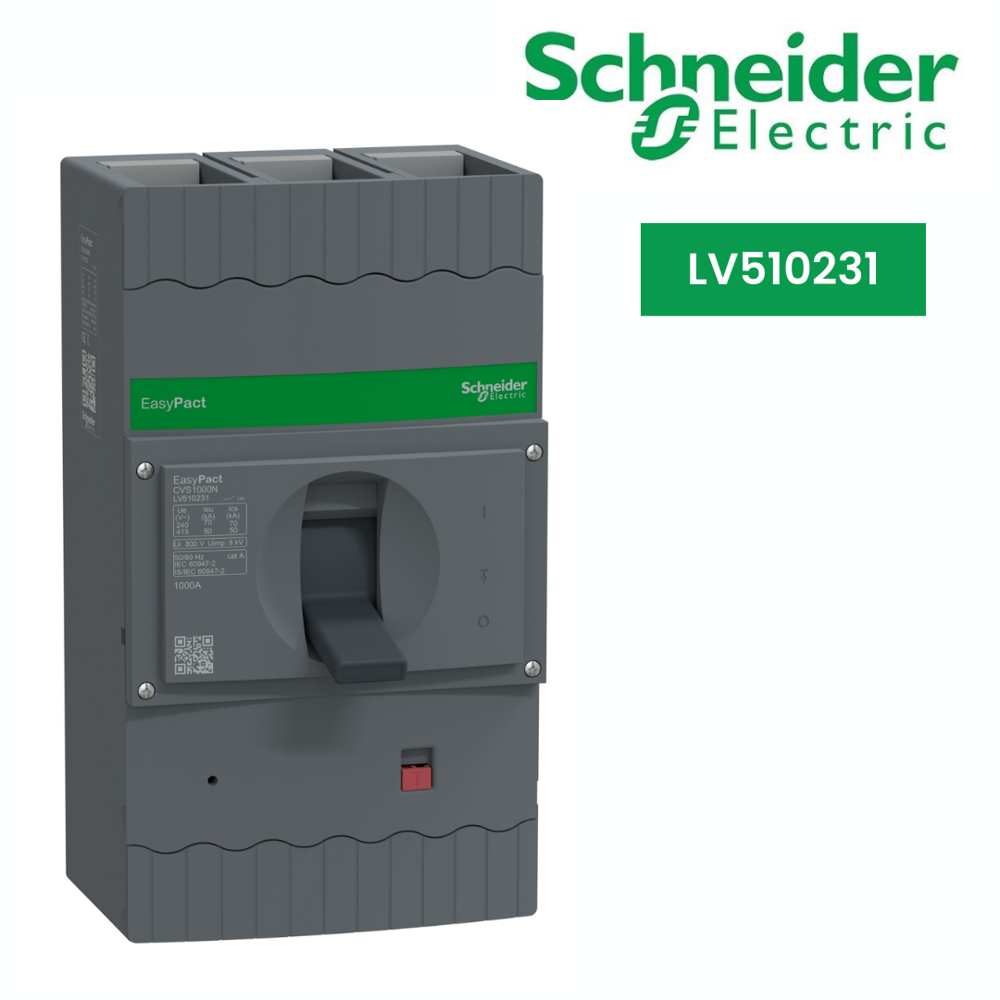

Circuit Breaker-LV510231 Price : 42719.6 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Rated Short Circuit Breaking Current : 1000A Ampere (A) Warranty : 1 YEAR Rated Current : 1000 A Ampere (amp) Rated Short Circuit Making Current : 1000A Ampere (A) Frequency : 50/60 Hz Hertz (HZ) Function : LSI Temperature Protection : 35 70 C Celsius (oC) IP Rating : IP40 Weight : 15.5 kg Kilograms (kg) Poles Number : 3 Operating Temperature : 5 55 C Celsius (oC)
