Circuit Breaker-A9N16251

1608.96 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz Hertz (HZ)
Rated Voltage 500 V AC Volt (V)
Material Substances
Warranty 1 YEAR
IP Rating IP20
Rated Current 25 A Ampere (amp)
Operating Temperature -5 C to 40 C Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16251 Price And Quantity

Price 1608.96 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N16251 Product Specifications

IP Rating IP20
Frequency 50 Hz Hertz (HZ)
Rated Current 25 A Ampere (amp)
Temperature Protection -40 C to 85 C Celsius (oC)
Rated Frequency 50 Hz Hertz (HZ)
Rated Voltage 500 V AC Volt (V)
Weight 370 g Grams (g)
Operating Temperature -5 C to 40 C Celsius (oC)
Poles Number 4
Warranty 1 YEAR
Material Substances

Circuit Breaker-A9N16251 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-A9N18369 Price : 4519.65 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 500 V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Rated Current : 125 A Ampere (amp) IP Rating : IP20 Operating Temperature : 25 70 C Celsius (oC) Weight : 0.615kg Kilograms (kg) Temperature Protection : 40 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Poles Number : 3 Usage & Applications : Distribution Curves : C curve Rated Short Circuit Making Current : 10000 A Ampere (A) Rated Short Circuit Breaking Current : 10000 A Ampere (A)

Send Inquiry

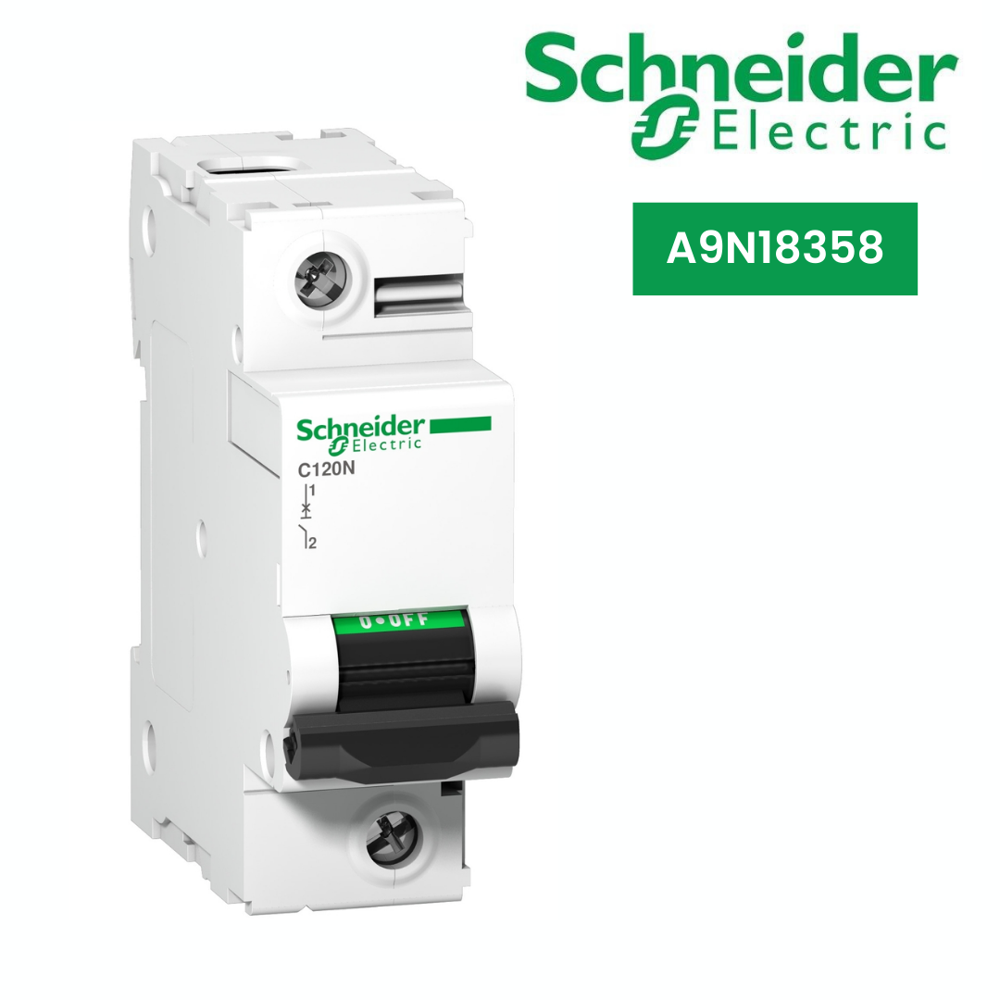

Circuit Breaker-A9N18358 Price : 1230.0 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 500 V AC Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Rated Current : 100 A Ampere (amp) IP Rating : IP20 Operating Temperature : 25 70 C Celsius (oC) Weight : 0.205kg Kilograms (kg) Temperature Protection : 40 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Usage & Applications : Distribution Curves : C curve Rated Short Circuit Making Current : 100A Ampere (A) Rated Short Circuit Breaking Current : 100A Ampere (A)
