Circuit Breaker-A9N16252

1761.0 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50Hz Hertz (HZ)
Rated Current 25 A Ampere (amp)
Operating Temperature -5 C to 40 C Celsius (oC)
Material Substances
Warranty 1 YEAR
IP Rating IP20 AND IP40
Rated Voltage 400V Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16252 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1761.0 INR/Piece

Circuit Breaker-A9N16252 Product Specifications

Material Substances
Rated Voltage 400V Volt (V)
Rated Frequency 50Hz Hertz (HZ)
Rated Current 25 A Ampere (amp)
Operating Temperature -5 C to 40 C Celsius (oC)
Weight 370g Grams (g)
Poles Number 4
Warranty 1 YEAR
Frequency 50Hz Hertz (HZ)
IP Rating IP20 AND IP40
Temperature Protection -40 C to 85 C Celsius (oC)

Circuit Breaker-A9N16252 Trade Information

Payment Terms Cash in Advance (CID), Cheque, Paypal, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

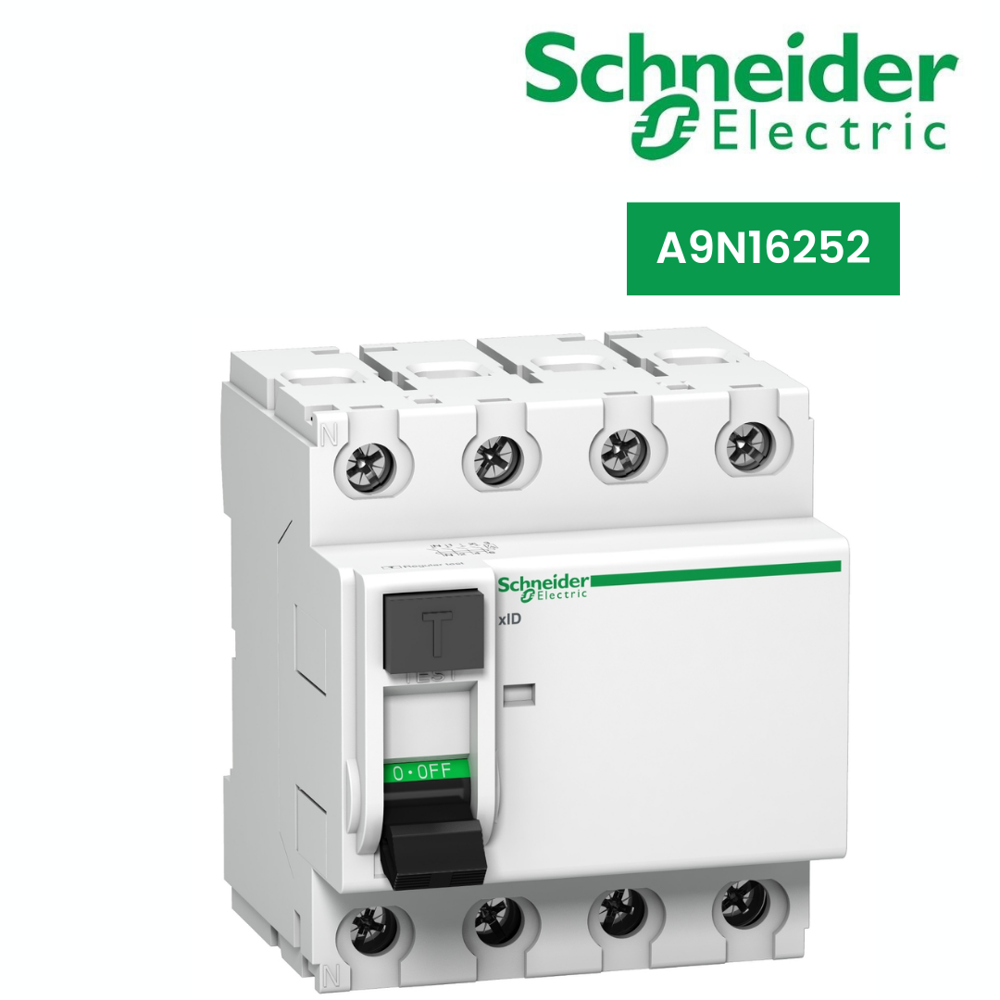

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 25A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
