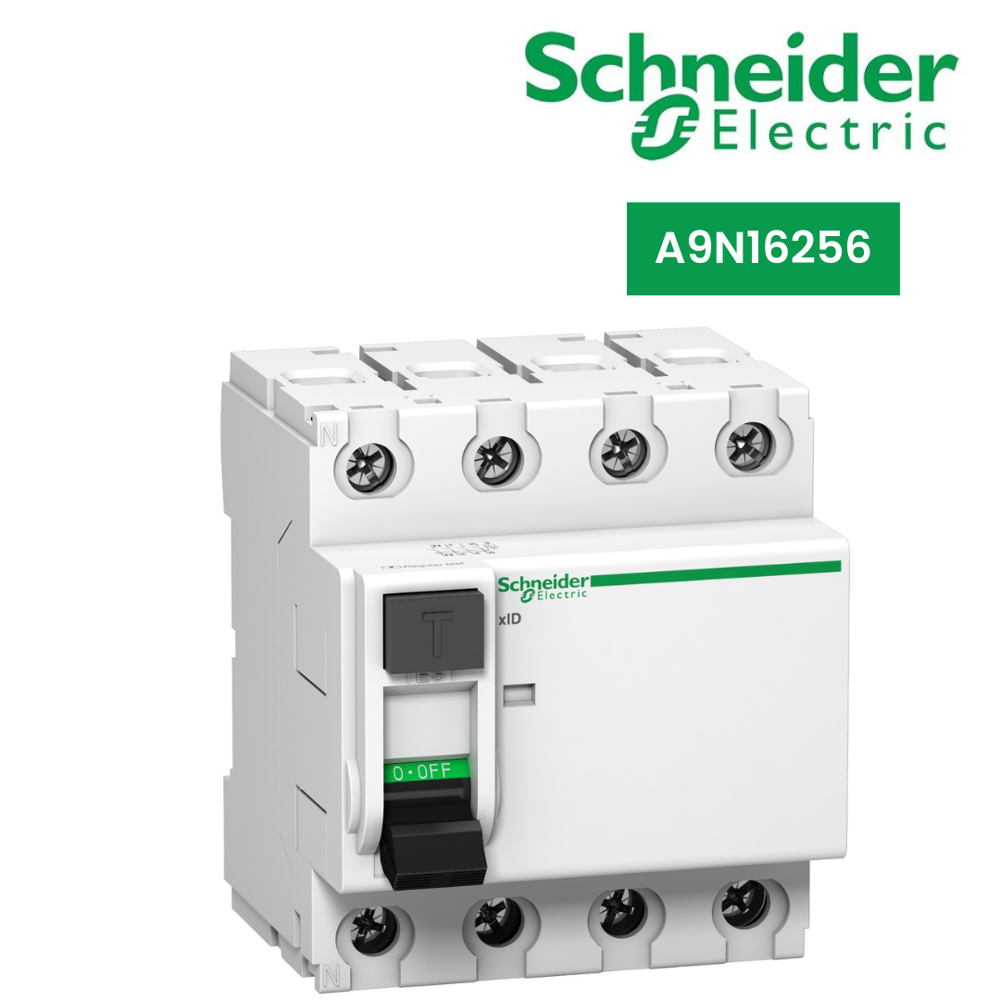

Circuit Breaker-A9N16256

1785.6 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50Hz Hertz (HZ)
Rated Voltage 400V Volt (V)
Operating Temperature -5 C to 40 C Celsius (oC)
Rated Current 40 A Ampere (amp)
Warranty 1 YEAR
IP Rating IP20 AND IP40
Material Substances
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16256 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1785.6 INR/Piece

Circuit Breaker-A9N16256 Product Specifications

Product Type Residual Current
IP Rating IP20 AND IP40
Warranty 1 YEAR
Rated Current 40 A Ampere (amp)
Operating Temperature -5 C to 40 C Celsius (oC)
Material Substances
Weight 370g Grams (g)
Rated Frequency 50Hz Hertz (HZ)
Poles Number 4
Temperature Protection -40 C to 85 C Celsius (oC)
Frequency 50Hz Hertz (HZ)
Rated Voltage 400V Volt (V)

Circuit Breaker-A9N16256 Trade Information

Payment Terms Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, a sensitivity of 300mA with a AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-LV525332 Price : 9853.1 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Weight : 1.7 kg Kilograms (kg) Operating Temperature : 25 70 C Celsius (oC) IP Rating : IP40 Warranty : 1 YEAR Rated Current : 200 A Ampere (amp) Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories Material : Substances Poles Number : 3

Send Inquiry

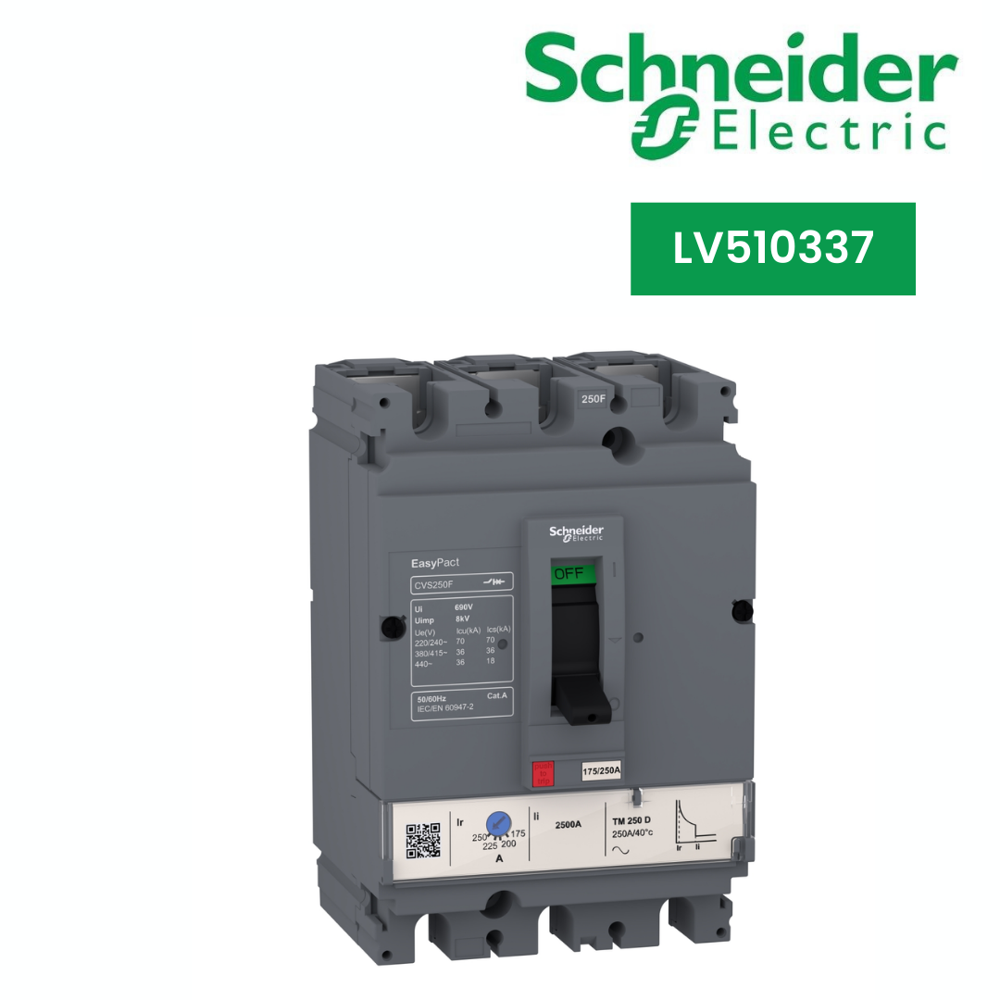

Circuit Breaker-LV510337 Price : 4650.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Weight : 1.5 kg Kilograms (kg) Operating Temperature : 25 70 C Celsius (oC) IP Rating : IP20 Warranty : 1 YEAR Rated Current : 100 A Ampere (amp) Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories Material : Substances Poles Number : 3
