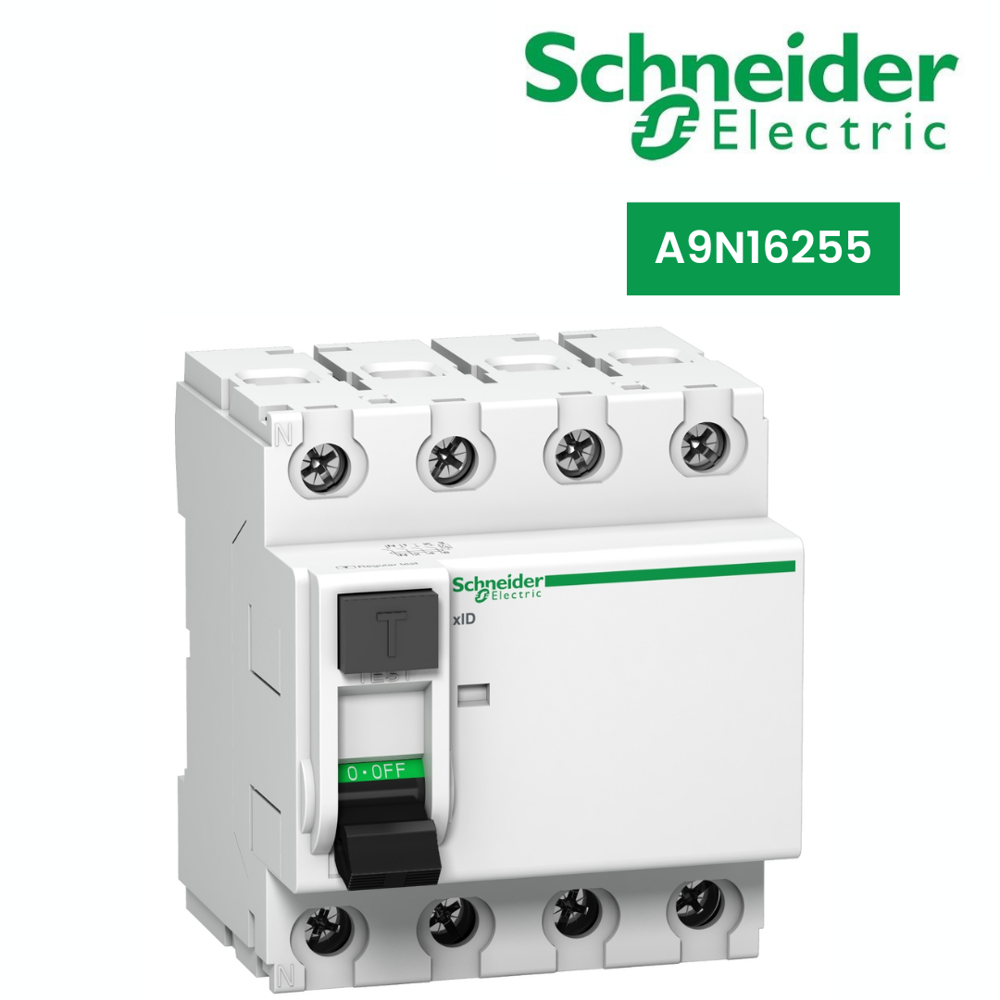

Circuit Breaker-A9N16255

1720.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20 AND IP40
Rated Current 40 A Ampere (amp)
Frequency 50HZ Hertz (HZ)
Operating Temperature -5 40 C Celsius (oC)
Rated Voltage 500 V Volt (V)
Warranty 1 YEAR
Product Type Residual Current
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16255 Price And Quantity

Price 1720.0 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N16255 Product Specifications

Rated Current 40 A Ampere (amp)
Product Type Residual Current
Warranty 1 YEAR
Rated Voltage 500 V Volt (V)
Weight 370g Grams (g)
IP Rating IP20 AND IP40
Rated Frequency 50HZ Hertz (HZ)
Temperature Protection -40 85 C Celsius (oC)
Frequency 50HZ Hertz (HZ)
Poles Number 4
Operating Temperature -5 40 C Celsius (oC)

Circuit Breaker-A9N16255 Trade Information

Payment Terms Cash Advance (CA), Cheque, Paypal, Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 40A, AC type protection class and a 100mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

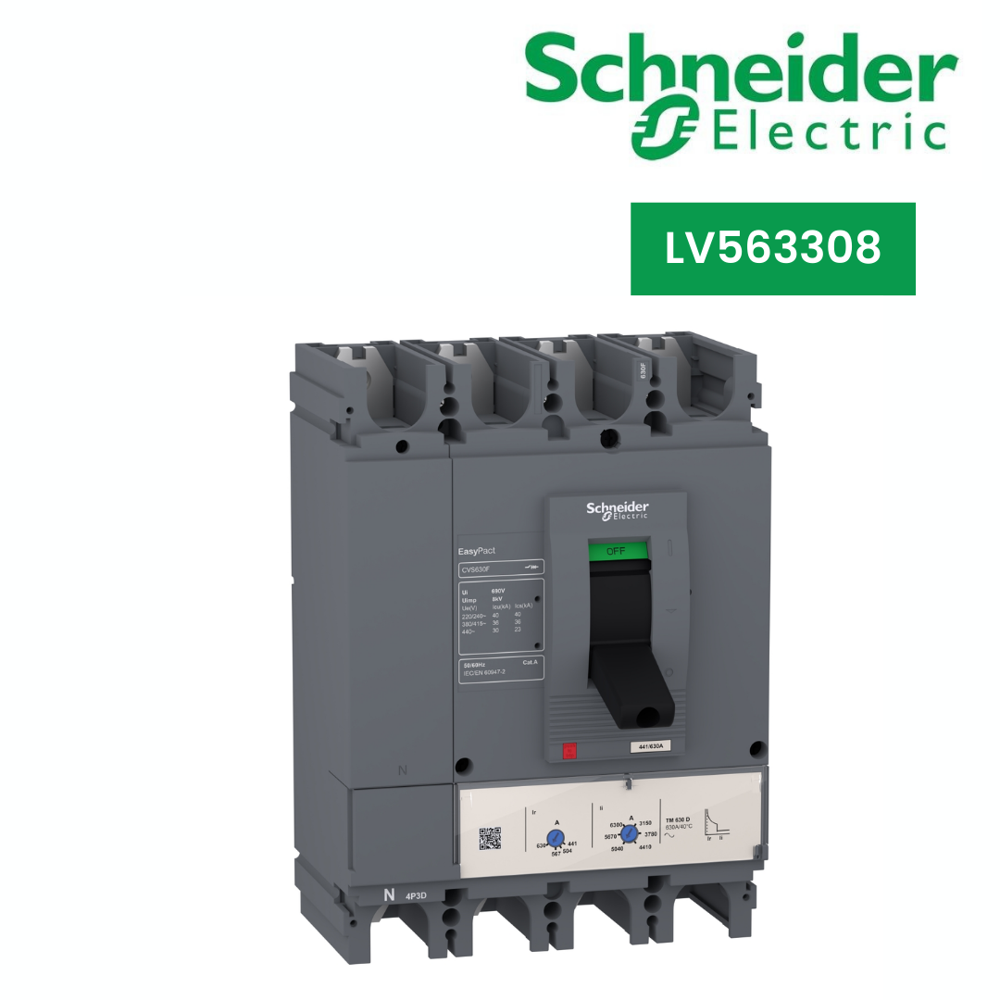

Circuit Breaker-LV563308 Price : 21386.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Current : 500 A Ampere (amp) IP Rating : IP40 Poles Number : 3 Warranty : 1 YEAR Weight : 7.1 kg Kilograms (kg) Rated Frequency : 50/60 Hz Hertz (HZ) Temperature Protection : 50 85 C Celsius (oC) Operating Temperature : 25 70 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Material : Substances Frequency : 50/60 Hz Hertz (HZ)

Send Inquiry

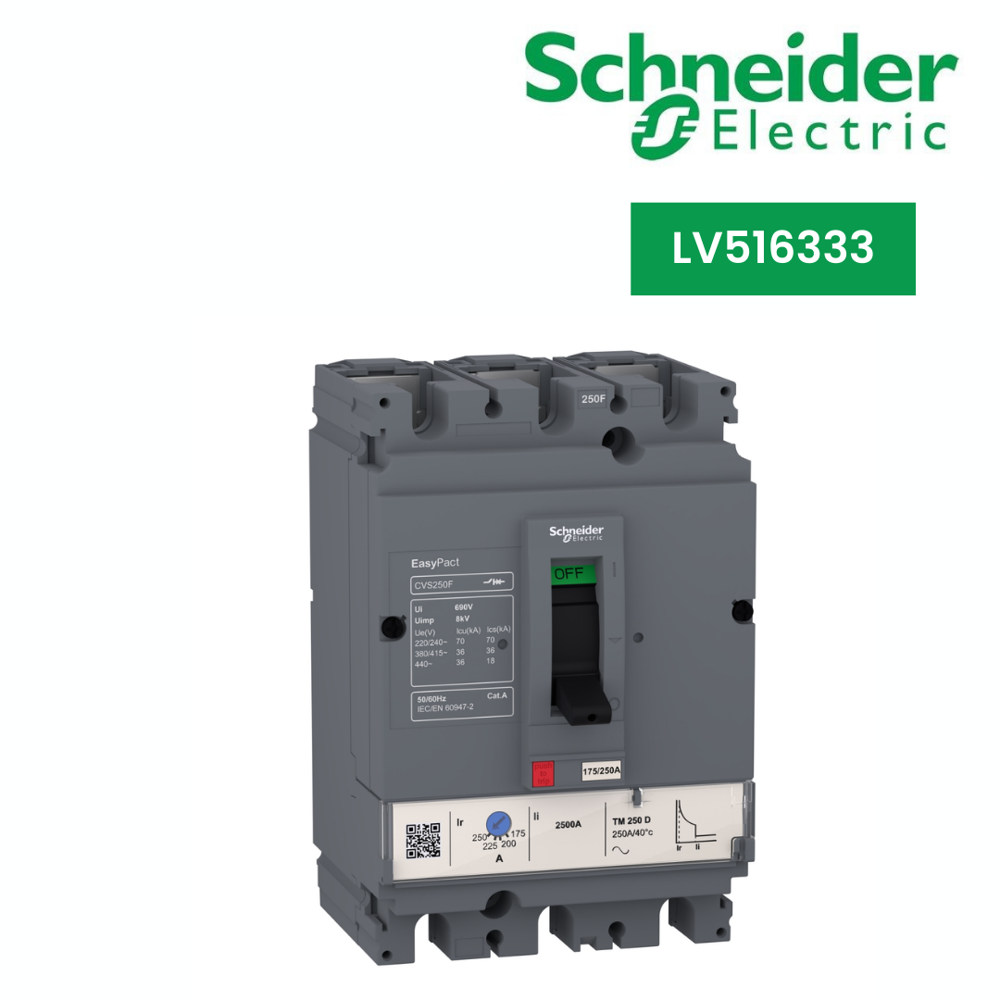

Circuit Breaker-LV516333 Price : 6841.3 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Current : 160 A Ampere (amp) IP Rating : IP40 Poles Number : 3 Warranty : 1 YEAR Weight : 1.5 kg Kilograms (kg) Rated Frequency : 50/60 Hz Hertz (HZ) Temperature Protection : 50 85 C Celsius (oC) Operating Temperature : 25 70 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Material : Substances Frequency : 50/60 Hz Hertz (HZ)

Send Inquiry

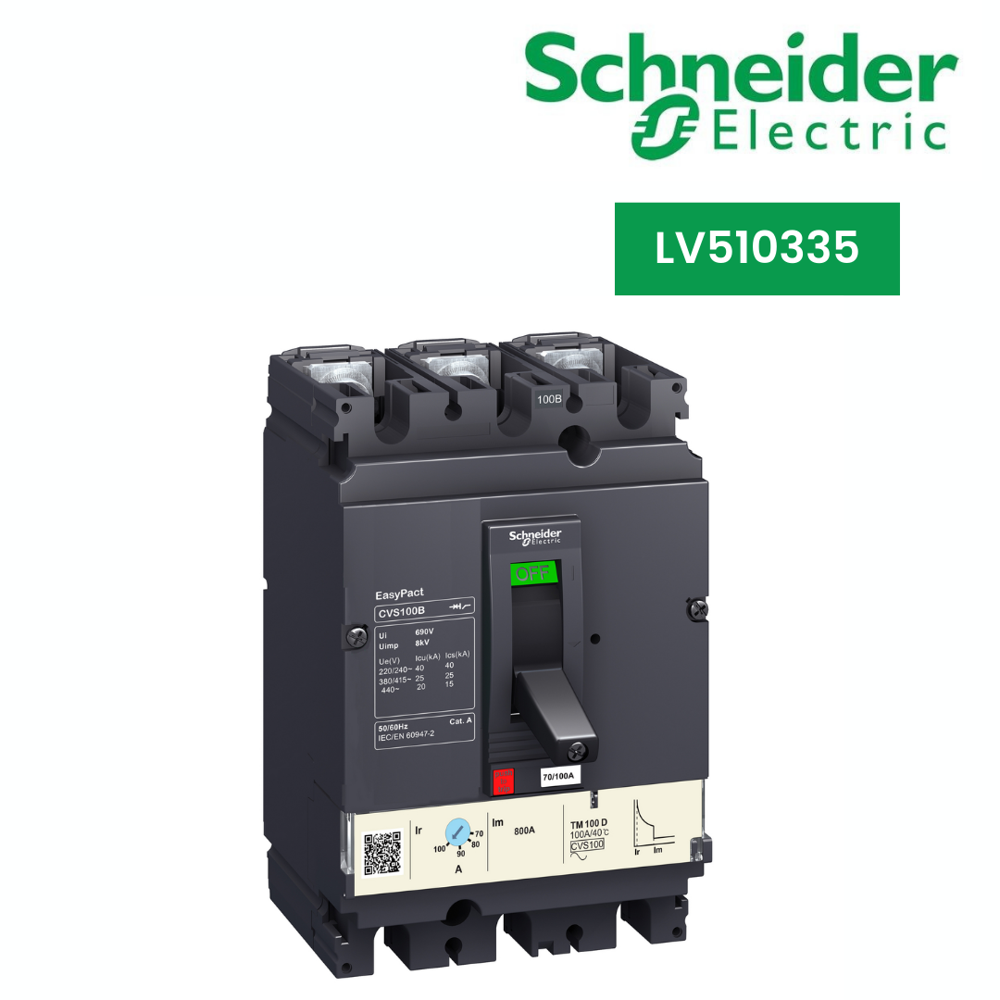

Circuit Breaker-LV510335 Price : 4650.9 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 440V Volt (V) Rated Current : 63 A Ampere (amp) IP Rating : IP40 Poles Number : 3 Warranty : 1 YEAR Weight : 1.5 kg Kilograms (kg) Rated Frequency : 50/60 Hz Hertz (HZ) Temperature Protection : 50 85 C Celsius (oC) Operating Temperature : 25 70 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Frequency : 50/60 Hz Hertz (HZ)
