Circuit Breaker-A9N16262

3287.28 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 80 A Ampere (amp)
IP Rating IP20 AND IP40
Material Substances
Frequency 50 Hz Hertz (HZ)
Rated Voltage 400V Volt (V)
Warranty 1 YEAR
Operating Temperature -5 C to 40 C Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16262 Price And Quantity

Minimum Order Quantity 1 Piece
Price 3287.28 INR/Piece

Circuit Breaker-A9N16262 Product Specifications

Warranty 1 YEAR
Weight 370 Grams (g)
Rated Voltage 400V Volt (V)
Poles Number 4
Operating Temperature -5 C to 40 C Celsius (oC)
Rated Frequency 50 Hz Hertz (HZ)
Material Substances
Temperature Protection -40 C to 85 C Celsius (oC)
IP Rating IP20 AND IP40
Rated Current 80 A Ampere (amp)
Product Type Residual Current
Frequency 50 Hz Hertz (HZ)

Circuit Breaker-A9N16262 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

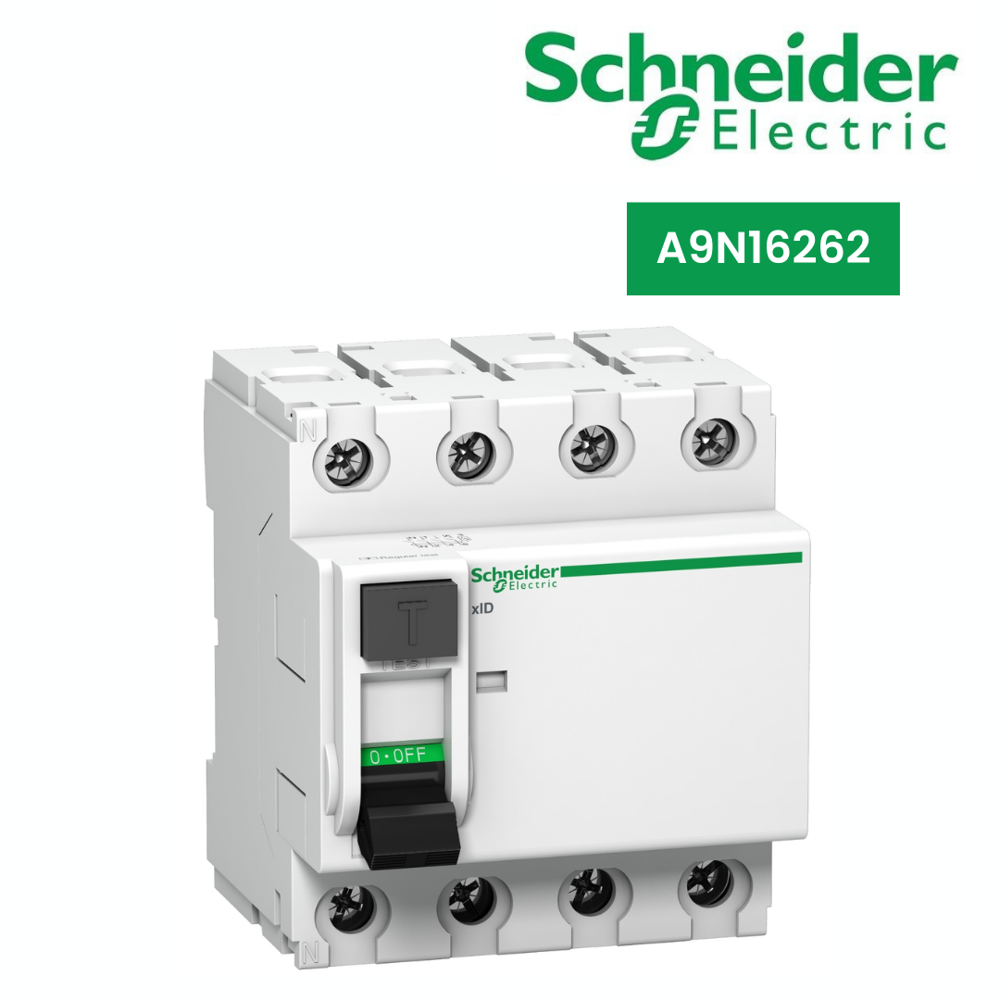

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 80A, AC type protection class and a 100mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 800A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
