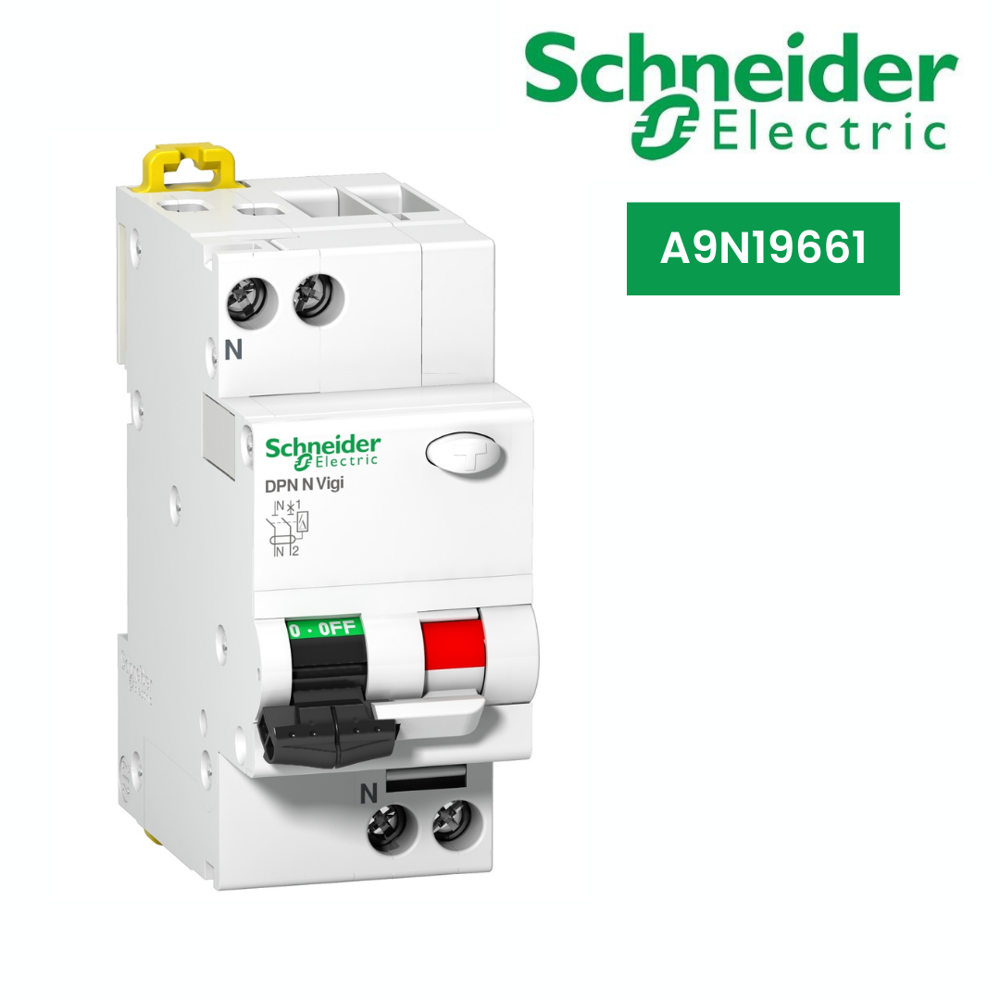

Circuit Breaker-A9N19661

1820.4 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Operating Temperature -5 C to +60 C Celsius (oC)
IP Rating IP20 AND 40
Rated Current 6 A Ampere (amp)
Rated Voltage 400V Volt (V)
Product Type Earth Leakage
Poles Number 4
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N19661 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1820.4 INR/Piece

Circuit Breaker-A9N19661 Product Specifications

Product Type Earth Leakage
Rated Voltage 400V Volt (V)
Rated Current 6 A Ampere (amp)
Poles Number 4
Warranty 1 YEAR
Operating Temperature -5 C to +60 C Celsius (oC)
Temperature Protection -40 C to +85 C Celsius (oC)
Weight 0.19kg Kilograms (kg)
IP Rating IP20 AND 40

Circuit Breaker-A9N19661 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available No
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 DPN N Vigi is an earth leakage circuit breaker. It is a 1P+N circuit breaker and rated current is 6A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The DPN Vigi residual current device provides complete protection for nal circuits against overcurrents and insulation faults. This product provides complete protection for people against electric shocks by direct contacts (30 mA), This product is compliant with EN 61009-1 and IEC 61009-1 standard. Electrical endurance goes up to 20000 cycles. Mechanical endurance goes up to 20000 cycles. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is white (RAL9003). The weight is 0.19kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -5C to +60C. The storage temperature is -40C to +85C.
