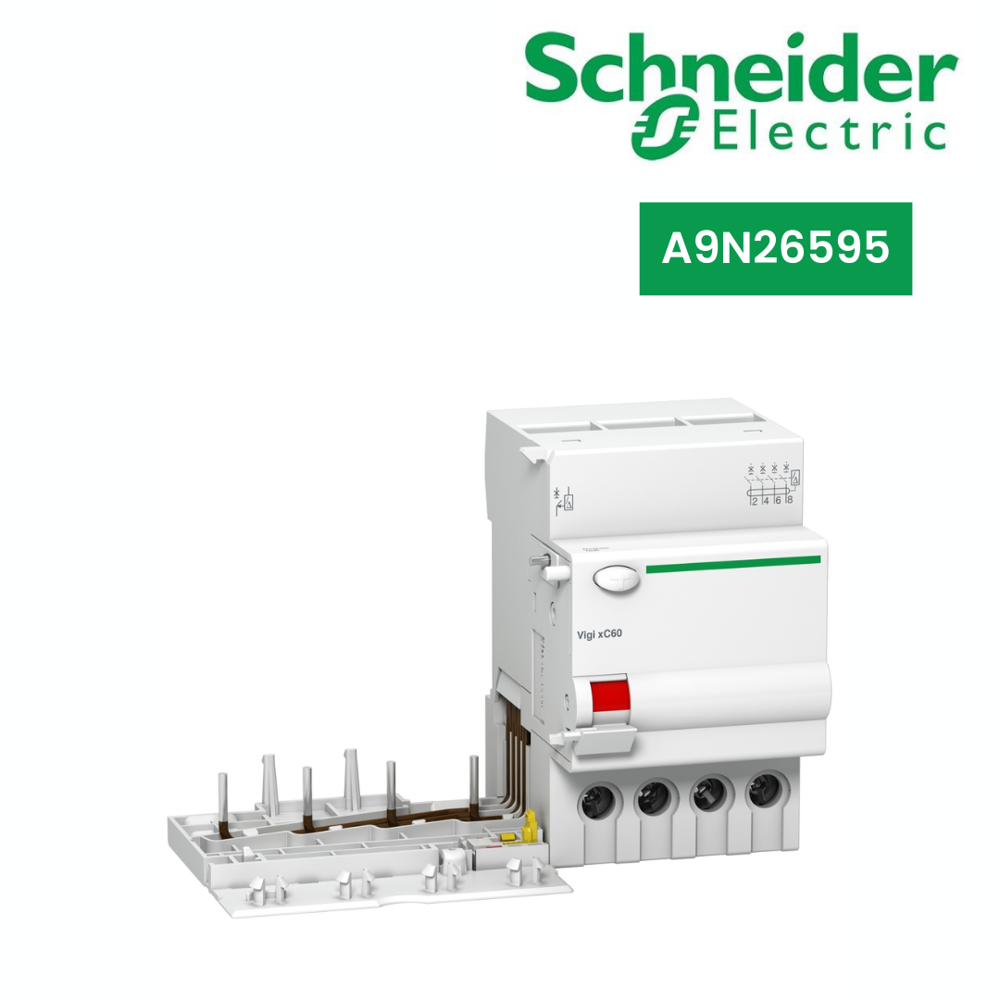

Circuit Breaker-A9N26595

2406.48 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 400V Volt (V)
Material Substances
Operating Temperature -5 60 C Celsius (oC)
Rated Current 25A Ampere (amp)
Warranty 1 YEAR
IP Rating IP20 and IP40
Product Type Earth Leakage
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N26595 Price And Quantity

Minimum Order Quantity 1 Piece
Price 2406.48 INR/Piece

Circuit Breaker-A9N26595 Product Specifications

Temperature Protection -40 85 C Celsius (oC)
Rated Current 25A Ampere (amp)
Rated Voltage 400V Volt (V)
Operating Temperature -5 60 C Celsius (oC)
Weight 215g Kilograms (kg)
IP Rating IP20 and IP40
Poles Number 4
Warranty 1 YEAR
Product Type Earth Leakage
Material Substances

Circuit Breaker-A9N26595 Trade Information

Payment Terms Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 25A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The dimensions are (W) 126mm x (H) 87mm x (D) 74.5mm. The weight is 215g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5C to 60C. The storage temperature is -40C to 85C.
