Circuit Breaker-A9N26597

2628.48 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 500 V Volt (V)
Warranty 1 YEAR
Rated Current 25 A Ampere (amp)
IP Rating IP20 and IP40
Material Substances
Operating Temperature -5 60 C Celsius (oC)
Product Type Earth Leakage
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N26597 Price And Quantity

Price 2628.48 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N26597 Product Specifications

Product Type Earth Leakage
IP Rating IP20 and IP40
Rated Current 25 A Ampere (amp)
Material Substances
Operating Temperature -5 60 C Celsius (oC)
Temperature Protection -40 85 C Celsius (oC)
Weight 215g Grams (g)
Warranty 1 YEAR
Poles Number 4
Rated Voltage 500 V Volt (V)

Circuit Breaker-A9N26597 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

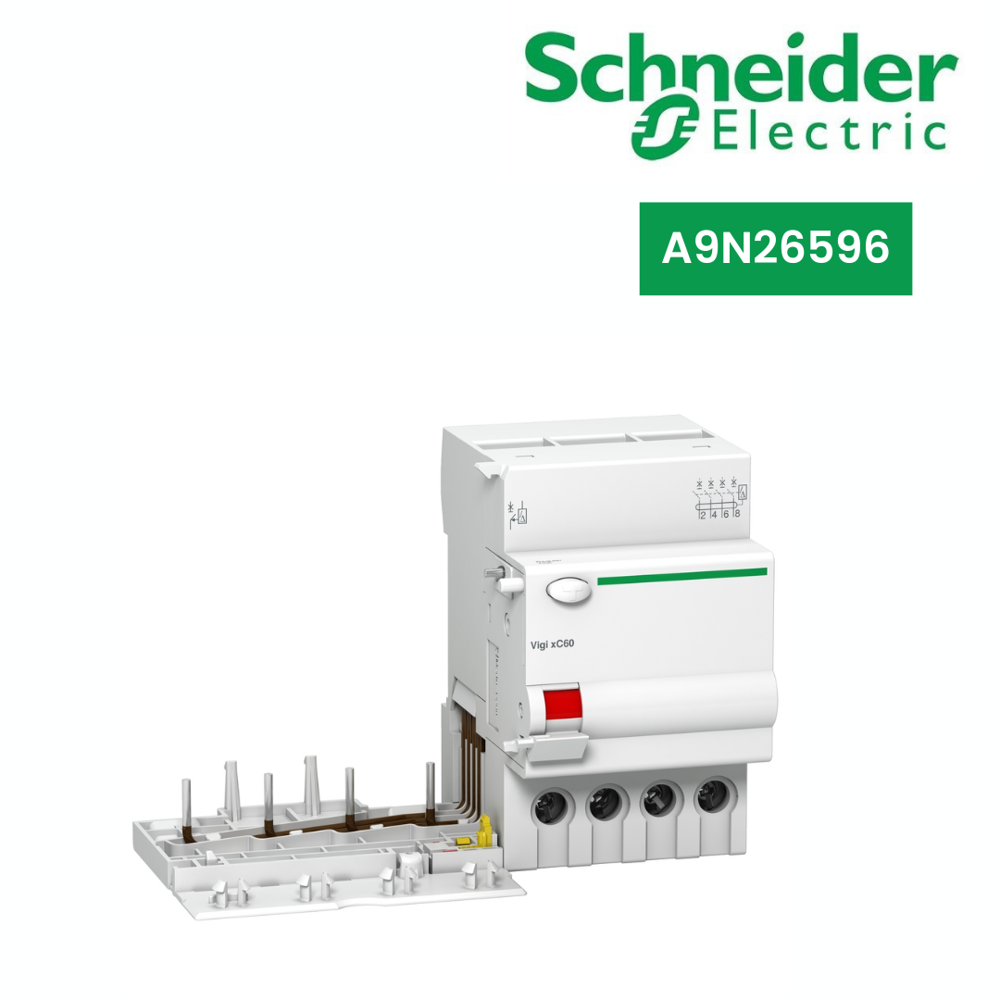

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 25A. The earth leakage protection class is AC type with a sensitivity of 300mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The dimensions are (W) 126mm x (H) 87mm x (D) 74.5mm. The weight is 215g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5C to 60C. The storage temperature is -40C to 85C.
