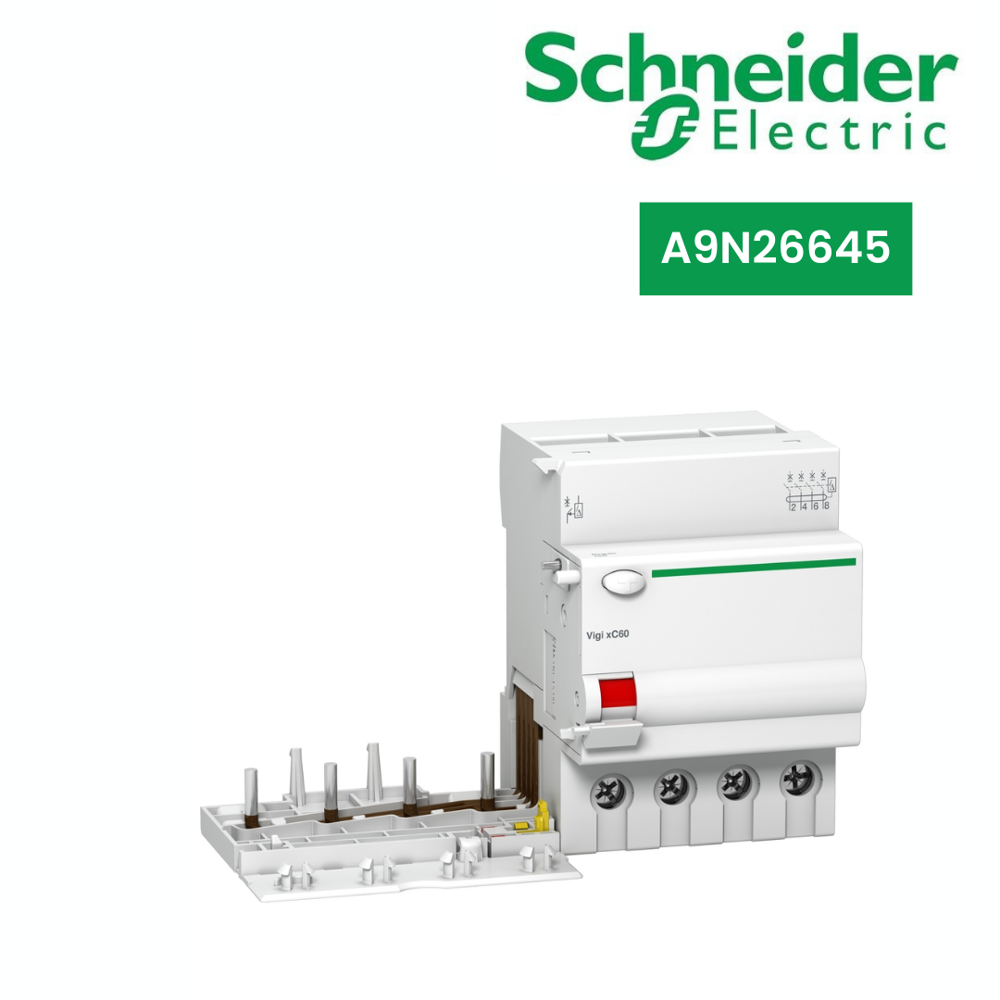

Circuit Breaker-A9N26645

3355.52 INR/Piece

Get a Price/Quote

Product Details:

Material Substances
Rated Current 63 A Ampere (amp)
Rated Voltage 500 V Volt (V)
Frequency 50/60 Hz Hertz (HZ)
IP Rating IP20 AND IP40
Warranty 1 YEAR
Operating Temperature -5 60 C Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N26645 Price And Quantity

Price 3355.52 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N26645 Product Specifications

IP Rating IP20 AND IP40
Rated Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Operating Temperature -5 60 C Celsius (oC)
Weight 285g Grams (g)
Rated Current 63 A Ampere (amp)
Material Substances
Poles Number 4
Frequency 50/60 Hz Hertz (HZ)
Temperature Protection -40 85 C Celsius (oC)
Product Type Earth Leakage
Rated Voltage 500 V Volt (V)

Circuit Breaker-A9N26645 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 43 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 135mm x (H) 87mm x (D) 74.5mm. The weight is 285g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5C to 60C. The storage temperature is -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-LV563320 Price : 26721.4 INR/Piece Minimum Order Quantity : 1 Operating Temperature : 25 70 C Celsius (oC) Warranty : 1 YEAR Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 415V Volt (V) Weight : 7.1 kg Kilograms (kg) IP Rating : IP40 Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Rated Current : 630 A Ampere (amp) Function : This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Rated Frequency : 50/60 Hz Hertz (HZ) Poles Number : 4 Material : Substances

Send Inquiry

Circuit Breaker-LV516333 Price : 6841.3 INR/Piece Minimum Order Quantity : 1 Operating Temperature : 25 70 C Celsius (oC) Warranty : 1 YEAR Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 440V Volt (V) Weight : 1.5 kg Kilograms (kg) IP Rating : IP40 Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Rated Current : 160 A Ampere (amp) Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Rated Frequency : 50/60 Hz Hertz (HZ) Poles Number : 3 Material : Substances

Send Inquiry

Circuit Breaker-LV510317 Price : 4728.6 INR/Piece Minimum Order Quantity : 1 Operating Temperature : 25 70 C Celsius (oC) Warranty : 1 YEAR Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 440V Volt (V) Weight : 1.9 kg Kilograms (kg) IP Rating : IP40 Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Rated Current : 100 A Ampere (amp) Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories Rated Frequency : 50/60 Hz Hertz (HZ) Poles Number : 4 Material : Substances

Send Inquiry

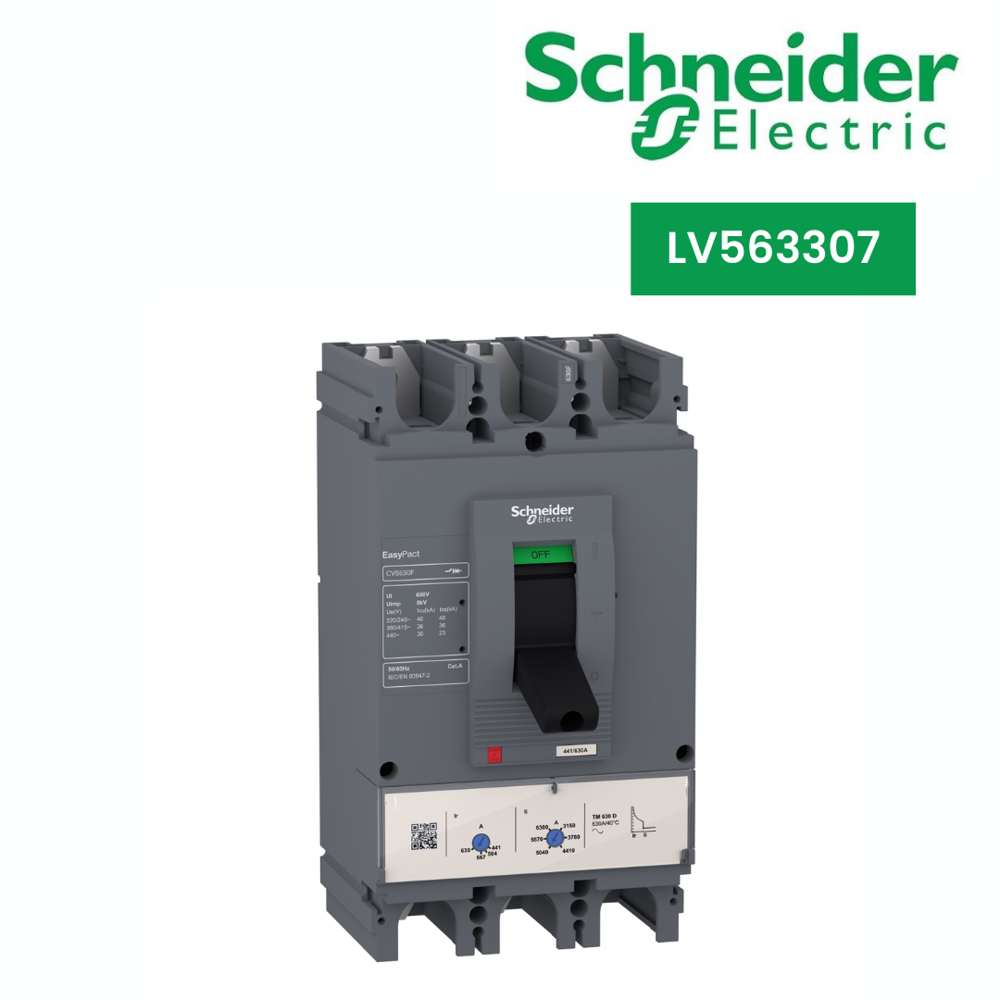

Circuit Breaker-LV563307 Price : 19336.2 INR/Piece Minimum Order Quantity : 1 Operating Temperature : 25 70 C Celsius (oC) Warranty : 1 YEAR Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 415V Volt (V) Weight : 5.2 kg Kilograms (kg) IP Rating : IP40 Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Rated Current : 630 A Ampere (amp) Function : This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Rated Frequency : 50/60 Hz Hertz (HZ) Poles Number : 3 Material : Substances
