Product Video

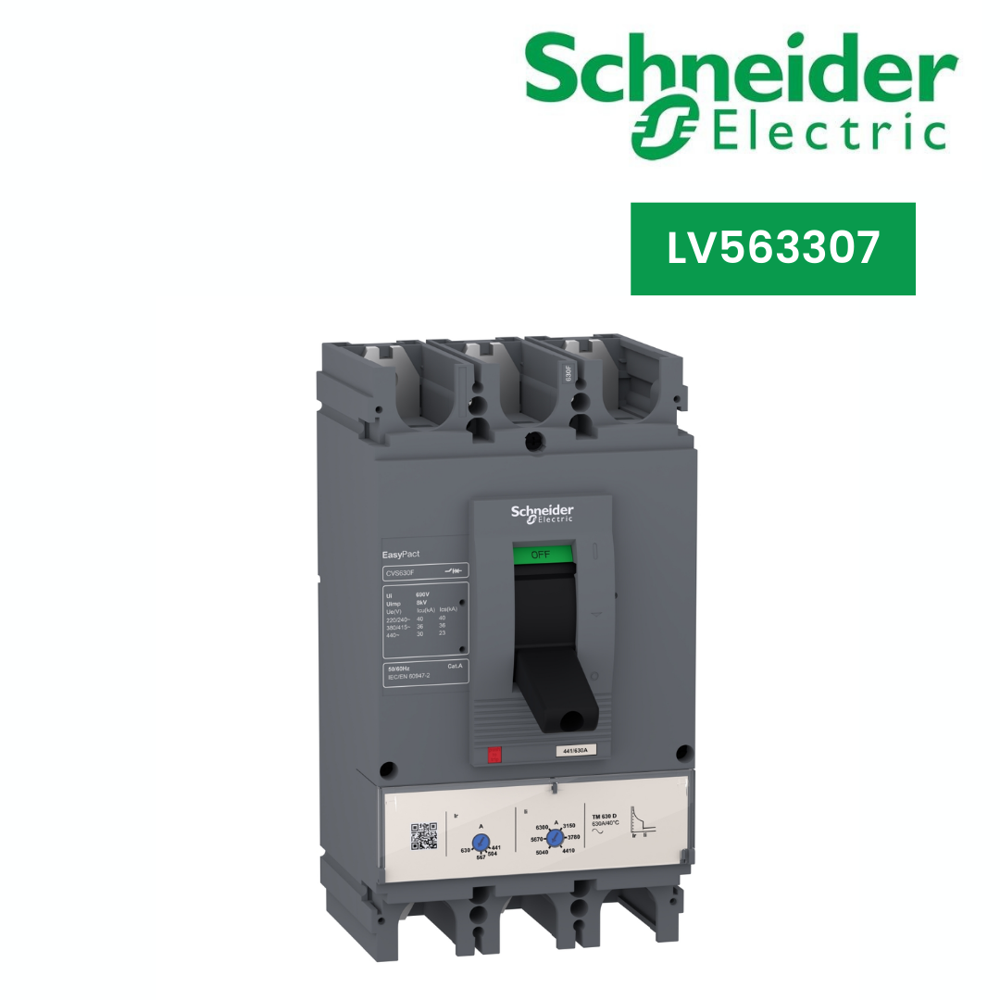

Circuit Breaker-LV563307

19336.2 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Rated Voltage 415V Volt (V)
Material Substances
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Rated Current 630 A Ampere (amp)
IP Rating IP40
Frequency 50/60 Hz Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-LV563307 Price And Quantity

Price 19336.2 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-LV563307 Product Specifications

Poles Number 3
Rated Frequency 50/60 Hz Hertz (HZ)
Temperature Protection -50 85 C Celsius (oC)
Weight 5.2 kg Kilograms (kg)
IP Rating IP40
Frequency 50/60 Hz Hertz (HZ)
Rated Current 630 A Ampere (amp)
Operating Temperature -25 70 C Celsius (oC)
Warranty 1 YEAR
Rated Voltage 415V Volt (V)
Function This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories.
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Material Substances

Circuit Breaker-LV563307 Trade Information

Payment Terms Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-A9N18372 Price : 4982.49 INR/Piece Minimum Order Quantity : 2 Rated Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 500 V Volt (V) Operating Temperature : 40 85 C Celsius (oC) Weight : 0.82 kg Kilograms (kg) IP Rating : IP20 Frequency : 50/60 Hz Hertz (HZ) Rated Current : 80 A Ampere (amp) Temperature Protection : 40 85 C Celsius (oC) Usage & Applications : Distribution Warranty : 1 YEAR Poles Number : 4

Send Inquiry

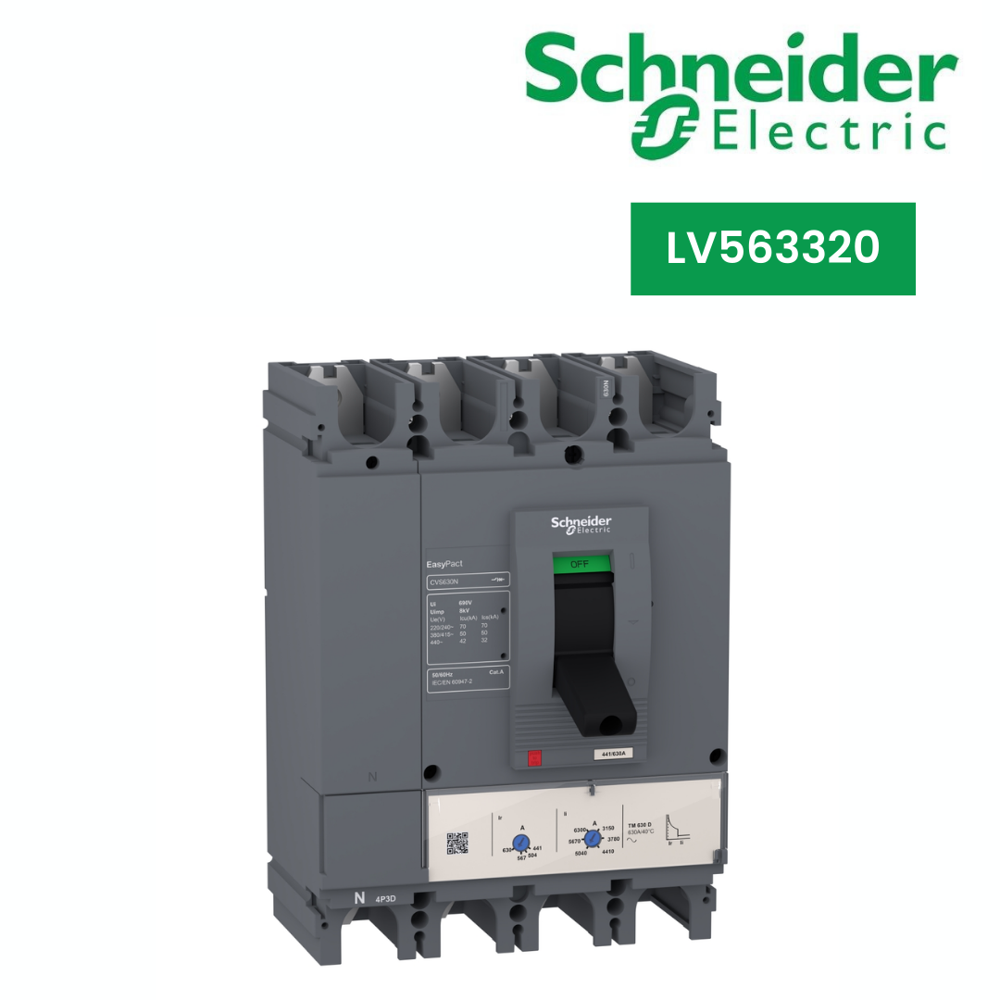

Circuit Breaker-LV563320 Price : 26721.4 INR/Piece Minimum Order Quantity : 1 Rated Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 415V Volt (V) Operating Temperature : 25 70 C Celsius (oC) Weight : 7.1 kg Kilograms (kg) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Rated Current : 630 A Ampere (amp) Temperature Protection : 50 85 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Warranty : 1 YEAR Poles Number : 4 Material : Substances

Send Inquiry

Circuit Breaker-LV510334 Price : 4650.9 INR/Piece Minimum Order Quantity : 1 Rated Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 440V Volt (V) Operating Temperature : 25 70 C Celsius (oC) Weight : 1.5 kg Kilograms (kg) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Rated Current : 50 A Ampere (amp) Temperature Protection : 50 85 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Warranty : 1 YEAR Poles Number : 3

Send Inquiry

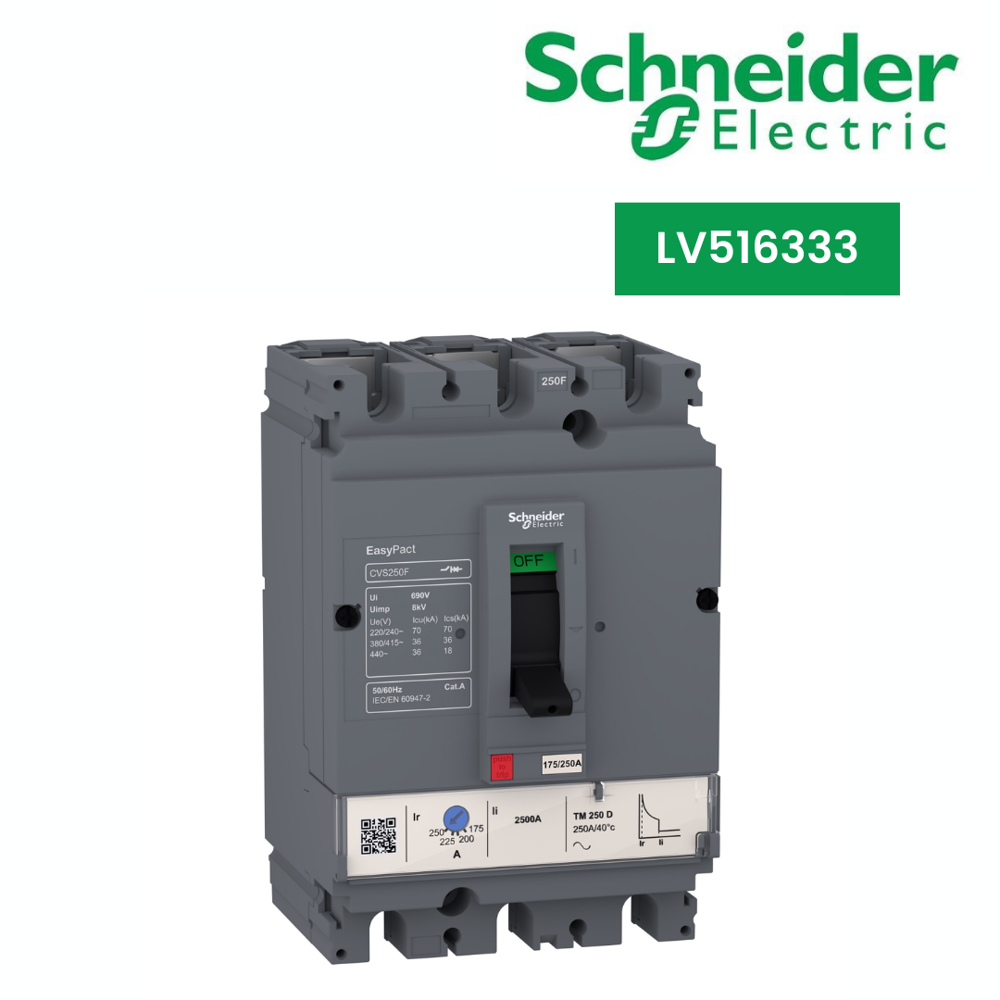

Circuit Breaker-LV516333 Price : 6841.3 INR/Piece Minimum Order Quantity : 2 Rated Frequency : 50/60 Hz Hertz (HZ) Rated Voltage : 440V Volt (V) Operating Temperature : 25 70 C Celsius (oC) Weight : 1.5 kg Kilograms (kg) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Rated Current : 160 A Ampere (amp) Temperature Protection : 50 85 C Celsius (oC) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Warranty : 1 YEAR Material : Substances
