Product Video

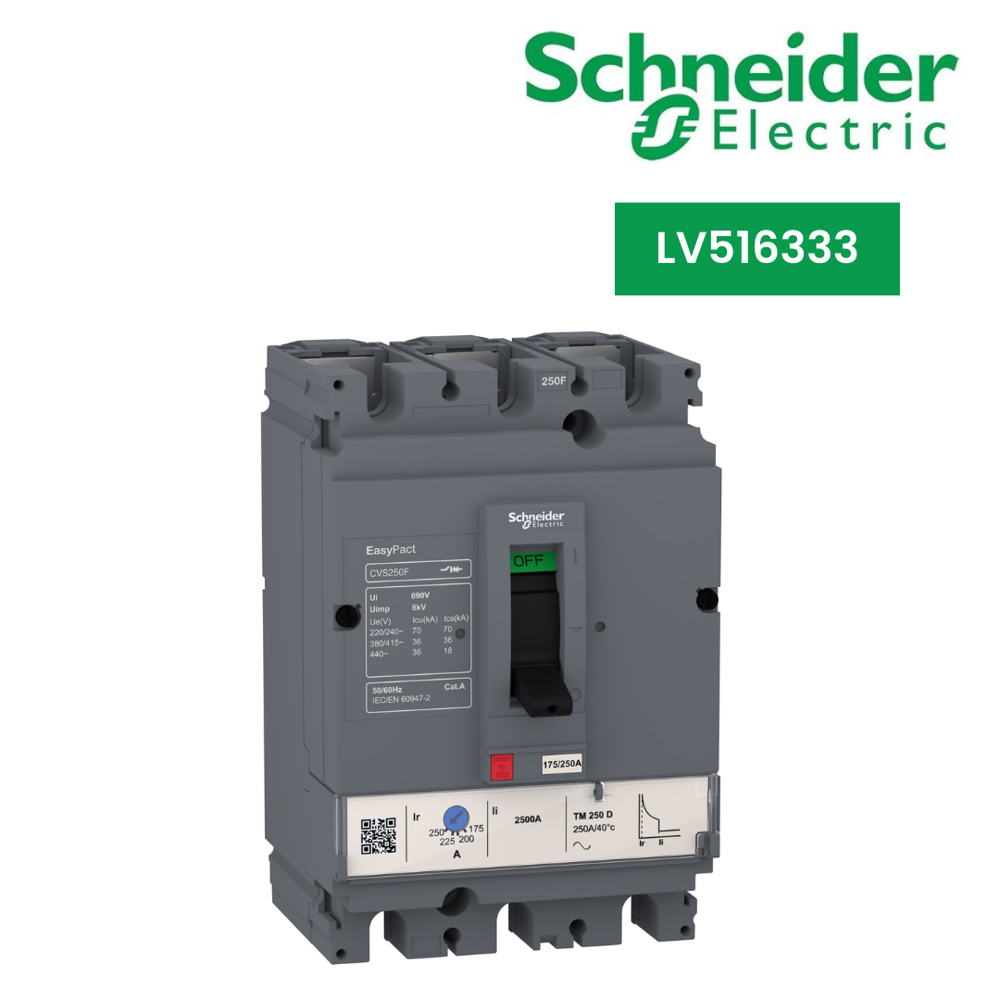

Circuit Breaker-LV516333

6841.3 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 440V Volt (V)
Warranty 1 YEAR
IP Rating IP40
Rated Current 160 A Ampere (amp)
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Operating Temperature -25 70 C Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-LV516333 Price And Quantity

Price 6841.3 INR/Piece
Minimum Order Quantity 2 Piece

Circuit Breaker-LV516333 Product Specifications

Function This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.
Rated Voltage 440V Volt (V)
Operating Temperature -25 70 C Celsius (oC)
Warranty 1 YEAR
Rated Frequency 50/60 Hz Hertz (HZ)
IP Rating IP40
Rated Current 160 A Ampere (amp)
Temperature Protection -50 85 C Celsius (oC)
Weight 1.5 kg Kilograms (kg)
Frequency 50/60 Hz Hertz (HZ)
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Material Substances

Circuit Breaker-LV516333 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

EasyPact CVS160F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
