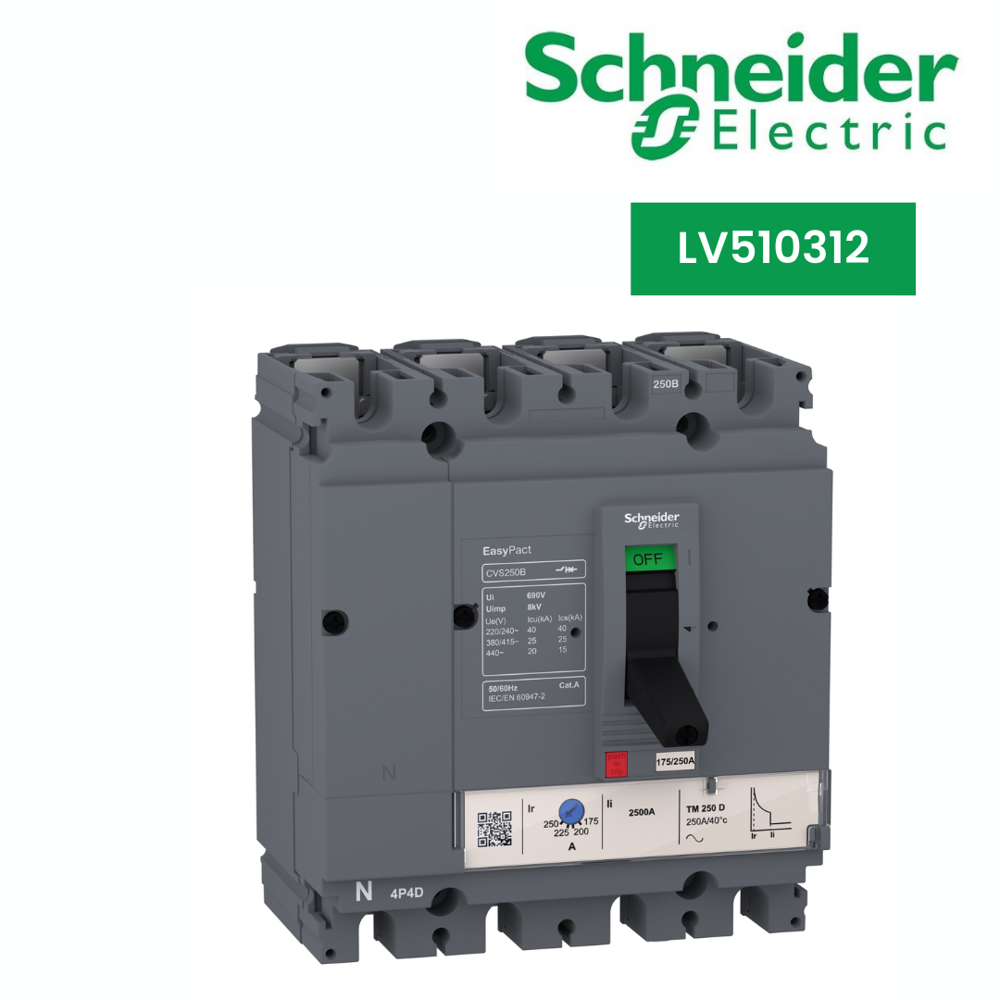

Circuit Breaker-LV510312

4726.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-LV510312 Price And Quantity

Minimum Order Quantity 1 Piece
Price 4726.0 INR/Piece

Circuit Breaker-LV510312 Trade Information

Payment Terms Cash in Advance (CID), Cheque, Paypal, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

EasyPact CVS100B is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 32A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker -A9N16204 Price : 1349.28 INR/Piece Minimum Order Quantity : 2 Rated Current : 25 Ampere (amp) Warranty : 1YEAR Rated Frequency : 50 Hz Hertz (HZ) Operating Temperature : 40 C to 85 C. Celsius (oC) Rated Voltage : 240V Ampere (A) IP Rating : IP20 Frequency : 50 Hertz (HZ) Temperature Protection : 40 C to 85 C. Celsius (oC) Weight : 210 Grams (g) Poles Number : 2 Rated Short Circuit Breaking Current : 500A Ampere (A) Rated Short Circuit Making Current : 500A Ampere (A) Curves : C Product Type : Residual Current

Send Inquiry

Circuit Breaker-A9N18365 Price : 3823.36 INR/Piece Minimum Order Quantity : 2 Rated Current : 80 A Ampere (amp) Warranty : 1 YEAR Rated Frequency : 50Hz or 60Hz Hertz (HZ) Operating Temperature : 25 70 C Celsius (oC) Rated Voltage : 500 V Volt (V) IP Rating : IP20 Frequency : 50Hz or 60Hz Hertz (HZ) Temperature Protection : 40 85 C Celsius (oC) Weight : 0.615 kg Kilograms (kg) Rated Short Circuit Breaking Current : 10000 A Ampere (A) Usage & Applications : Distribution Rated Short Circuit Making Current : 10000 A Ampere (A) Curves : C curve

Send Inquiry

Circuit Breaker-LV563317 Price : 20412.9 INR/Piece Minimum Order Quantity : 1 Rated Current : 630 A Ampere (amp) Warranty : 1 YEAR Rated Frequency : 50/60 Hz Hertz (HZ) Operating Temperature : 25 70 C Celsius (oC) Rated Voltage : 415V Volt (V) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Temperature Protection : 50 85 C Celsius (oC) Weight : 5.2 kg Kilograms (kg) Poles Number : 3 Usage & Applications : Distribution Function : This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Material : Substances

Send Inquiry

Circuit Breaker-LV510344 Price : 5809.0 INR/Piece Minimum Order Quantity : 1 Rated Current : 50 A Ampere (amp) Warranty : 1 YEAR Rated Frequency : 50/60 Hz Hertz (HZ) Operating Temperature : 25 70 C Celsius (oC) Rated Voltage : 440V Volt (V) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Temperature Protection : 50 85 C Celsius (oC) Weight : 1.9 kg Kilograms (kg) Poles Number : 4 Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Material : Substances

Send Inquiry
