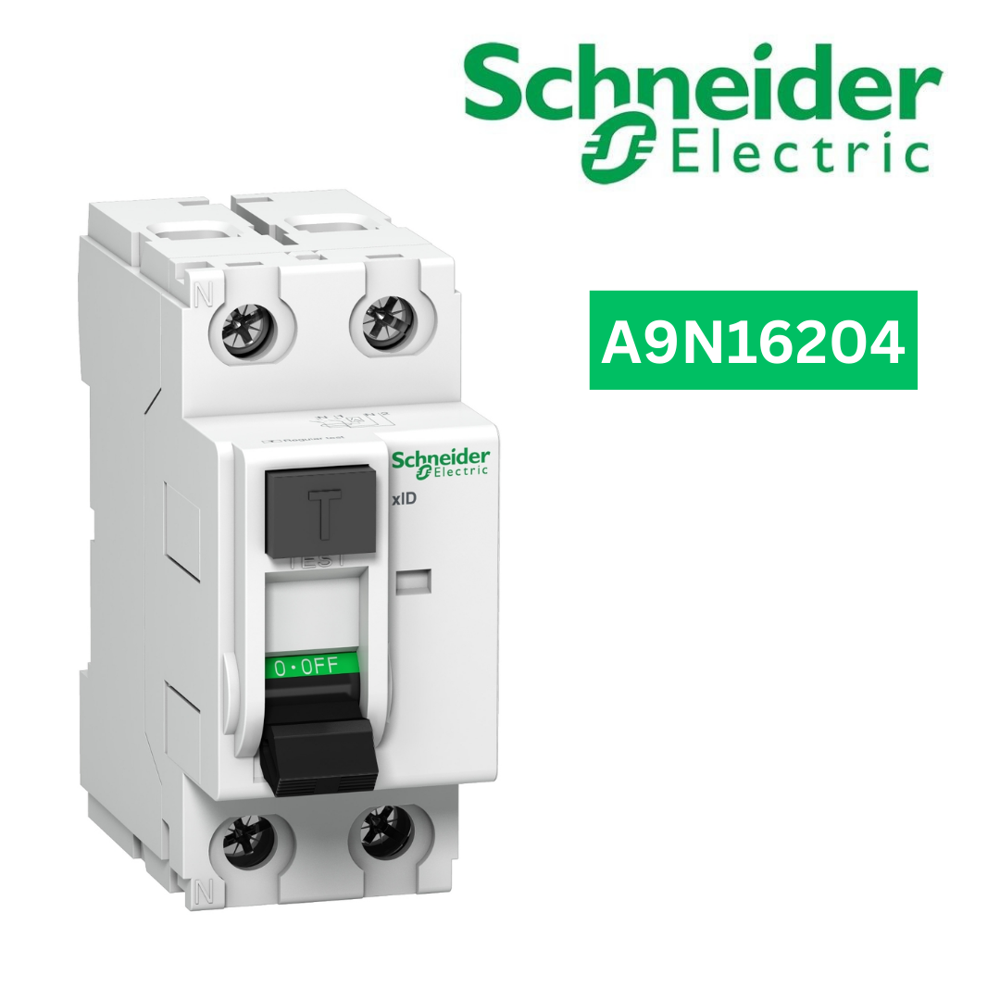

Circuit Breaker -A9N16204

1349.28 INR/Piece

Get a Price/Quote

Product Details:

Phase other
Rated Short Circuit Making Current 500A Ampere (A)
Rated Voltage 240V Ampere (A)
Rated Short Circuit Breaking Current 500A Ampere (A)
Warranty 1YEAR
Rated Current 25 Ampere (amp)
Operating Temperature -40 C to 85 C. Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker -A9N16204 Price And Quantity

Price 1349.28 INR/Piece
Minimum Order Quantity 2 Piece

Circuit Breaker -A9N16204 Product Specifications

Rated Short Circuit Breaking Current 500A Ampere (A)
Rated Voltage 240V Ampere (A)
Curves C
Phase other
Rated Short Circuit Making Current 500A Ampere (A)
Weight 210 Grams (g)
IP Rating IP20
Frequency 50 Hertz (HZ)
Operating Temperature -40 C to 85 C. Celsius (oC)
Rated Current 25 Ampere (amp)
Product Type Residual Current
Poles Number 2
Warranty 1YEAR
Rated Frequency 50 Hz Hertz (HZ)
Temperature Protection -40 C to 85 C. Celsius (oC)

Circuit Breaker -A9N16204 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
