Distribution Board-A9HKS332

1456.9 INR/Piece

Get a Price/Quote

Product Details:

Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Rated Current 32A Ampere (amp)
Base Material Other
Current Rating 32A
Protection Class The IP degree of protection is IP30 and IK08 with the single metal door.
Components Consumer unit
Usage & Applications Power socket distribution
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Board-A9HKS332 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1456.9 INR/Piece

Distribution Board-A9HKS332 Product Specifications

Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Standard This distribution board complies with IS 8623-1 and 3, and IEC 61439-3 standards.
Base Material Other
Rated Current 32A Ampere (amp)
Dimension (L*W*H) The dimensions are (W) 138mm x (H) 156mm x (D) 65mm. The colour of the distribution board is white (RAL 9003). Millimeter (mm)
Usage & Applications Power socket distribution
IP Rating IP30
Current Rating 32A
Product Type Distribution Box
Protection Class The IP degree of protection is IP30 and IK08 with the single metal door.
Components Consumer unit
Surface Finish Other
Protection Level Other
Warranty 1 YEAR
Surface Color White
Application Power socket distribution
Cover Material Other

Distribution Board-A9HKS332 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

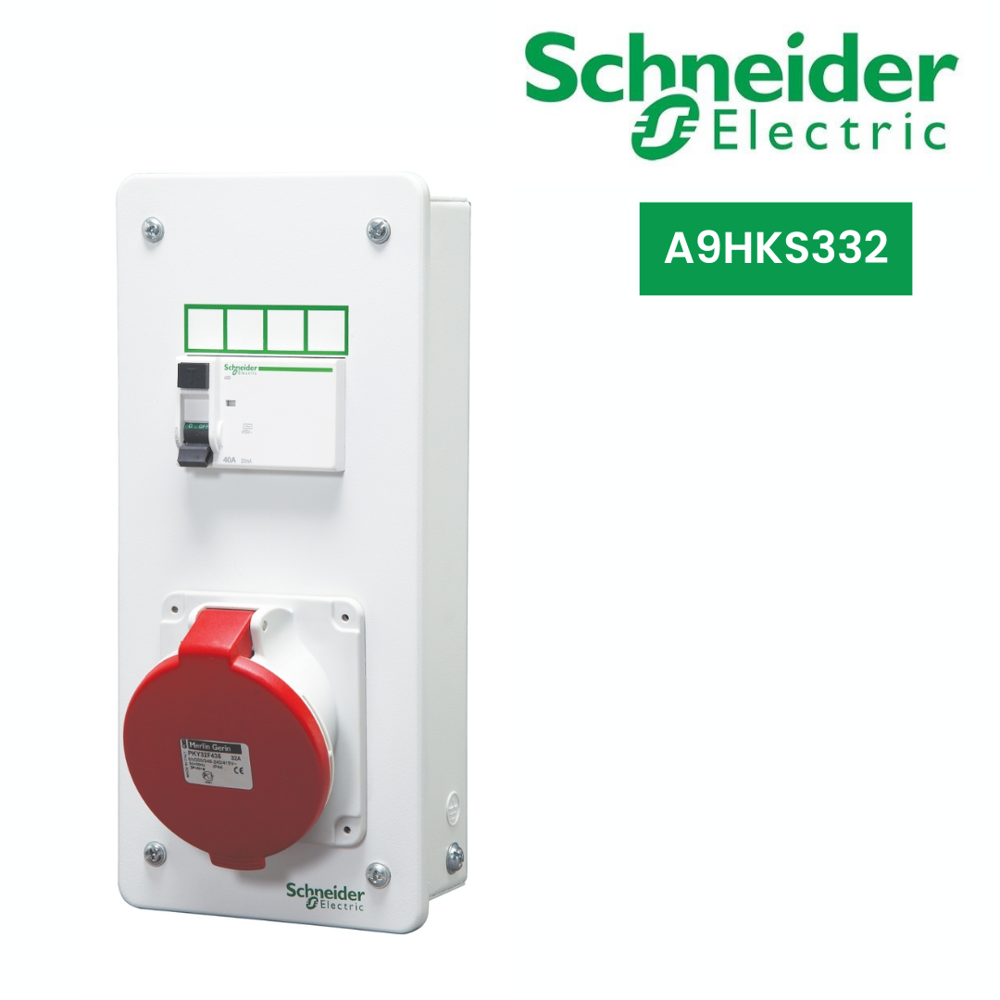

This Acti9 product is a surface or flush mounted power socket distribution board and comes with a single metal door for door opening. It allows mounting a 3P panel-mounted socket and modular devices with a width of 2 modules of 18mm. The In rated current is 32A. It is compatible with PK panel-mounted straight socket. The dimensions are (W) 138mm x (H) 156mm x (D) 65mm. The colour of the distribution board is white (RAL 9003). The box, cable gland plate, and DIN rail are made of galvanized steel and CRCA is for the front plate. The IP degree of protection is IP30 and IK08 with the single metal door. This distribution board complies with IS 8623-1 and 3, and IEC 61439-3 standards. It is certified with CPRI and ERDA certifications.
