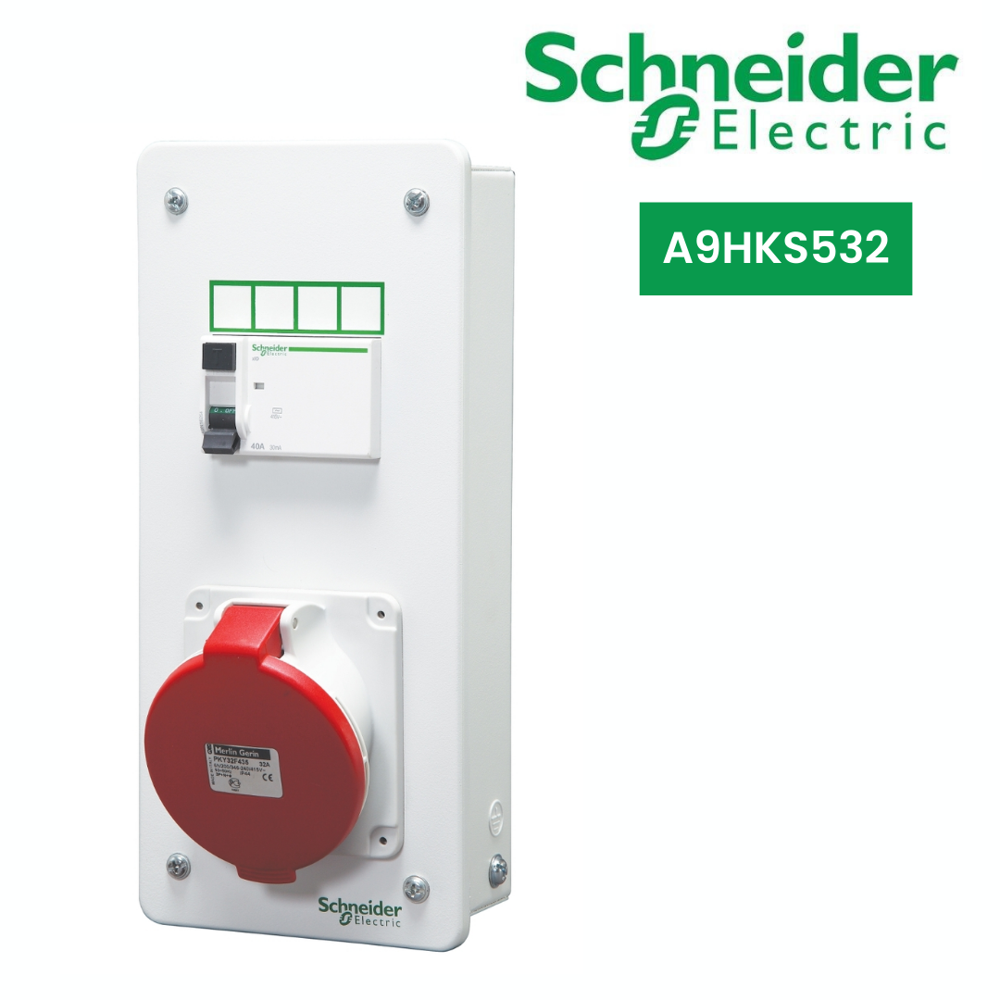

Distribution Board-A9HKS532

1725.5 INR/Piece

Get a Price/Quote

Product Details:

Cover Material Other
Protection Level Other
Usage & Applications Power socket distribution
Protection Class The color of the distribution board is white (RAL 9003). The degree of protection is IP30
Warranty 1 YEAR
Components Consumer unit
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Board-A9HKS532 Price And Quantity

Price 1725.5 INR/Piece
Minimum Order Quantity 1 Piece

Distribution Board-A9HKS532 Product Specifications

Protection Class The color of the distribution board is white (RAL 9003). The degree of protection is IP30
Cover Material Other
Standard This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.
Usage & Applications Power socket distribution
Protection Level Other
Surface Finish Other
IP Rating IP30
Dimension (L*W*H) The dimensions are (W) 138mm x (H) 305mm x (D) 65mm. The color of the distribution board is white (RAL 9003). Millimeter (mm)
Components Consumer unit
Surface Color White
Warranty 1 YEAR
Product Type Distribution Box
Rated Current 32A Ampere (amp)
Current Rating 32 A
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Application Power socket distribution
Base Material Other

Distribution Board-A9HKS532 Trade Information

Payment Terms Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 power socket distribution board comes with reversible single metal door for door opening. This distribution board allows to mount a 5P panel-mounted socket and modular devices with a width of 4 modules of 18mm. The In rated current is 32A. The dimensions are (W) 138mm x (H) 305mm x (D) 65mm. The color of the distribution board is white (RAL 9003). The degree of protection is IP30, IK08 with the single metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.
