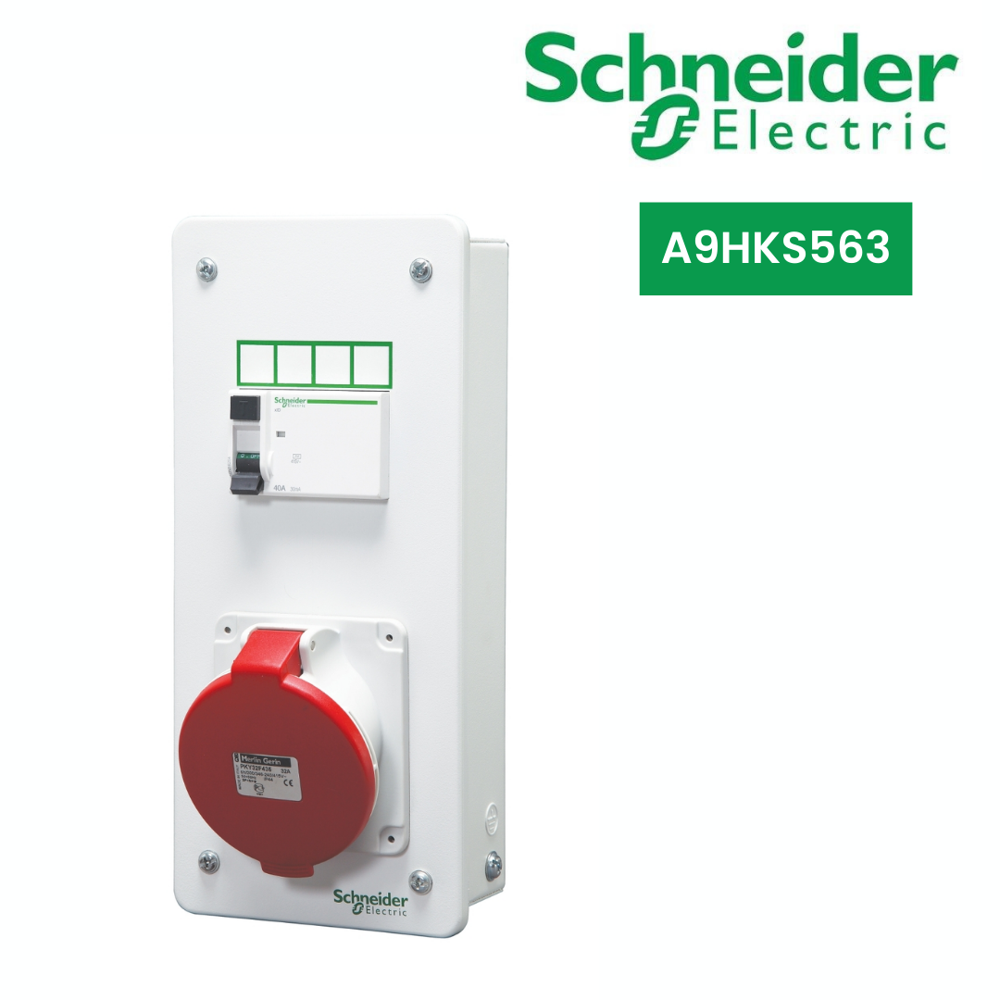

Distribution Board-A9HKS563

3483.98 INR/Piece

Get a Price/Quote

Product Details:

Protection Class IP30
Rated Current 63A Ampere (amp)
Protection Level Other
Current Rating 63A
Base Material Other
Cover Material Other
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Board-A9HKS563 Price And Quantity

Price 3483.98 INR/Piece
Minimum Order Quantity 1 Piece

Distribution Board-A9HKS563 Product Specifications

Base Material Other
Current Rating 63A
Application Power socket distribution
Usage & Applications Power socket distribution
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Cover Material Other
Components Consumer unit
Warranty 1 YEAR
Product Type Distribution Box
Rated Current 63A Ampere (amp)
Protection Class IP30
Dimension (L*W*H) The dimensions are (W) 138mm x (H) 305mm x (D) 65mm. The colour of the distribution board is white (RAL 9003). Millimeter (mm)
Protection Level Other
Standard This distribution board complies with IS 8623-1 and 3, and IEC 61439-3 standards.
Surface Color White
Surface Finish Other

Distribution Board-A9HKS563 Trade Information

Payment Terms Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 product is a surface or flush mounted power socket distribution board and comes with a single metal door for door opening. It allows mounting a 5P panel-mounted socket and modular devices with a width of 4 modules of 18mm. The In rated current is 63A. It is compatible with PK panel-mounted straight socket. The dimensions are (W) 138mm x (H) 305mm x (D) 65mm. The colour of the distribution board is white (RAL 9003). The box, cable gland plate, and DIN rail are made of galvanized steel and CRCA is for the front plate. The IP degree of protection is IP30 and IK08 with the single metal door. This distribution board complies with IS 8623-1 and 3, and IEC 61439-3 standards. It is certified with CPRI and ERDA certifications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Distribution Board' category

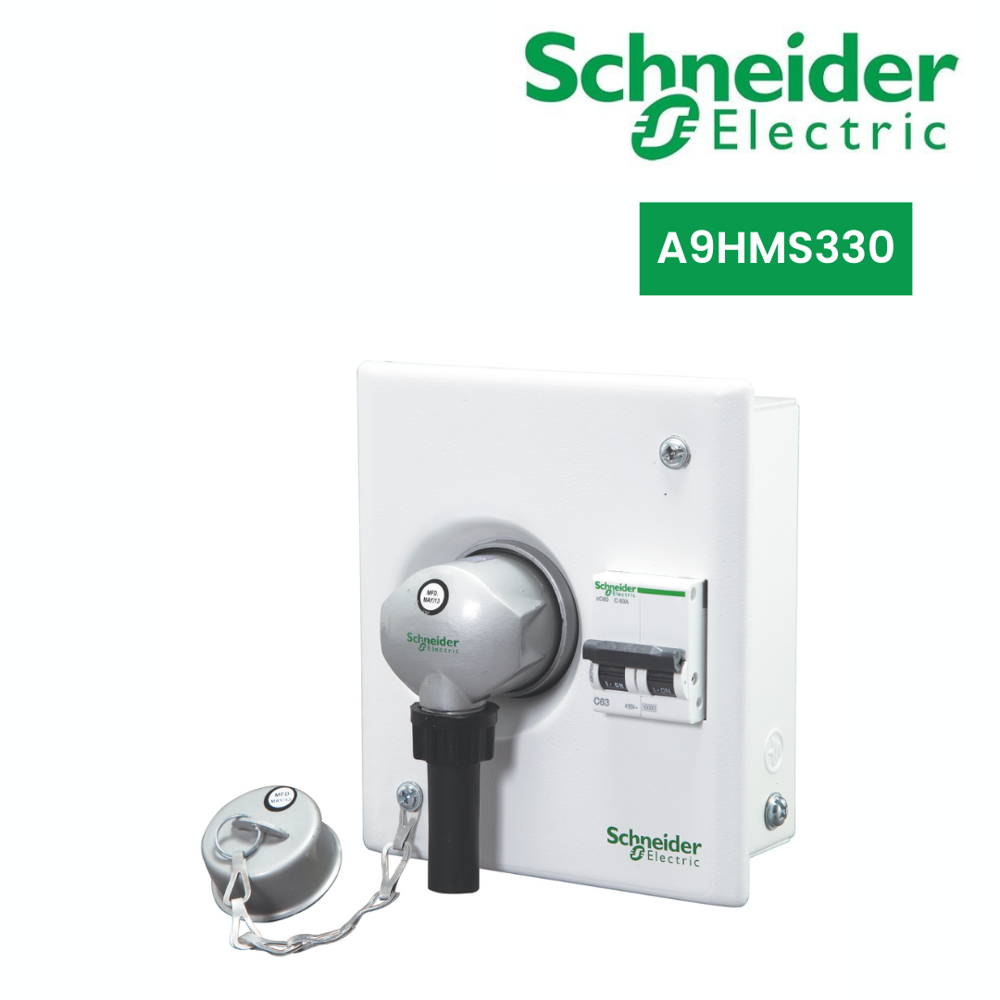

Distribution Board-A9HMS330 Price : 2234.48 INR/Piece Minimum Order Quantity : 1 IP Rating : IP30 Dimension (L*W*H) : The dimensions are (W) 150mm x (H) 305mm x (D) 67mm. The color of the distribution board is white (RAL 9003). Millimeter (mm) Surface Finish : Other Standard : This distribution board is compliant with IS 86231, IS 86233 and IEC 614393 standards. Surface Color : White Protection Level : Other Application : Power socket distribution Base Material : Other Product Type : Distribution Box Warranty : 1 YEAR Material : Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate Usage & Applications : Power socket distribution Protection Class : The degree of protection is IP30, IK08 with the single metal door Cover Material : Other Components : Consumer unit
