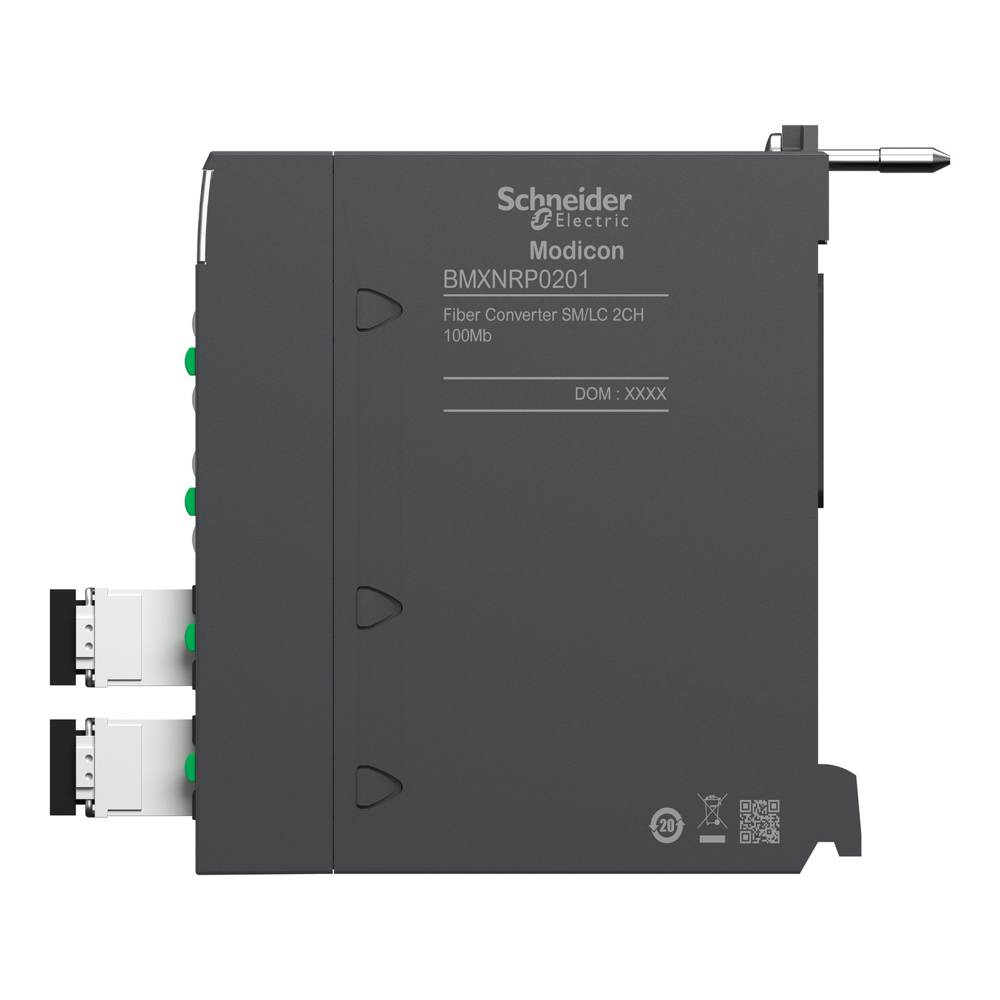

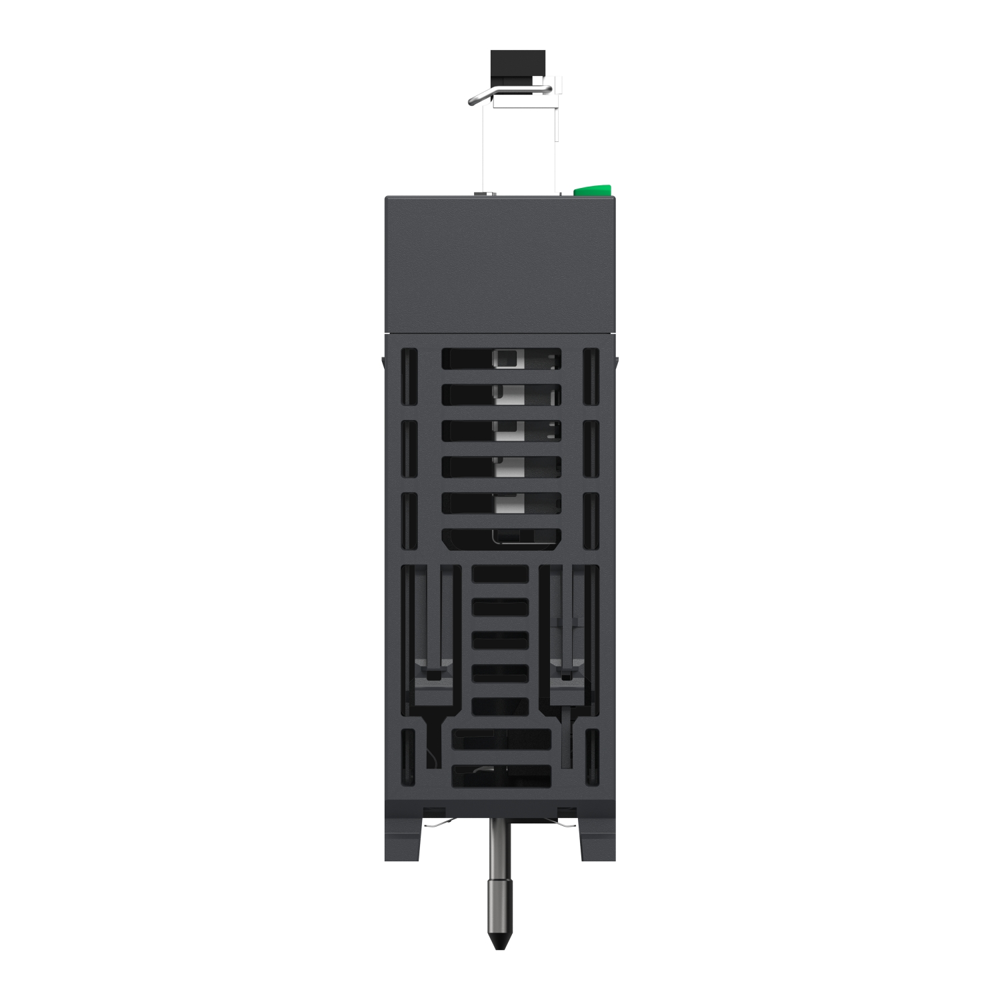

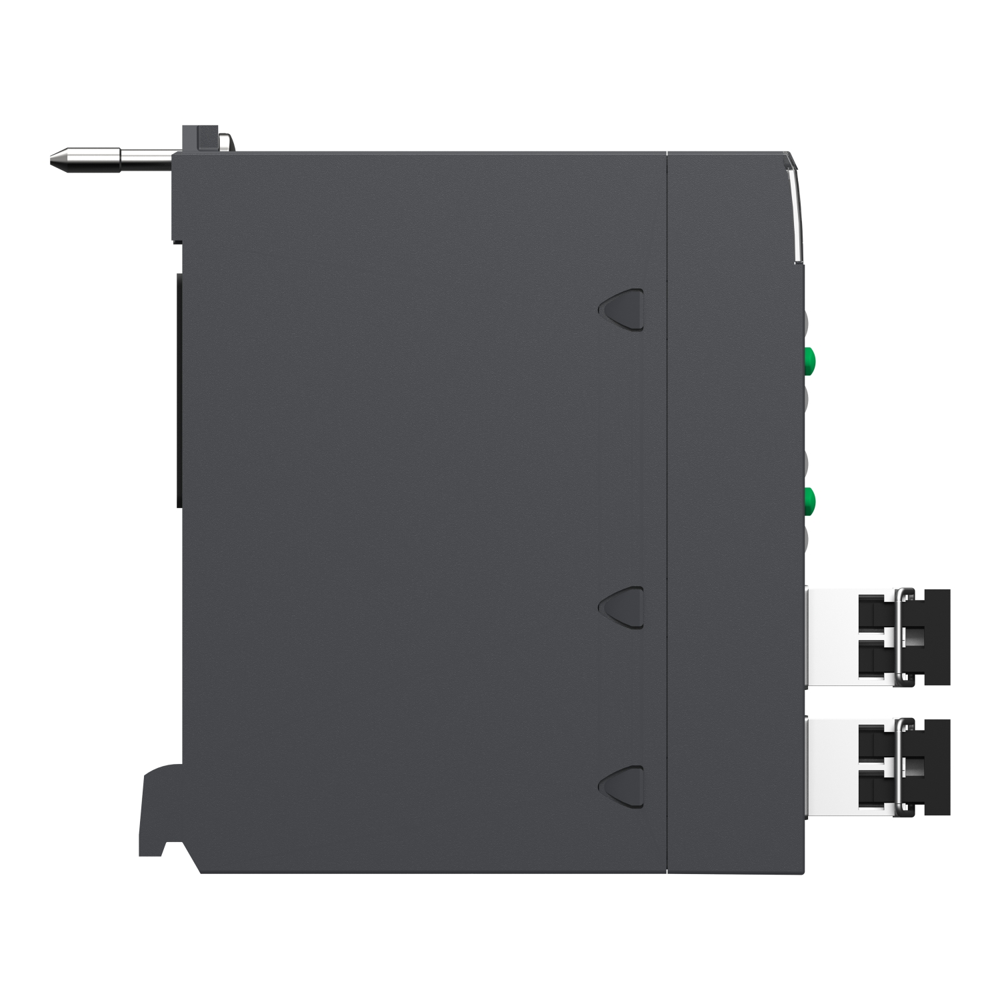

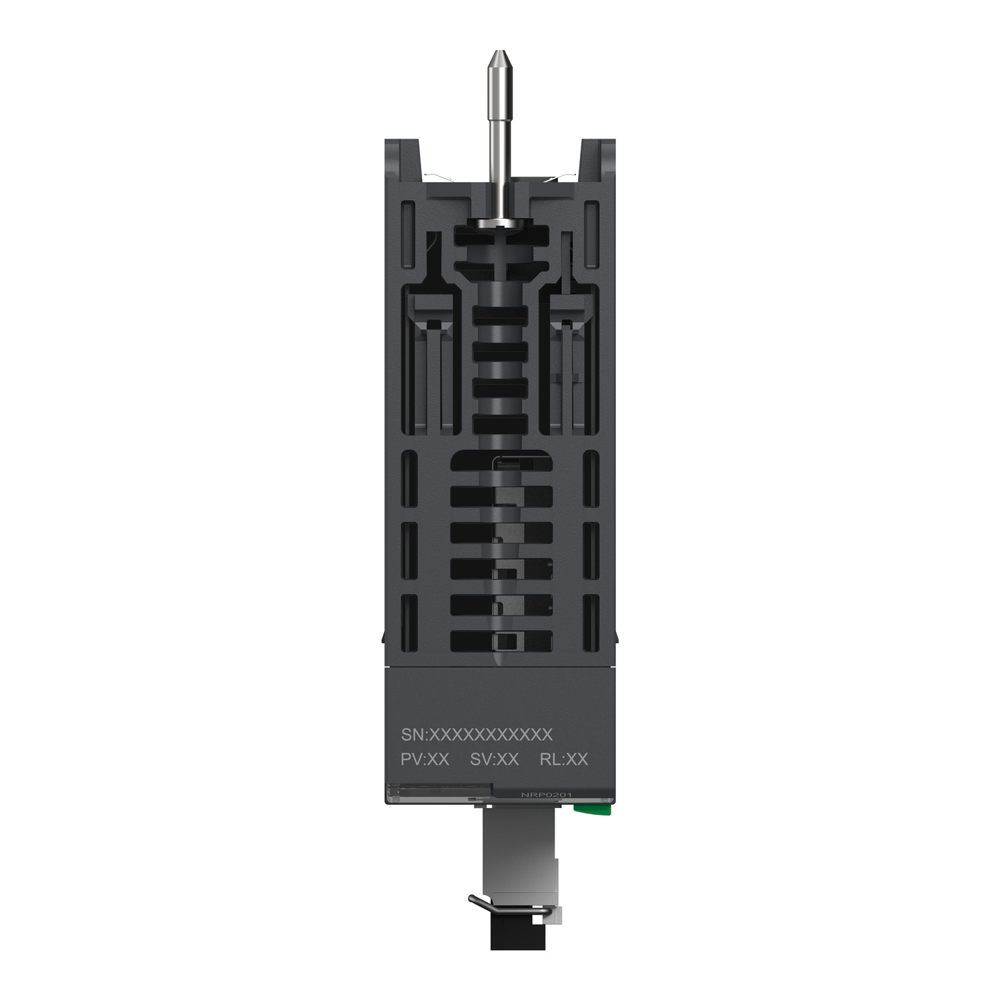

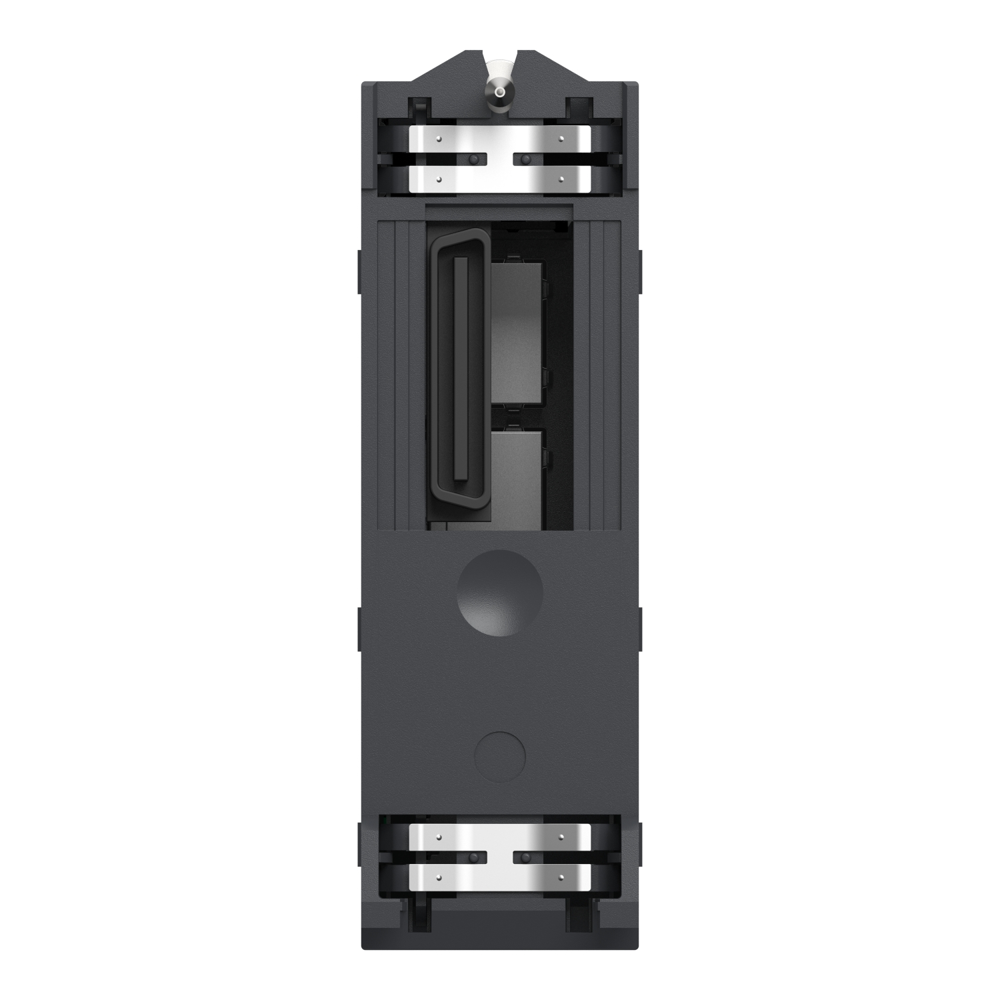

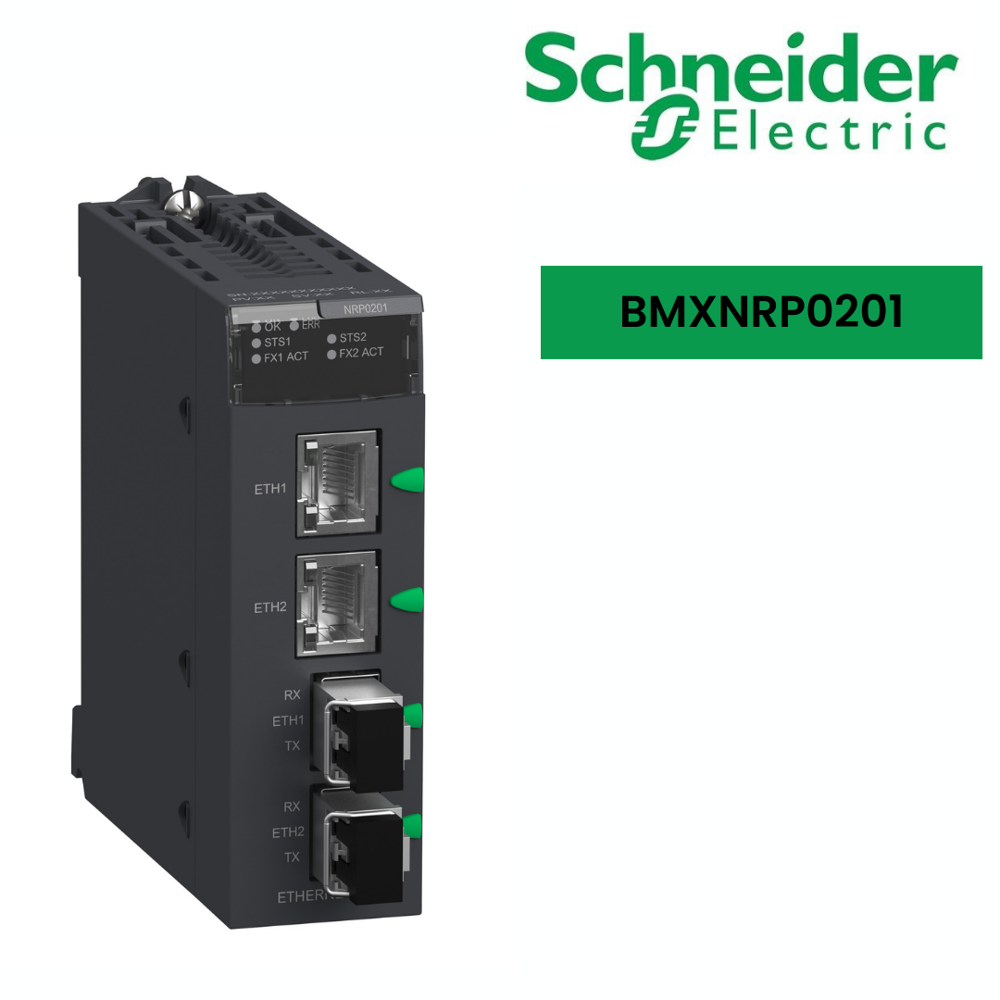

Ethernet Module-BMXNRP0201

65800.0 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Overheating Protection YES
IP Rating IP20
Connector Type 1 : Model number 2 : LED display panel 3 : Optical port with SFP transceiver for LC-type connector 4 : RJ45 Ethernet port 5 : LNK and ACT LED indicators on the RJ45 Ethernet port
Product Type This product is compatible with the entire range of Modicon controllers
Color BLACK
Dimension (L*W*H) Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ethernet Module-BMXNRP0201 Price And Quantity

Price 65800.0 INR/Piece
Minimum Order Quantity 5 Piece

Ethernet Module-BMXNRP0201 Product Specifications

Weight 203 g Grams (g)
Warranty 1 YEAR
Overheating Protection YES
Connection Type Cable connections
Color BLACK
Product Type This product is compatible with the entire range of Modicon controllers
IP Rating IP20
Dimension (L*W*H) Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. Millimeter (mm)
Connector Type 1 : Model number 2 : LED display panel 3 : Optical port with SFP transceiver for LC-type connector 4 : RJ45 Ethernet port 5 : LNK and ACT LED indicators on the RJ45 Ethernet port

Ethernet Module-BMXNRP0201 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
