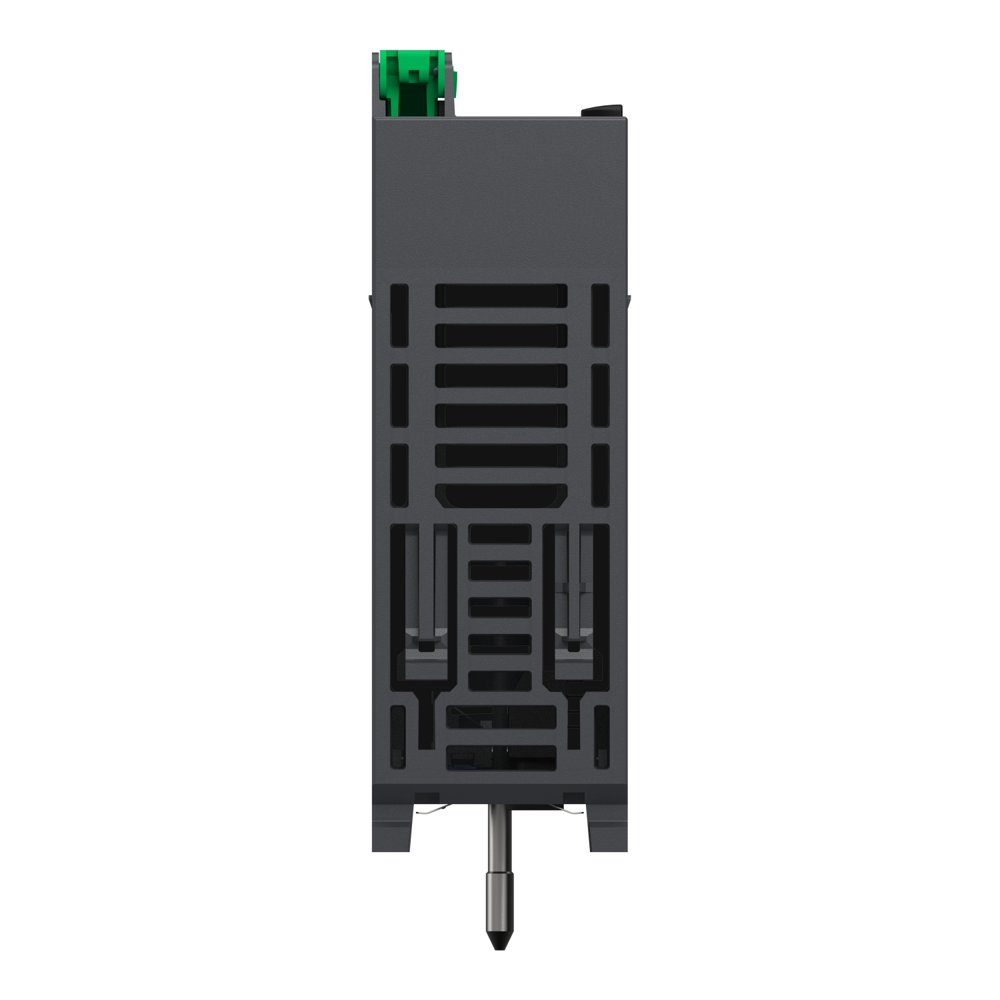

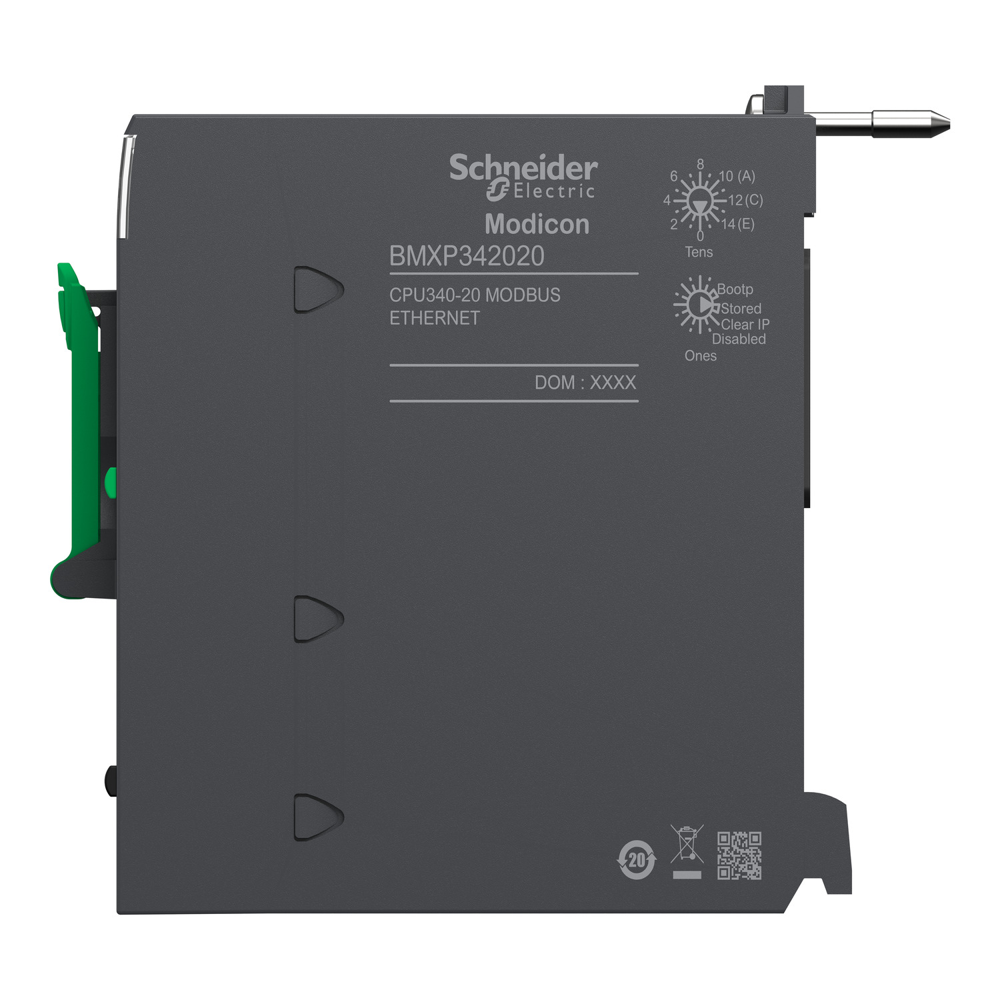

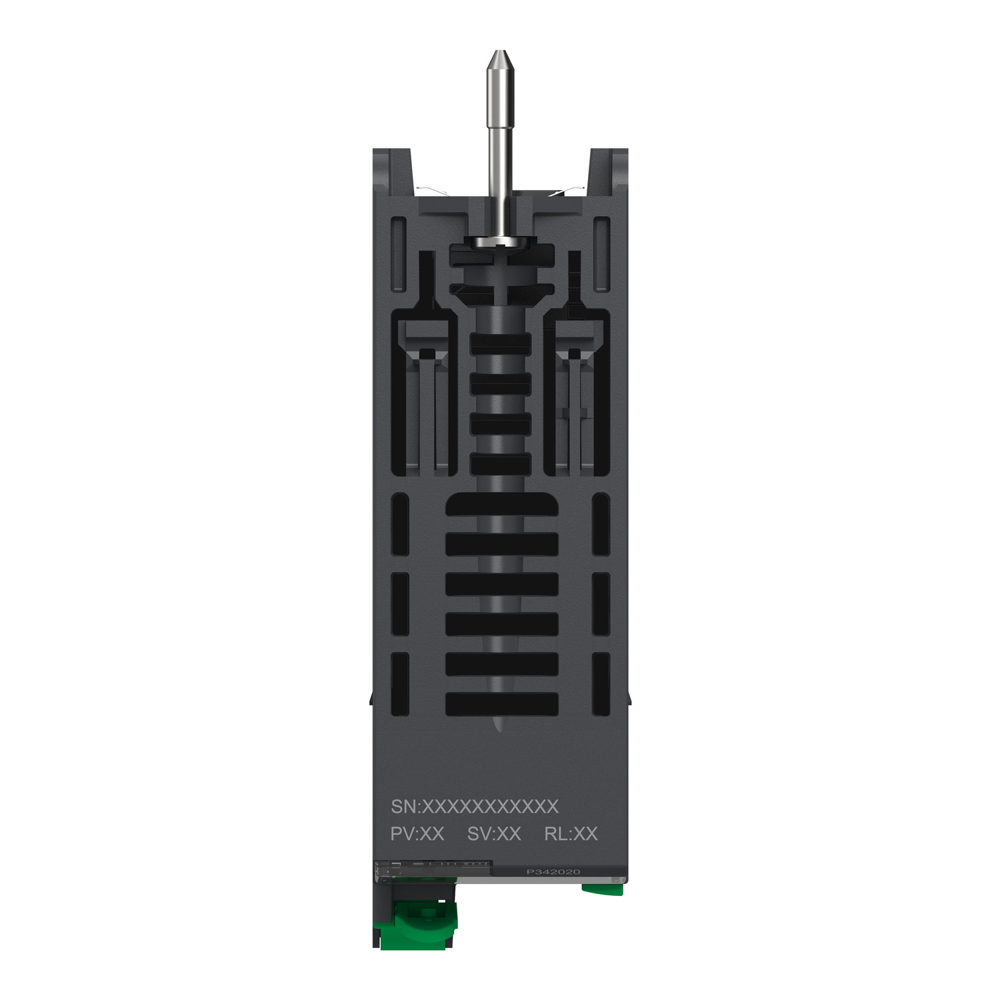

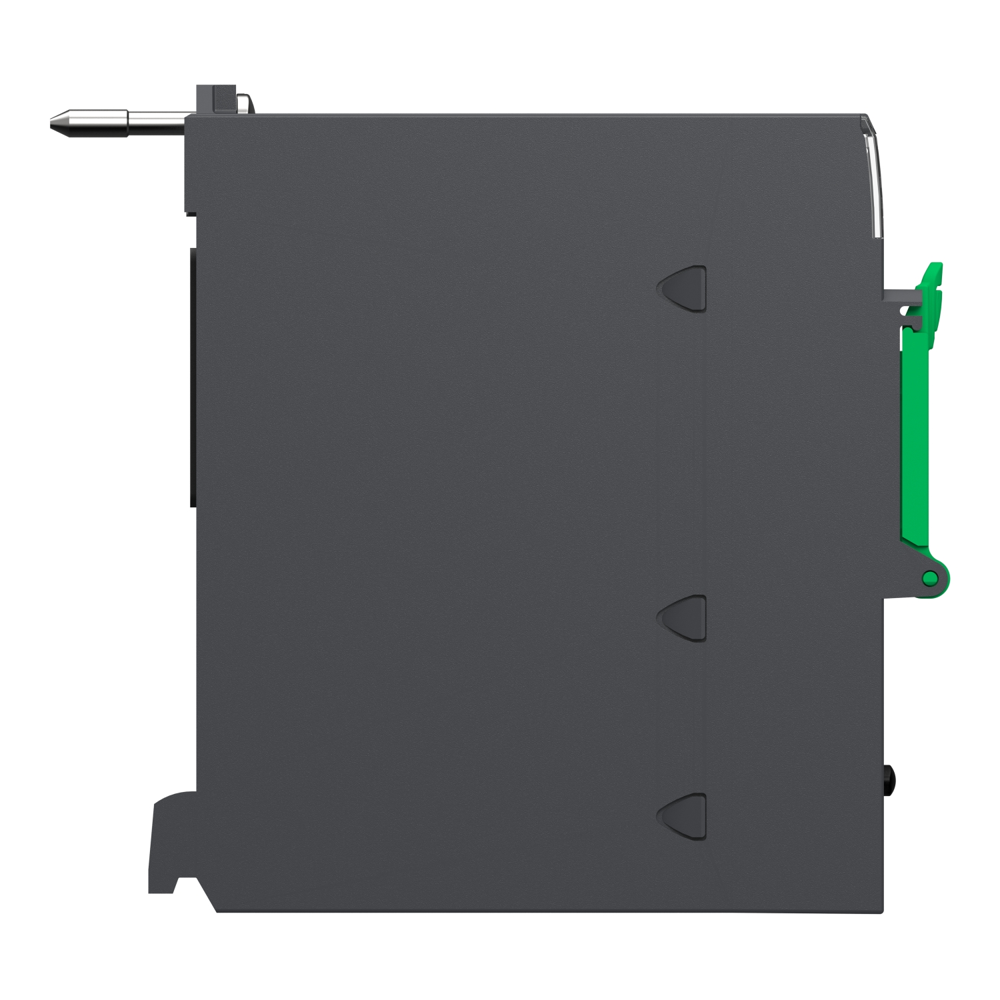

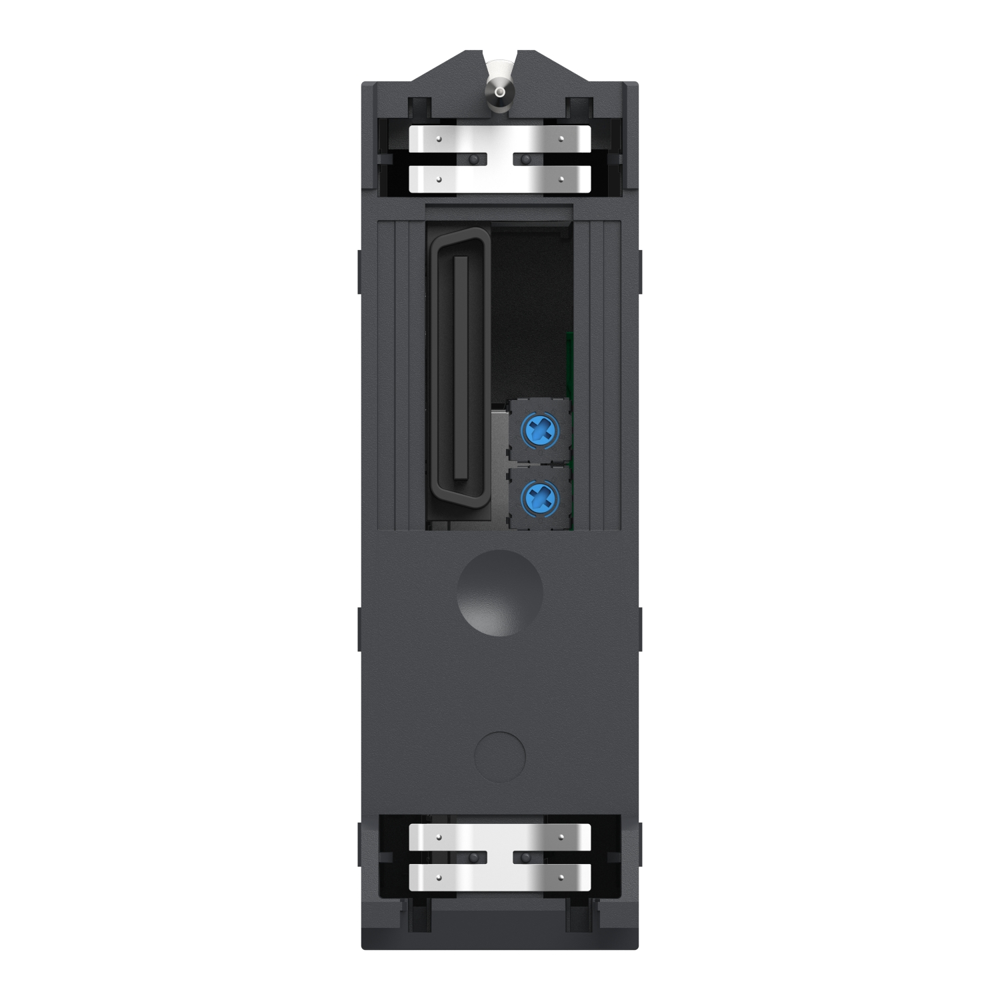

Ethernet Module-BMXP342020

45600.0 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Overheating Protection YES
IP Rating IP20
Product Type Processor module
Color BLACK
Dimension (L*W*H) 242.4 Millimeter (mm)
Weight 0.205 kg Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ethernet Module-BMXP342020 Price And Quantity

Price 45600.0 INR/Piece
Minimum Order Quantity 4 Piece

Ethernet Module-BMXP342020 Product Specifications

Connection Type Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex USB port at 12 Mbit/s Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s
Product Type Processor module
Warranty 1 YEAR
Color BLACK
Overheating Protection YES
Weight 0.205 kg Kilograms (kg)
IP Rating IP20
Dimension (L*W*H) 242.4 Millimeter (mm)

Ethernet Module-BMXP342020 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This performance processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It enables 4 racks maximum, 1024 I/O and its memory capacity is equal to 4096 KB. It has on its front panel a safety screw for locking the module in its slot, a display block comprising 8 LEDs, a mini B USB connector for a programming terminal, a slot equipped with its flash memory card. It also has a RJ45 connector for connection to the Ethernet Modbus/TCP network and an RJ45 connector for the Modbus serial link or character mode link (RS 232C/RS 485, 2-wire, non-isolated). This processor is supplied as standard with an SD (Secure Digital) type flash memory card intended for backing up the two memory areas on the processor module internal RAM, program, symbols and comments area, and constants area. The data is backed up automatically by duplication, when the PLC is turned off. Likewise, the restoration of the data is transparent for the user, on return of power. It weighs 0.205kg. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ethernet Module' category

Ethernet Module-BMEXBP0800 Price : 12797.2 INR/Piece Minimum Order Quantity : 1 Warranty : 1 year Connection Type : 1 connector (XBE) expansion module IP Rating : IP20 Weight : 1.06 Kilograms (kg) Overheating Protection : YES Product Type : I/O module BMX processor Specific application module BMXCPS power supply BME processor Color : white Material : yes Mounting Type : Rack on Panels Rated Voltage : 24v DC Volt (V) Input Voltage : 3.3v DC Volt (V) Dimension (L*W*H) : 372.8 Millimeter (mm) Rated Current : 164mA Megaampere ( MA)

Send Inquiry

Ethernet Module-BMEXBP1200 Price : 18729.6 INR/Piece Minimum Order Quantity : 1 Warranty : 1 YEAR Connection Type : 1 connector (XBE) expansion module IP Rating : IP20 Weight : 1.337 Kilograms (kg) Overheating Protection : YES Product Type : Ethernet backplane Color : WHITE Material : YES Connector Type : XBE Mounting Type : Panels Mount Rated Voltage : 24V DC Volt (V) Input Voltage : 3.3 Volt (V) Rated Current : 164mA Megaampere ( MA)

Send Inquiry

Ethernet Module-BMXNOM0200 Price : 33520.0 INR/Piece Minimum Order Quantity : 5 Warranty : 1 YEAR Connection Type : RS232 RJ45 115.2 kbit/s 8 wires RS485 RJ45 57.6 kbit/s 1 twisted pair IP Rating : IP20 Weight : 0.23 kg Kilograms (kg) Overheating Protection : YES Product Type : This product is certified by CE and UL Color : BLACK Connector Type : (1) With removable terminal block (cage, screw or spring). (2) With FCN connector

Send Inquiry

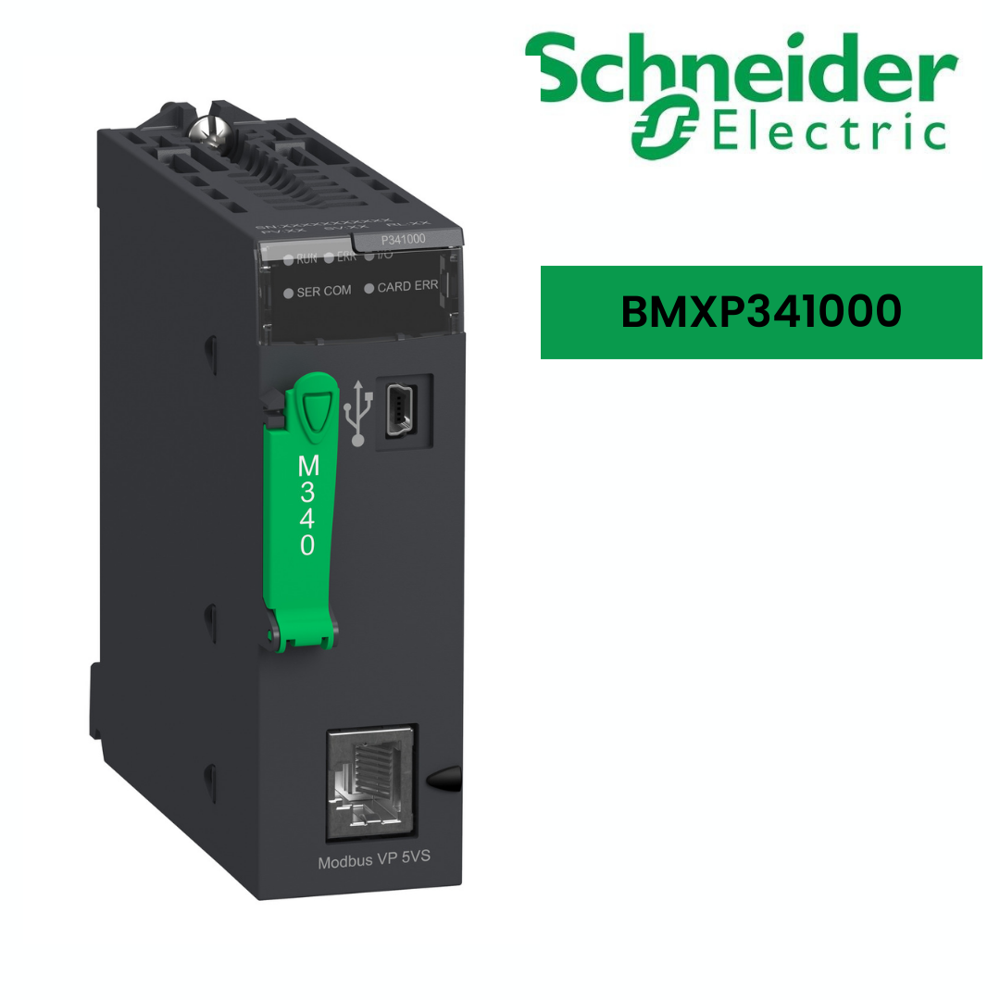

Ethernet Module-BMXP341000 Price : 28000.0 INR/Piece Minimum Order Quantity : 6 Warranty : 1 YEAR Connection Type : Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex USB port at 12 Mbit/s IP Rating : IP20 Weight : 0.2 kg Kilograms (kg) Product Type : This product is robust, high quality and based on the latest innovative technology Color : BLACK Connector Type : With removable terminal block (cage, screw or spring). (2)With FCN connector. (3)On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack. Dimension (L*W*H) : 242.4 Millimeter (mm)
