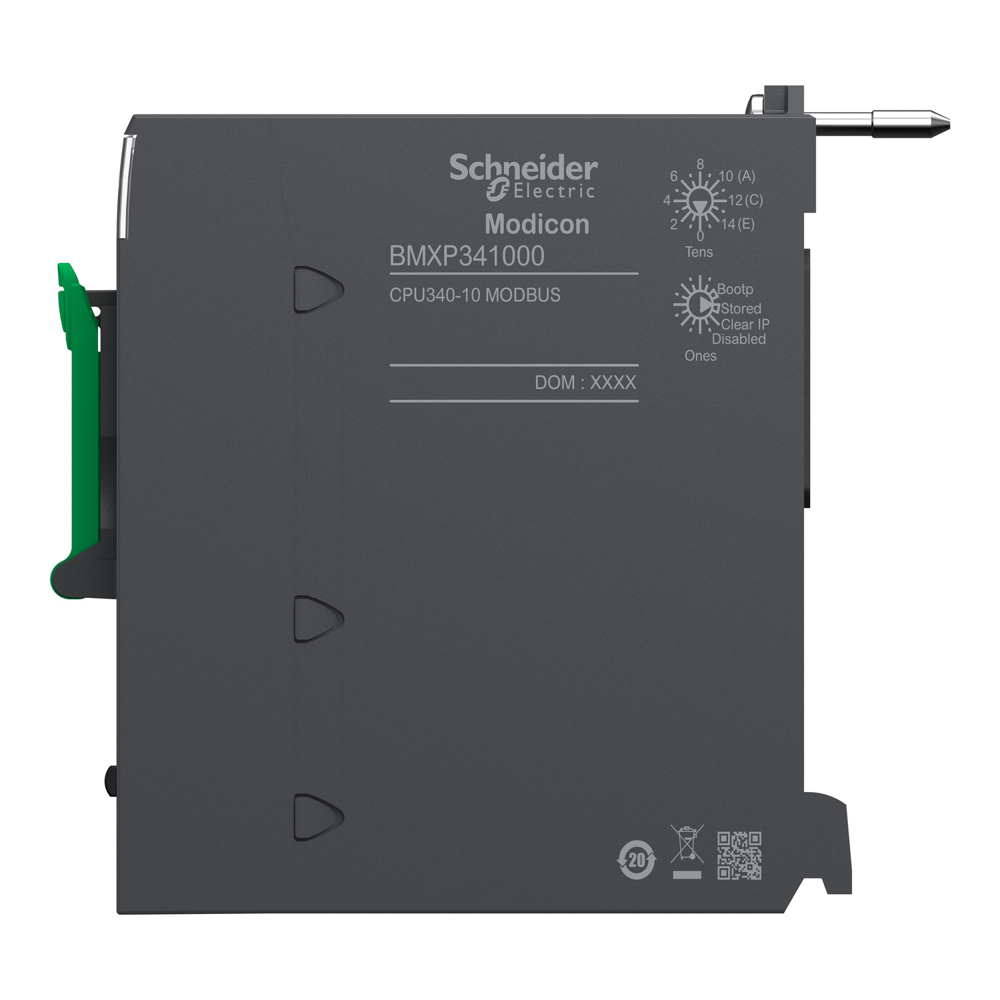

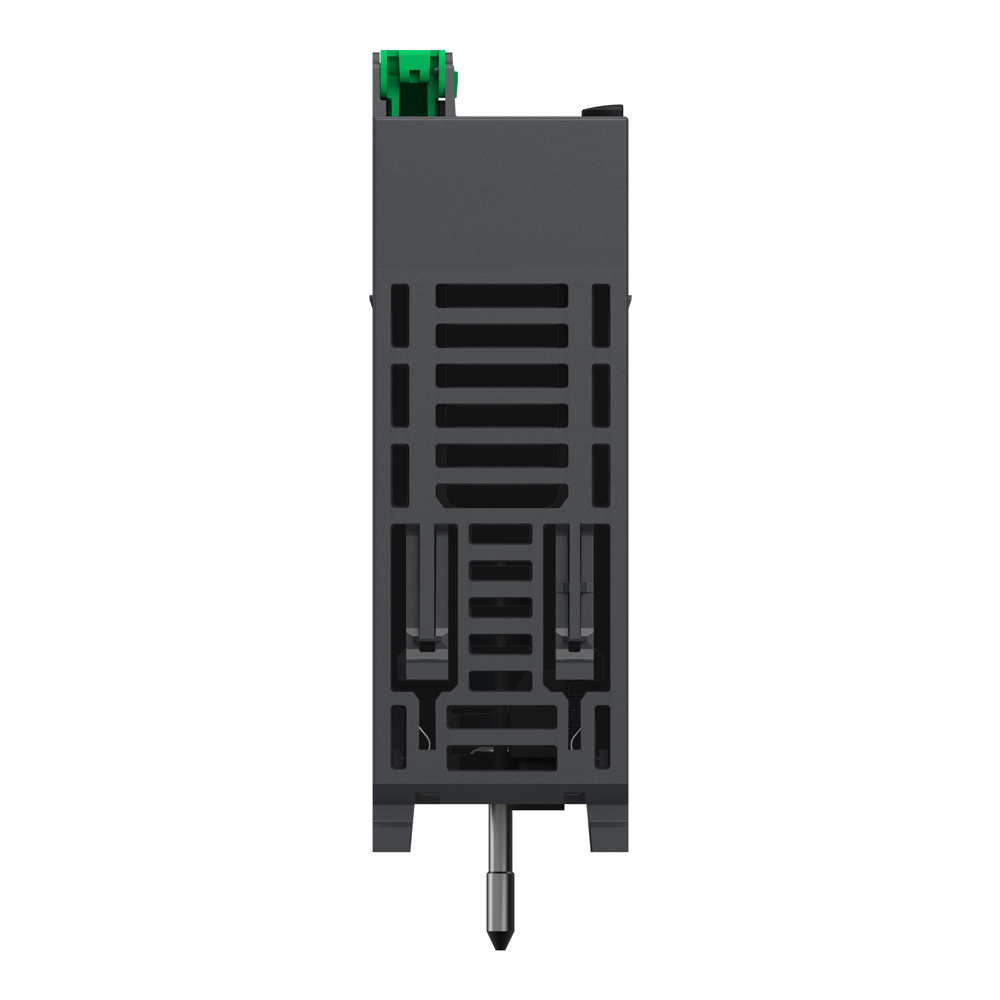

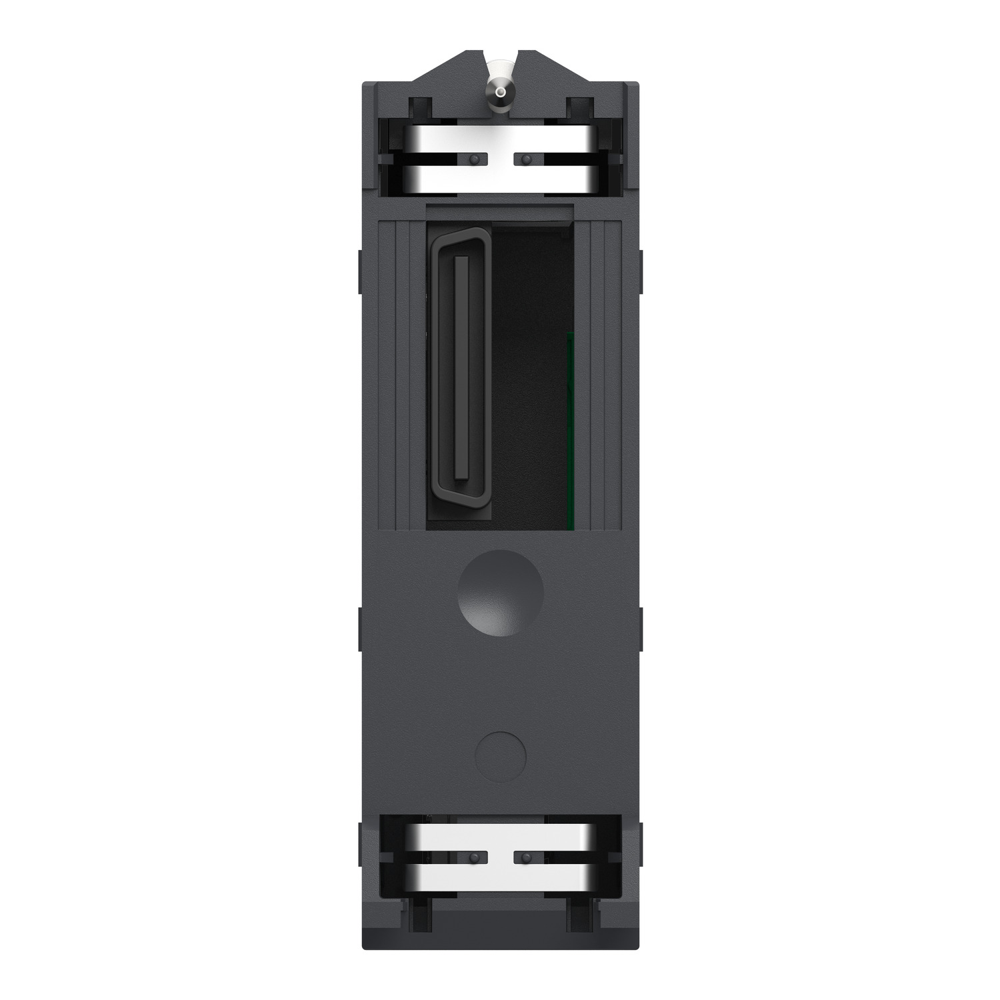

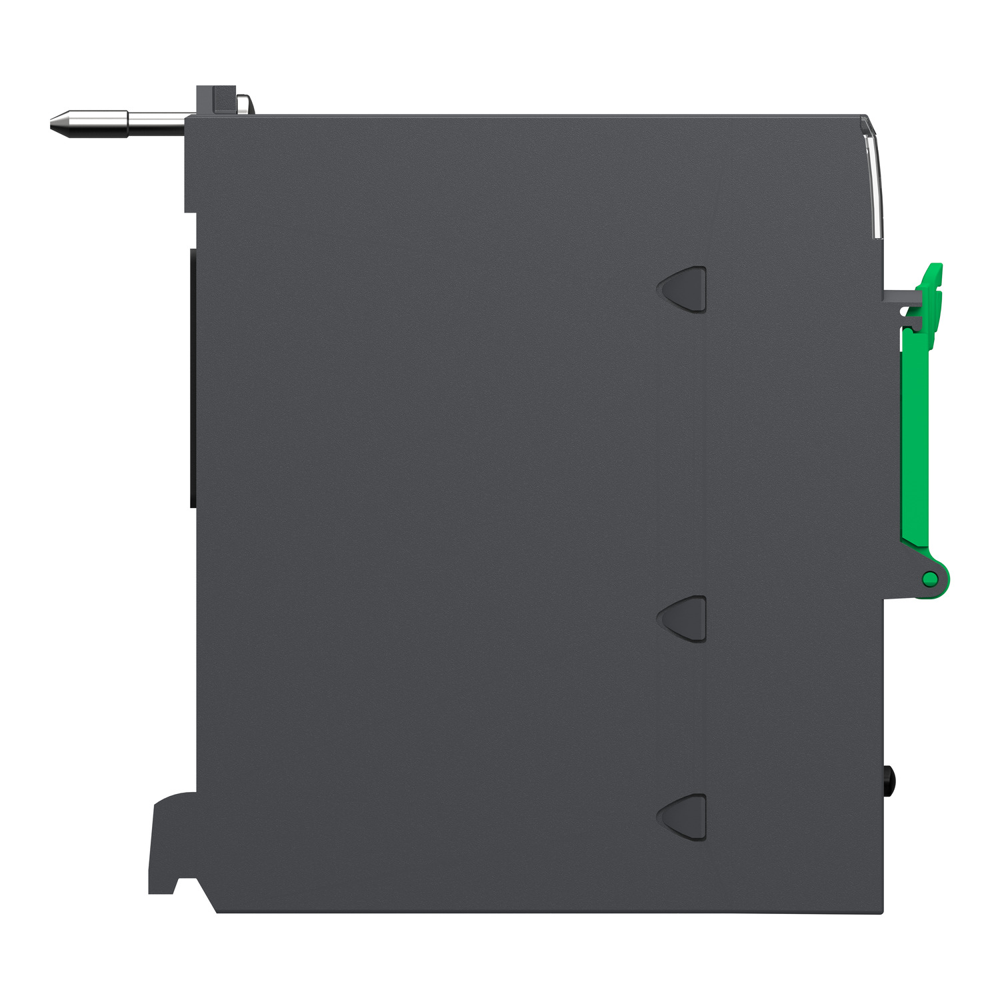

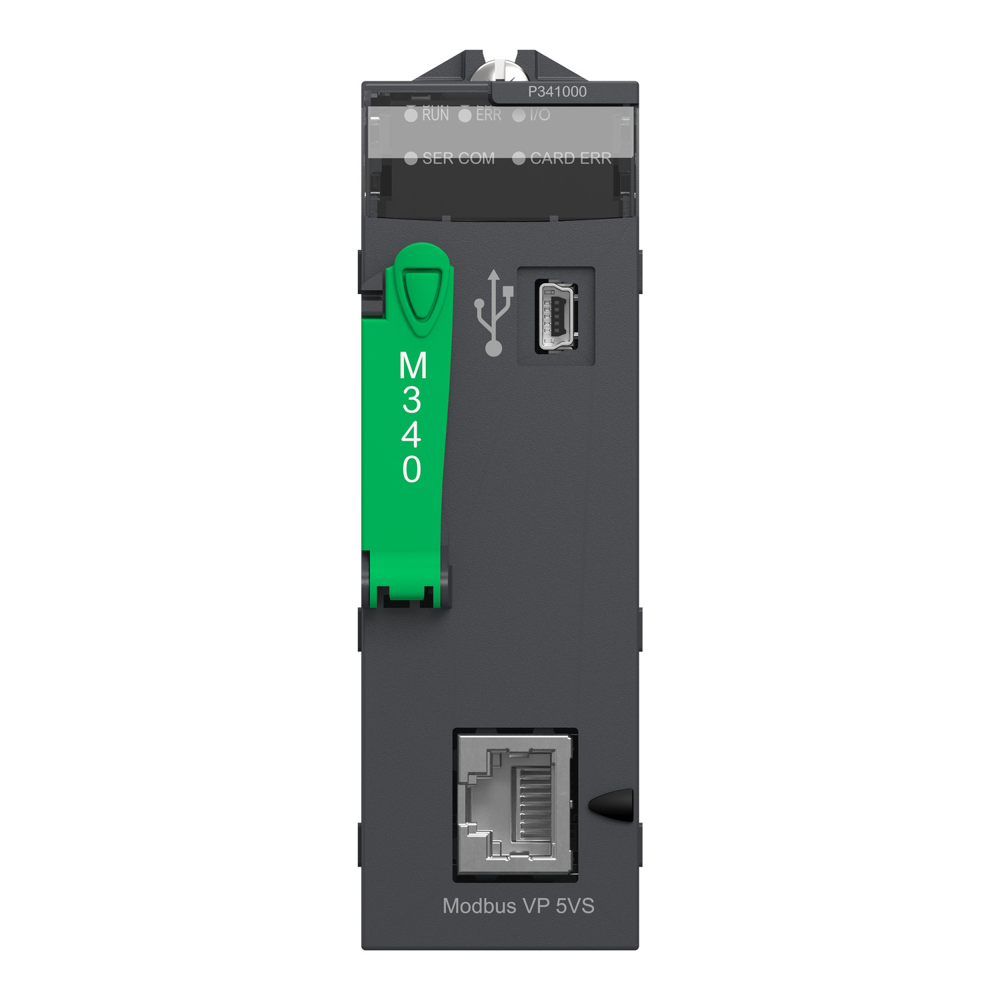

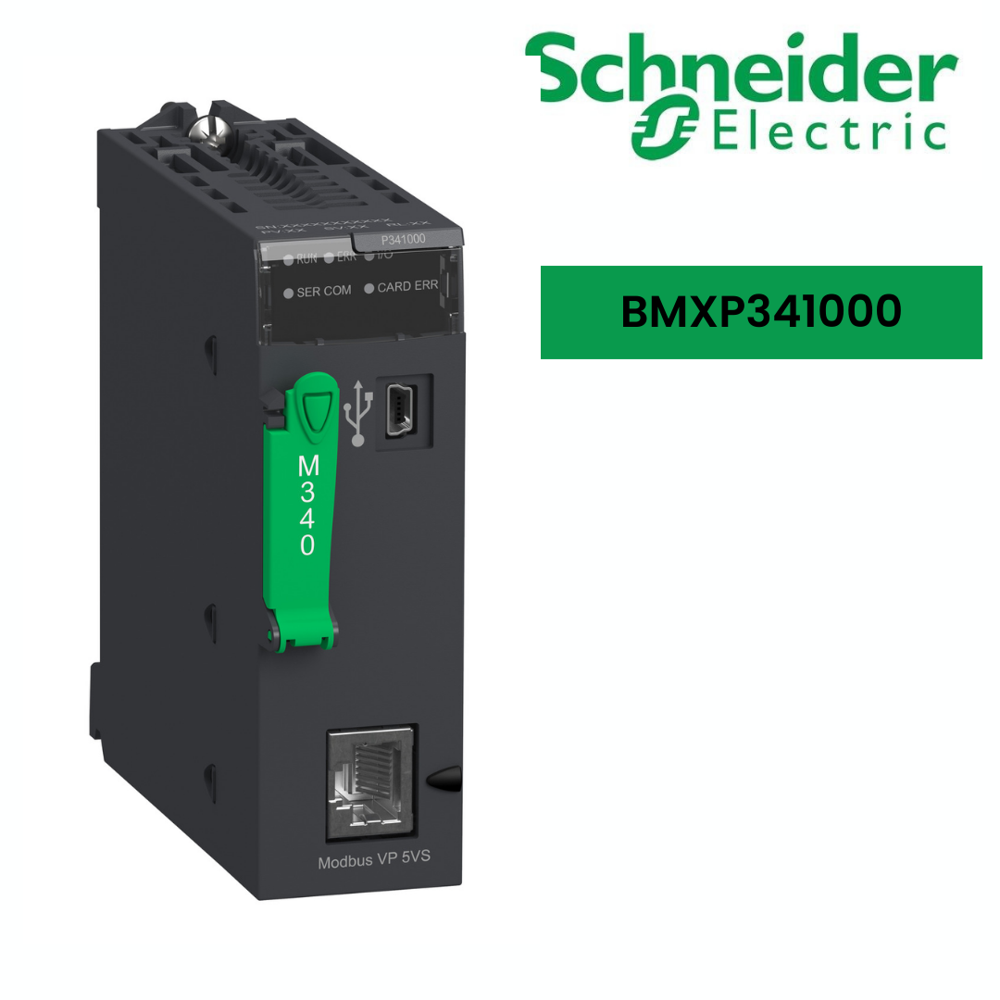

Ethernet Module-BMXP341000

28000.0 INR/Piece

Get a Price/Quote

Product Details:

Connector Type With removable terminal block (cage, screw or spring). (2)With FCN connector. (3)On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Warranty 1 YEAR
IP Rating IP20
Product Type This product is robust, high quality and based on the latest innovative technology
Color BLACK
Dimension (L*W*H) 242.4 Millimeter (mm)
Weight 0.2 kg Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ethernet Module-BMXP341000 Price And Quantity

Minimum Order Quantity 6 Piece
Price 28000.0 INR/Piece

Ethernet Module-BMXP341000 Product Specifications

Weight 0.2 kg Kilograms (kg)
Connection Type Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex USB port at 12 Mbit/s
Dimension (L*W*H) 242.4 Millimeter (mm)
Warranty 1 YEAR
Connector Type With removable terminal block (cage, screw or spring). (2)With FCN connector. (3)On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Color BLACK
IP Rating IP20
Product Type This product is robust, high quality and based on the latest innovative technology

Ethernet Module-BMXP341000 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ethernet Module' category

Ethernet Module-BMEXBP1002 Price : 20323.0 INR/Piece Minimum Order Quantity : 1 Connection Type : 1 connector (XBE) expansion module Weight : 1.37 Kilograms (kg) Warranty : 1 YEAR Overheating Protection : YES IP Rating : IP20 Product Type : Ethernet backplane Material : YES Connector Type : XBE Color : WHITE Rated Voltage : 24V DC Volt (V)

Send Inquiry

Ethernet Module-BMENOC0311 Price : 136402.8 INR/Piece Minimum Order Quantity : 1 Connection Type : 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair Weight : 0.2 Kilograms (kg) Warranty : 1 YEAR Overheating Protection : YES IP Rating : IP20 Product Type : Communication module Material : YES Connector Type : RJ45, Phase : 3 PORT Rated Voltage : directive Volt (V)

Send Inquiry

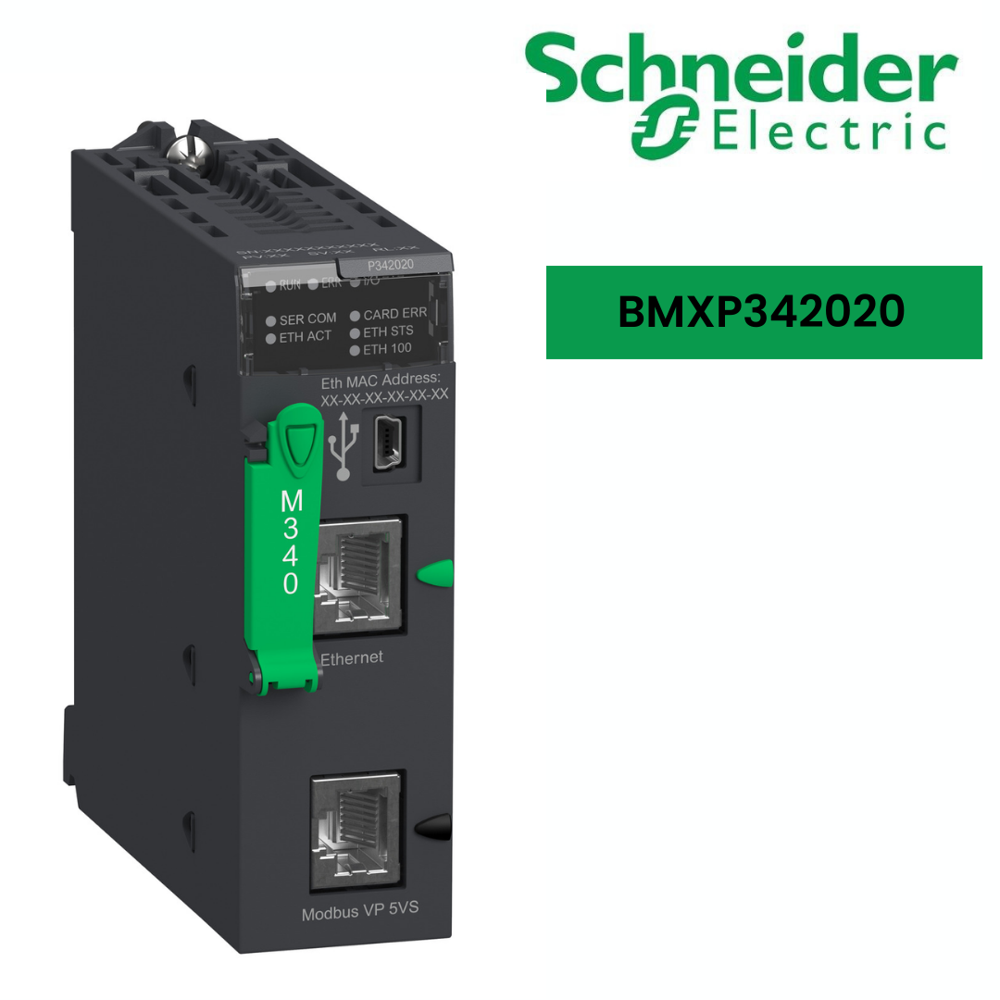

Ethernet Module-BMXP342020 Price : 45600.0 INR/Piece Minimum Order Quantity : 4 Connection Type : Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex USB port at 12 Mbit/s Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s Weight : 0.205 kg Kilograms (kg) Warranty : 1 YEAR Overheating Protection : YES IP Rating : IP20 Product Type : Processor module Color : BLACK

Send Inquiry

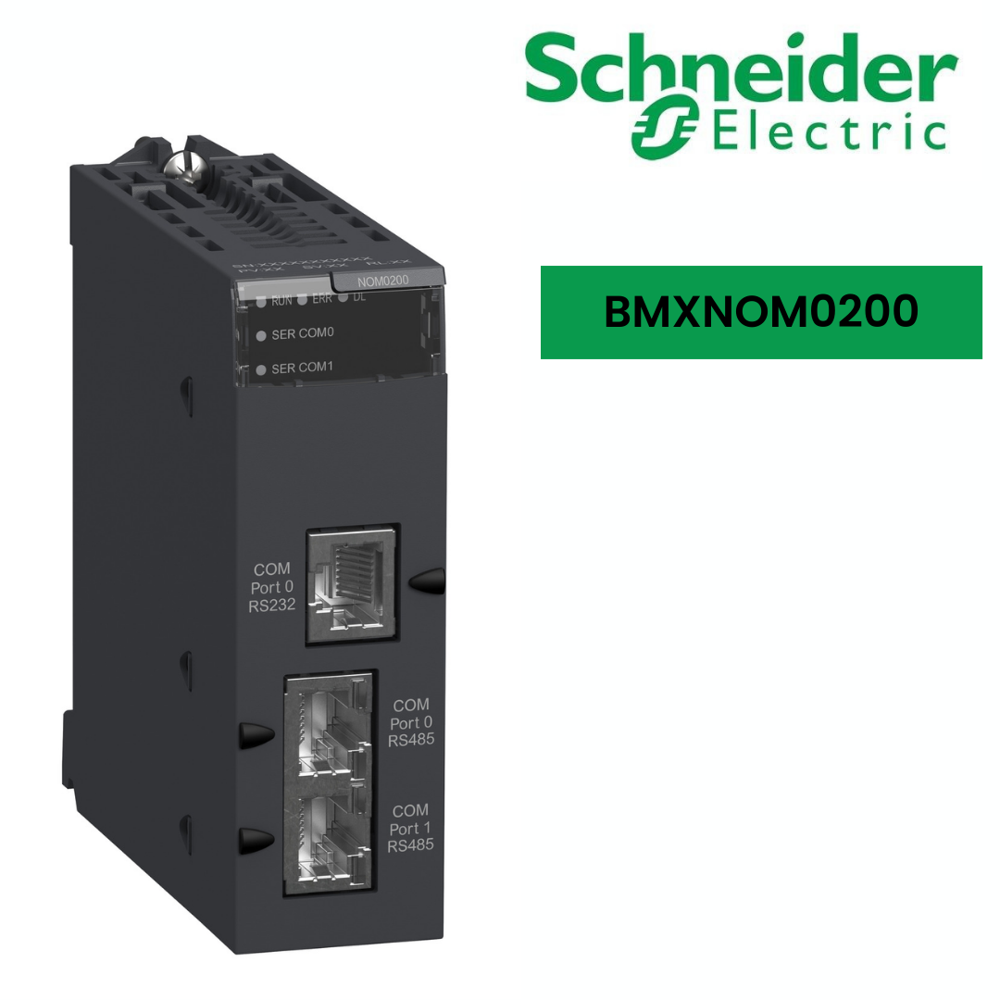

Ethernet Module-BMXNOM0200 Price : 33520.0 INR/Piece Minimum Order Quantity : 5 Connection Type : RS232 RJ45 115.2 kbit/s 8 wires RS485 RJ45 57.6 kbit/s 1 twisted pair Weight : 0.23 kg Kilograms (kg) Warranty : 1 YEAR Overheating Protection : YES IP Rating : IP20 Product Type : This product is certified by CE and UL Connector Type : (1) With removable terminal block (cage, screw or spring). (2) With FCN connector Color : BLACK
