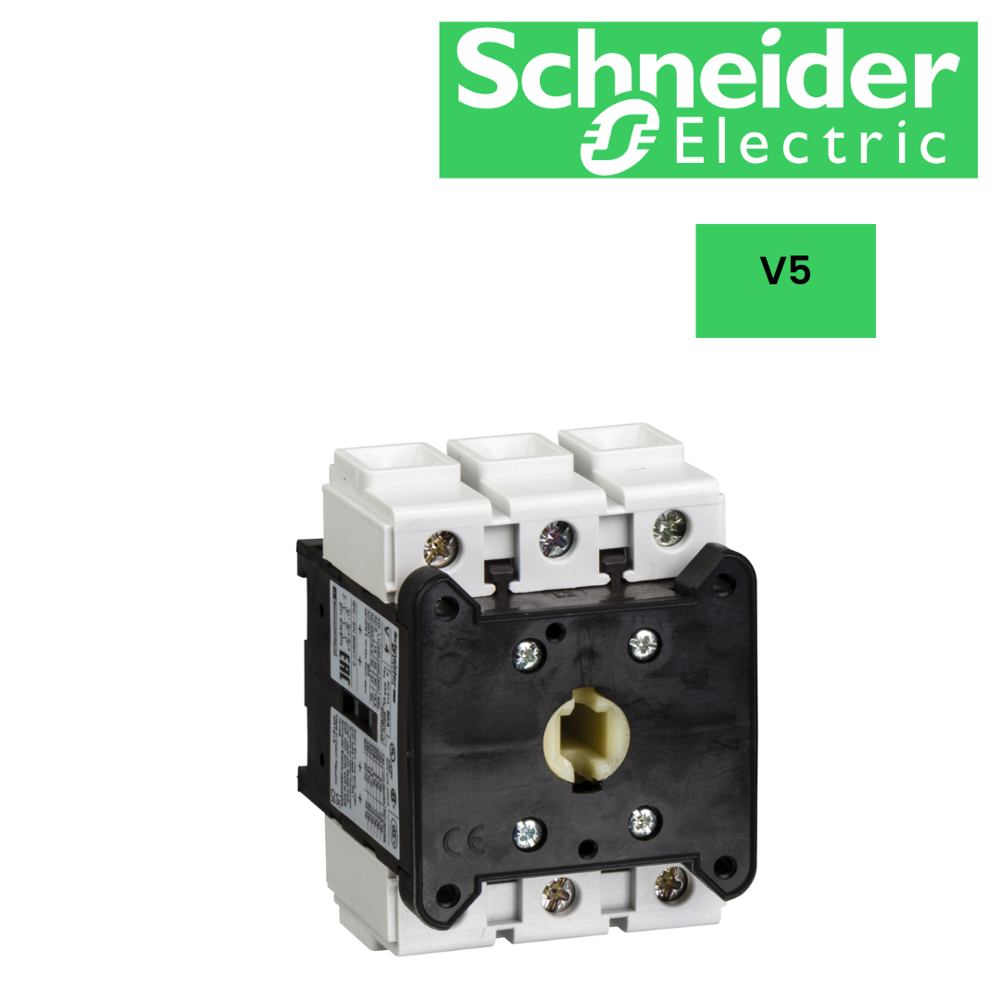

Isolator Switch-V5

7878.75 INR/pieces

Get a Price/Quote

Product Details:

Warranty 1 YEAR
IP Rating IP20
Temperature Range -20 50 C Celsius (oC)
Protection Level IP20
Frequency 50/60 Hz Hertz (HZ)
Max. Current 125 A Ampere (amp)
Circuit Type 10 kA at 400 V - associated fuse 125 A aM 10 kA at 400 V - associated fuse 125 A gG
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-V5 Price And Quantity

Minimum Order Quantity 1 pieces
Price 7878.75 INR/pieces

Isolator Switch-V5 Product Specifications

IP Rating IP20
Warranty 1 YEAR
Temperature Range -20 50 C Celsius (oC)
Protection Level IP20
Frequency 50/60 Hz Hertz (HZ)
Circuit Type 10 kA at 400 V - associated fuse 125 A aM 10 kA at 400 V - associated fuse 125 A gG
Max. Current 125 A Ampere (amp)
Product Type Switch body
Current Rating 125 A
Weight 0.9 kg Kilograms (kg)
Max. Voltage 690 V AC 50/60 Hz Volt (V)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Mounting Type Symmetrical rail Plate
Rated Current 125 A Ampere (amp)
Operating Temperature -20 50 C Celsius (oC)

Isolator Switch-V5 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 pieces Per Week
Delivery Time 3 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys Vario switch body, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolator Switch' category

Isolator Switch-VCF5 Price : 8357.0 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Protection Level : IP65 IP Rating : IP65 Warranty : 1 YEAR Weight : 1.2 kg Kilograms (kg) Current Rating : 125 A Product Type : Emergency stop switch disconnector Circuit Type : 2.8 kA at 400 V at Ipeak Mounting Type : By 4 screws for handle Rated Current : 125 A Ampere (amp) Temperature Range : 20 50 C Celsius (oC) Max. Current : 125 A Ampere (amp) Operating Temperature : 20 50 C Celsius (oC) Color : RED, YELLO Max. Voltage : 690 V AC 50/60 Hz Volt (V) Stoke : 30

Send Inquiry

Isolator Switch-VCF02GE Price : 2079.0 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC Volt (V) Protection Level : IP65 IP Rating : IP65 Warranty : 1 YEAR Weight : 0.5 kg Kilograms (kg) Current Rating : 10 A Product Type : Enclosed emergency stop switch disconnector Circuit Type : 1 kA at 400 V at Ipeak Mounting Type : Surface mounting enclosure with screw fixing, Rated Current : 10 A Ampere (amp) Temperature Range : 20 50 C Celsius (oC) Max. Current : 10 A Ampere (amp) Operating Temperature : 20 50 C Celsius (oC) Color : RED, YELLO Max. Voltage : 690 V AC Volt (V) Stoke : 20

Send Inquiry

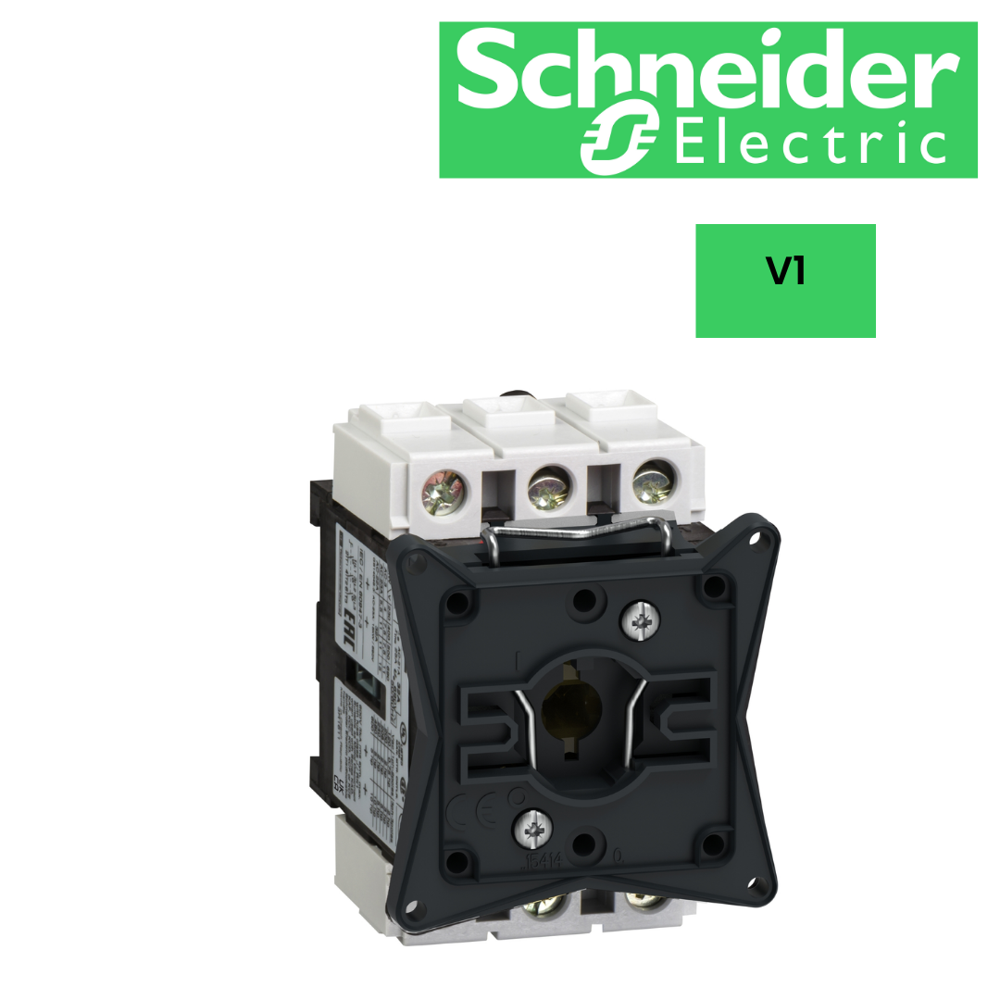

Isolator Switch-V1 Price : 1735.25 INR/Pieces Minimum Order Quantity : 1 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Protection Level : IP20 IP Rating : IP20 Warranty : 1 YEAR Weight : 176.000 g Grams (g) Current Rating : 32 A Product Type : Switch body Circuit Type : 10 kA at 400 V associated fuse 35 A aM 10 kA at 400 V associated fuse 35 A gG Mounting Type : Symmetrical rail Plate Rated Current : 32 A Ampere (amp) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Reaumur (oRe) Frequency : 50/60 Hz Hertz (HZ)
