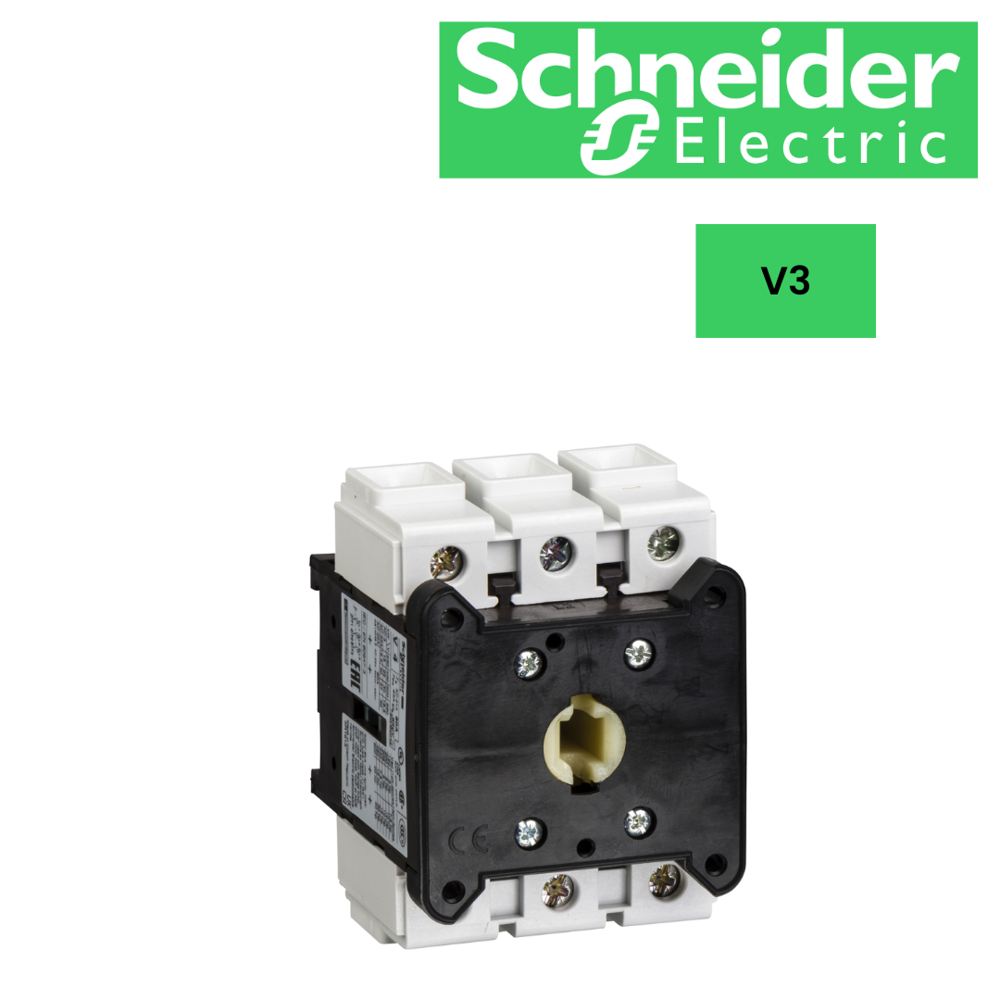

Isolator Switch-V3

2953.5 INR/pieces

Get a Price/Quote

Product Details:

Temperature Range -20 50 C Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Max. Current 63 A Ampere (amp)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Operating Temperature -20 50 C Celsius (oC)
Circuit Type 10 kA at 400 V - associated fuse 63 A aM 10 kA at 400 V - associated fuse 63 A gG
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-V3 Price And Quantity

Price 2953.5 INR/pieces
Minimum Order Quantity 1 Piece

Isolator Switch-V3 Product Specifications

Operating Temperature -20 50 C Celsius (oC)
Circuit Type 10 kA at 400 V - associated fuse 63 A aM 10 kA at 400 V - associated fuse 63 A gG
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Current Rating 63 A
IP Rating IP20
Rated Current 63 A Ampere (amp)
Protection Level IP20
Product Type Switch body
Frequency 50/60 Hz Hertz (HZ)
Temperature Range -20 50 C Celsius (oC)
Max. Current 63 A Ampere (amp)
Weight 0.5 kg Kilograms (kg)
Mounting Type Plate Symmetrical rail
Warranty 1 YEAR

Isolator Switch-V3 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys Vario switch body, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolator Switch' category

Isolator Switch-VCF2GE Price : 3453.75 INR/Piece Minimum Order Quantity : 4 Rated Current : 32 A Ampere (amp) Current Rating : 32 A Rated Voltage : 690 V AC Volt (V) Max. Current : 32 A Ampere (amp) Mounting Type : Surface mounting enclosure with screw fixing, Warranty : 1 YEAR Product Type : Enclosed emergency stop switch disconnector Protection Level : IP65 IP Rating : IP65 Circuit Type : 1 kA at 400 V at Ipeak Weight : 0.5 kg Kilograms (kg) Temperature Range : 20 50 C Celsius (oC) Max. Voltage : 690 V AC Volt (V) Operating Temperature : 20 50 C Celsius (oC) Power Rating : 15 kW at 400 V (AC23) 11 kW at 400 V (AC3)

Send Inquiry

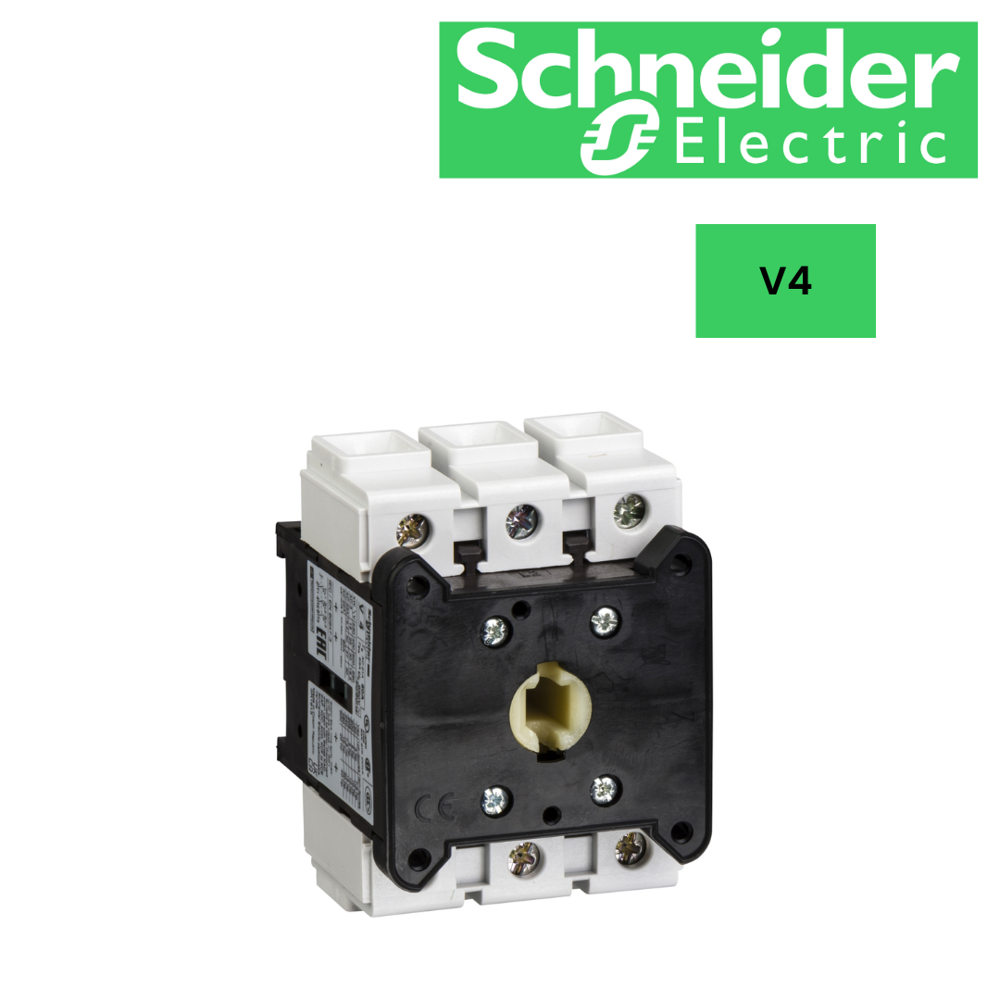

Isolator Switch-V4 Price : 3883.0 INR/Piece Minimum Order Quantity : 1 Rated Current : 80 A Ampere (amp) Current Rating : 80 A Rated Voltage : 690 V AC 50/60 Hz Volt (V) Max. Current : 80 A Ampere (amp) Mounting Type : Plate Symmetrical rail Warranty : 1 YEAR Product Type : Switch body Protection Level : IP20 IP Rating : IP20 Circuit Type : 10 kA at 400 V associated fuse 80 A aM 10 kA at 400 V associated fuse 80 A gG Weight : 0.5 kg Kilograms (kg) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ)

Send Inquiry

Isolator Switch-VCF01 Price : 1419.75 INR/Piece Minimum Order Quantity : 5 Rated Current : 11 A Ampere (amp) Current Rating : 11 A Rated Voltage : 690 V AC 50/60 Hz Volt (V) Max. Current : 11 A Ampere (amp) Mounting Type : By 4 screws for handle Warranty : 1 YEAR Product Type : Emergency stop switch disconnector Protection Level : IP65 IP Rating : IP65 Circuit Type : 10 kA at 400 V associated fuse 20 A aM 10 kA at 400 V associated fuse 20 A gG Temperature Range : 20 50 C Celsius (oC) Max. Voltage : 690 V AC 50/60 Hz Volt (V) Power Rating : 7.5 kW at 500 V (AC3) 11 kW at 690 V (AC23A) 3 kW at 230...240 V (AC3) 4 kW at 400...415 V (AC3) 7.5 kW at 500 V (AC23A) 5.5 kW at 690 V (AC3) 4 kW at 230...240 V (AC23A) 5.5 kW at 400...415 V (AC23A)

Send Inquiry

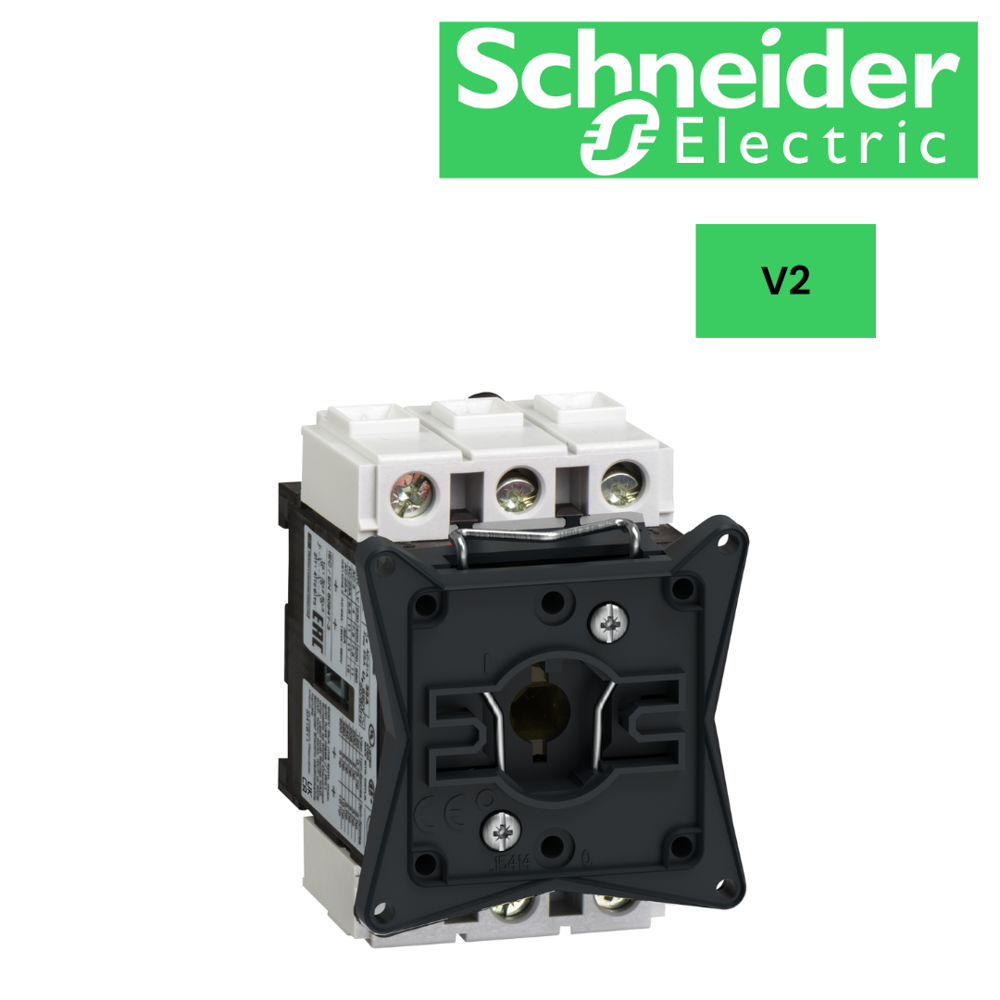

Isolator Switch-V2 Price : 2120.25 INR/pieces Minimum Order Quantity : 1 Rated Current : 40 A Ampere (amp) Current Rating : 40 A Rated Voltage : 690 V AC 50/60 Hz Volt (V) Max. Current : 40 A Ampere (amp) Mounting Type : Plate Symmetrical rail Warranty : 1 YEAR Product Type : Switch body Protection Level : IP20 IP Rating : IP20 Circuit Type : 10 kA at 400 V associated fuse 50 A aM 10 kA at 400 V associated fuse 50 A gG Weight : 0.2 kg Kilograms (kg) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ)

Send Inquiry
