Isolator Switch-VCF01

1419.75 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Protection Level IP65
Circuit Type 10 kA at 400 V - associated fuse 20 A aM 10 kA at 400 V - associated fuse 20 A gG
IP Rating IP65
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Usage & Applications TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23
Max. Current 11 A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-VCF01 Price And Quantity

Minimum Order Quantity 5 Piece
Price 1419.75 INR/Piece

Isolator Switch-VCF01 Product Specifications

Circuit Type 10 kA at 400 V - associated fuse 20 A aM 10 kA at 400 V - associated fuse 20 A gG
Protection Level IP65
Rated Voltage 690 V AC 50/60 Hz Volt (V)
IP Rating IP65
Usage & Applications TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23
Warranty 1 YEAR
Product Type Emergency stop switch disconnector
Mounting Type By 4 screws for handle
Current Rating 11 A
Max. Voltage 690 V AC 50/60 Hz Volt (V)
Rated Current 11 A Ampere (amp)
Max. Current 11 A Ampere (amp)
Temperature Range -20 50 C Celsius (oC)
Power Rating 7.5 kW at 500 V (AC-3) 11 kW at 690 V (AC-23A) 3 kW at 230...240 V (AC-3) 4 kW at 400...415 V (AC-3) 7.5 kW at 500 V (AC-23A) 5.5 kW at 690 V (AC-3) 4 kW at 230...240 V (AC-23A) 5.5 kW at 400...415 V (AC-23A)

Isolator Switch-VCF01 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

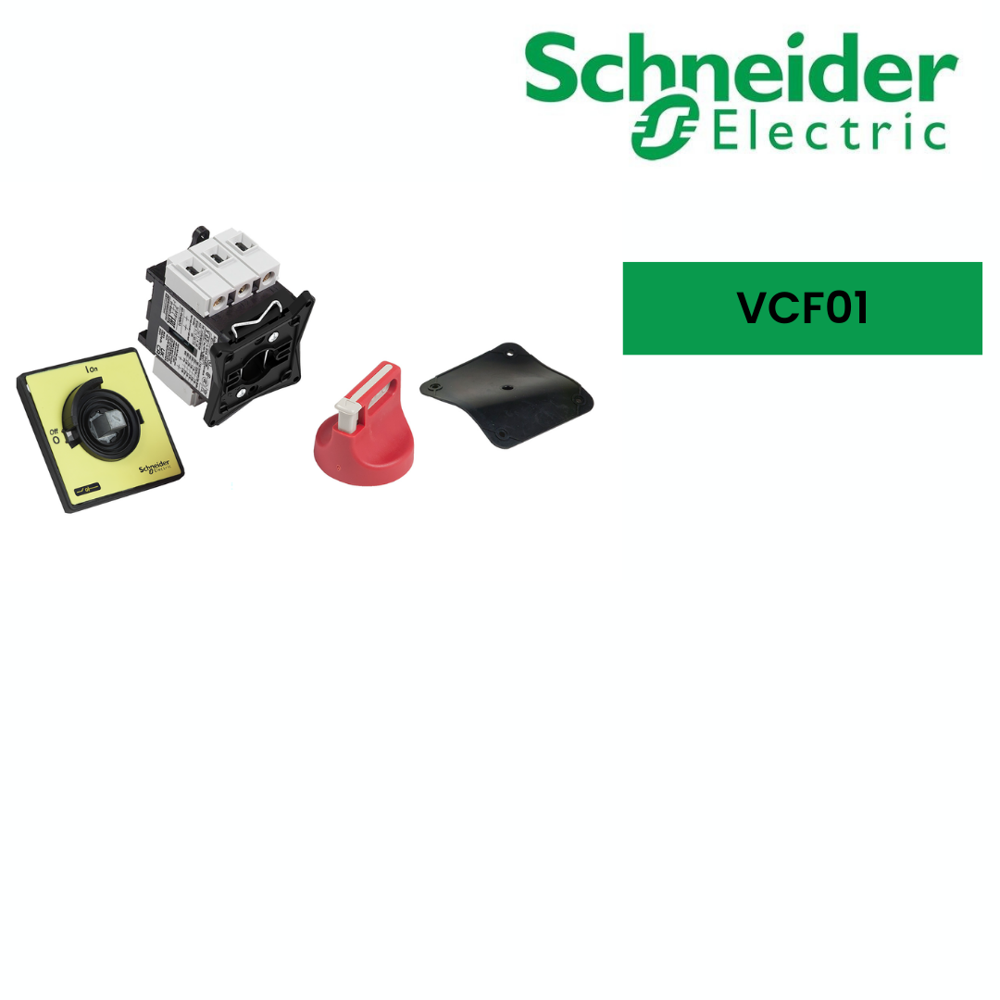

TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body V01, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolator Switch' category

Isolator Switch-VCF4GE Price : 6250.5 INR/Piece Minimum Order Quantity : 4 Color : RED, Yellow Max. Current : 63 A Ampere (amp) Max. Voltage : 690 V AC Volt (V) Rated Current : 63 A Ampere (amp) Weight : 0.93 kg Kilograms (kg) Product Type : Enclosed emergency stop switch disconnector Warranty : 1 YEAR Current Rating : 63 A Mounting Type : Surface mounting enclosure with screw fixing Protection Level : IP65 Circuit Type : 2.1 kA at 400 V at Ipeak IP Rating : IP65 Rated Voltage : 690 V AC Volt (V) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC) Stoke : 20 Usage & Applications : 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC23 up to 30kW@400V

Send Inquiry

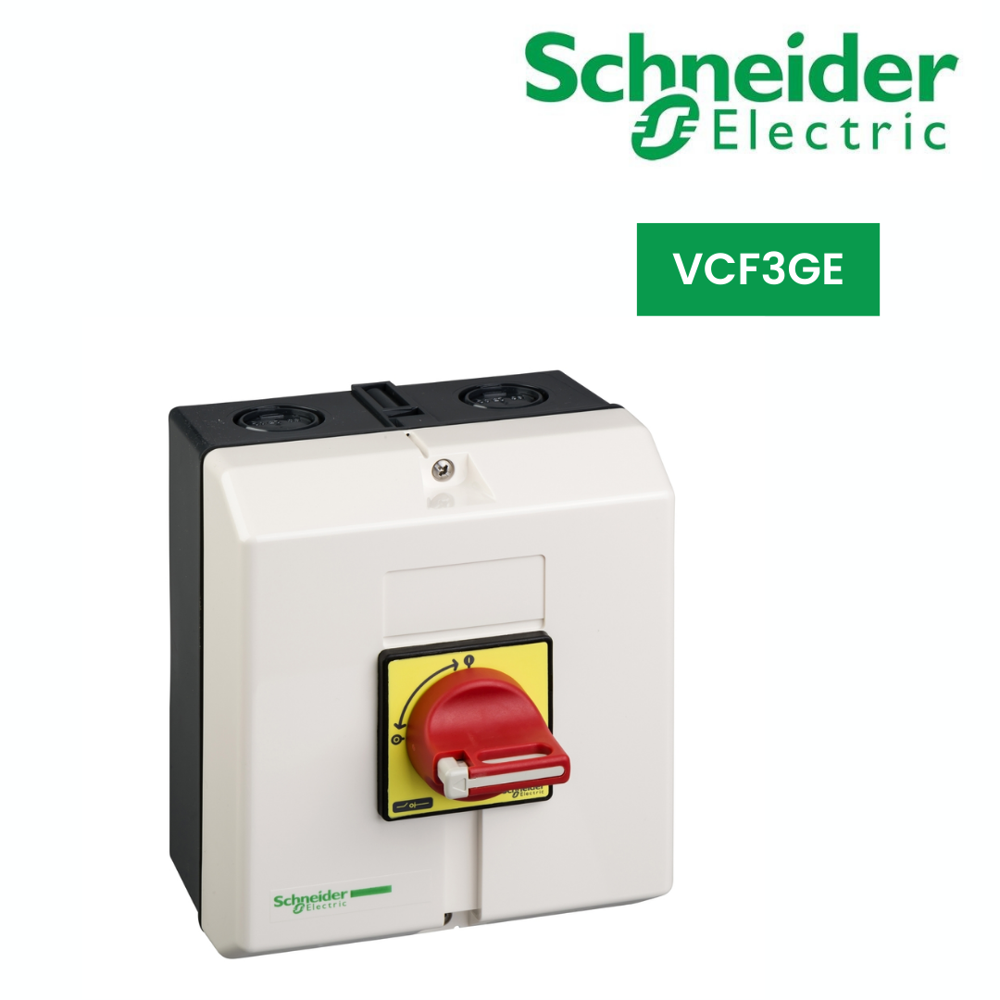

Isolator Switch-VCF3GE Price : 5341.5 INR/Piece Minimum Order Quantity : 4 Color : Yellow,RED Max. Current : 50 A Ampere (amp) Max. Voltage : 690 V AC Volt (V) Rated Current : 50 A Ampere (amp) Weight : 0.93 kg Kilograms (kg) Product Type : Enclosed emergency stop switch disconnector Warranty : 1 YEAR Current Rating : 50 A Mounting Type : Surface mounting enclosure with screw fixing Protection Level : IP65 Circuit Type : 2.1 kA at 400 V at Ipeak IP Rating : IP65 Rated Voltage : 690 V AC Volt (V) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC) Stoke : 20 Usage & Applications : 3 poles, Ithe 50A 690V, for main and emergency stop switching in motor applications AC23 up to 22kW@400V

Send Inquiry

Isolator Switch-VCF4 Price : 3647.25 INR/Piece Minimum Order Quantity : 4 Color : RED, YELLO Max. Current : 80 A Ampere (amp) Max. Voltage : 690 V AC 50/60 Hz Volt (V) Rated Current : 80 A Ampere (amp) Weight : 0.56 kg Kilograms (kg) Product Type : Emergency stop switch disconnector Warranty : 1 YEAR Current Rating : 80 A Mounting Type : By 4 screws for handle Protection Level : IP65 Circuit Type : 2.1 kA at 400 V at Ipeak IP Rating : IP65 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC) Stoke : 20

Send Inquiry

Isolator Switch-VCF1GE Price : 2947.5 INR/Piece Minimum Order Quantity : 1 Color : RED, YELLO Max. Current : 25 A Ampere (amp) Max. Voltage : 690 V AC Volt (V) Rated Current : 25 A Ampere (amp) Weight : 0.5 kg Kilograms (kg) Product Type : Enclosed emergency stop switch disconnector Warranty : 1 YEAR Current Rating : 25 A Mounting Type : Surface mounting enclosure with screw fixing, Protection Level : IP65 Circuit Type : 1 kA at 400 V at Ipeak IP Rating : IP65 Rated Voltage : 690 V AC Volt (V) Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC)
