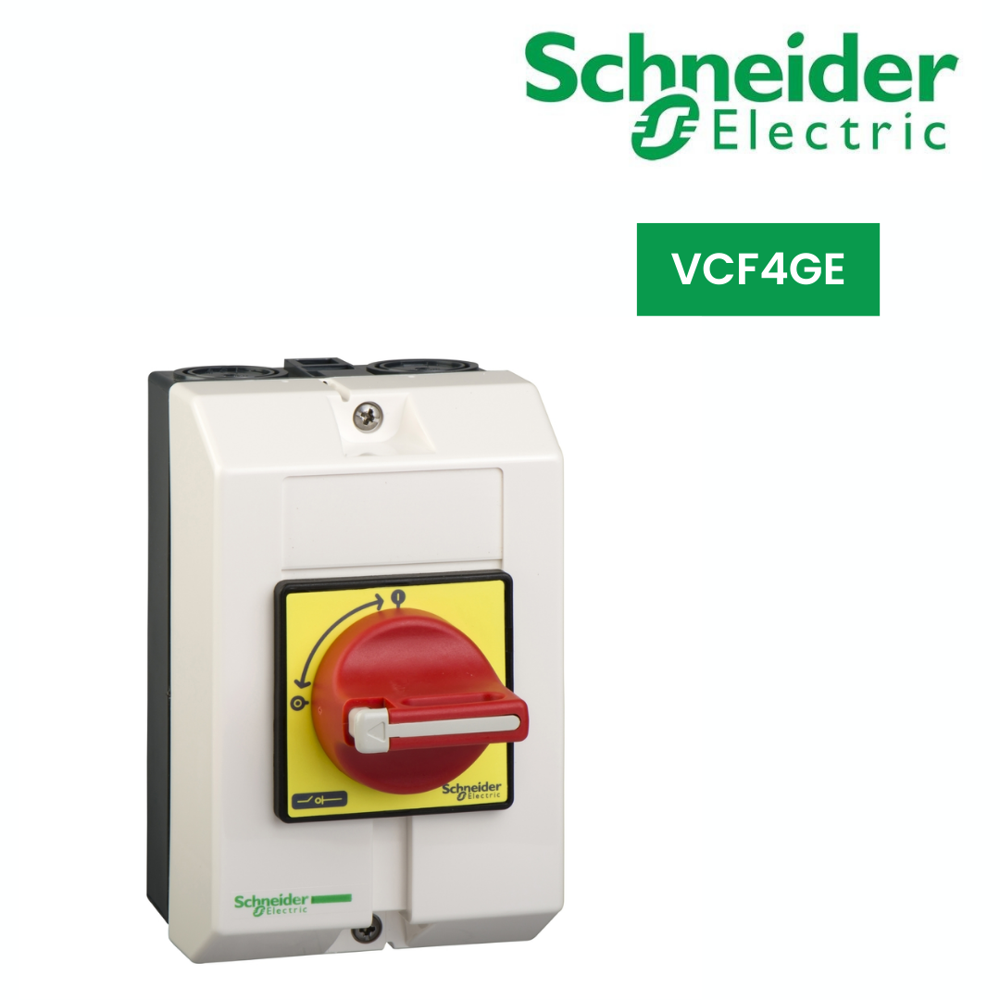

Isolator Switch-VCF4GE

6250.5 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -20 50 C Celsius (oC)
Usage & Applications 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V
IP Rating IP65
Warranty 1 YEAR
Rated Current 63 A Ampere (amp)
Protection Level IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-VCF4GE Price And Quantity

Price 6250.5 INR/Piece
Minimum Order Quantity 4 Piece

Isolator Switch-VCF4GE Product Specifications

Current Rating 63 A
Protection Level IP65
Color RED, Yellow
Weight 0.93 kg Kilograms (kg)
Product Type Enclosed emergency stop switch disconnector
Power Rating 30 kW at 400 V (AC-23) 22 kW at 400 V (AC-3)
Operating Temperature -20 50 C Celsius (oC)
Rated Voltage 690 V AC Volt (V)
Max. Current 63 A Ampere (amp)
Temperature Range -20 50 C Celsius (oC)
Circuit Type 2.1 kA at 400 V at Ipeak
Usage & Applications 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V
Mounting Type Surface mounting enclosure with screw fixing
Max. Voltage 690 V AC Volt (V)
IP Rating IP65
Rated Current 63 A Ampere (amp)
Stoke 20
Warranty 1 YEAR

Isolator Switch-VCF4GE Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolator Switch' category

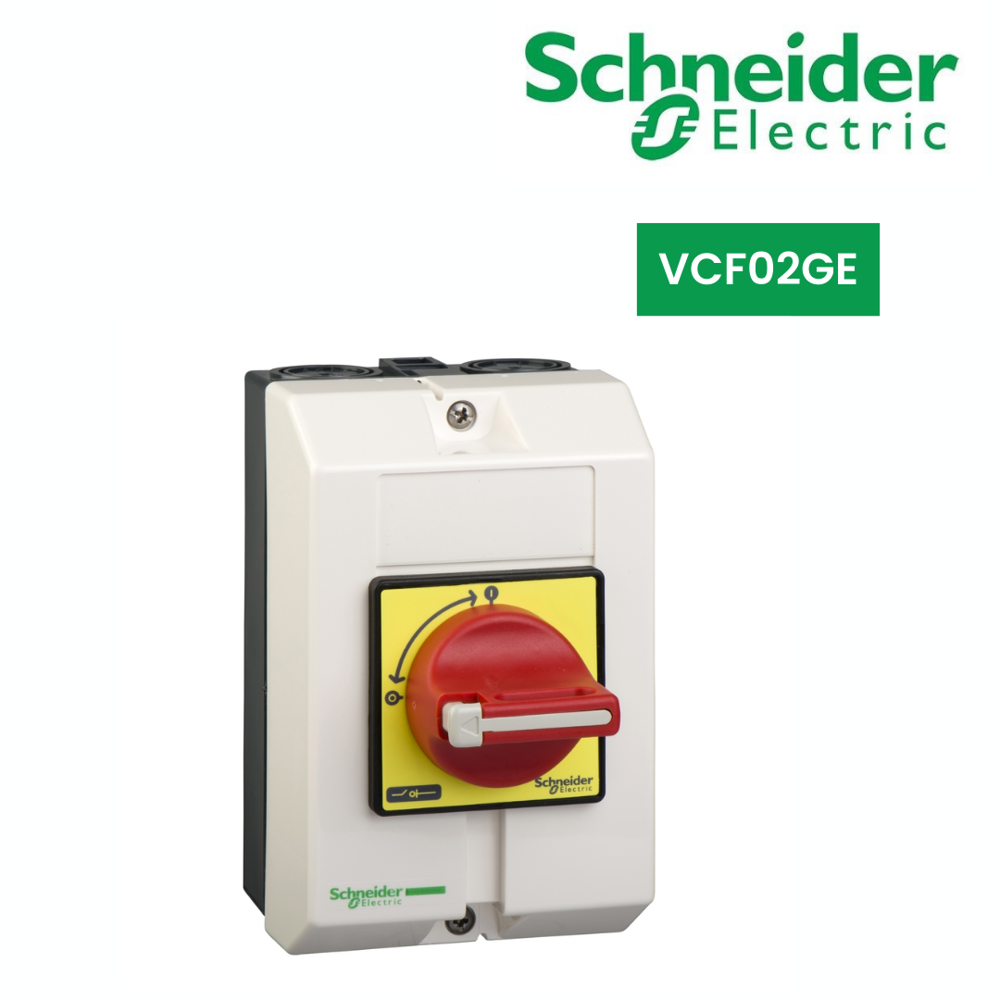

Isolator Switch-VCF02GE Price : 2079.0 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC Volt (V) Rated Current : 10 A Ampere (amp) Warranty : 1 YEAR IP Rating : IP65 Max. Voltage : 690 V AC Volt (V) Max. Current : 10 A Ampere (amp) Circuit Type : 1 kA at 400 V at Ipeak Product Type : Enclosed emergency stop switch disconnector Protection Level : IP65 Color : RED, YELLO Current Rating : 10 A Stoke : 20 Mounting Type : Surface mounting enclosure with screw fixing, Operating Temperature : 20 50 C Celsius (oC) Weight : 0.5 kg Kilograms (kg) Temperature Range : 20 50 C Celsius (oC)
