Isolator Switch-VCF3

4505.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP65
Max. Current 63 A Ampere (amp)
Operating Temperature -20 50 C Celsius (oC)
Warranty 1 YEAR
Rated Current 63 A Ampere (amp)
Protection Level IP65
Circuit Type 2.1 kA at 400 V at Ipeak
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-VCF3 Price And Quantity

Price 4505.0 INR/Piece
Minimum Order Quantity 4 Piece

Isolator Switch-VCF3 Product Specifications

Stoke 20
Operating Temperature -20 50 C Celsius (oC)
Warranty 1 YEAR
Max. Current 63 A Ampere (amp)
Max. Voltage 690 V AC 50/60 Hz Volt (V)
IP Rating IP65
Circuit Type 2.1 kA at 400 V at Ipeak
Rated Current 63 A Ampere (amp)
Protection Level IP65
Mounting Type By 4 screws for handle
Product Type Emergency stop switch disconnector
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Temperature Range -20 50 C Celsius (oC)
Color RED, YELLO
Current Rating 63 A

Isolator Switch-VCF3 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

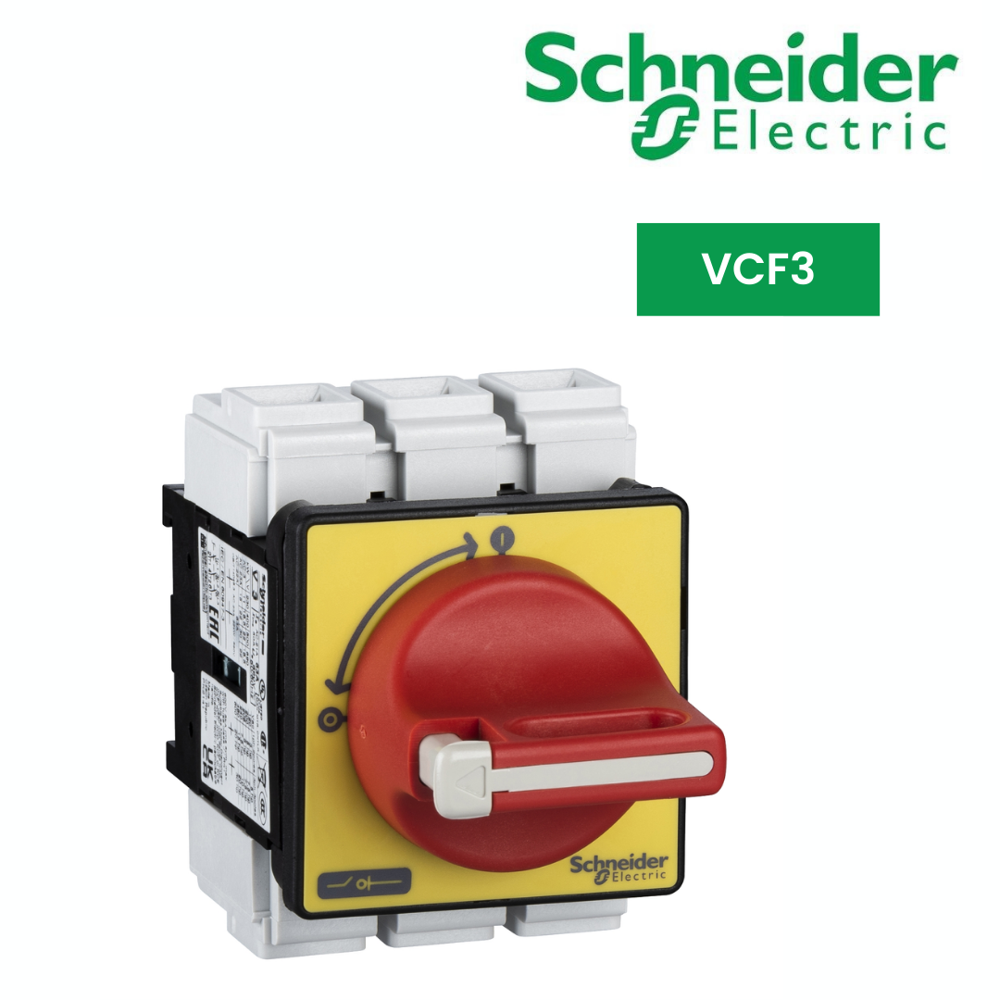

TeSys Vario switch disconnector for door mounting, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. Complete unit composed of a switch body V3, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
