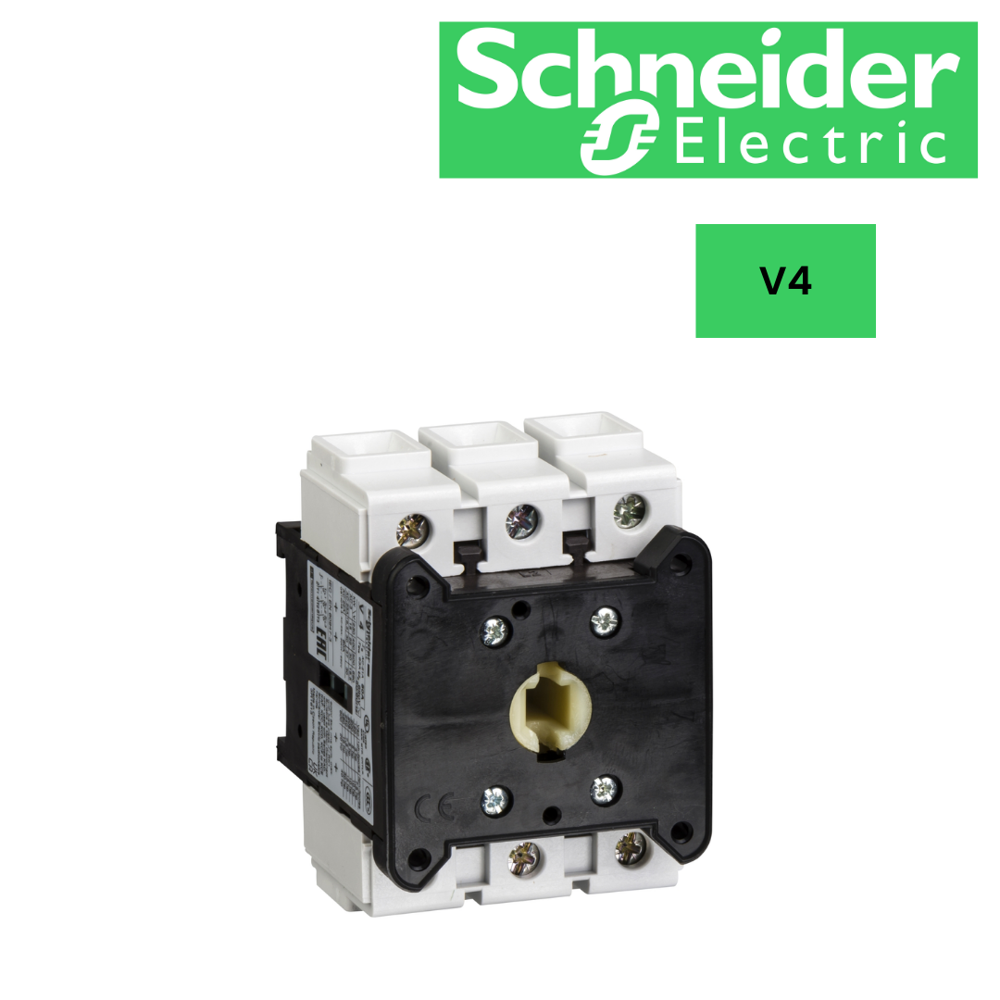

Isolator Switch-V4

3883.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -20 50 C Celsius (oC)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Max. Current 80 A Ampere (amp)
Warranty 1 YEAR
Frequency 50/60 Hz Hertz (HZ)
Rated Current 80 A Ampere (amp)
Protection Level IP20
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-V4 Price And Quantity

Minimum Order Quantity 1 Piece
Price 3883.0 INR/Piece

Isolator Switch-V4 Product Specifications

Max. Current 80 A Ampere (amp)
Warranty 1 YEAR
Frequency 50/60 Hz Hertz (HZ)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Weight 0.5 kg Kilograms (kg)
Product Type Switch body
Operating Temperature -20 50 C Celsius (oC)
Circuit Type 10 kA at 400 V - associated fuse 80 A aM 10 kA at 400 V - associated fuse 80 A gG
Current Rating 80 A
IP Rating IP20
Rated Current 80 A Ampere (amp)
Protection Level IP20
Mounting Type Plate Symmetrical rail
Temperature Range -20 50 C Celsius (oC)

Isolator Switch-V4 Trade Information

Delivery Time 4 Days

Product Description

TeSys Vario switch body, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
