Isolator Switch-VCF02

1304.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 8.1 A Ampere (amp)
Circuit Type 10 kA at 400 V - associated fuse 12 A aM 10 kA at 400 V - associated fuse 12 A gG
Protection Level IP65
Max. Current 8.1 A Ampere (amp)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
IP Rating IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-VCF02 Price And Quantity

Price 1304.0 INR/Piece
Minimum Order Quantity 4 Piece

Isolator Switch-VCF02 Product Specifications

Product Type Emergency stop switch disconnector
Mounting Type Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Max. Voltage 690 V AC 50/60 Hz Volt (V)
Warranty 1 YEAR
Current Rating 8.1 A
Protection Level IP65
Max. Current 8.1 A Ampere (amp)
Rated Current 8.1 A Ampere (amp)
Circuit Type 10 kA at 400 V - associated fuse 12 A aM 10 kA at 400 V - associated fuse 12 A gG
IP Rating IP65
Rated Voltage 690 V AC 50/60 Hz Volt (V)

Isolator Switch-VCF02 Trade Information

Payment Terms Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolator Switch' category

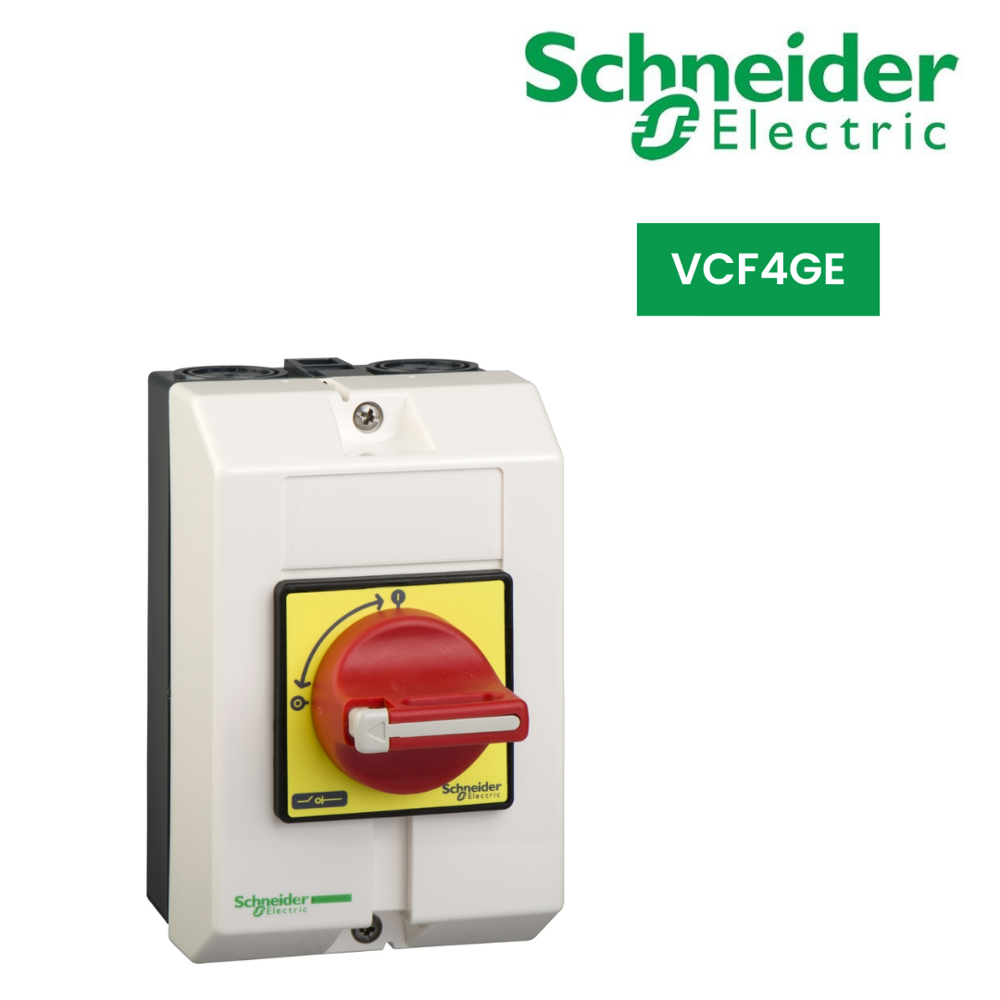

Isolator Switch-VCF4GE Price : 6250.5 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC Volt (V) Weight : 0.93 kg Kilograms (kg) Color : RED, Yellow Rated Current : 63 A Ampere (amp) Mounting Type : Surface mounting enclosure with screw fixing Current Rating : 63 A IP Rating : IP65 Protection Level : IP65 Max. Current : 63 A Ampere (amp) Circuit Type : 2.1 kA at 400 V at Ipeak Max. Voltage : 690 V AC Volt (V) Warranty : 1 YEAR Product Type : Enclosed emergency stop switch disconnector Usage & Applications : 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC23 up to 30kW@400V Stoke : 20 Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC)

Send Inquiry

Isolator Switch-VCF5 Price : 8357.0 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Weight : 1.2 kg Kilograms (kg) Color : RED, YELLO Rated Current : 125 A Ampere (amp) Mounting Type : By 4 screws for handle Current Rating : 125 A IP Rating : IP65 Protection Level : IP65 Max. Current : 125 A Ampere (amp) Circuit Type : 2.8 kA at 400 V at Ipeak Max. Voltage : 690 V AC 50/60 Hz Volt (V) Warranty : 1 YEAR Product Type : Emergency stop switch disconnector Stoke : 30 Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC)

Send Inquiry

Isolator Switch-VCF4 Price : 3647.25 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Weight : 0.56 kg Kilograms (kg) Color : RED, YELLO Rated Current : 80 A Ampere (amp) Mounting Type : By 4 screws for handle Current Rating : 80 A IP Rating : IP65 Protection Level : IP65 Max. Current : 80 A Ampere (amp) Circuit Type : 2.1 kA at 400 V at Ipeak Max. Voltage : 690 V AC 50/60 Hz Volt (V) Warranty : 1 YEAR Product Type : Emergency stop switch disconnector Stoke : 20 Temperature Range : 20 50 C Celsius (oC) Operating Temperature : 20 50 C Celsius (oC)

Send Inquiry

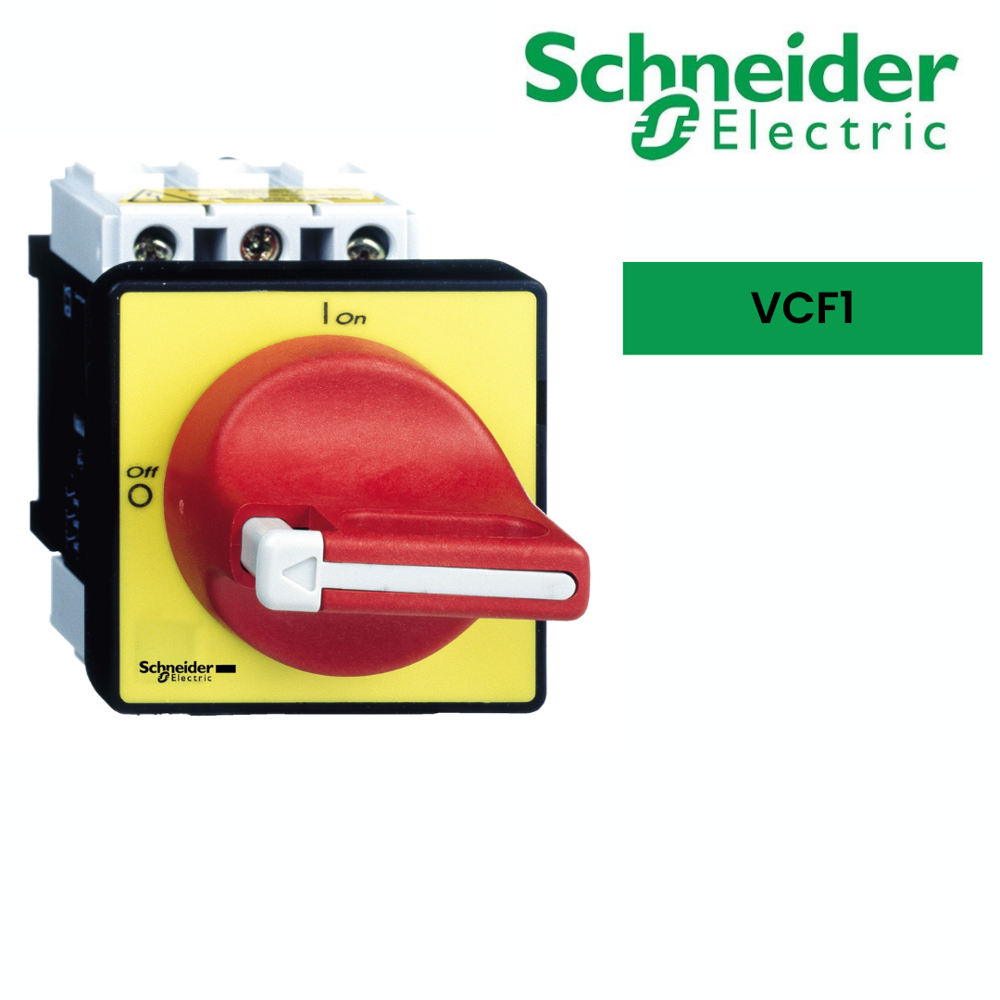

Isolator Switch-VCF1 Price : 1734.75 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC 50/60 Hz Volt (V) Weight : 0.25 kg Kilograms (kg) Color : YELLLO, RED Rated Current : 21.8 A AC23 Ue: 400 V Ampere (amp) Mounting Type : By 4 screws for handle Current Rating : 21.8 A AC23 Ue: 400 V IP Rating : IP65 Protection Level : IP20 conforming to IEC 60529IP20 conforming to IEC 60529 IP65 Max. Current : 21.8 A AC23 Ue: 400 V Ampere (amp) Circuit Type : 10 kA at 400 V associated fuse 35 A aM 10 kA at 400 V associated fuse 35 A gG Max. Voltage : 690 V AC 50/60 Hz Volt (V) Warranty : 1 YEAR Product Type : 690 V AC 50/60 Hz
