Product Video

Power Meter-METSEEM6459HCL10RS

3870.68 INR/Piece

Get a Price/Quote

Product Details:

Display Type 7 segments LED
Usage & Applications Power factor control Load control Power monitoring
Power Rating 4 VA at 240 V between phase and neutral
Rated Current 1 A 5 A Ampere (amp)
Warranty 1 YEAR
Operating Temperature -10 60 C Celsius (oC)
Rated Voltage 44...277 V AC 45...65 Hz 44...277 V DC Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Power Meter-METSEEM6459HCL10RS Price And Quantity

Price 3870.68 INR/Piece
Minimum Order Quantity 4 Piece

Power Meter-METSEEM6459HCL10RS Product Specifications

Power Rating 4 VA at 240 V between phase and neutral
Product Type VAF PF meter
Frequency 60 Hz 50 Hz Hertz (HZ)
Usage & Applications Power factor control Load control Power monitoring
Display Type 7 segments LED
Rated Current 1 A 5 A Ampere (amp)
Material Polycarbonate
Phase all phases
Measuring Voltage Range 46 277 V AC 50...60 Hz between phase and neutral 80 480 V AC 50...60 Hz between phases 277 999000 V AC 50...60 Hz with external VT Volt (v)
Warranty 1 YEAR
Weight 300 g Grams (g)
Operating Temperature -10 60 C Celsius (oC)
Accuracy Frequency +/- 0.05 % Power factor +/- 0.01 Current +/- 1 % Voltage +/- 1 % %
IP Rating IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Dimension (L*W*H) Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g. Millimeter (mm)
Color Red
Frequency (MHz) 60 Hz 50 Hz Hertz (HZ)
Insulation Box Class II
Rated Voltage 44...277 V AC 45...65 Hz 44...277 V DC Volt (V)
Protection System IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529

Power Meter-METSEEM6459HCL10RS Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

The EasyLogic EM6459H series is a combination of several panel instrument in a single device. it enable the measurement of voltage, current, frequency and power factor for all phases. The navigation is assured by 4 panel buttons. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure active and reactive energy. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Power Meter' category

Power Meter-METSEEM6436HCL10NC Price : 3955.0 INR/Piece Minimum Order Quantity : 4 Accuracy : Current +/ 0.5 % Voltage +/ 0.5 % Frequency +/ 0.05 % Power factor +/ 0.01 Reactive power +/ 2 % Active power +/ 1 % Apparent power +/ 1 % Active energy +/ 1 % Reactive energy +/ 2 % Apparent energy +/ 1 % % Operating Temperature : 10 60 C Celsius (oC) Weight : 300 g Grams (g) Dimension (L*W*H) : Mechanical dimensions are 96 mm in width, 96 mm in height and 90 mm in depth. Millimeter (mm) IP Rating : IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Frequency (MHz) : 60 Hz 50 Hz Hertz (HZ) Color : Red Protection System : IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Insulation Box : Class II Rated Voltage : 44...300 V AC 45...65 Hz 44...300 V DC Volt (V) Usage & Applications : Power monitoring Energy monitoring Product Type : Multifunction meter Frequency : 60 Hz 50 Hz Hertz (HZ) Power Rating : 2 W at 240 V Material : Polycarbonate Rated Current : 5 A 1 A Ampere (amp) Measuring Voltage Range : 35 480 V AC 50...60 Hz between phases 46 277 V AC 50...60 Hz between phase and neutral 277 999000 V AC 50...60 Hz with external VT Volt (v) Warranty : 1 YEAR Phase : 3phase Display Type : 8 segments LED

Send Inquiry

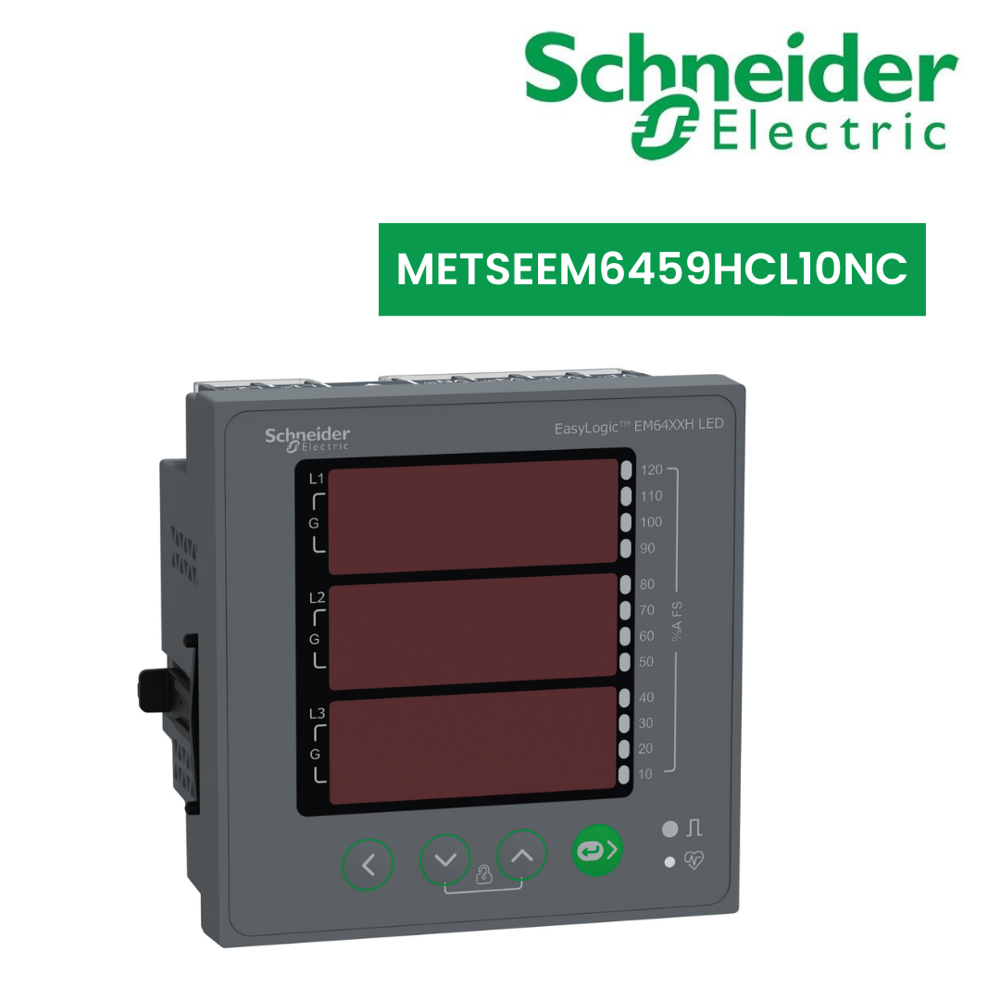

Power Meter-METSEEM6459HCL10NC Price : 3023.28 INR/Piece Minimum Order Quantity : 1 Accuracy : Frequency +/ 0.05 % Power factor +/ 0.01 Current +/ 1 % Voltage +/ 1 % % Operating Temperature : 10 60 C Celsius (oC) Weight : 300 g Grams (g) Dimension (L*W*H) : Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g. Millimeter (mm) IP Rating : IP51 Frequency (MHz) : 45 65 Hz Hertz (HZ) Color : Red Protection System : IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Insulation Box : Class II Rated Voltage : 44...277 V AC 45...65 Hz 44...277 V DC Volt (V) Usage & Applications : Power monitoring Power factor control Load control Product Type : VAF PF meter Frequency : 50 Hz 60 Hz Hertz (HZ) Power Rating : 2 W at 240 V Material : Polycarbonate Rated Current : 5 A 1 A Ampere (amp) Measuring Voltage Range : 46 277 V AC 50...60 Hz between phase and neutral 80 480 V AC 50...60 Hz between phases 277 999000 V AC 50...60 Hz with external VT Ampere (amp) Warranty : 1 year Phase : 3phase Display Type : 7 segments LED

Send Inquiry

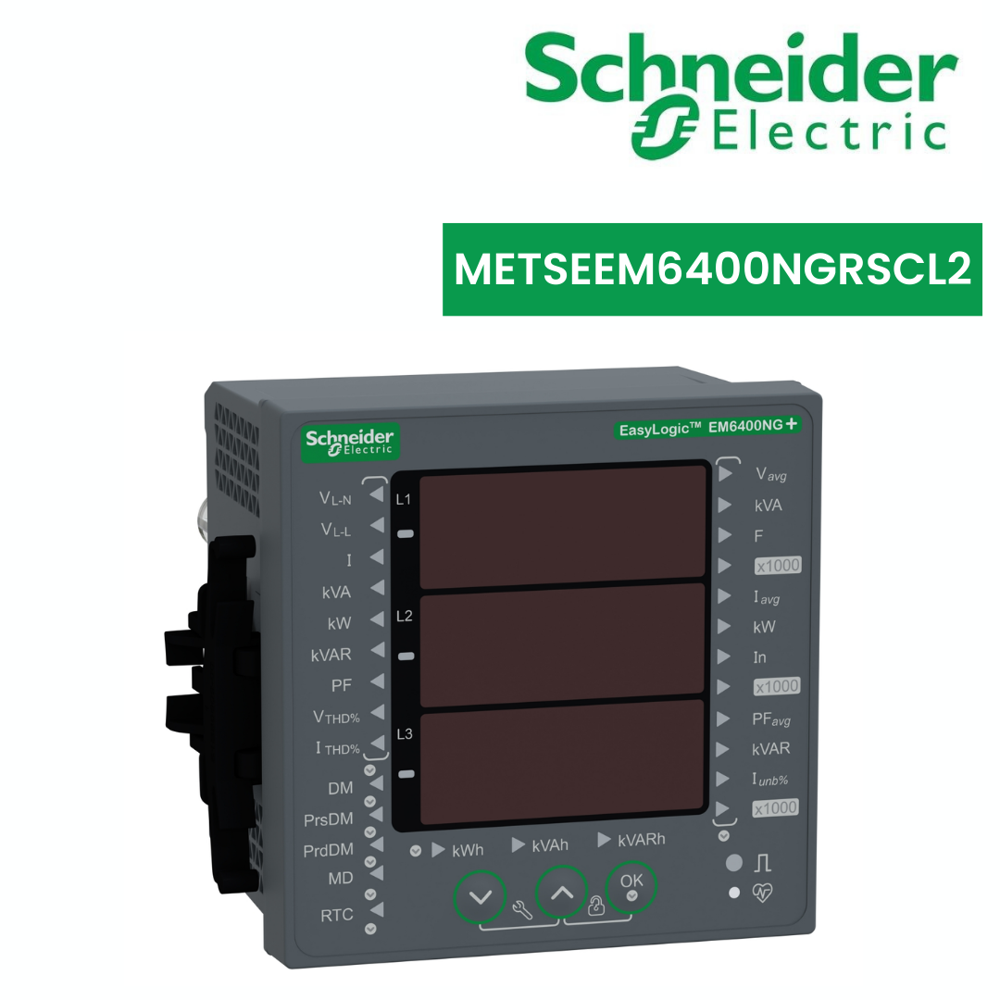

Power Meter-METSEEM6400NGRSCL2 Price : 12396.74 INR/Piece Minimum Order Quantity : 4 Accuracy : Current +/ 0.5 % Voltage +/ 0.5 % Power +/ 0.5 % Frequency +/ 0.05 % Power factor +/ 0.01 % Operating Temperature : 10 60 C Celsius (oC) Weight : 600 g Grams (g) Dimension (L*W*H) : Mechanical dimensions are 96 mm in width, 96 mm in height and 90 mm in depth ; for 600 g. Millimeter (mm) IP Rating : IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Frequency (MHz) : 60 Hz 50 Hz Hertz (HZ) Color : Red Protection System : IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Insulation Box : Class II Rated Voltage : 40...300 V AC 45...65 Hz 40...300 V DC Volt (V) Usage & Applications : Power monitoring Product Type : Energy meter Frequency : 60 Hz 50 Hz Hertz (HZ) Power Rating : 6 VA at 277 V between phase and neutral Material : Polycarbonate Rated Current : 5 A 1 A Ampere (amp) Measuring Voltage Range : 5 6000 mA Megaampere ( MA) Warranty : 1 YEAR Phase : between phase Display Type : 7 segments LED
