Power Supply -BMXCPS2000

14600.0 INR/Piece

Get a Price/Quote

Product Details:

Current Range 2.5 Ampere (A)
Application This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL
Rated Power 16.8W
Rated Current 2.5 Ampere (amp)
Output Type Other
Power Supply 10.8 W 24 V DC
Power Rating 16.8W
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Power Supply -BMXCPS2000 Price And Quantity

Price 14600.0 INR/Piece
Minimum Order Quantity 1 Piece

Power Supply -BMXCPS2000 Product Specifications

Application This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL
Output Frequency 50/60 Hz Hertz (HZ)
Current Range 2.5 Ampere (A)
Weight 0.3 Kilograms (kg)
Rated Power 16.8W
Rated Current 2.5 Ampere (amp)
Product Type Power supply module
Storage Temperature 0 60 C Celsius (oC)
Input Voltage 115 Volt (V)
Output Power 8.5 Watt (w)
Output Type Other
Power Supply 10.8 W 24 V DC
Power Rating 16.8W
Rated Voltage 240V Volt (V)
Warranty 1YEAR
Frequency 50/60 Hz Hertz (HZ)
Operating Temperature -40 85 C Celsius (oC)
IP Rating IP20
Connector Type 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor

Power Supply -BMXCPS2000 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

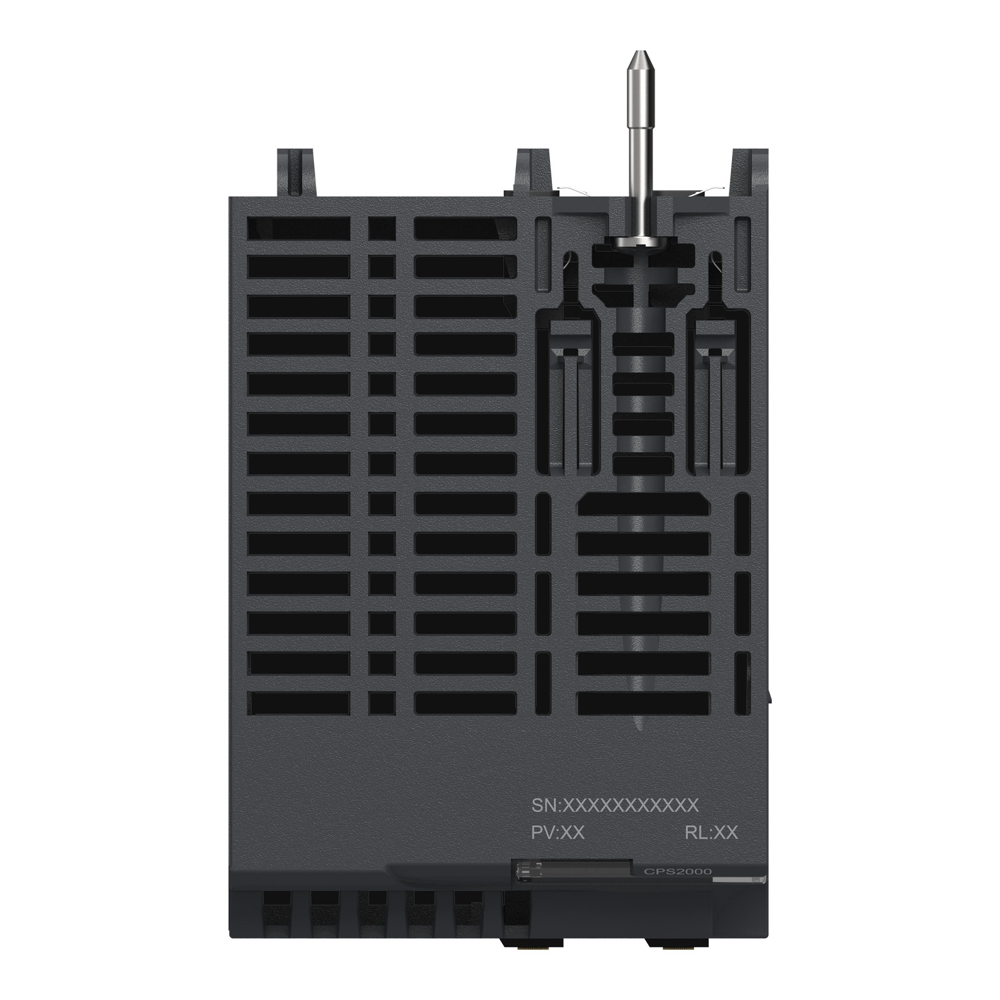

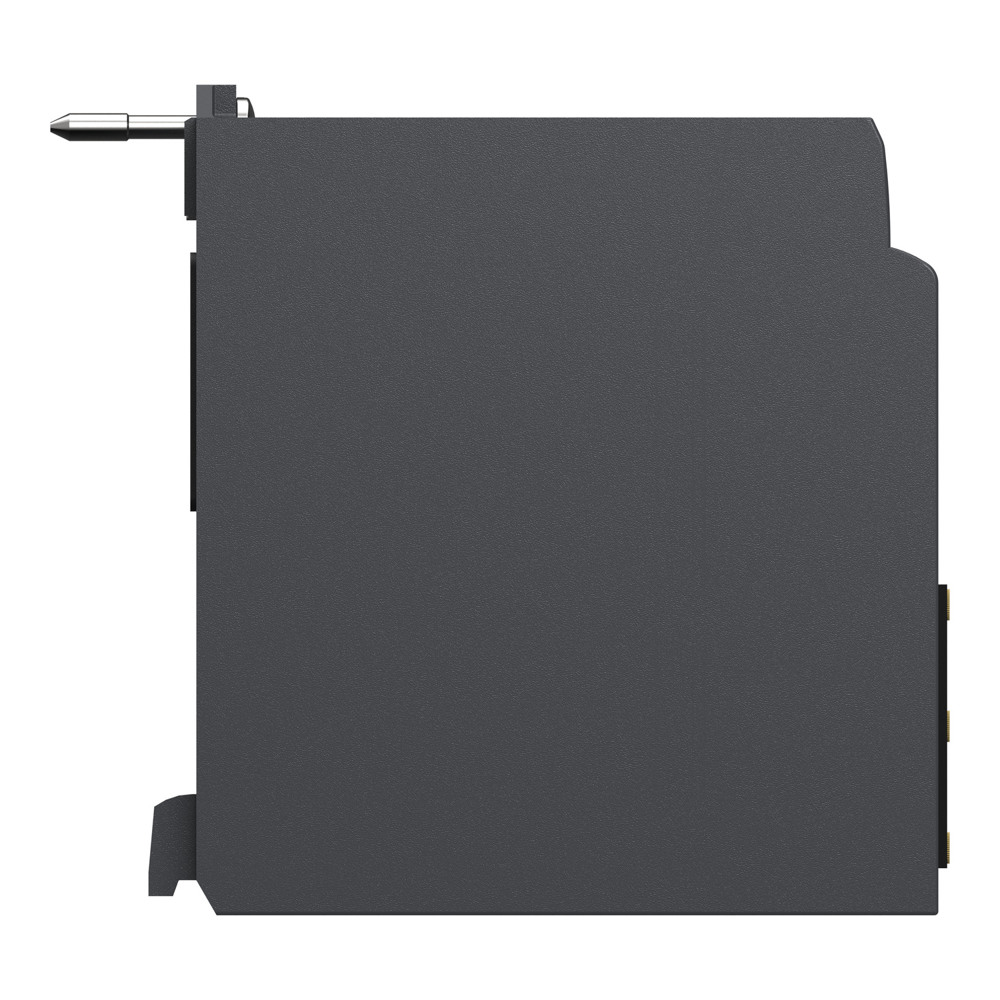

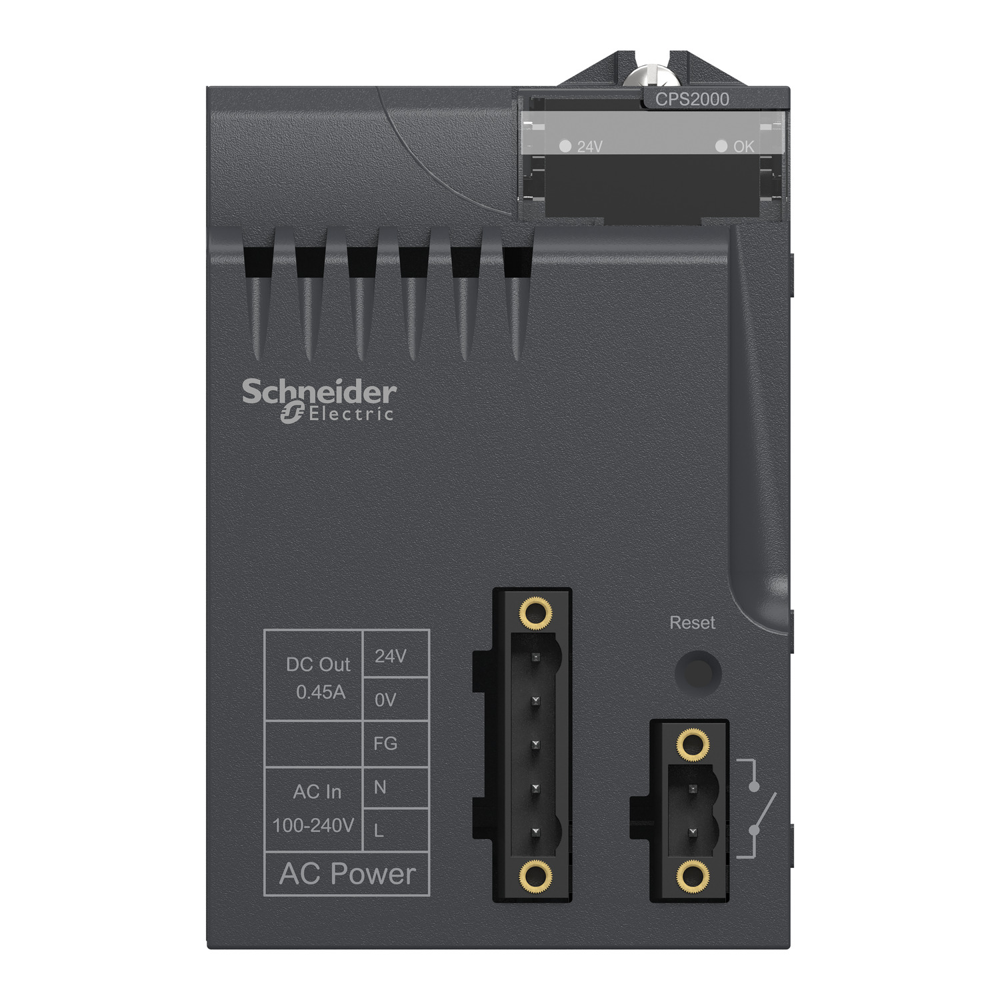

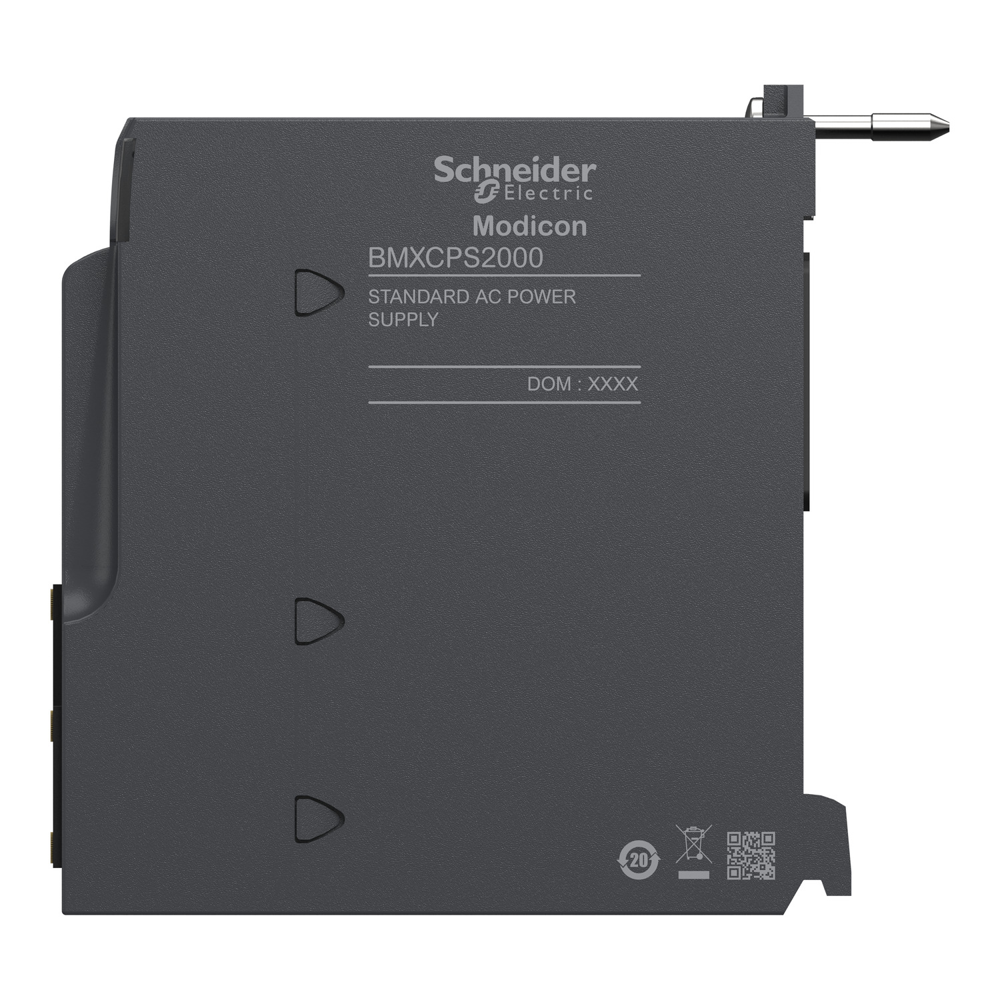

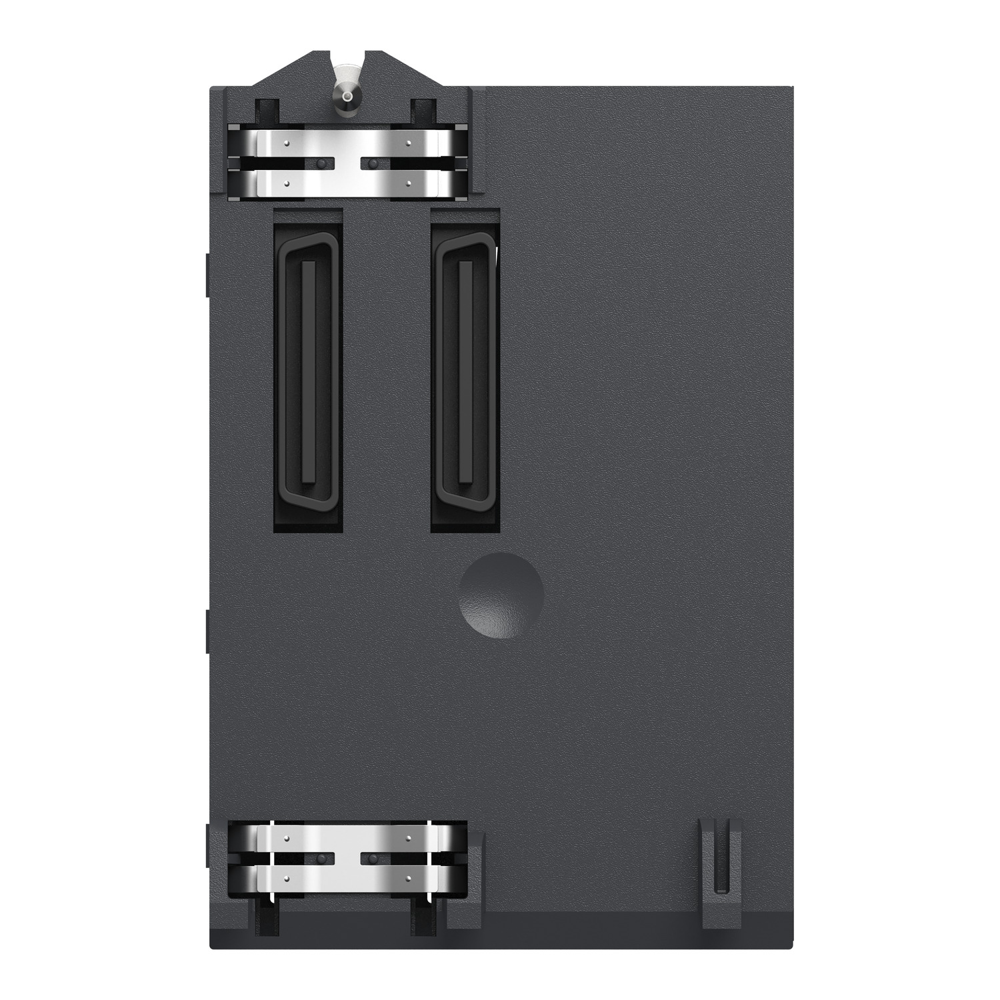

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.3kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Power Supply' category

Power Supply -ABL2REM24045K Price : 1516.8 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 240 Volt (V) Output Power : 4.5 Ampere (amp) IP Rating : IP20 Rated Power : 108KW Weight : 0.35 Kilograms (kg) Rated Current : 4.5 Ampere (amp) Power Supply : 100240V Voltage Protection : 110160%. Input Voltage : 240 Volt (V) Product Type : Power supply Power Rating : 108W Current Range : 50 Ampere (A) Output Type : DC Working Temperature : 70 Celsius (oC) Output Current : 4.5 Ampere (amp) Operating Temperature : 70 Celsius (oC)

Send Inquiry

Power Supply -BMXCPS2010 Price : 12570.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 24 Volt (V) Output Power : 16.8 Watt (w) IP Rating : IP20 Rated Power : 16.8W Weight : 0.29 Kilograms (kg) Rated Current : 2.5 Ampere (amp) Power Supply : 16.8 W 24 V DC I/O module power supply and processor 8.3 W 3.3 V DC I/O module logic power supply Voltage Protection : Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Shortcircuit protection for secondary circuit, 24 V sensor power supply Input Voltage : 24V Volt (V) Product Type : Power supply module Power Rating : 16.8W Current Range : 2.5 Ampere (A) Output Type : Other Working Temperature : 40 85 C Celsius (oC) Output Current : 2.5 Ampere (amp) Warranty : 1YEAR Connector Type : 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor Operating Temperature : 60 Celsius (oC)

Send Inquiry

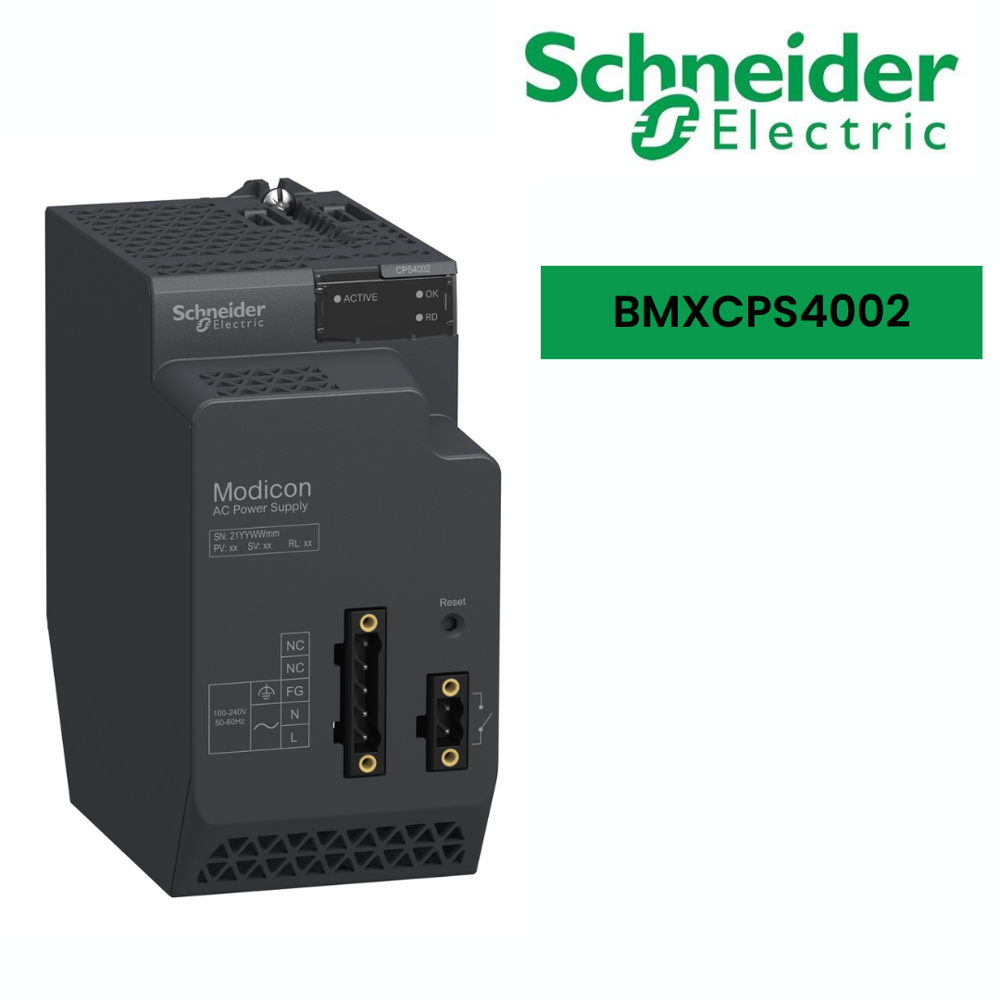

Power Supply-BMXCPS4002 Price : 38047.0 INR/Piece Minimum Order Quantity : 5 Rated Voltage : 240 v Volt (V) Output Power : 500 V 24 V sensor output/ground Volt (v) IP Rating : IP20 Rated Power : 40W at 24V DC Weight : 0.51 kg Kilograms (kg) Rated Current : 30 A 120 V 60 A 240 V Ampere (amp) Power Supply : 40W at 24V DC Voltage Protection : Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Shortcircuit protection for secondary circuit Input Voltage : 100V Volt (V) Product Type : Power supply module Power Rating : 40W at 24V DC Current Range : 240 V Volt (V) Output Type : AC Warranty : 1 year Connector Type : 2pin connector for alarm relay, 5pin connector for line supply
