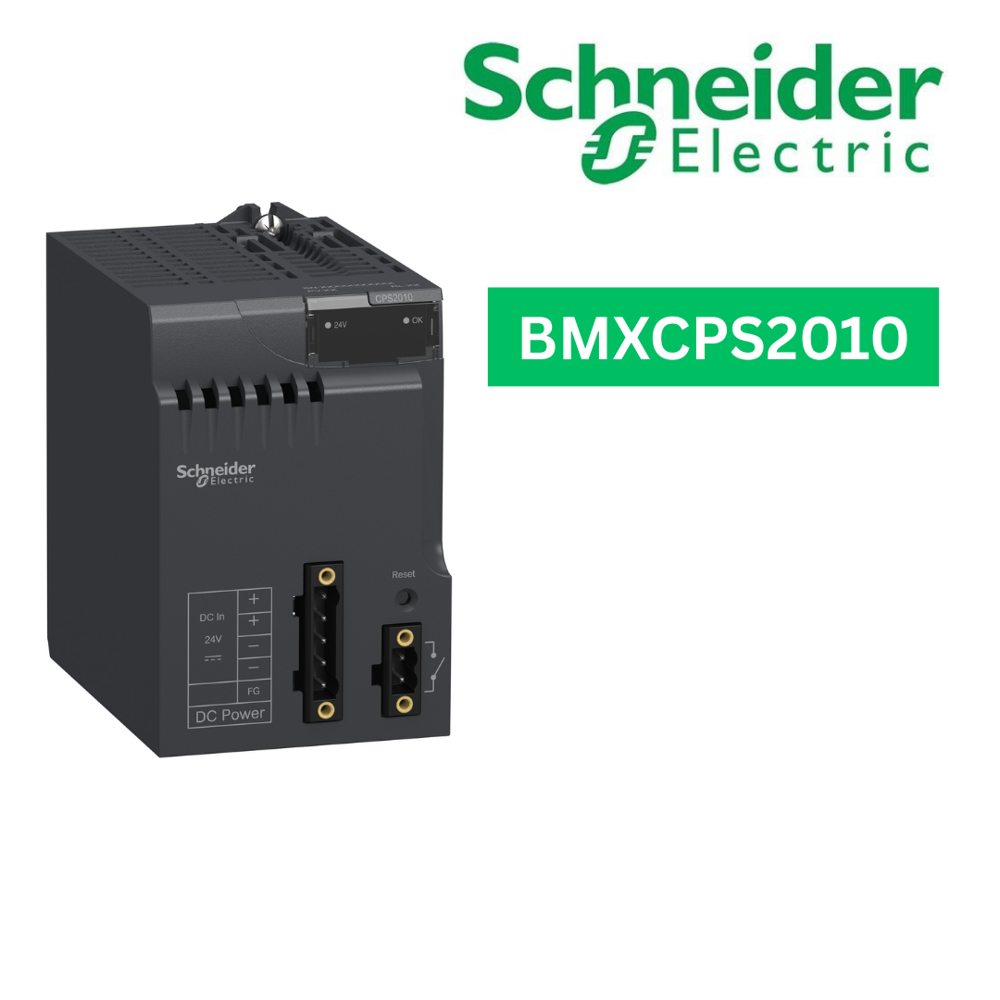

Power Supply -BMXCPS2010

12570.0 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1YEAR
IP Rating IP20
Power Rating 16.8W
Application This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL
Operating Temperature 60 Celsius (oC)
Output Current 2.5 Ampere (amp)
Rated Current 2.5 Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Power Supply -BMXCPS2010 Price And Quantity

Minimum Order Quantity 1 Piece
Price 12570.0 INR/Piece

Power Supply -BMXCPS2010 Product Specifications

Warranty 1YEAR
Power Rating 16.8W
IP Rating IP20
Operating Temperature 60 Celsius (oC)
Application This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL
Voltage Protection Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply
Output Current 2.5 Ampere (amp)
Rated Current 2.5 Ampere (amp)
Output Power 16.8 Watt (w)
Power Supply 16.8 W 24 V DC I/O module power supply and processor 8.3 W 3.3 V DC I/O module logic power supply
Input Voltage 24V Volt (V)
Rated Voltage 24 Volt (V)
Product Type Power supply module
Weight 0.29 Kilograms (kg)
Current Range 2.5 Ampere (A)
Working Temperature -40 85 C Celsius (oC)
Rated Power 16.8W

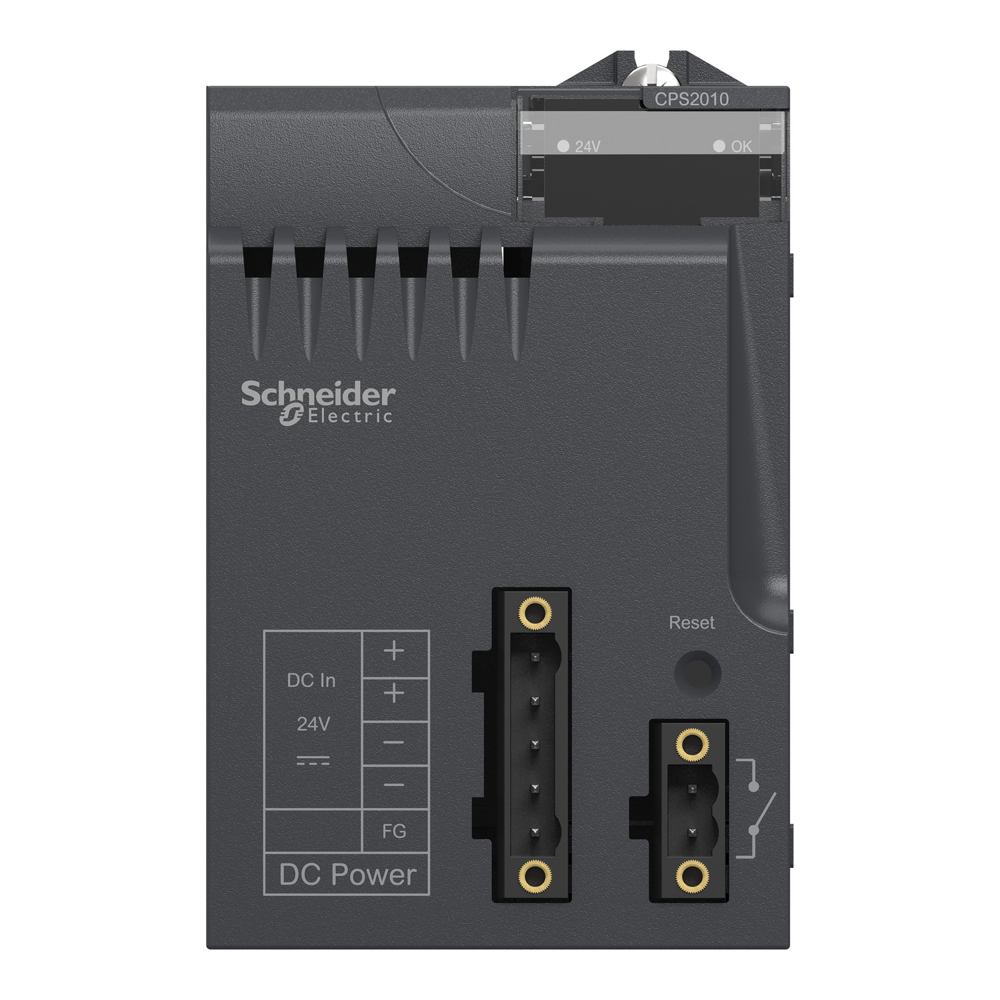

Connector Type 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor
Output Type Other

Power Supply -BMXCPS2010 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
