Product Video

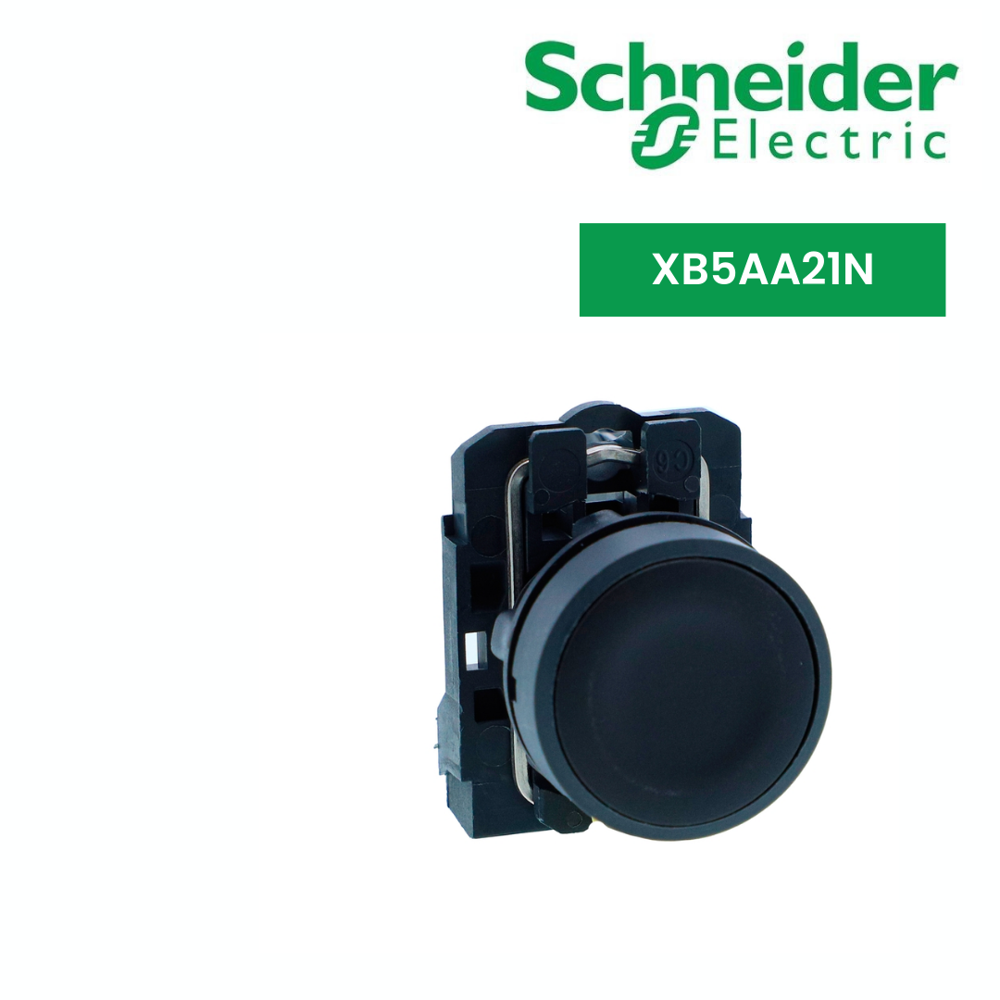

Push Button-XB5AA21N

102.44 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP65
Material Dark grey plastic
Protection Level IP65
Warranty 1 YEAR
Circuit Type 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Rated Current 10 A conforming to IEC 60947-5-1 Ampere (amp)
Rated Voltage 24 V AC/DC Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Push Button-XB5AA21N Price And Quantity

Price 102.44 INR/Piece
Minimum Order Quantity 1 Piece

Push Button-XB5AA21N Product Specifications

Contact Resistance 1 NO Ohm ()
IP Rating IP65
Max. Voltage 24 V AC/DC Volt (V)
Mounting Type 22.5 mm
Protection Level IP65
Insulation Resistance 600 V (pollution degree 3) conforming to IEC 60947-1
Material Dark grey plastic
Warranty 1 YEAR
Weight 28 g Grams (g)
Current Rating 10 A conforming to IEC 60947-5-1
Circuit Type 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product Type Push-button
Rated Current 10 A conforming to IEC 60947-5-1 Ampere (amp)
Rated Voltage 24 V AC/DC Volt (V)

Push Button-XB5AA21N Trade Information

Payment Terms Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

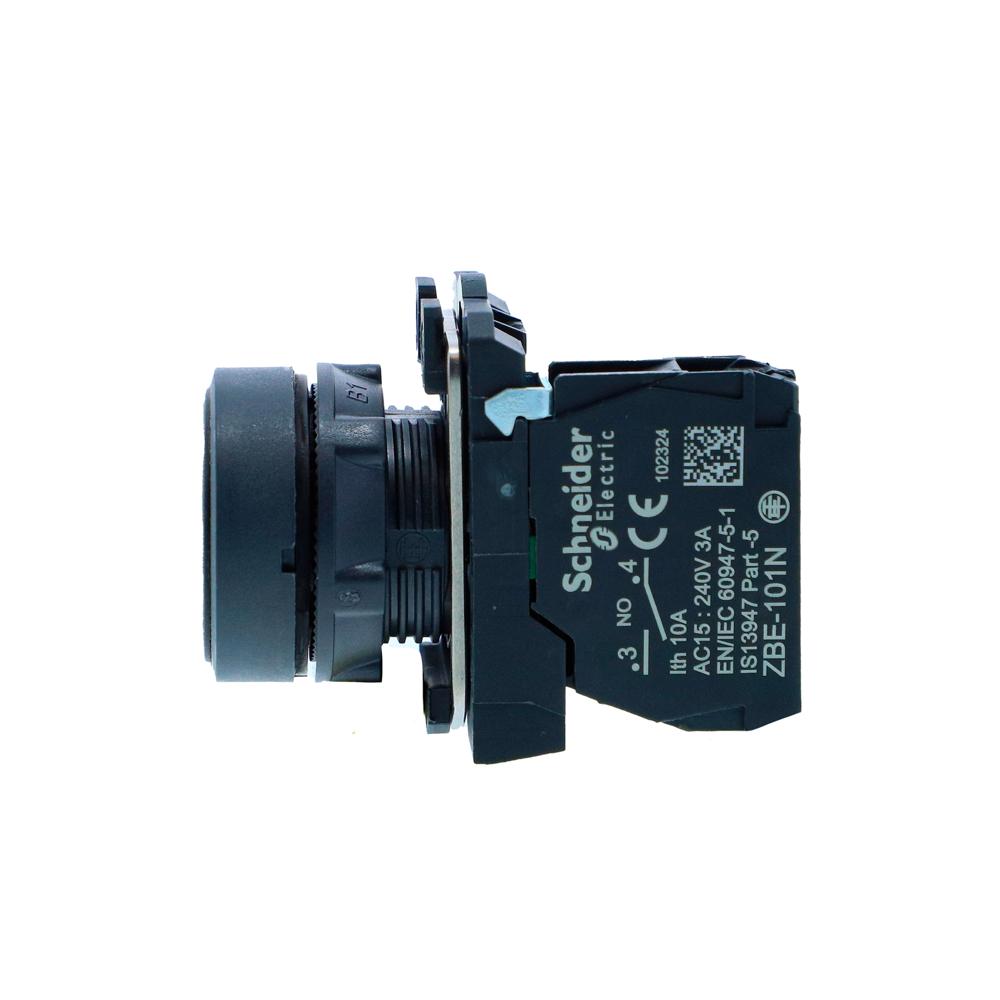

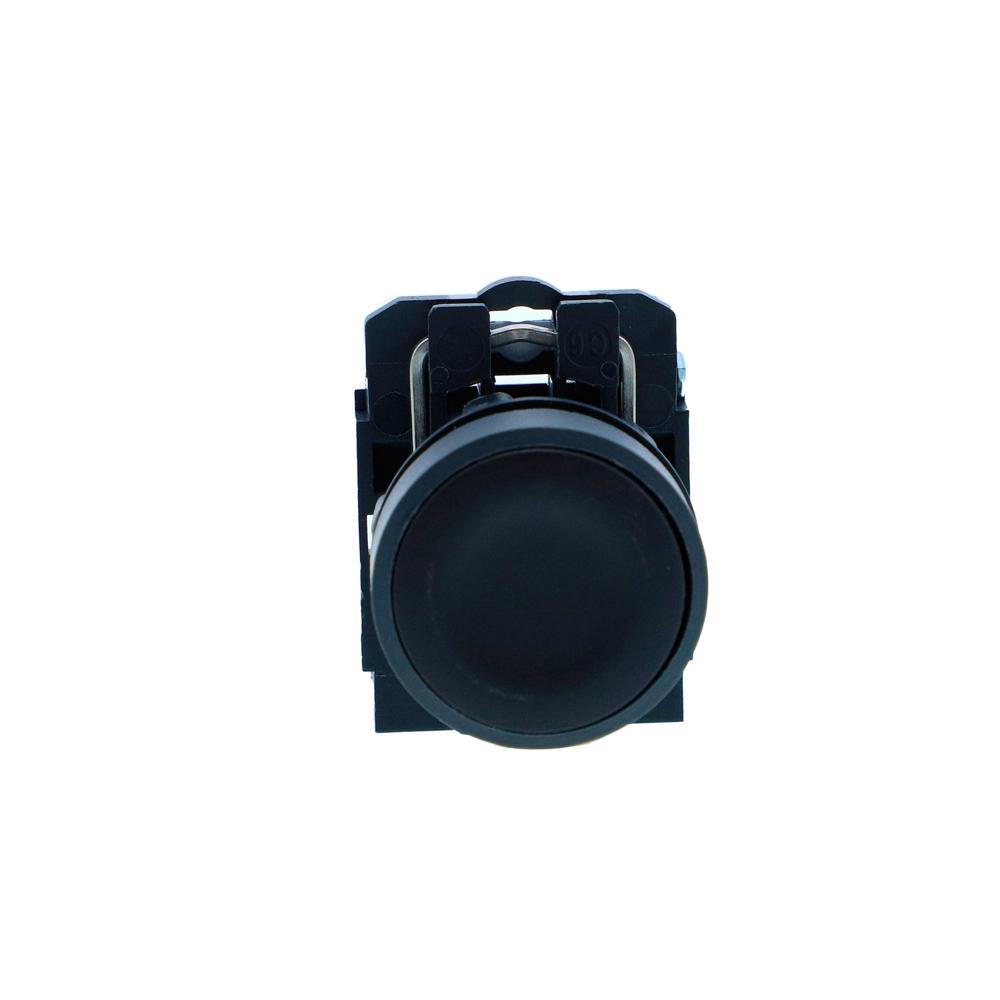

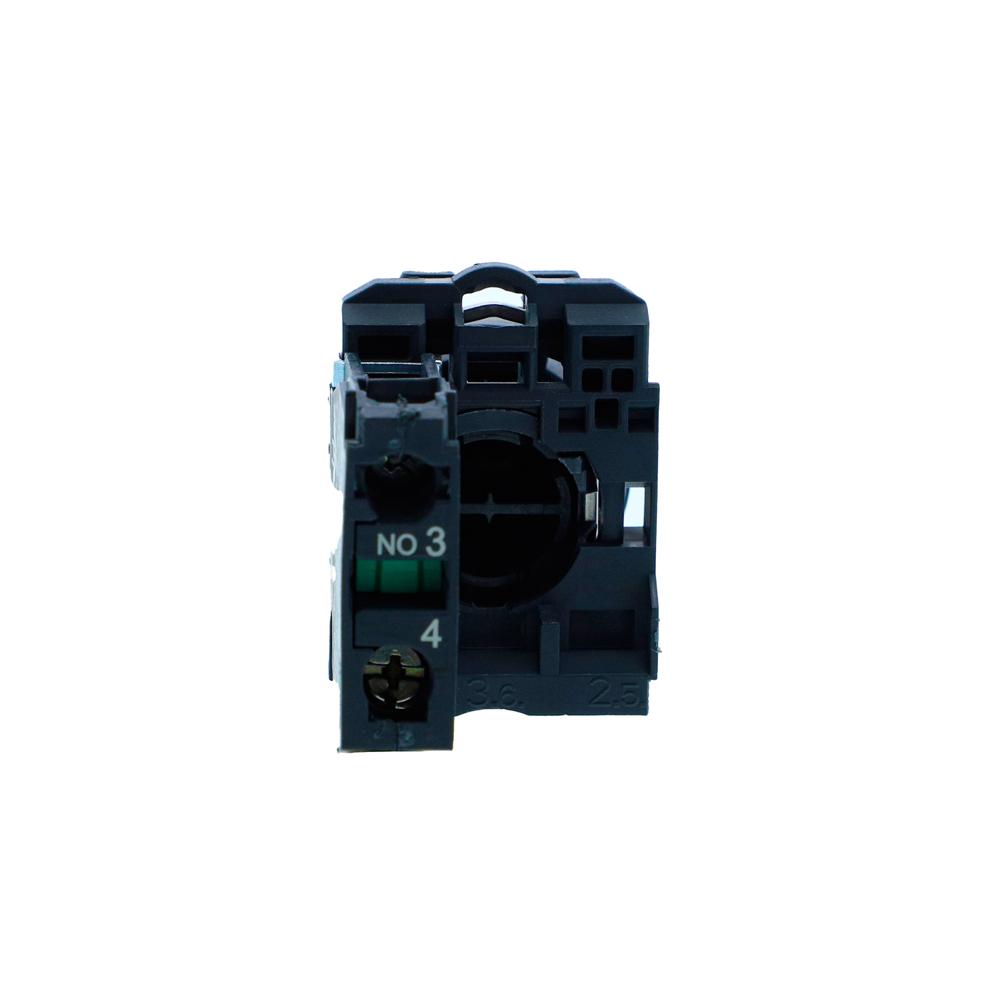

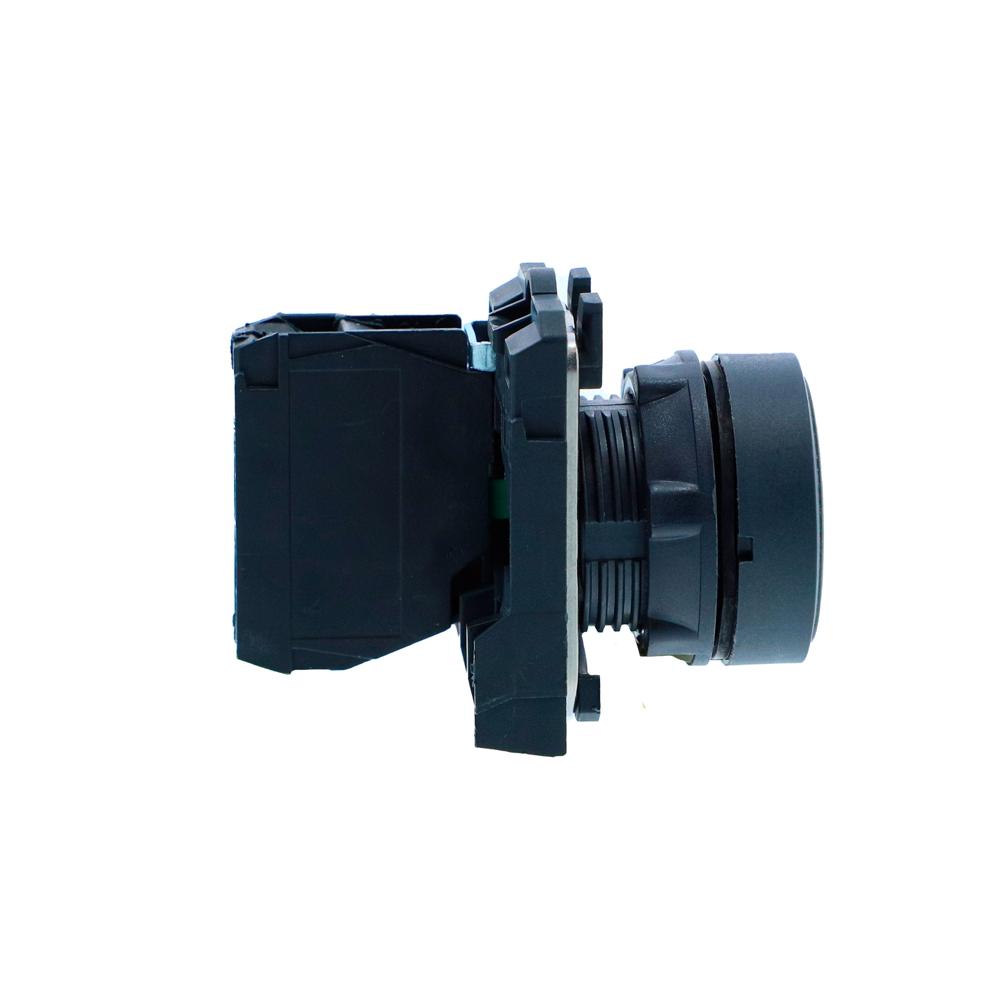

This Harmony XB5N/XB7N, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
