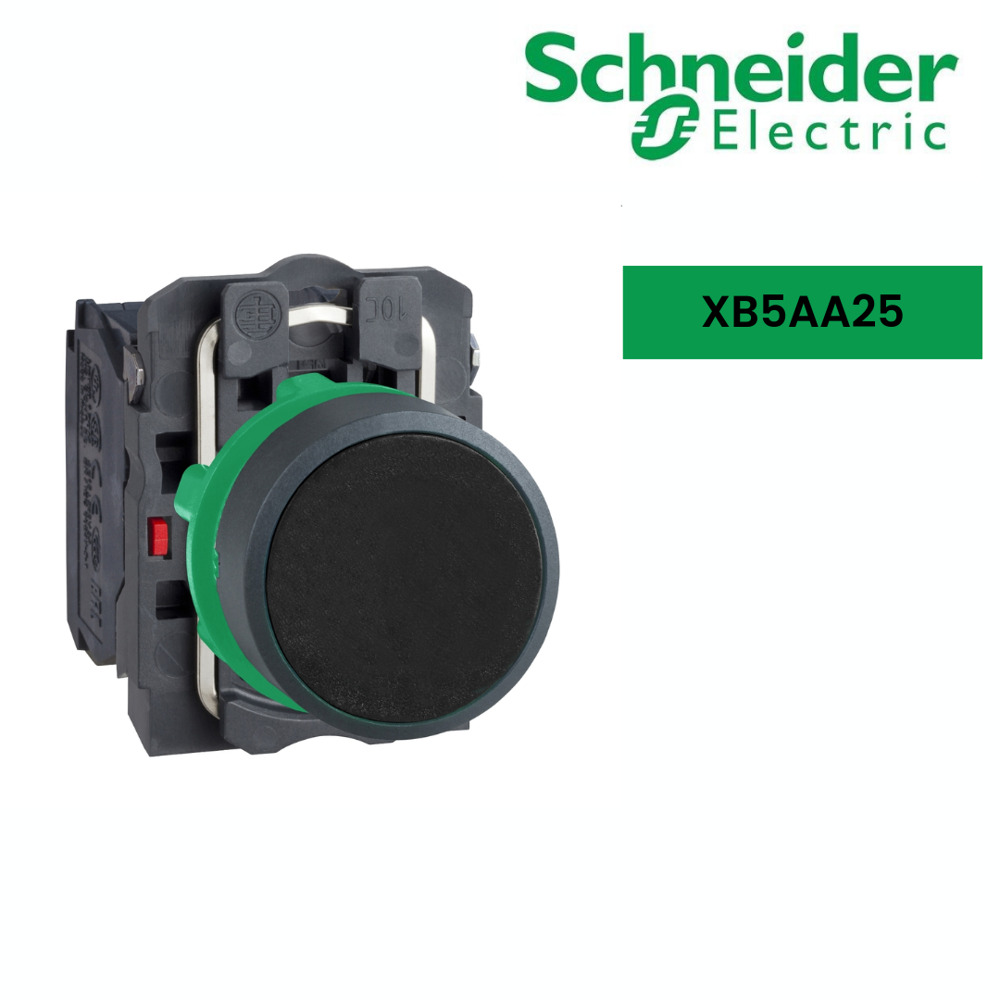

Push Button-XB5AA25

656.0 INR/Piece

Get a Price/Quote

Product Details:

Material Plastic Dark grey plastic
Rated Voltage 600 V 3)IEC 60947-1 Volt (V)
Rated Current 10 A IEC 60947-5-1 Ampere (amp)
Mechanical Life 1 Years
Protection Level 10 A cartridge fuse gG IEC 60947-5-1
Circuit Type 10 A cartridge fuse gG IEC 60947-5-1
IP Rating IP66
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Push Button-XB5AA25 Price And Quantity

Minimum Order Quantity 4 Piece
Price 656.0 INR/Piece

Push Button-XB5AA25 Product Specifications

Rated Current 10 A IEC 60947-5-1 Ampere (amp)
Product Type Push-button
Rated Voltage 600 V 3)IEC 60947-1 Volt (V)
Material Plastic Dark grey plastic
Mechanical Life 1 Years
Current Rating 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Protection Level 10 A cartridge fuse gG IEC 60947-5-1
Circuit Type 10 A cartridge fuse gG IEC 60947-5-1
Operating Temperature 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) Fahrenheit (oF)
IP Rating IP66
Weight 46.000 g Grams (g)
Max. Current 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 Volt (v)
Usage & Applications Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Mounting Type 0.9 in (22.5 mm)
Max. Voltage 600 V 3)IEC 60947-1 Volt (V)
Warranty 1 YEAR
Insulation Resistance Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Temperature Range -40 158 F (-40 70 C) Fahrenheit (oF)

Push Button-XB5AA25 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cheque, Cash in Advance (CID)
Supply Ability 800 Piece Per Week
Delivery Time 50 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Harmony XB5, flush modular black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Push Button' category

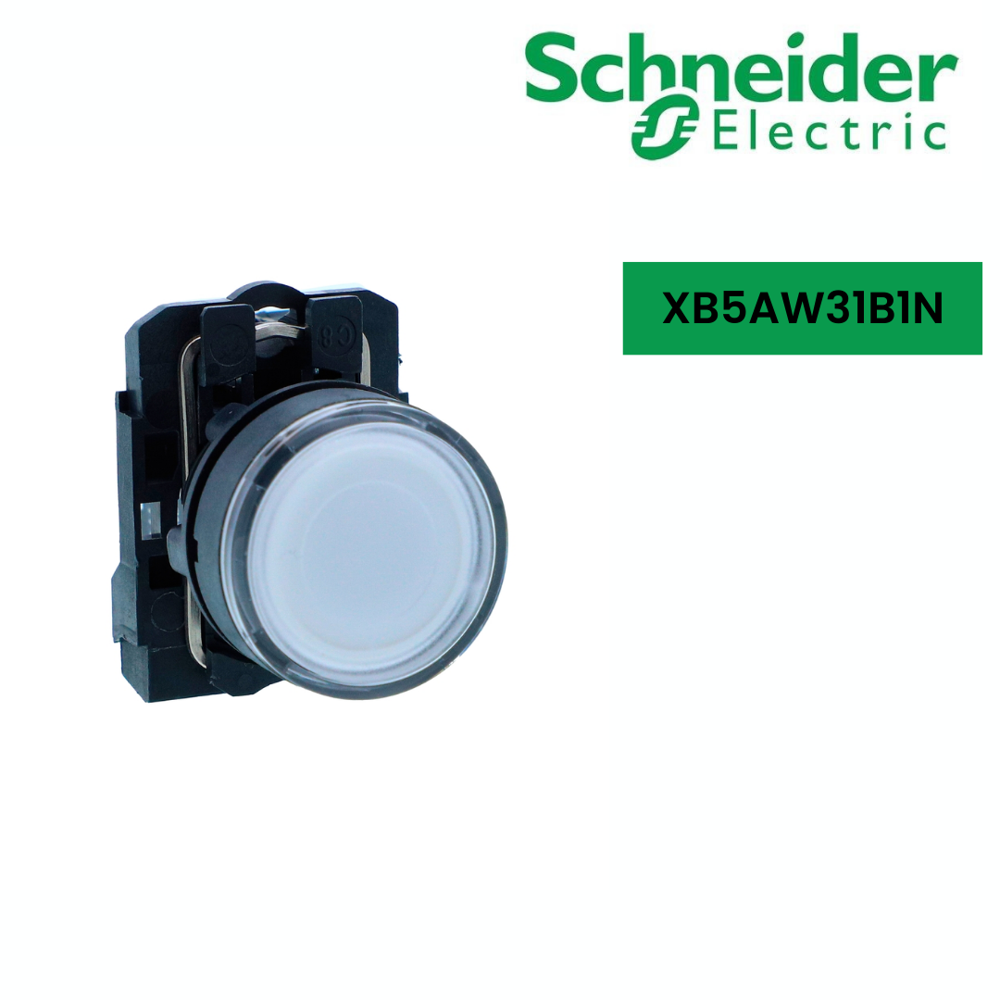

Push Button-XB5AW31B1N Price : 299.52 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 24 V AC/DC 50/60 Hz Volt (V) Mounting Type : Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 22.5 mm Insulation Resistance : 600 V (pollution degree 3) conforming to IEC 609471 Warranty : 1 YEAR Material : Dark grey plastic Current Rating : 10 A Protection Level : IP65 IP Rating : IP65 Weight : 0.056 kg Kilograms (kg) Max. Current : 10 A Ampere (amp) Max. Voltage : 24 V AC/DC 50/60 Hz Ampere (A) Product Type : Illuminated pushbutton Rated Current : 10 A Ampere (amp) Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751 Stoke : 50

Send Inquiry

Push Button-XB5AL31N Price : 123.76 INR/Piece Minimum Order Quantity : 10 Rated Voltage : 600 V Volt (V) Mounting Type : 22 mm Insulation Resistance : 600 V (pollution degree 3) conforming to EN/IEC 609471 Warranty : 1 YEAR Material : Plastic Current Rating : 10 A Protection Level : IP66 conforming to IEC 60529 IP67 IP69 IP69K IP Rating : IP66 conforming to IEC 60529 IP67 IP69 IP69K Max. Current : 10 A Ampere (amp) Max. Voltage : 600 V Volt (V) Product Type : Pushbutton Rated Current : 10 A Ampere (amp) Circuit Type : 10 A cartridge fuse type gG conforming to EN/IEC 6094751 Stoke : 50

Send Inquiry

Push Button-XB5AW35B1N Price : 299.52 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 24 V AC/DC 50/60 Hz Volt (V) Mounting Type : Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 Insulation Resistance : 600 V (pollution degree 3) conforming to IEC 609471 Warranty : 1 YEAR Material : Dark grey plastic Current Rating : 10 A Protection Level : IP65 IP Rating : IP65 Weight : 0.056 kg Kilograms (kg) Max. Current : 10 A Ampere (amp) Max. Voltage : 24 V AC/DC 50/60 Hz Volt (V) Product Type : Illuminated pushbutton Rated Current : 10 A Ampere (amp) Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751

Send Inquiry

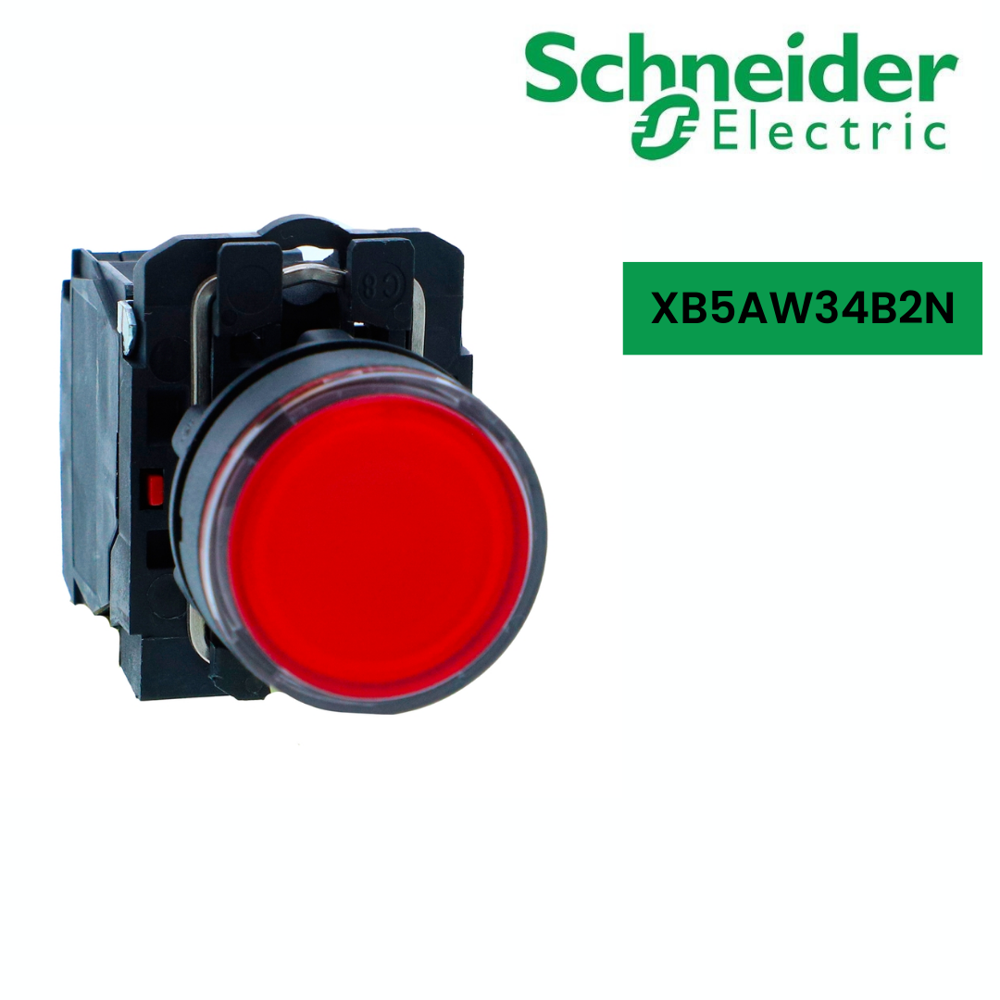

Push Button-XB5AW34B2N Price : 299.52 INR/Piece Minimum Order Quantity : 6 Rated Voltage : 24 V AC/DC 50...60 Hz Volt (V) Mounting Type : 22.5 mm Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 Insulation Resistance : 600 V (pollution degree 3) conforming to IEC 609471 Warranty : 1 YEAR Current Rating : 10 A Protection Level : IP65 IP Rating : IP65 Weight : 0.056 kg Kilograms (kg) Max. Current : 10 A Ampere (amp) Max. Voltage : 24 V AC/DC 50...60 Hz Volt (V) Rated Current : 10 A Ampere (amp) Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751 Color : RED
