Product Video

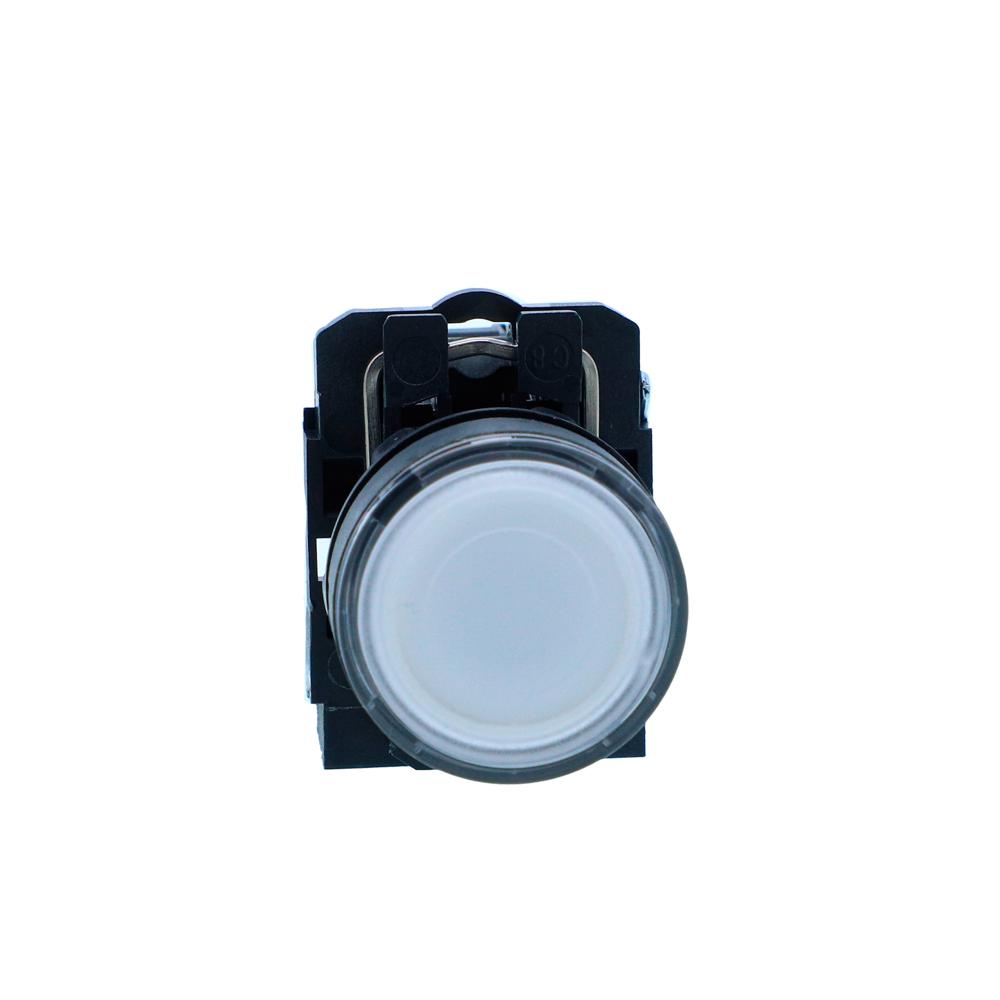

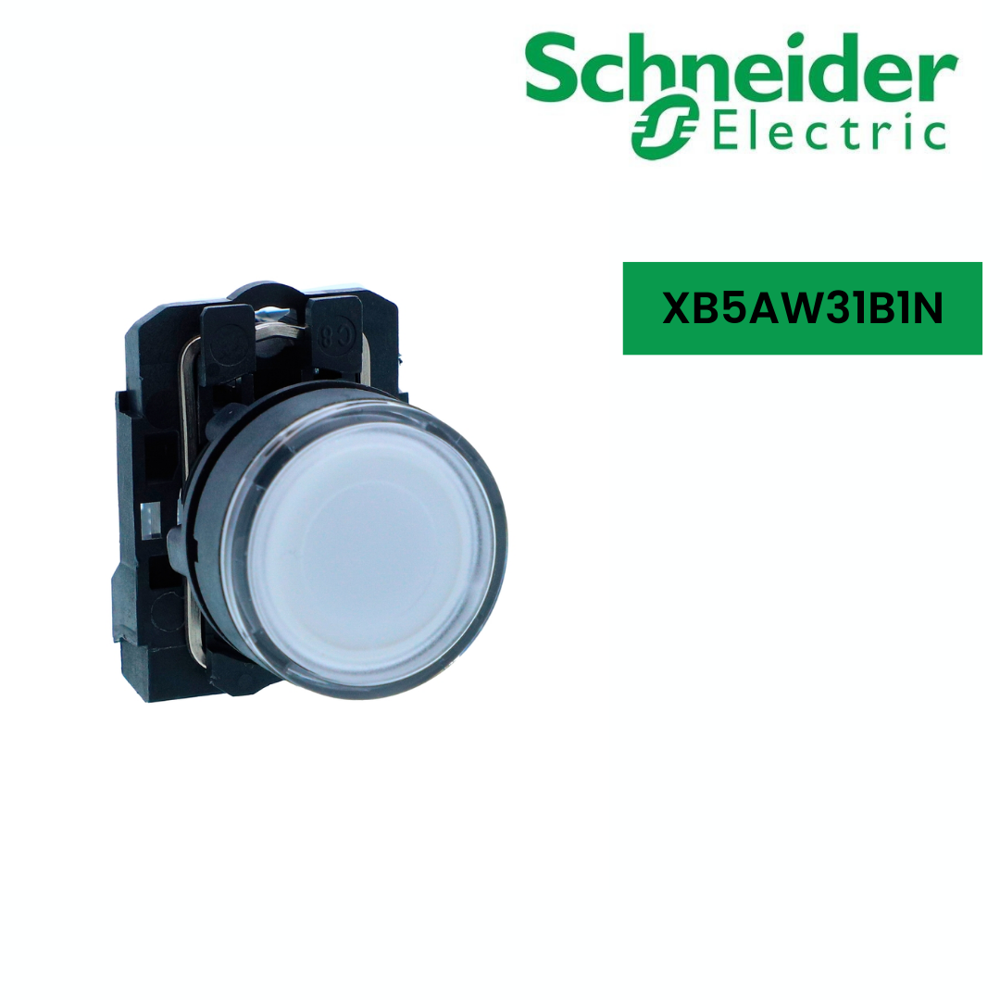

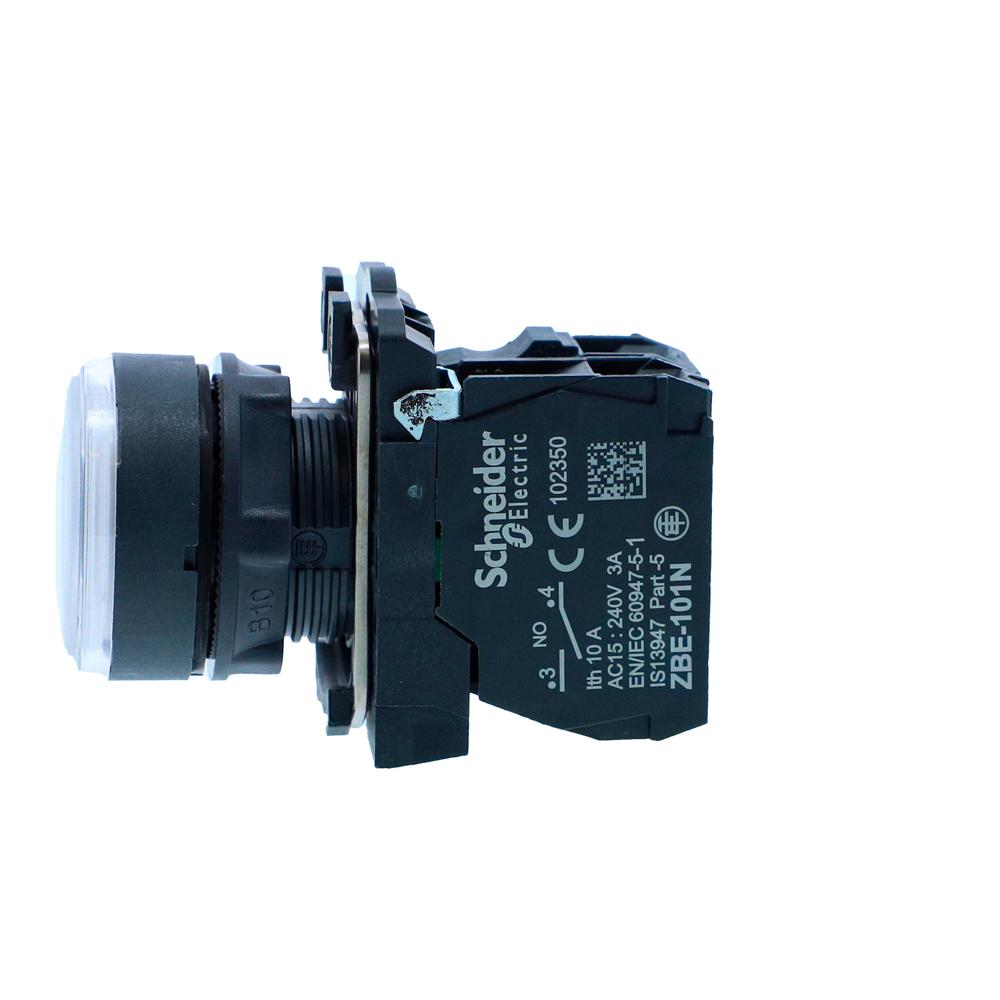

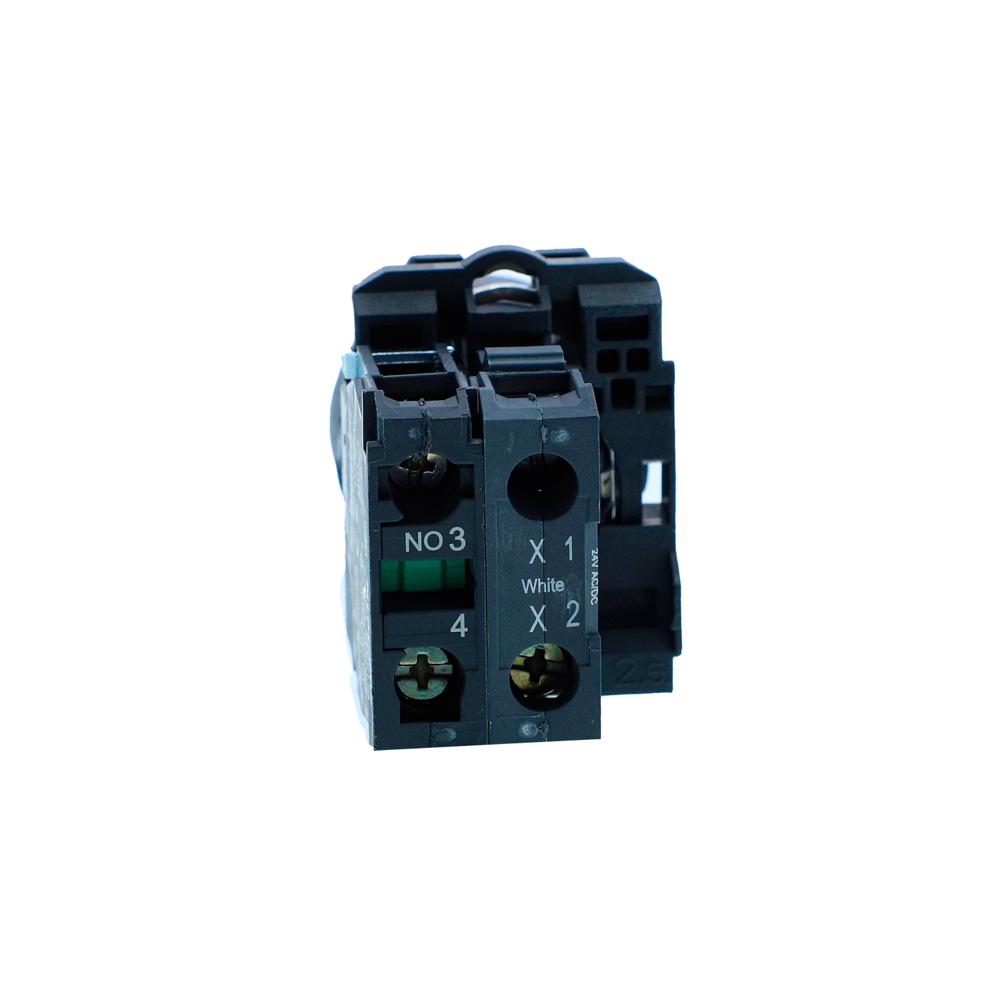

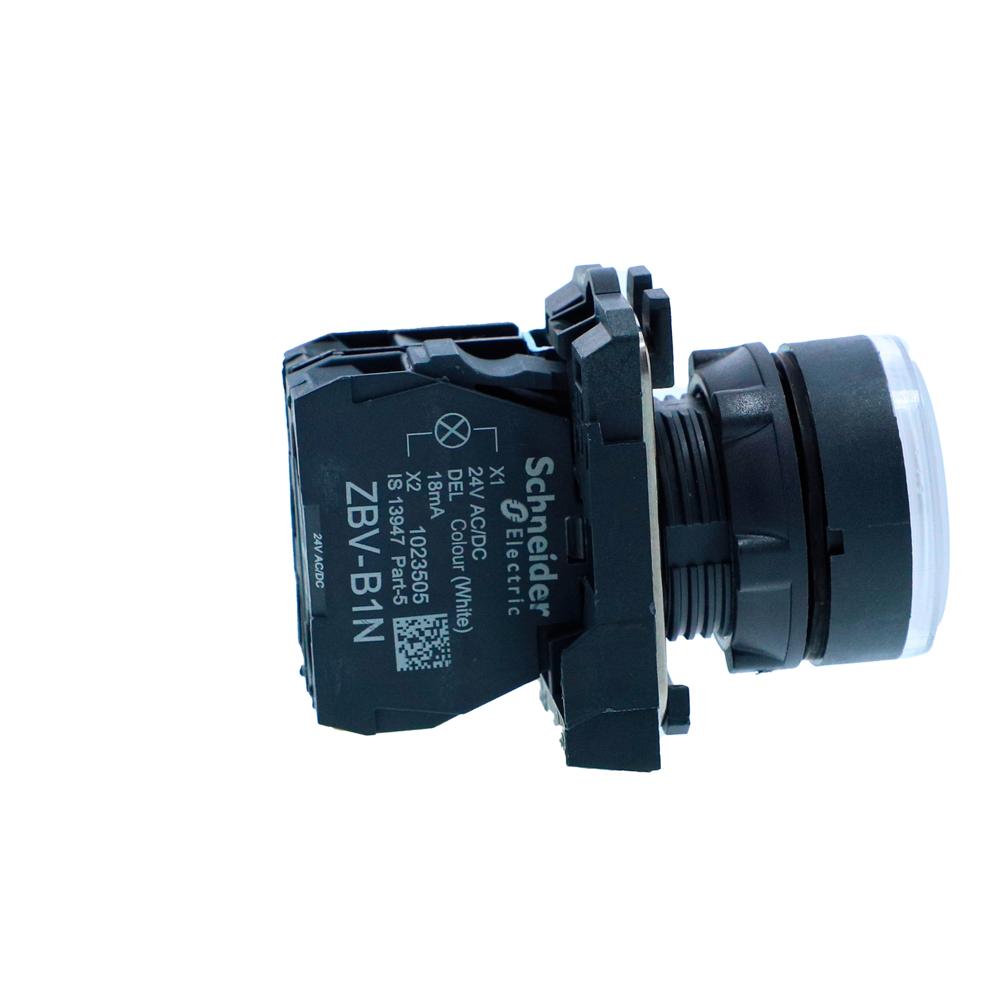

Push Button-XB5AW31B1N

299.52 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP65
Rated Current 10 A Ampere (amp)
IP Rating IP65
Rated Voltage 24 V AC/DC 50/60 Hz Volt (V)
Material Dark grey plastic
Max. Current 10 A Ampere (amp)
Warranty 1 YEAR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Push Button-XB5AW31B1N Price And Quantity

Price 299.52 INR/Piece
Minimum Order Quantity 4 Piece

Push Button-XB5AW31B1N Product Specifications

Rated Voltage 24 V AC/DC 50/60 Hz Volt (V)
Current Rating 10 A
IP Rating IP65
Insulation Resistance 600 V (pollution degree 3) conforming to IEC 60947-1
Rated Current 10 A Ampere (amp)
Mounting Type Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 22.5 mm
Protection Level IP65
Stoke 50
Max. Voltage 24 V AC/DC 50/60 Hz Ampere (A)
Product Type Illuminated push-button
Material Dark grey plastic
Warranty 1 YEAR
Max. Current 10 A Ampere (amp)
Circuit Type 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Weight 0.056 kg Kilograms (kg)

Push Button-XB5AW31B1N Trade Information

Payment Terms Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Harmony XB5N/XB7N, modular white illuminated push-button provides an ergonomic and visual interface for controlling your machines, operates at 24V AC/DC and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides a clear help in setting your machines in various settings, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Push Button' category

Push Button-XB5AA25 Price : 656.0 INR/Piece Minimum Order Quantity : 4 Mounting Type : 0.9 in (22.5 mm) Rated Voltage : 600 V 3)IEC 609471 Volt (V) Current Rating : 3 A 240 V, AC15, A600 IEC 6094751 6 A 120 V, AC15, A600 IEC 6094751 0.1 A 600 V, DC13, Q600 IEC 6094751 0.27 A 250 V, DC13, Q600 IEC 6094751 0.55 A 125 V, DC13, Q600 IEC 6094751 1.2 A 600 V, AC15, A600 IEC 6094751 Material : Plastic Dark grey plastic Product Type : Pushbutton Protection Level : 10 A cartridge fuse gG IEC 6094751 Warranty : 1 YEAR Rated Current : 10 A IEC 6094751 Ampere (amp) Insulation Resistance : Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Circuit Type : 10 A cartridge fuse gG IEC 6094751 Weight : 46.000 g Grams (g) Max. Current : 3 A 240 V, AC15, A600 IEC 6094751 6 A 120 V, AC15, A600 IEC 6094751 0.1 A 600 V, DC13, Q600 IEC 6094751 0.27 A 250 V, DC13, Q600 IEC 6094751 0.55 A 125 V, DC13, Q600 IEC 6094751 1.2 A 600 V, AC15, A600 IEC 6094751 Volt (v) Max. Voltage : 600 V 3)IEC 609471 Volt (V) IP Rating : IP66 Temperature Range : 40 158 F (40 70 C) Fahrenheit (oF) Operating Temperature : 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) Fahrenheit (oF)

Send Inquiry

PUSH BUTTON-XB5AW33G1N Price : 350.0 INR/Piece Minimum Order Quantity : 5 Mounting Type : Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 Rated Voltage : 110 Volt (V) Current Rating : 15 mA Material : Plastic Product Type : Illuminated pushbutton Protection Level : IP65 Warranty : 1YEAR Rated Current : 14 Milliampere (mA) Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751 Weight : 0.056 Kilograms (kg) Max. Current : 10 Ampere (amp) Max. Voltage : 110 Volt (V) IP Rating : IP65 Temperature Range : 70 Celsius (oC) Color : Green Operating Temperature : 70 Celsius (oC)

Send Inquiry

Push Button-XB5AW36M1N Price : 551.72 INR/Piece Minimum Order Quantity : 4 Mounting Type : Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 Rated Voltage : 220...240 V AC 50/60 Hz Volt (V) Current Rating : 10 A Material : Dark grey plastic Product Type : Illuminated pushbutton Protection Level : IP65 Warranty : 1 YEAR Rated Current : 10 A Ampere (amp) Insulation Resistance : Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751 Weight : 0.056 kg Kilograms (kg) Max. Current : 10 A Ampere (amp) Max. Voltage : 220...240 V AC 50/60 Hz Volt (V) IP Rating : IP65 Color : Blue

Send Inquiry

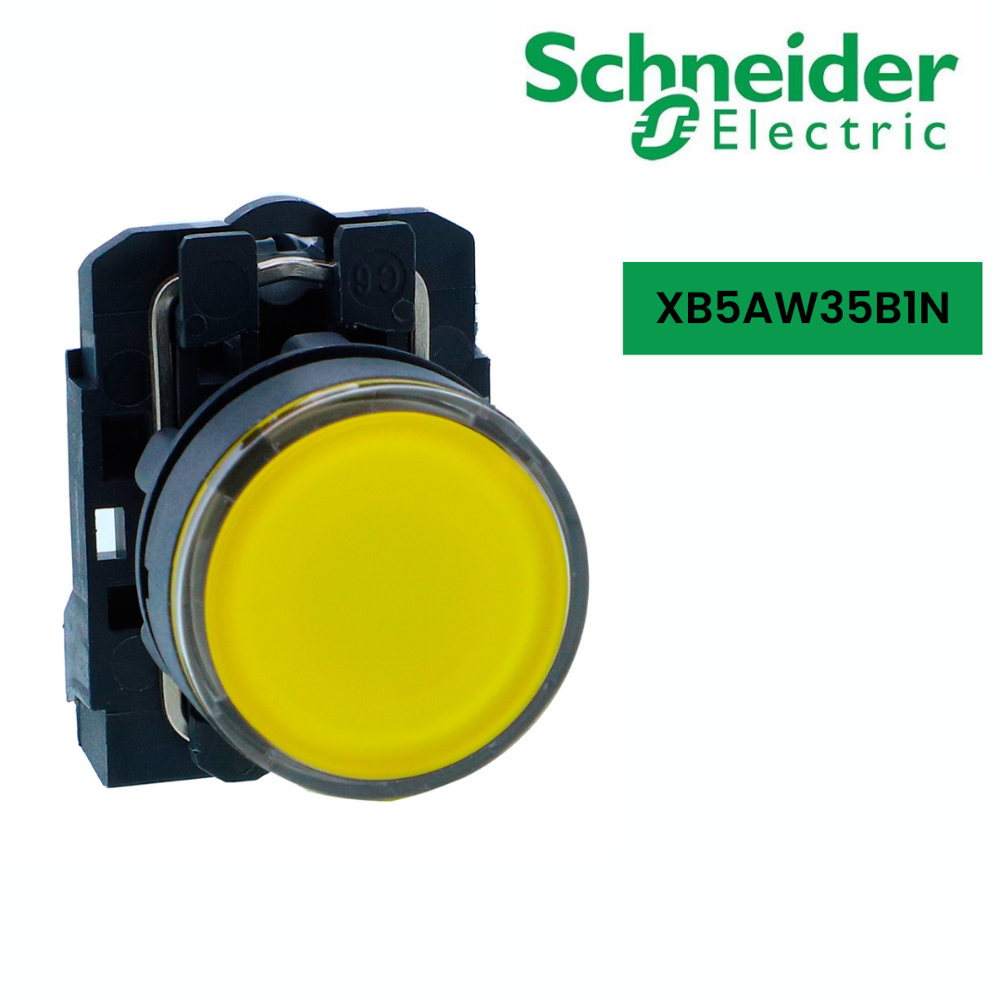

Push Button-XB5AW35B1N Price : 299.52 INR/Piece Minimum Order Quantity : 4 Mounting Type : Fixing hole diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 6094751 Rated Voltage : 24 V AC/DC 50/60 Hz Volt (V) Current Rating : 10 A Material : Dark grey plastic Product Type : Illuminated pushbutton Protection Level : IP65 Warranty : 1 YEAR Rated Current : 10 A Ampere (amp) Insulation Resistance : 600 V (pollution degree 3) conforming to IEC 609471 Circuit Type : 10 A cartridge fuse type gG conforming to IEC 6094751 Weight : 0.056 kg Kilograms (kg) Max. Current : 10 A Ampere (amp) Max. Voltage : 24 V AC/DC 50/60 Hz Volt (V) IP Rating : IP65
