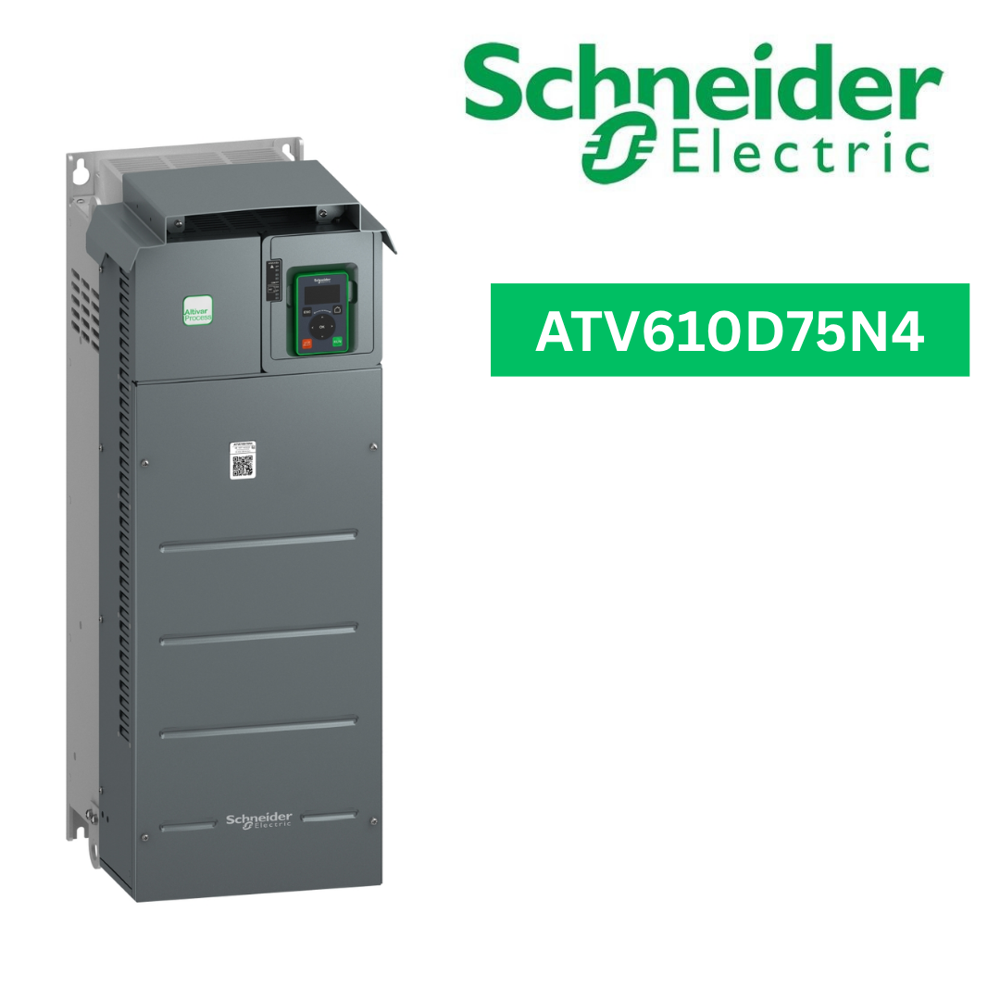

Schneider VFD ATV610D75N4

137696.32 INR/Piece

Get a Price/Quote

Product Details:

Phase THREE PHASE
Warranty 1 YEAR
Rated Voltage 460 Volt (V)
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial
IP Rating IP20
Rated Current 159 Ampere (amp)
Frequency 60 Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Schneider VFD ATV610D75N4 Price And Quantity

Minimum Order Quantity 16 Piece
Price 137696.32 INR/Piece

Schneider VFD ATV610D75N4 Product Specifications

Frequency (MHz) 60 Hertz (HZ)
Protection Level IP67
Phase THREE PHASE
Warranty 1 YEAR
Rated Current 159 Ampere (amp)
Input Voltage 380 Volt (V)
IP Rating IP20
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial
Rated Voltage 460 Volt (V)
Frequency 60 Hertz (HZ)
Weight 53 Kilograms (kg)
Application Fan, pump, compressor, conveyor
Connection Type Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 95...120 mm Motor, screw terminal: 95...120 mm
Mounting Type WALL MOUNT
Overheating Protection YES
Dimension (L*W*H) 290 Millimeter (mm)
Product Type Variable speed drive
Power Rating 75 KW

Schneider VFD ATV610D75N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 35 Piece Per Week
Delivery Time 5 Days
Sample Available No
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 75kW / 100hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW / 75hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 53.7kg and its dimensions are, 290mm wide, 762mm high, 323mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

Variable Speed Drive - ATV340D11N4 Price : 56197.44 INR/Piece Minimum Order Quantity : 17 Product Type : Variable speed drive Application : Machine Weight : 9.5 Kilograms (kg) Frequency : 60 Hertz (HZ) Rated Voltage : 400 Volt (V) Rated Current : 34.7 Ampere (amp) Phase : 3 Phase IP Rating : IP20 Warranty : 1 Year Frequency (MHz) : 60 Hertz (HZ) Color : Black Connector Type : 1 RJ45 Overheating Protection : YES Operating Temperature : 70 Celsius (oC) Connection Type : Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 4...25 mm for line side Screw terminal, clamping capacity: 4...25 mm for DC bus Screw terminal, clamping capacity: 2.5...25 mm for motor Mounting Type : Cabinet mount Insulation Material : 2...16 kHz adjustable 4...16

Send Inquiry

Variable Speed Drive -ATV340U40N4 Price : 35559.36 INR/Piece Minimum Order Quantity : 1 Product Type : Variable speed drive Application : Machine Weight : 47 Kilograms (kg) Frequency : 60 Hertz (HZ) Rated Voltage : 401 Volt (V) Rated Current : 9.3 Ampere (amp) Phase : THREE PHASE IP Rating : IP20 Warranty : 1 YEAR Frequency (MHz) : 60 Hertz (HZ) Connector Type : 1 RJ45 Power Rating : 4KW Overheating Protection : YES Connection Type : Line side: screw terminal 1.5...4 mm /AWG 14...AWG 12 DC bus: screw terminal 4...6 mm /AWG 12...AWG 10 Motor: screw terminal 1.5...4 mm /AWG 14...AWG 12 Control: screw terminal 0.2...2.5 mm /AWG 24...AWG 12 Mounting Type : WALL MOUNT

Send Inquiry

Variable Speed Drive -ATV310HU15N4E Price : 11566.08 INR/Piece Minimum Order Quantity : 1 Product Type : Variable speed drive Application : Simple machine Weight : 1.1 Kilograms (kg) Frequency : 60 Hertz (HZ) Rated Voltage : 460 Volt (V) Rated Current : 6 Ampere (amp) Phase : THREE PHASE IP Rating : IP20 Warranty : 1YEAR Frequency (MHz) : 400 Hertz (HZ) Color : BLACK Connector Type : RJ45 (on front face) for Modbus Power Rating : 1.5KW Overheating Protection : YES Operating Temperature : 70 Celsius (oC) Connection Type : Terminal, clamping capacity: 1.5...2.5 mm , AWG 16...AWG 14 (L1, L2, L3, PA/+, PB, U, V, W) Insulation Material : Electrical between power and control

Send Inquiry

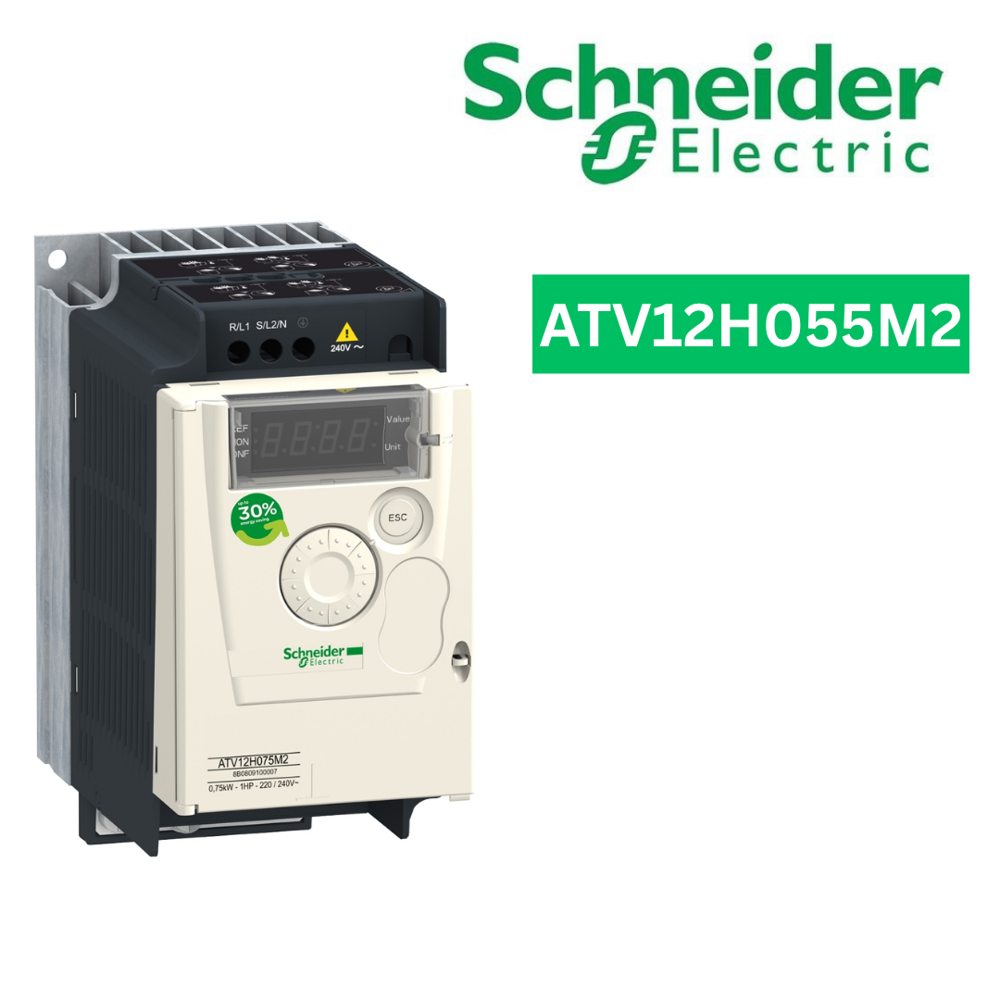

Variable Speed Drive -ATV12H055M2 Price : 8691.87 INR/Piece Minimum Order Quantity : 2 Product Type : Variable speed drive Application : Simple machine Weight : 0.8 Kilograms (kg) Frequency : 60 Hertz (HZ) Rated Voltage : 240 Volt (V) Rated Current : 3.5 Ampere (amp) Phase : SINGLE PHASE IP Rating : IP20 Warranty : 1YEAR Frequency (MHz) : 60 Hertz (HZ) Color : BLACK/WHITE Connector Type : 1 RJ45 Power Rating : 0.55KW Overheating Protection : YES Operating Temperature : 60 Celsius (oC)
