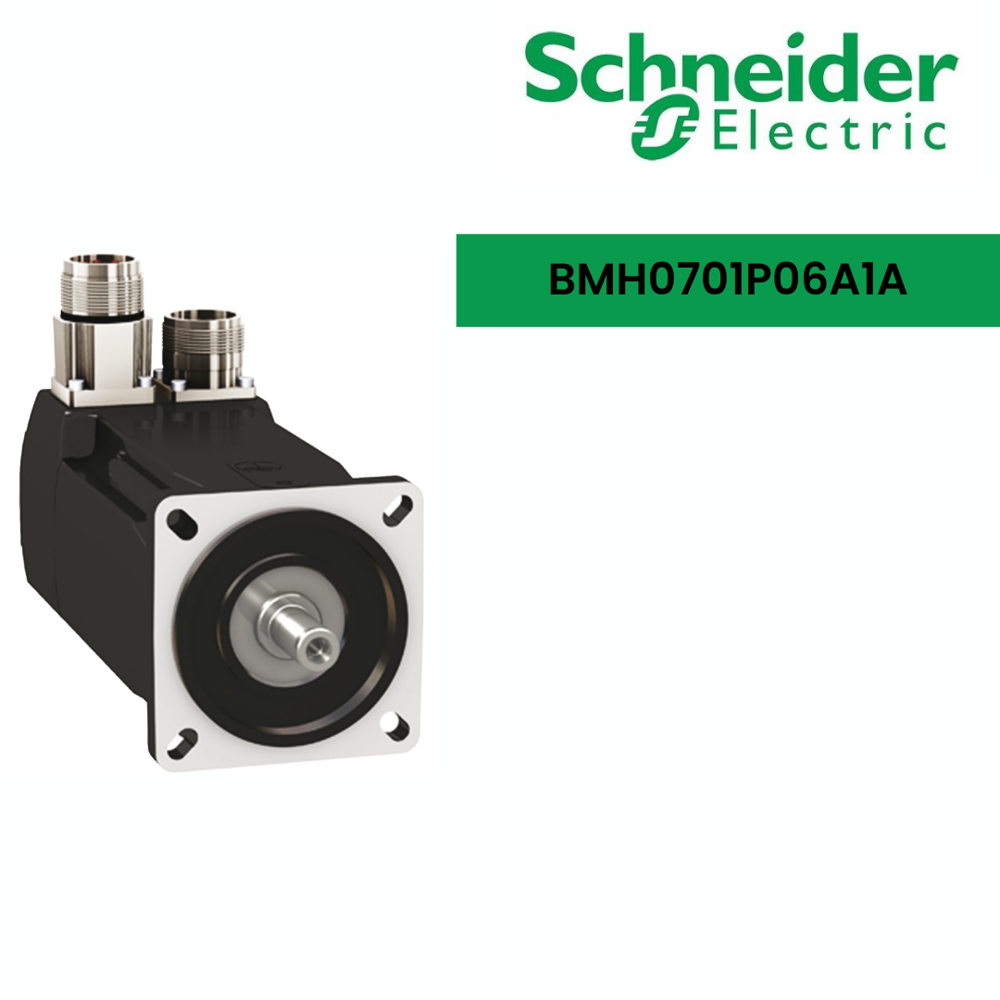

servo motor-BMH0701P06A1A

26419.05 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 year
Poles Number 10
Material yes
Voltage 480V Volt (v)
Power Rating 0.15kW to 11kW
Features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake
Current Type 1.78A
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

servo motor-BMH0701P06A1A Price And Quantity

Minimum Order Quantity 1 Piece
Price 26419.05 INR/Piece

servo motor-BMH0701P06A1A Product Specifications

Torque 9.7 lbf.in (1.1 N.m) LXM32.U60N4 1.5 A, 400 V, three phase 9.7 lbf.in (1.1 N.m) LXM32.U60N4 1.5 A, 480 V, three phase 11.5 lbf.in (1.3 N.m) LXM32.D12N4 3 A, 400 V, three phase 11.5 lbf.in (1.3 N.m) LXM32.D12N4 3 A, 480 V, three phase N-m
Dimension (L*W*H) 2.5mm (depth) x 60mm (diameter) Millimeter (mm)
Rated Voltage 480V Volt (V)
Product Type Servo Motor
Features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake
Power Rating 0.15kW to 11kW
Voltage 480V Volt (v)
IP Rating IP54
Rated Current 5.97 A Ampere (amp)
Speed 8000RPM RPM
Mounting Type International standard flange
Warranty 1 year
Starting Type Electric Start
Current Type 1.78A
Power 1.05W Watt (w)
Phase Three Phase
Material yes
Output Power 350 W LXM32.U60N4 1.5 A, 400 V, three phase 350 W LXM32.U60N4 1.5 A, 480 V, three phase 700 W LXM32.D12N4 3 A, 400 V, three phase 700 W LXM32.D12N4 3 A, 480 V, three phase Watt (w)
Weight 3.5 lb(US) (1.6 kg) Kilograms (kg)
Poles Number 10

servo motor-BMH0701P06A1A Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available No
Packaging Details raip with cartun
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface feedback with 32,768 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with straight connectors for electrical connection. It is an IP54 rated product. The length of this product is 122mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 1.6kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.U60N4 at 400V to 480V three phase and LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
