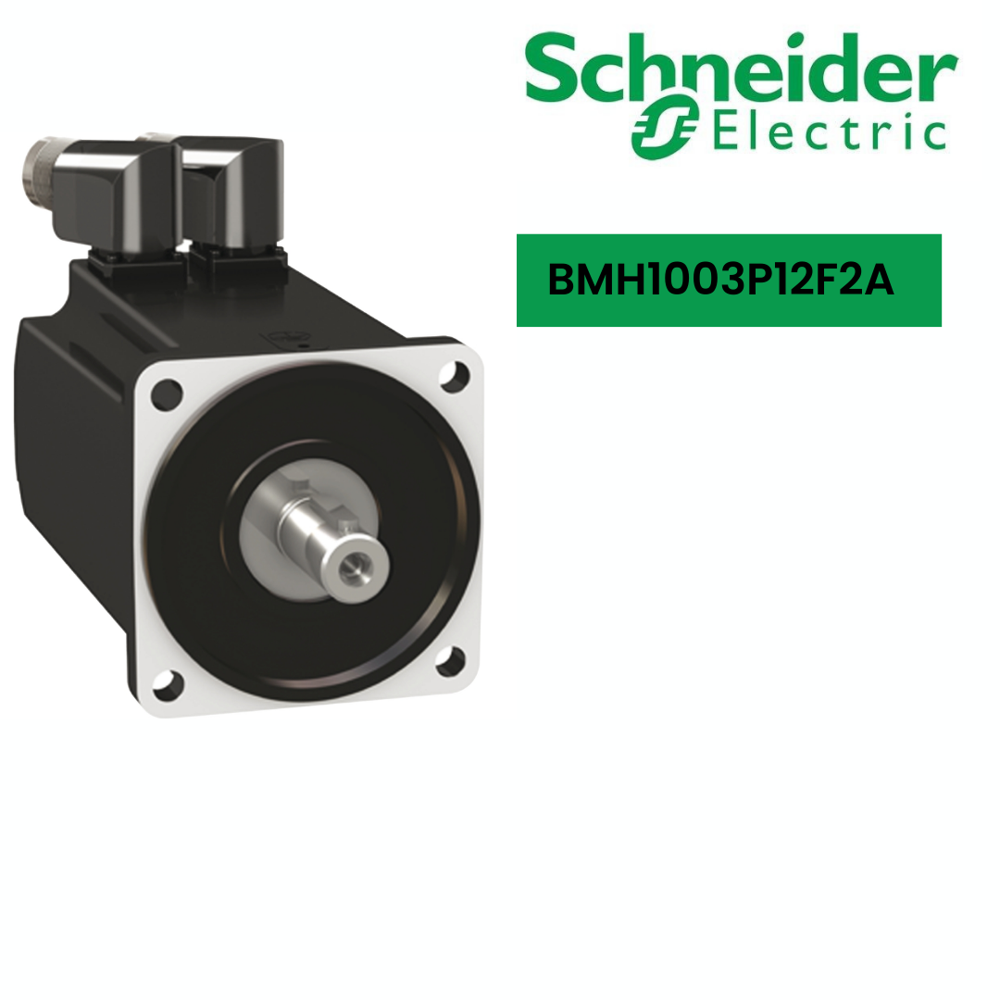

Servo Motor-BMH1003P12F2A

85891.4 INR/Piece

Get a Price/Quote

Product Details:

Current Type 29.1 A
Features maximum mechanical speed
Power Rating 3.3W
Poles Number 5
Warranty 1 YEAR
Rated Current 29.1 A Ampere (amp)
IP Rating IP54
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor-BMH1003P12F2A Price And Quantity

Price 85891.4 INR/Piece
Minimum Order Quantity 1 Piece

Servo Motor-BMH1003P12F2A Product Specifications

Mounting Type mounting support is an international standard flange
Current Type 29.1 A
Phase Three Phase
Weight 8.15 kg Kilograms (kg)
Power 3.3W Watt (w)
Power Rating 3.3W
Shaft Diameter 19 mm Millimeter (mm)
Features maximum mechanical speed
Speed 6000RPM RPM
Product Type Servo Motor
Torque 6.2 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 6.2 N.m for LXM32.D30N4 at 10 A, 480 V, three phase N-m
Dimension (L*W*H) 39.5 Millimeter (mm)
Poles Number 5
Rated Voltage 480V Volt (V)
IP Rating IP54
Voltage 480V Volt (v)
Rated Current 29.1 A Ampere (amp)
Material YES
Output Power 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase 2700 W for LXM32.D30N4 at 10 A, 480 V, three phase Watt (w)
Warranty 1 YEAR
Color BLACK

Servo Motor-BMH1003P12F2A Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 6000RPM, a keyed shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 7.69A, a continuous power of 3.3W, and a continuous stall torque of 8.4Nm. Its degree of protection is IP54 rated. The motor flange size is 100mm, fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. It weighs 8.15kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
