Servo Motor -BCH2MM1023CA6C

41108.9 INR/Piece

Get a Price/Quote

Product Details:

Ambient Temperature -20 40 C Celsius (oC)
IP Rating IP65
Poles Number 5
Current Type 5.77A
Voltage 220 Volt (v)
Rated Current 5.77A Ampere (amp)
Rated Voltage 220 Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BCH2MM1023CA6C Price And Quantity

Minimum Order Quantity 1 Piece
Price 41108.9 INR/Piece

Servo Motor -BCH2MM1023CA6C Product Specifications

Ambient Temperature -20 40 C Celsius (oC)
Product Type Servo Motor
Rated Voltage 220 Volt (V)
Poles Number 5
IP Rating IP65
Warranty 1YEAR
Dimension (L*W*H) 8mm (Depth) x 110mm (Diameter) with 145mm Millimeter (mm)
Weight 7 Kilograms (kg)
Power 1000 Watt (w)
Shaft Diameter 22 mm Millimeter (mm)
Protect Feature Other
Phase Three Phase
Rated Current 5.77A Ampere (amp)
Voltage 220 Volt (v)
Operating Temperature -20 40 C Celsius (oC)
Mounting Type Asian standard flange
Output Power 1000 Watt (w)
Speed 3000 RPM
Current Type 5.77A
Power Rating 4.5KW

Servo Motor -BCH2MM1023CA6C Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 5.77A and a continuous power of 1000W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 147mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Servo Motor' category

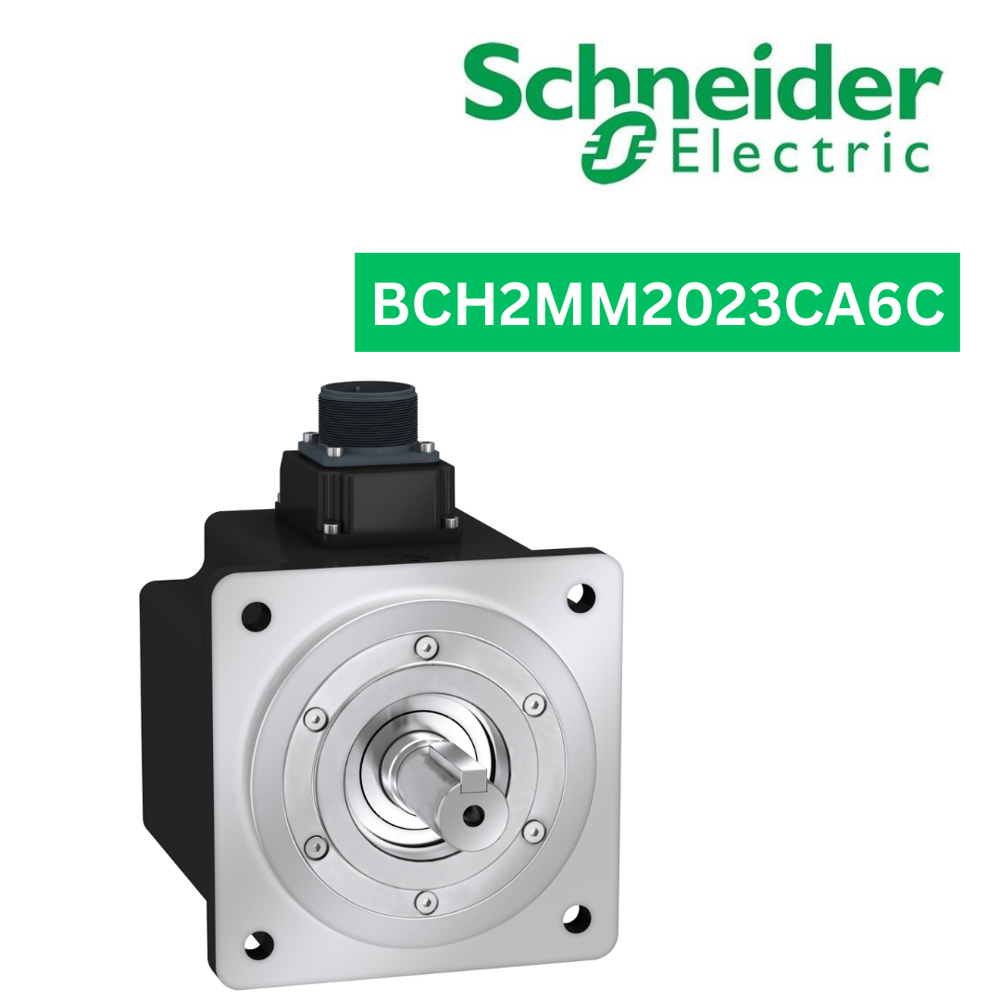

Servo Motor -BCH2MM2023CA6C Price : 54527.9 INR/Piece Minimum Order Quantity : 1 Weight : 9.7 Kilograms (kg) Shaft Diameter : 22 Millimeter (mm) Power : 2000 Watt (w) Phase : Three Phase Operating Temperature : 20 40 C Celsius (oC) Power Rating : 4.5KW Product Type : Servo Motor Rated Voltage : 220 Volt (V) Warranty : 1YEAR Efficacy : Other Dimension (L*W*H) : 8mm (Depth) x 110mm (Diameter) with 145mm Millimeter (mm) Rated Current : 9.95 Ampere (amp) Voltage : 220 Volt (v) Mounting Type : Asian standard flange Speed : 3000 RPM Ambient Temperature : 20 40 C Celsius (oC) Poles Number : 5 IP Rating : IP65 Protect Feature : Other Current Type : 9.95A Output Power : 2000 Watt (w)
