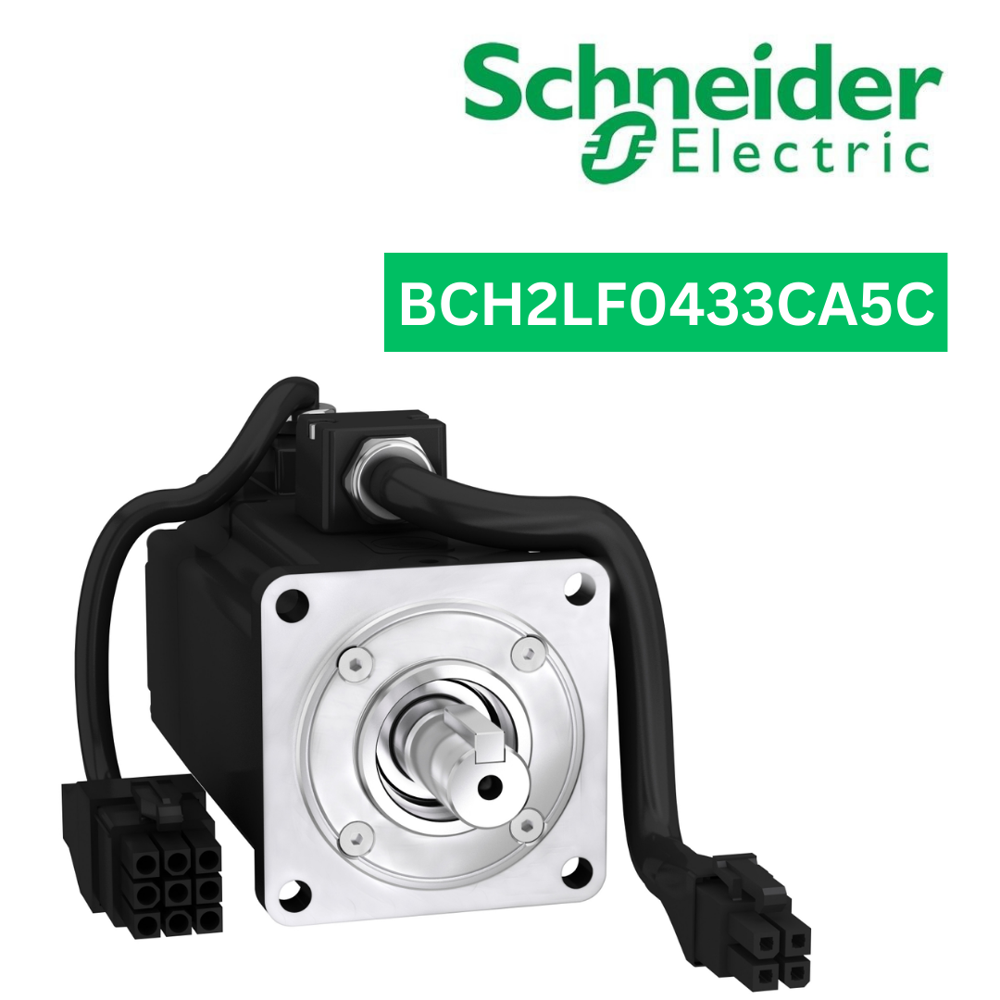

Servo Motor -BCH2LF0433CA5C

27998.0 INR/Piece

Get a Price/Quote

Product Details:

Poles Number 4
IP Rating IP65
Current Type 2.29A
Warranty 1YEAR
Rated Voltage 220 Volt (V)
Power Rating 4.5KW
Rated Current 2.29 Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BCH2LF0433CA5C Price And Quantity

Minimum Order Quantity 1 Piece
Price 27998.0 INR/Piece

Servo Motor -BCH2LF0433CA5C Product Specifications

Weight 2 Kilograms (kg)
Product Type Servo Motor
Ambient Temperature -20 40 C Celsius (oC)
Current Type 2.29A
Dimension (L*W*H) 4mm (Depth) x 70mm (Diameter) with 90mm Millimeter (mm)
Warranty 1YEAR
Rated Voltage 220 Volt (V)
Power Rating 4.5KW
Speed 5000 RPM
Efficacy Other
Operating Temperature 135 Celsius (oC)
Poles Number 4
Power 400 Watt (w)
Rated Current 2.29 Ampere (amp)
Voltage 220 Volt (v)
Mounting Type Asian standard flange
Output Power 400W Watt (w)
Shaft Diameter 14 mm Millimeter (mm)
Phase Three Phase
IP Rating IP65
Protect Feature Other

Servo Motor -BCH2LF0433CA5C Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Paypal, Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 112mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
