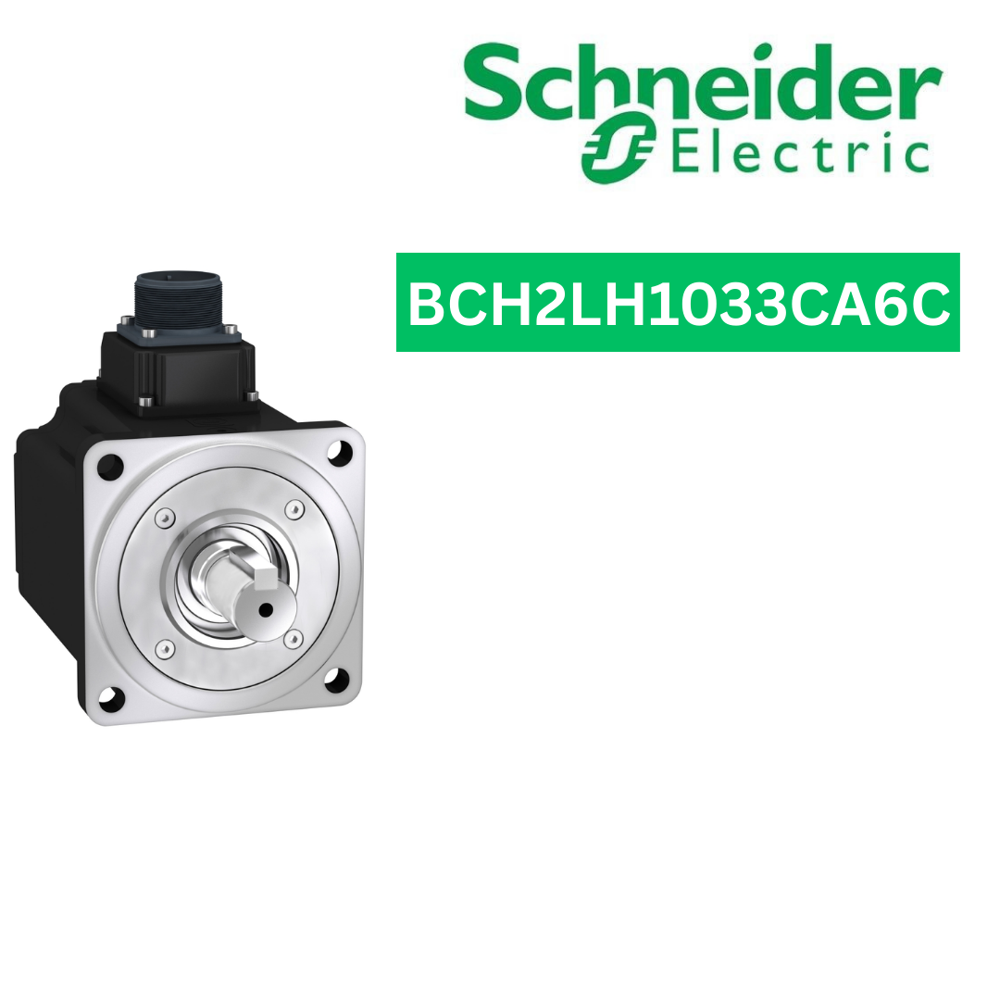

Servo Motor -BCH2LH1033CA6C

39201.75 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 4.5KW
Rated Voltage 220 Volt (V)
Poles Number 5
Warranty 1YEAR
Current Type 5.83A
IP Rating IP65
Operating Temperature -20 40 C Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BCH2LH1033CA6C Price And Quantity

Minimum Order Quantity 1 Piece
Price 39201.75 INR/Piece

Servo Motor -BCH2LH1033CA6C Product Specifications

Rated Voltage 220 Volt (V)
Efficacy Other
Power Rating 4.5KW
Shaft Diameter 22 mm Millimeter (mm)
Operating Temperature -20 40 C Celsius (oC)
Rated Current 5.83 Ampere (amp)
Weight 4.6 Kilograms (kg)
Phase Three Phase
Speed 5000 RPM
Mounting Type Asian standard flange
Output Power 1000 Watt (w)
Product Type Servo Motor
Dimension (L*W*H) 7mm (depth) x 95mm (diameter) with 115mm Millimeter (mm)
Protect Feature Other
Power 1000 Watt (w)
Poles Number 5
Warranty 1YEAR
Current Type 5.83A
IP Rating IP65
Voltage 220 Volt (v)
Ambient Temperature -20 40 C Celsius (oC)

Servo Motor -BCH2LH1033CA6C Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.83A and a continuous power of 1000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 153.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.6kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1kW 220V single phase and LXM26D servo drive motor. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
