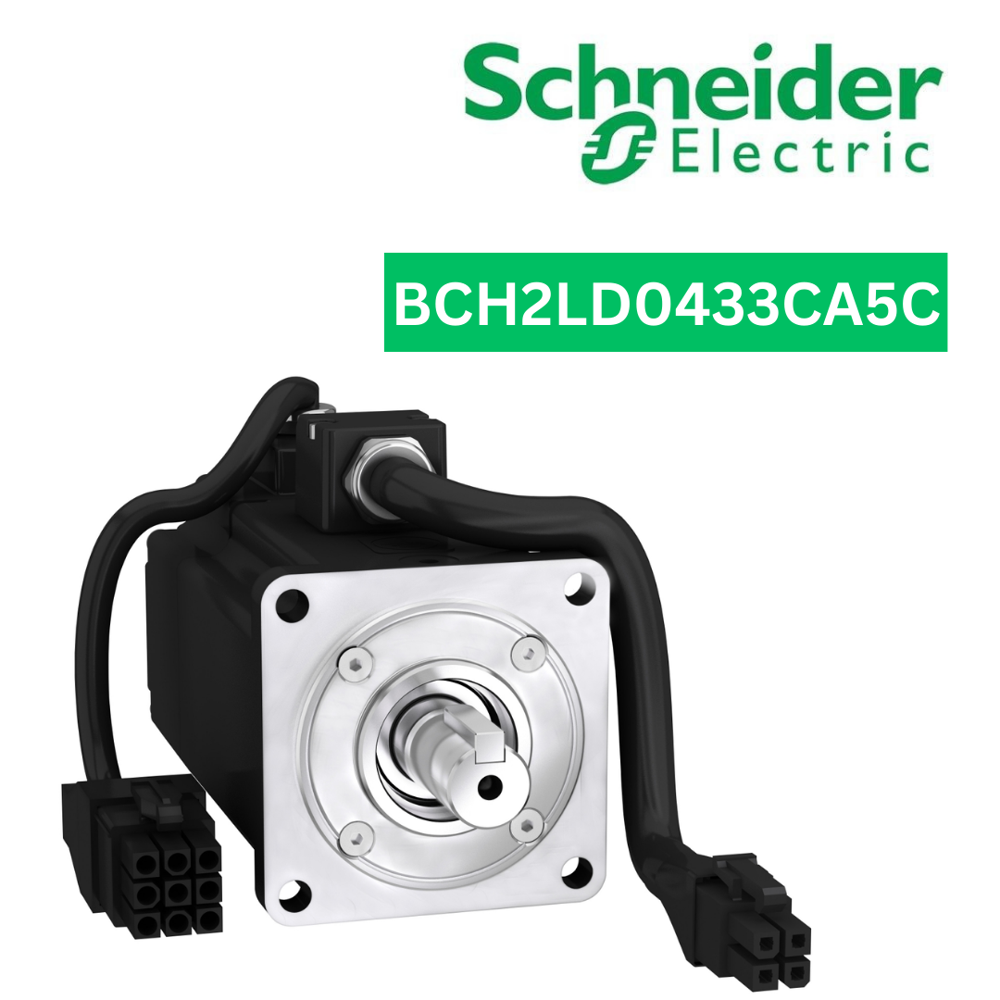

Servo Motor -BCH2LD0433CA5C

28234.85 INR/Piece

Get a Price/Quote

Product Details:

Poles Number 4
Voltage 220 Volt (v)
Rated Voltage 220 Volt (V)
Operating Temperature 135 Celsius (oC)
Current Type 2.19A
Rated Current 2.19 Ampere (amp)
Power Rating 4.5KW
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BCH2LD0433CA5C Price And Quantity

Price 28234.85 INR/Piece
Minimum Order Quantity 1 Piece

Servo Motor -BCH2LD0433CA5C Product Specifications

Weight 1.45 kg Kilograms (kg)
Power 400 Watt (w)
Protect Feature Other
Ambient Temperature -20 40 C Celsius (oC)
IP Rating IP65
Phase Three Phase
Product Type Servo Motor
Power Rating 4.5KW
Rated Current 2.19 Ampere (amp)
Speed 5000 RPM
Efficacy Other
Dimension (L*W*H) 5.5mm (Depth) x 50mm (Diameter) with 70mm c Millimeter (mm)
Current Type 2.19A
Warranty 1YEAR
Operating Temperature 135 Celsius (oC)
Shaft Diameter 14mm (Diameter) x 30mm (Length) Millimeter (mm)
Output Power 400W Watt (w)
Mounting Type Asian standard flange
Rated Voltage 220 Volt (V)
Voltage 220 Volt (v)
Poles Number 4

Servo Motor -BCH2LD0433CA5C Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.19A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 129mm (Length) x 60mm (Width), centring collar dimensions are 5.5mm (Depth) x 50mm (Diameter) with 70mm circle diameter of the mounting hole. It weighs 1.45kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 60mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
