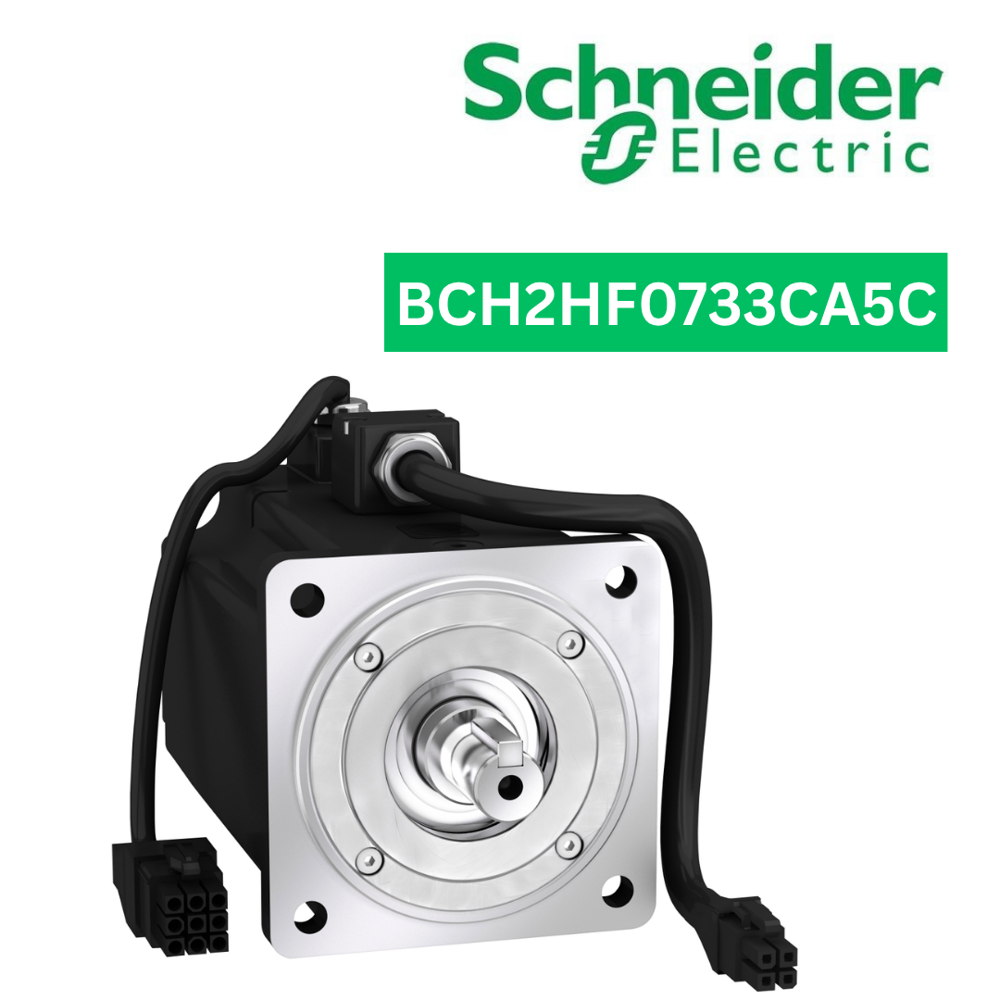

Servo Motor -BCH2HF0733CA5C

32759.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 4 Ampere (amp)
Operating Temperature 40 Celsius (oC)
Cooling Method Natural convection
Power Rating 4.5KW
Ambient Temperature 40 Celsius (oC)
Poles Number 4
IP Rating IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BCH2HF0733CA5C Price And Quantity

Price 32759.0 INR/Piece
Minimum Order Quantity 2 Piece

Servo Motor -BCH2HF0733CA5C Product Specifications

Speed 5000 RPM
Operating Temperature 40 Celsius (oC)
Mounting Type Asian standard flange
Ambient Temperature 40 Celsius (oC)
Dimension (L*W*H) 35 Millimeter (mm)
Rated Current 4 Ampere (amp)
Protect Feature Other
Power Rating 4.5KW
Rated Voltage 220 Volt (V)
Voltage 220 Volt (v)
Phase Three Phase
Warranty 1YEAR
Cooling Method Natural convection
Efficacy Other
Shaft Diameter 19 Millimeter (mm)
IP Rating IP65
Weight 2.9 Kilograms (kg)
Power 750 Watt (w)
Product Type Servo Motor
Poles Number 4

Servo Motor -BCH2HF0733CA5C Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 138mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2.9kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Servo Motor' category

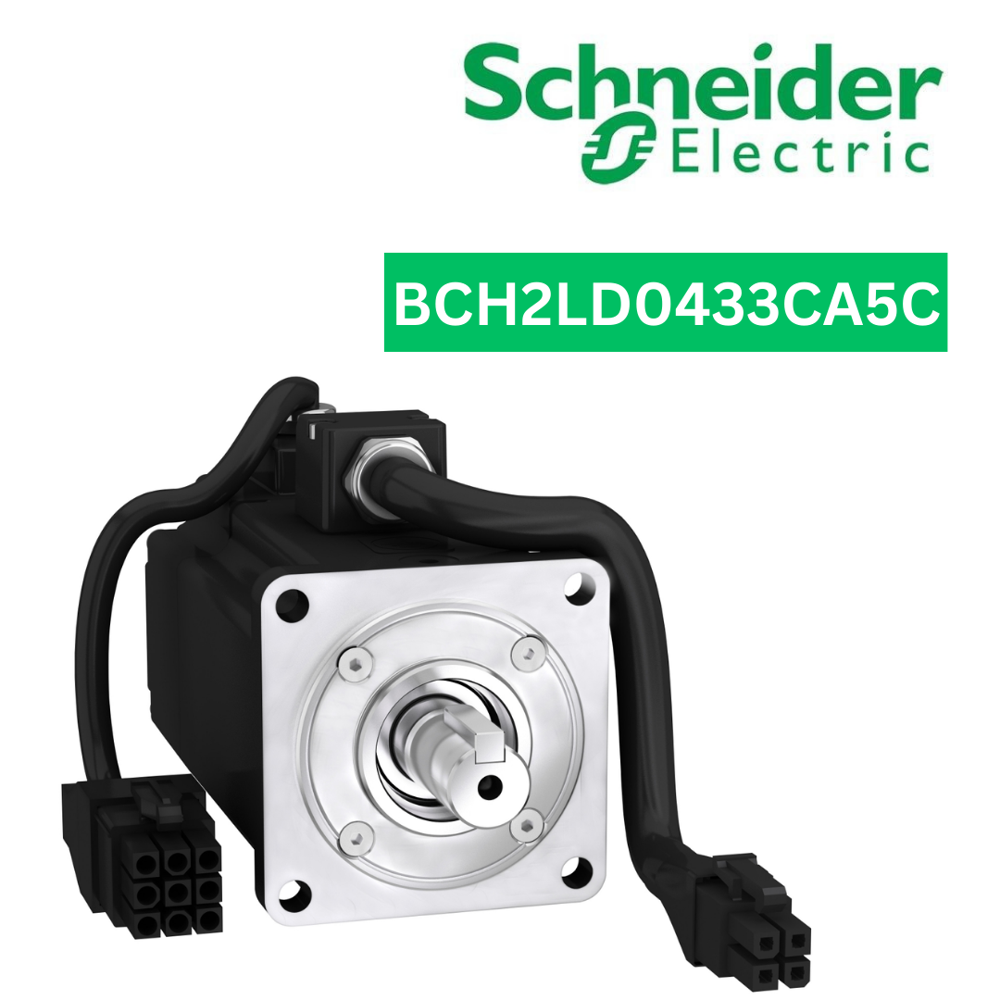

Servo Motor -BCH2LD0433CA5C Price : 28234.85 INR/Piece Minimum Order Quantity : 1 Voltage : 220 Volt (v) Mounting Type : Asian standard flange Protect Feature : Other Ambient Temperature : 20 40 C Celsius (oC) IP Rating : IP65 Shaft Diameter : 14mm (Diameter) x 30mm (Length) Millimeter (mm) Weight : 1.45 kg Kilograms (kg) Poles Number : 4 Product Type : Servo Motor Rated Voltage : 220 Volt (V) Phase : Three Phase Warranty : 1YEAR Speed : 5000 RPM Operating Temperature : 135 Celsius (oC) Efficacy : Other Power : 400 Watt (w) Output Power : 400W Watt (w) Current Type : 2.19A Dimension (L*W*H) : 5.5mm (Depth) x 50mm (Diameter) with 70mm c Millimeter (mm) Rated Current : 2.19 Ampere (amp) Power Rating : 4.5KW

Send Inquiry

Servo Motor -BCH2MB0133CA5C Price : 23263.8 INR/Piece Minimum Order Quantity : 1 Voltage : 220 Volt (v) Mounting Type : Asian standard flange Protect Feature : Other Ambient Temperature : 135 C Celsius (oC) IP Rating : IP65 Shaft Diameter : 8 mm Millimeter (mm) Weight : 0.56 Kilograms (kg) Poles Number : 4 Product Type : Servo Motor Rated Voltage : 220 Volt (V) Phase : Three Phase Warranty : 1YEAR Speed : 5000 RPM Operating Temperature : 100 C Celsius (oC) Efficacy : Other Power : 100 Watt (w) Output Power : 100 Watt (w) Current Type : 0.81A Dimension (L*W*H) : 8mm (Diameter) x 25mm (Length) Millimeter (mm) Rated Current : 0.81 Ampere (amp) Power Rating : 4.5KW

Send Inquiry

Servo Motor -BCH2LF0433CA5C Price : 27998.0 INR/Piece Minimum Order Quantity : 1 Voltage : 220 Volt (v) Mounting Type : Asian standard flange Protect Feature : Other Ambient Temperature : 20 40 C Celsius (oC) IP Rating : IP65 Shaft Diameter : 14 mm Millimeter (mm) Weight : 2 Kilograms (kg) Poles Number : 4 Product Type : Servo Motor Rated Voltage : 220 Volt (V) Phase : Three Phase Warranty : 1YEAR Speed : 5000 RPM Operating Temperature : 135 Celsius (oC) Efficacy : Other Power : 400 Watt (w) Output Power : 400W Watt (w) Current Type : 2.29A Dimension (L*W*H) : 4mm (Depth) x 70mm (Diameter) with 90mm Millimeter (mm) Rated Current : 2.29 Ampere (amp) Power Rating : 4.5KW

Send Inquiry

Servo Motor -BCH2LF0733CA5C Price : 31998.0 INR/Piece Minimum Order Quantity : 1 Voltage : 220 Volt (v) Mounting Type : Asian standard flange Protect Feature : Other Ambient Temperature : 20 40 C Celsius (oC) IP Rating : IP65 Shaft Diameter : 19 mm Millimeter (mm) Weight : 2.8 Kilograms (kg) Poles Number : 4 Product Type : Servo Motor Rated Voltage : 220 Volt (V) Phase : Three Phase Warranty : 1YEAR Speed : 5000 RPM Operating Temperature : 135 Celsius (oC) Efficacy : Other Power : 750 Watt (w) Output Power : 750 Watt (w) Current Type : 4A Dimension (L*W*H) : 4mm (Depth) x 70mm (Diameter) with 90mm Millimeter (mm) Rated Current : 4A Ampere (amp) Power Rating : 4.5KW
