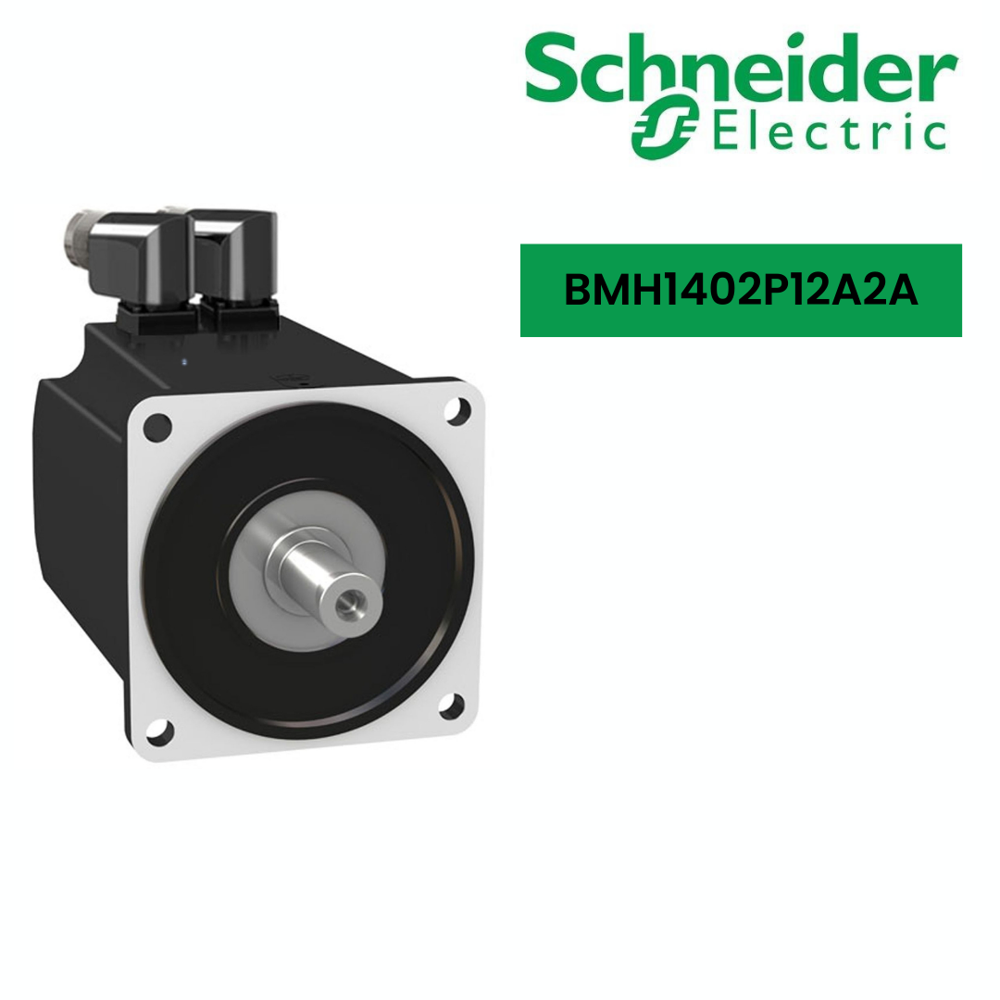

Servo Motor-BMH1402P12A2A

87614.1 INR/Piece

Get a Price/Quote

Product Details:

Current Type 57.4 A
Features maximum mechanical speed of 4000RPM and keyed shaft end without holding brake
Rated Voltage 480V Volt (V)
Poles Number 10
IP Rating IP54
Torque 12.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 12.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase N-m
Warranty 1 YEAR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor-BMH1402P12A2A Price And Quantity

Price 87614.1 INR/Piece
Minimum Order Quantity 1 Piece

Servo Motor-BMH1402P12A2A Product Specifications

Poles Number 10
Phase Three Phase
Product Type Servo Motor
Mounting Type International standard flange
IP Rating IP54
Speed 4000RPM RPM
Power Rating 4.44W.
Power 4.44W. Watt (w)
Torque 12.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 12.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase N-m
Weight 12 Kilograms (kg)
Dimension (L*W*H) dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole Millimeter (mm)
Voltage 480V Volt (v)
Rated Current 57.4 A Ampere (amp)
Shaft Diameter 24 mm Millimeter (mm)
Color BLACK
Output Power 3500 W for LXM32.D72N4 at 24 A, 400 V, three phase 3500 W for LXM32.D72N4 at 24 A, 480 V, three phase Watt (w)
Current Type 57.4 A
Warranty 1 YEAR
Material YES
Features maximum mechanical speed of 4000RPM and keyed shaft end without holding brake
Rated Voltage 480V Volt (V)

Servo Motor-BMH1402P12A2A Trade Information

Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA), Paypal
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end without holding brake. It is an equipped with a multi-turn SinCos Hiperface feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 16.83A and a continuous power of 4.44W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 192mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 12kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Servo Motor' category

Servo Motor -BSH0703P12A2A Price : 86328.0 INR/Piece Minimum Order Quantity : 1 Mounting Type : International standard flange Voltage : 480 Volt (v) Power : 750 Watt (w) IP Rating : IP50 Speed : 8000 RPM Poles Number : 6 Phase : Three Phase Product Type : Servo Motor Rated Voltage : 480 Volt (V) Protect Feature : Other Weight : 3.65 Kilograms (kg) Warranty : 1YEAR Current Type : 4.1A Shaft Diameter : 14MM Millimeter (mm) Dimension (L*W*H) : 2.5mm (Depth) x 60mm (Diameter) with 82mm Millimeter (mm) Rated Current : 4.1A Ampere (amp) Power Rating : 1.7W Operating Temperature : 120 Celsius (oC) Efficacy : Other Ambient Temperature : 100 Celsius (oC) Output Power : 750 Watt (w) Frequency (MHz) : 8 kHz Hertz (HZ)

Send Inquiry

Servo Motor-BMH0702P16A2A Price : 32727.45 INR/Piece Minimum Order Quantity : 5 Mounting Type : 4point axial mounting flange. Voltage : 480V Volt (v) Power : 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable rightangled connectors Watt (w) IP Rating : IP54 Speed : 8000RPM RPM Poles Number : 10 Phase : Three Phase Product Type : Servo Motor Rated Voltage : 480V Volt (V) Weight : 2.3kg Kilograms (kg) Warranty : 1 YEAR Current Type : 2.94A9.68 A Dimension (L*W*H) : 154mm (Length) x 70mm (Width), Millimeter (mm) Rated Current : 9.68 A Ampere (amp) Power Rating : 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). Output Power : 700 W for LXM32.D12N4 at 3 A, 400 V, three phase 700 W for LXM32.D12N4 at 3 A, 480 V, three phase Watt (w) Features : medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake. Starting Type : Electric Start

Send Inquiry

Servo Motor -BCH2LF0733CA5C Price : 31998.0 INR/Piece Minimum Order Quantity : 1 Mounting Type : Asian standard flange Voltage : 220 Volt (v) Power : 750 Watt (w) IP Rating : IP65 Speed : 5000 RPM Poles Number : 4 Phase : Three Phase Product Type : Servo Motor Rated Voltage : 220 Volt (V) Protect Feature : Other Weight : 2.8 Kilograms (kg) Warranty : 1YEAR Current Type : 4A Shaft Diameter : 19 mm Millimeter (mm) Dimension (L*W*H) : 4mm (Depth) x 70mm (Diameter) with 90mm Millimeter (mm) Rated Current : 4A Ampere (amp) Power Rating : 4.5KW Operating Temperature : 135 Celsius (oC) Efficacy : Other Ambient Temperature : 20 40 C Celsius (oC) Output Power : 750 Watt (w)

Send Inquiry

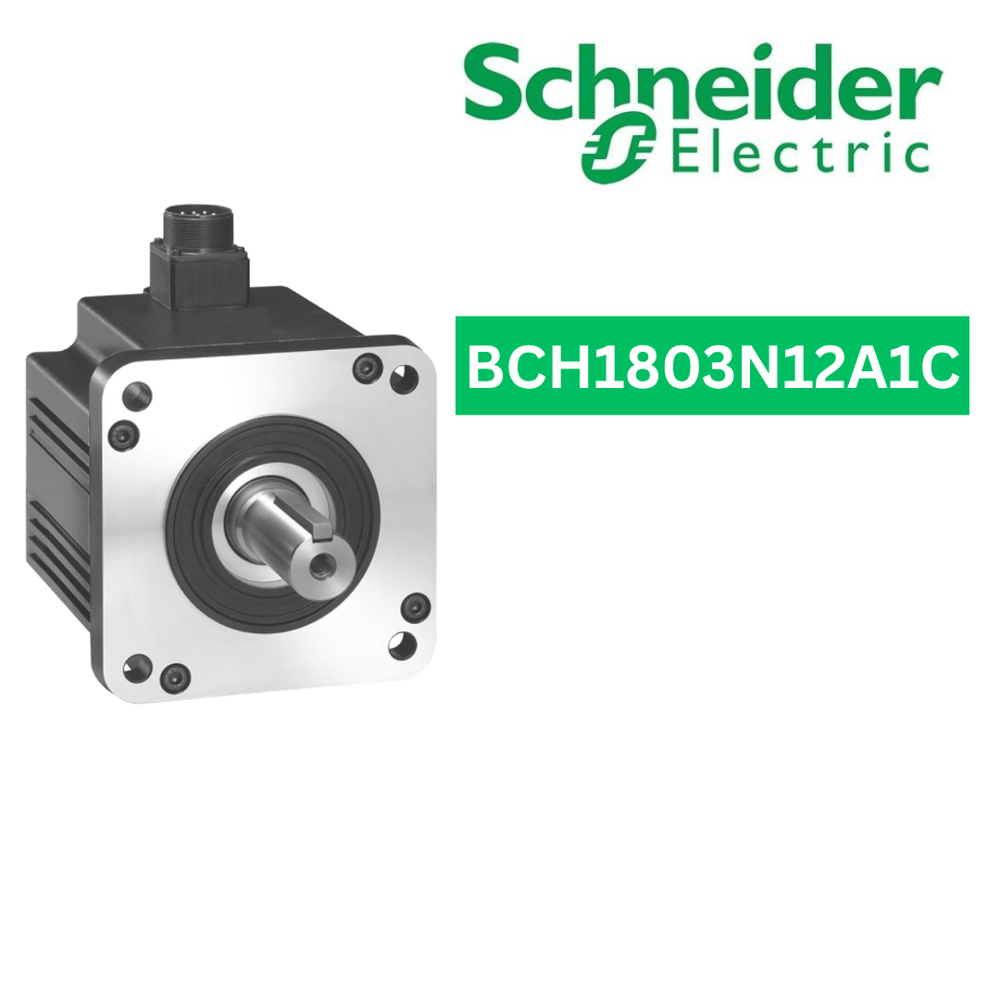

Servo Motor -BCH1803N12A1C Price : 51695.0 INR/Piece Minimum Order Quantity : 1 Mounting Type : Asian standard flange Voltage : 220 Volt (v) Power : 20 Watt (w) IP Rating : IP40 Speed : 3000 RPM Phase : Three Phase Product Type : Servo Motor Rated Voltage : 220 Volt (V) Protect Feature : Other Weight : 13.8 Kilograms (kg) Warranty : 1YEAR Shaft Diameter : 70 Millimeter (mm) Operating Temperature : 40 Celsius (oC) Efficacy : Other Ambient Temperature : 40 Celsius (oC)
