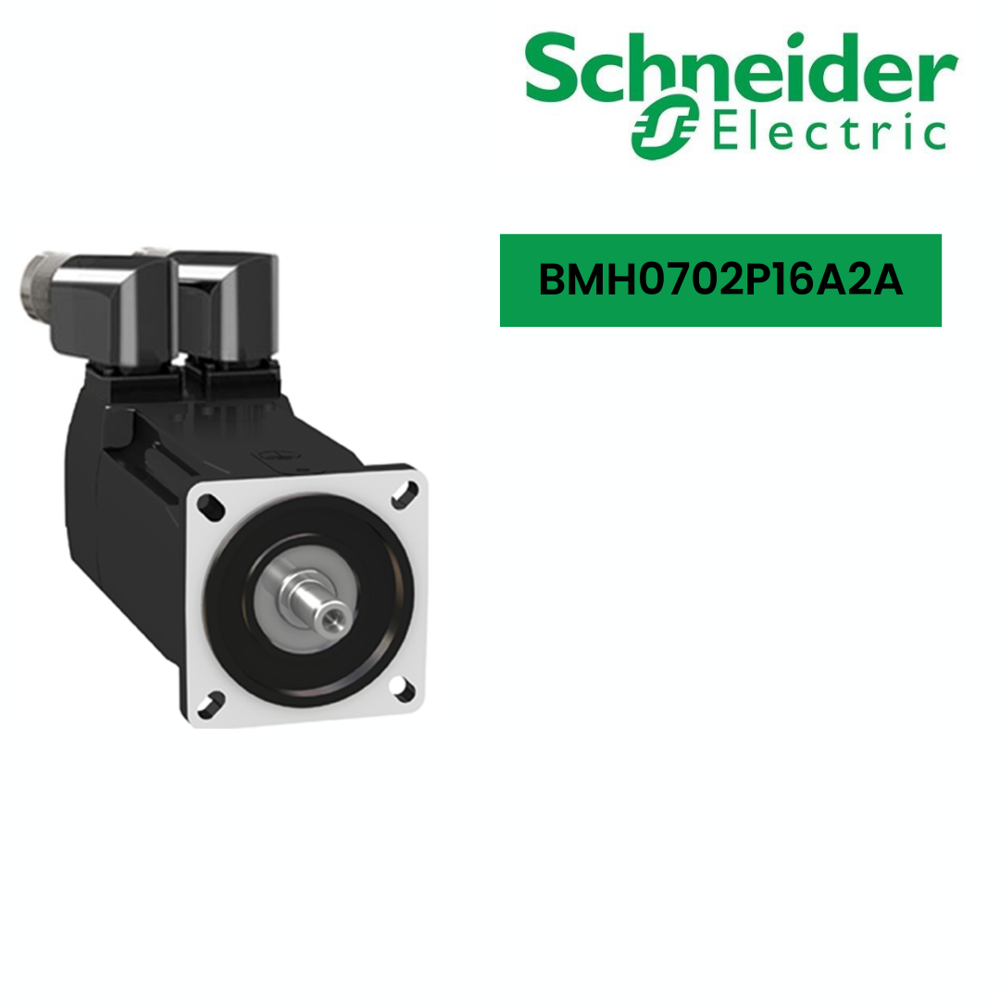

Servo Motor-BMH0702P16A2A
32727.45 INR/Piece
Product Details:
- Rated Voltage 480V Volt (V)
- Torque 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase N-m
- Warranty 1 YEAR
- Starting Type Electric Start
- Poles Number 10
- IP Rating IP54
- Voltage 480V Volt (v)
- Click to View more
X
Servo Motor-BMH0702P16A2A Price And Quantity
- 32727.45 INR/Piece
- 5 Piece
Servo Motor-BMH0702P16A2A Product Specifications
- 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable right-angled connectors Watt (w)
- 1 YEAR
- 700 W for LXM32.D12N4 at 3 A, 400 V, three phase 700 W for LXM32.D12N4 at 3 A, 480 V, three phase Watt (w)
- 154mm (Length) x 70mm (Width), Millimeter (mm)
- 480V Volt (V)
- YES
- 8000RPM RPM
- 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase N-m
- Servo Motor
- 2.94A-9.68 A
- 10
- 480V Volt (v)
- BLACK
- 9.68 A Ampere (amp)
- IP54
- Three Phase
- medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake.
- 2.3kg Kilograms (kg)
- 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length).
- Electric Start
- 4-point axial mounting flange.
Servo Motor-BMH0702P16A2A Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 30 Piece Per Week
- 5 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 2.94A and a continuous power of 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 154mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 2.3kg. This product is compatible with Lexium 32 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
